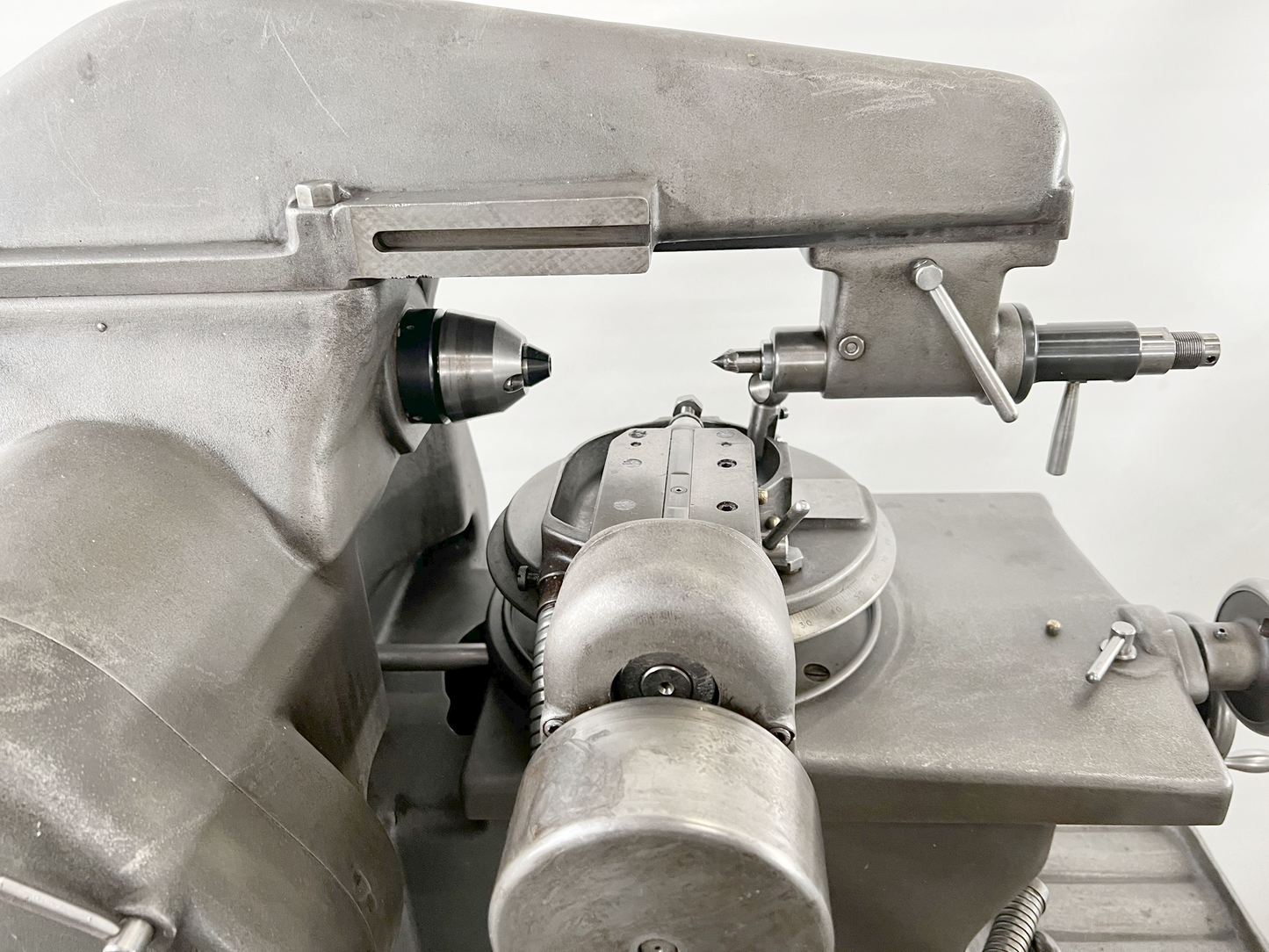

MIKRON 102.05 is a Universal gear hobbing machine, engineered for high precision, superior accuracy and reliable operation. Work capacity: max diameter 120 mm; collet attachment 20 W; max module 2; max workpiece length 130 mm; teeth number 2–400; spiral lead 2–5000 mm; spiral lead angle 0°–90°. Main specs: milling cutter speeds 14 steps 140–1870 t/min; feeds up to 1 mm/t; 50 Hz 3x380 V; power 0.75 kW (total installed 1 kW); machine weight ≈800 kg; dimensions 1200×700×1600 mm. Accessories: worm wheel milling device. Enables tight tolerances; typical applications: automotive, precision engineering, aerospace, medical.
| Work capacity:max. diameter | 120 mm |
| Collet attachment | 20 W |
| Max. module | 2 |
| Workpiece length max. | 130 mm |
| Pitch min. | 2 |
| max. | 400 |
| Spiral lead: | |
| from | 2 mm |
| up to | 5000 mm |
| Spiral lead angle: | |
| from | 0 ° |
| up to | 90 ° |
| Milling cutter speeds: | |
| number (steps) | 14 |
| from | 140 t/min |
| up to | 1870 t/min |
| Feeds: | |
| from | mm/t |
| up to | 1 mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 0.75 kW |
| Total power required | 1 kW |
| Machine's weight about | 800 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 700 mm |
| Height | 1600 mm |
| Various accessories: | |
| Worm wheel milling device |
