DIXI DPC 100 is a Horizontal machining center built for high precision, accuracy and reliability. Travels X 500 mm, Y 400 mm, Z 500 mm; 4 pallets 400x400 mm, max workpiece weight 300 kg. 96-tool magazine, tool Ø max 80 mm (160 mm with free pockets), tool length 300 mm, tool weight max 12 kg; tool change 2.5 s, chip-to-chip 6 s. Spindle ISO40 stepless 0–12,000 rpm, spindle power 5.5/7.5 kW; feed 1–12,000 mm/min, rapid 20 m/min; power 3x400V 50Hz; total installed 60 kVA; machine approx. 6000 kg; size 4330x3200x2520 mm; noise 75 dB(A). Accessories: 500 l coolant, 65 bar high-pressure coolant, RENISHAW 3D probe, chip conveyor, oil-mist extractor, spindle cooling. Delivers tight tolerances; suited to automotive, aerospace, medical, watchmaking and toolmaking
| Number of axis total | 4 |
| Longitudinal travel (X-axis) | 500 mm |
| Transversal travel (y-axis) | 400 mm |
| Vertical travel (z axis) | 500 mm |
| B axis | |
| Pallets: | |
| numbers | 4 |
| Length | 400 mm |
| Width | 400 mm |
| Maximum workpiece weight | 300 kg |
| Tool changer: | |
| Number of tools | 96 |
| Tool diameter max. | 80 mm |
| Diameter with free adjacent pockets | 160 mm |
| Tool lenght | 300 mm |
| Max. tool-weight | 12 kg |
| Time of tool changing | 2.5 s |
| Average chip-to-chip time | 6 s |
| Spindle nose: ISO | 40 DIN69871 |
| Distance spindle nose to table | 100 - 600 mm |
| Distance from vertical | |
| spindle to table | 20 - 420 mm |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 12000 t/min |
| Feed range | 1 - 12000 mm/min |
| Rapid traverse: | 20 m/min |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 5.5 / 7.5 kW |
| Total power required | 60 kVA |
| Noise level | 75 dB (A) |
| Machine's weight about | 6000 kg |
| Overall dimensions machine: | |
| Length | 4330 mm |
| Width | 3200 mm |
| Height | 2520 mm |
| Various accessories: | |
| Coolant system | 500 l |
| High pression colant device | 65 bar |

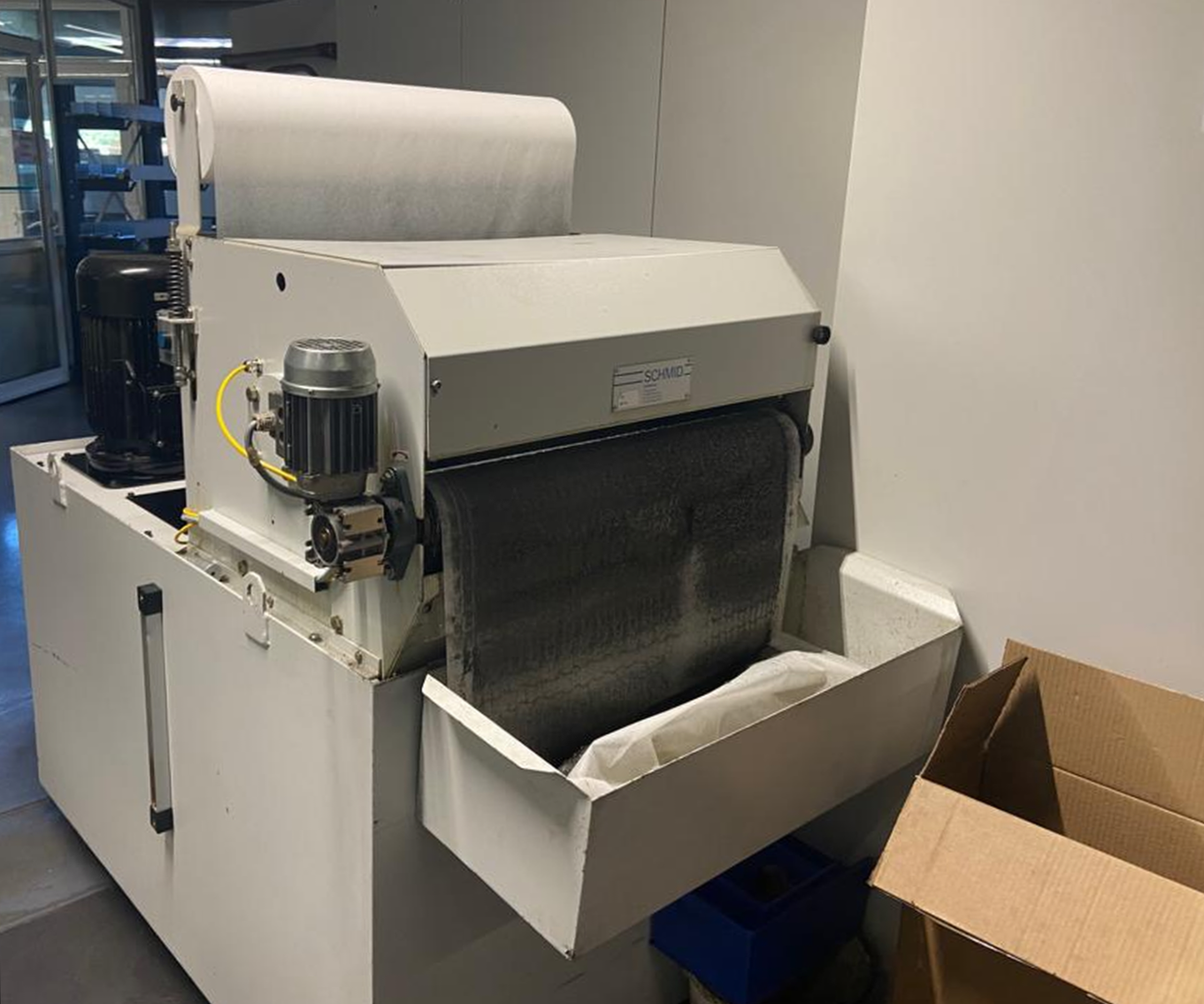

| Paper filtration system | |
| 3D measuring feeler gauge | RENISHAW |
| Chip conveyor | |
| Oil mist extractor | |
| Spindlecooling |
