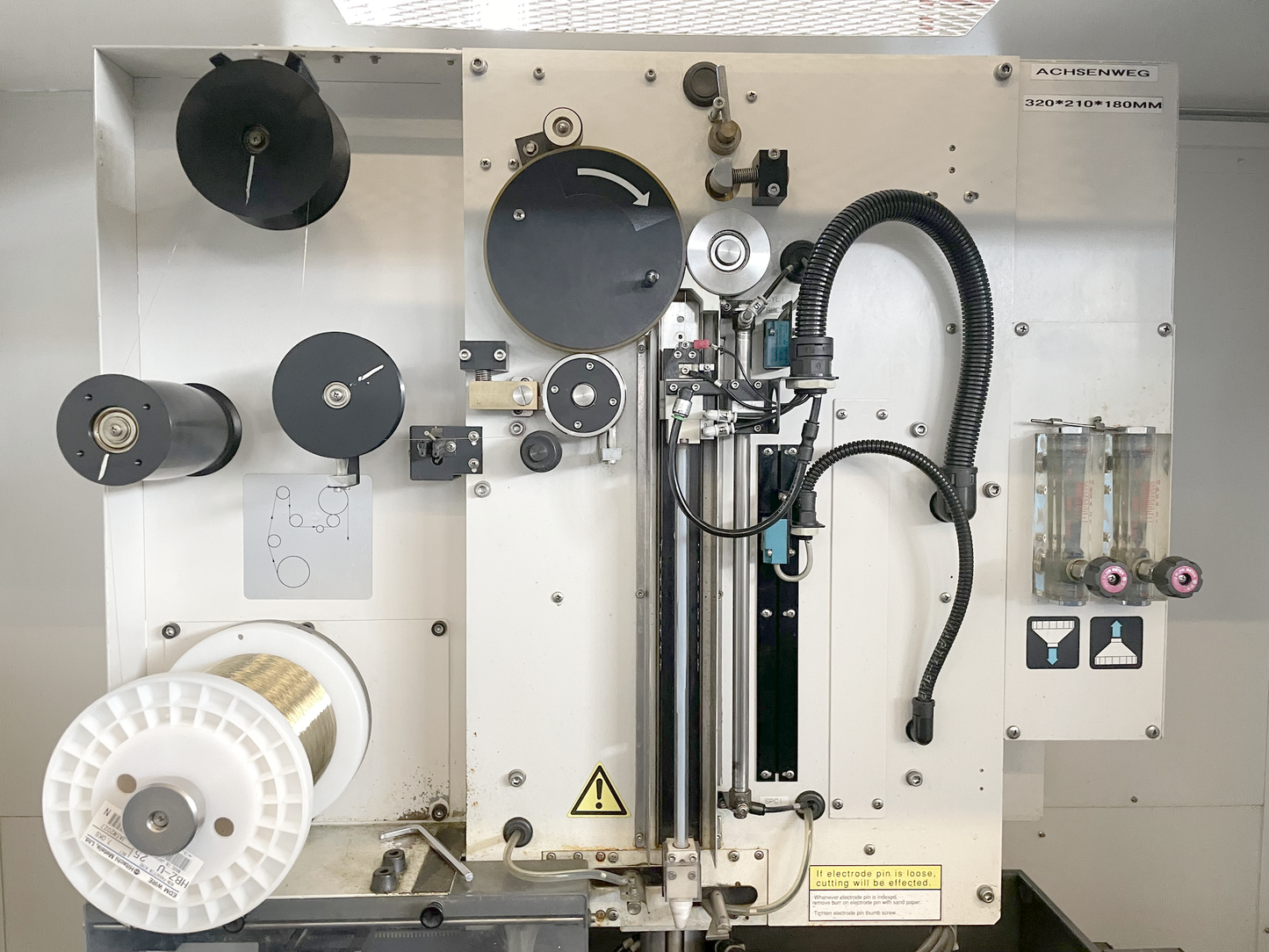

FANUC Robocut Alpha 0C
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
FANUC Robocut Alpha 0C is a wire cutting machine designed for precision, high accuracy and reliable performance. Working capacities: workpieces up to L650×W420×H180 mm, table load max 250 kg; travels X320 Y220 Z180 mm, U120 V120 mm; taper cut ±30°; wire from 0.1 mm; max coil 6 kg. Main specs: rapid traverse 900 mm/min, total power 11 kVA, dielectric volume 390 l, supply 3×400 V 50 Hz; machine weight ≈1500 kg; dimensions L1800×W1600×H2000 mm. Equipment: lamp, RS232 serial port. Delivers tight tolerances; ideal for automotive, aerospace, medical, watchmaking and toolmaking.
| Max. dimensions of work piece: | |
| Length | 650 mm |
| Width | 420 mm |
| Height | 180 mm |
| Table load max. | 250 kg |
| Longitudinal traverse (X-axis) | 320 mm |
| Cross traverse (Y-axis) | 220 mm |
| Vertical travel (Z axis) | 180 mm |
| U axis | 120 mm |
| V-axis | 120 mm |
| Rapid traverse: | 900 mm/min |
| Taper-cut +/- | 30 ° |
| Diameter of electrode wire: | |
| from | 0.1 mm |
| up to | mm |
| Max. coil weigth | 6 kg |
| Total power required | 11 kVA |
| Total volume of dielektric | 390 l |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 11 kVA |
| Machine's weight about | 1500 kg |
| Overall dimensions machine: | |
| Length | 1800 mm |
| Width | 1600 mm |
| Height | 2000 mm |
| Various accessories: | |
| Lamp | |
| Interface serial port RS 232 |
