021681 - BROTHER TC-31 A
Special Price
CHF 17 000
Special offer machines are sold as-is, without any warranty or inspection from us.
Need Assistance? Just WhatsApp Us!

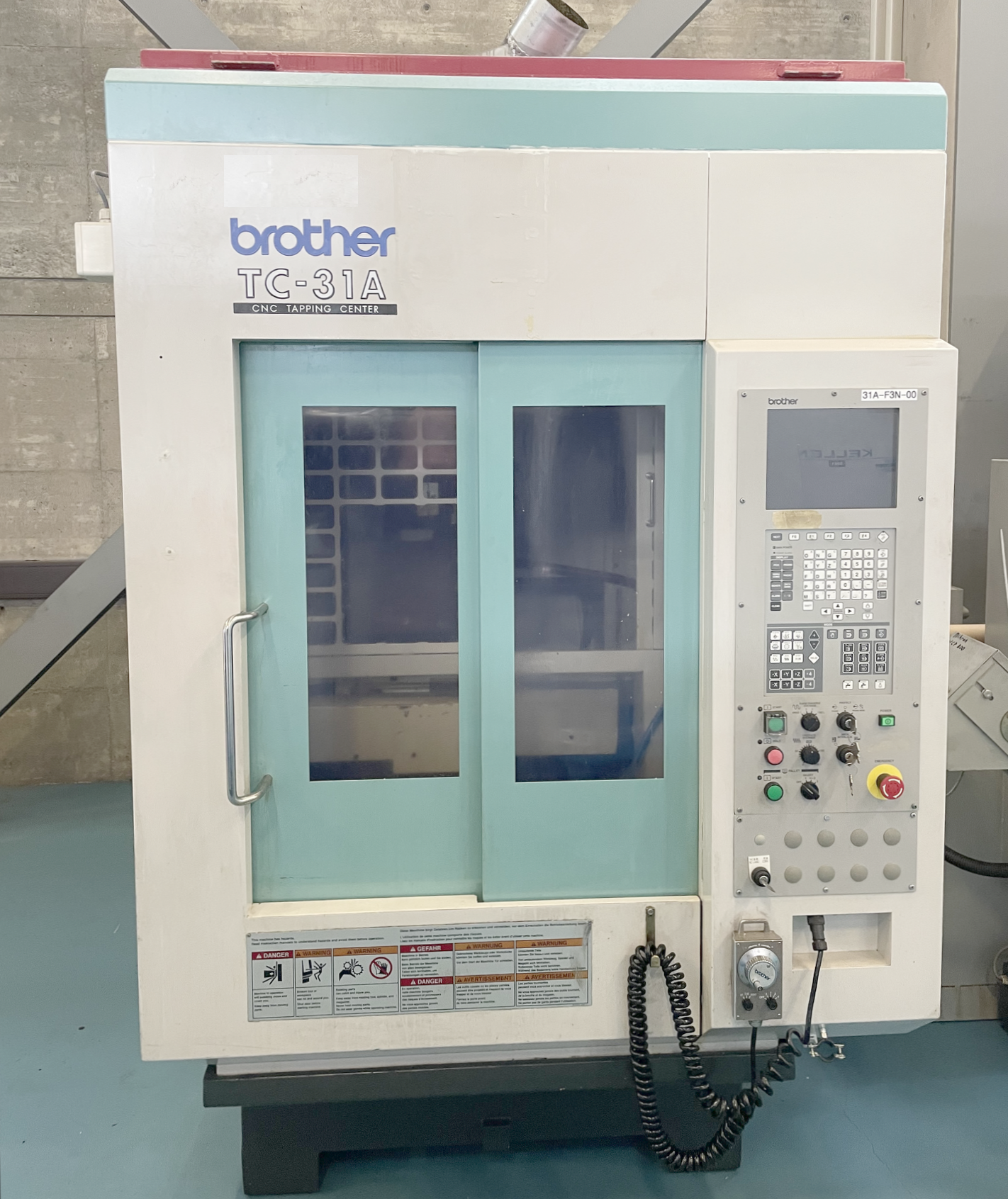

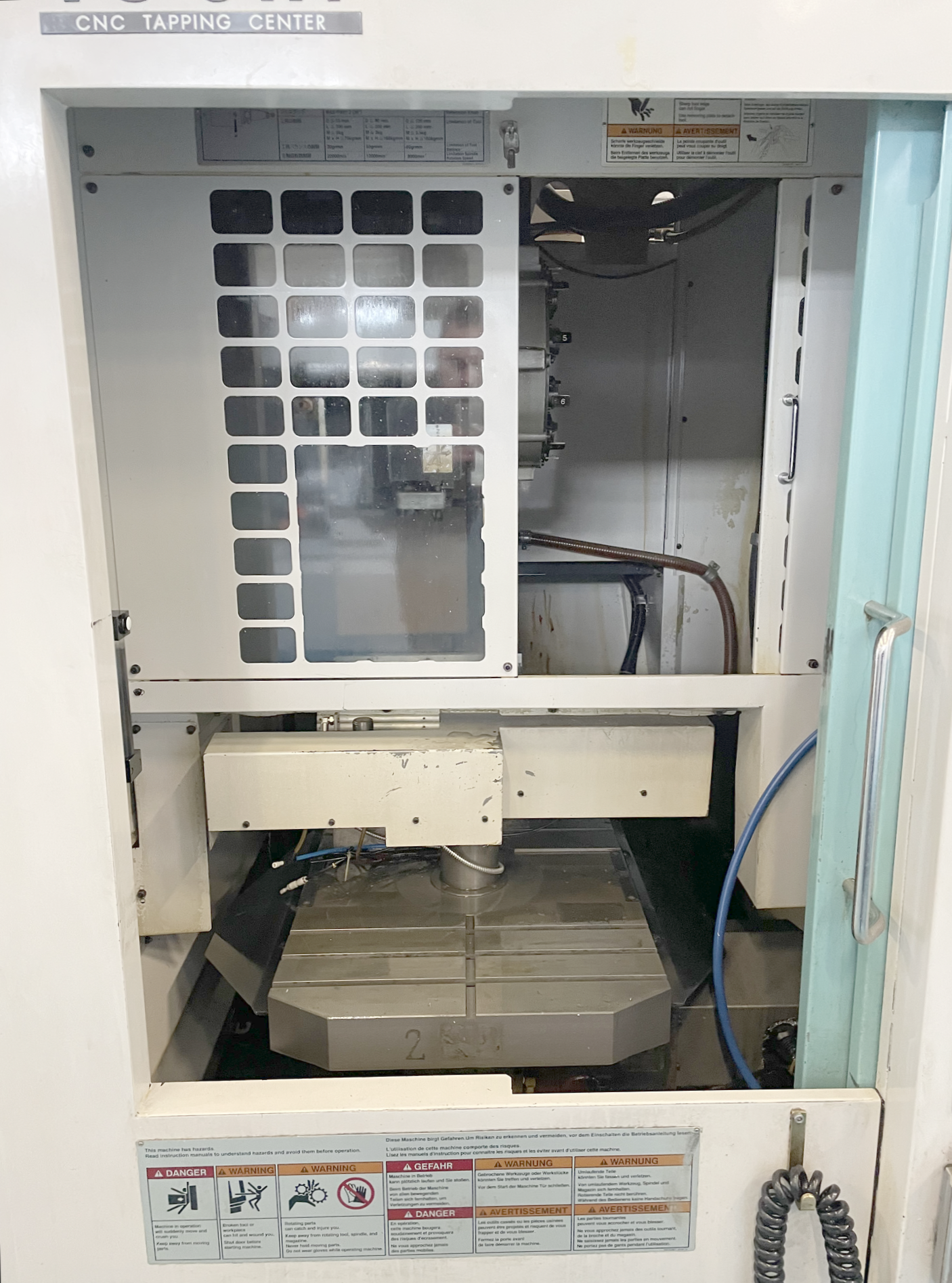

BROTHER TC-31 A is a Vertical machining center with 2 tables, engineered for precision, high accuracy and reliable performance. Working capacities: tables 500×270 mm, table load max 80 kg, travels X350×Y250×Z350 mm, spindle nose–table 200–550 mm, spindle nose BT30. Tooling: 26-place changer, tool Ø max 55 mm, length 200 mm, tool weight max 2 kg. Main specs: spindle 22–22,000 t/min (stepless), feed 5–20,000 mm/min, rapid traverse 50 m/min, air 4–6 bar, 3×380V 50Hz, total power 25 kVA; machine weight ~2100 kg; dims 2341×1410×2165 mm. Accessories: coolant system, tool setter, electronic handwheel, rinsing gun. Achieves tight tolerances; ideal for automotive, watchmaking, machine tools, aerospace and medical sectors.
| Number of axis total | 3 |
| Number of spindles | 1 |

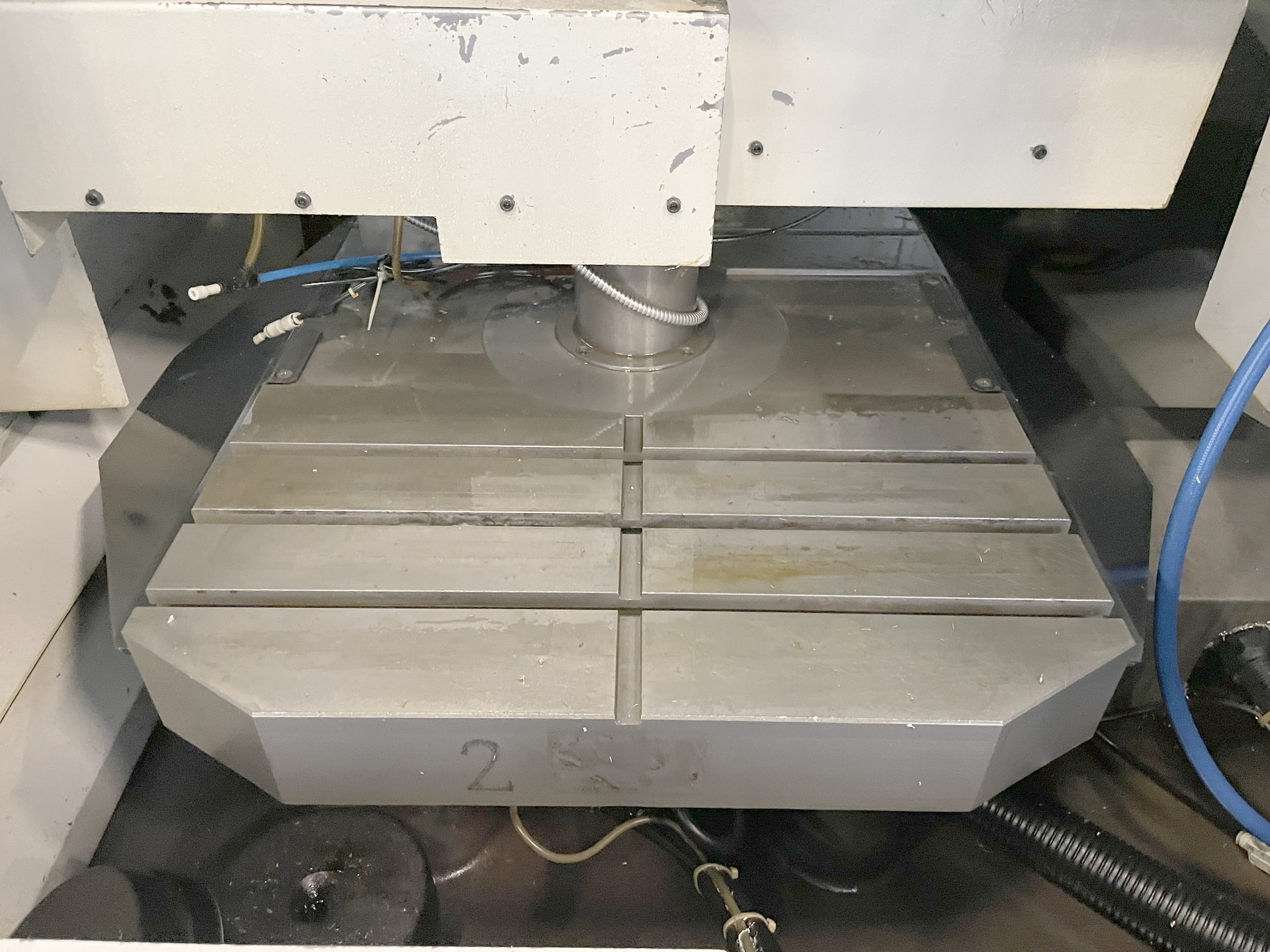

| Number of tables | 2 |
| Table length | 500 mm |
| Table width | 270 mm |
| Table load max. | 80 kg |
| Longitudinal travel (X-axis) | 350 mm |
| Transversal travel (y-axis) | 250 mm |
| Vertical travel (z axis) | 350 mm |

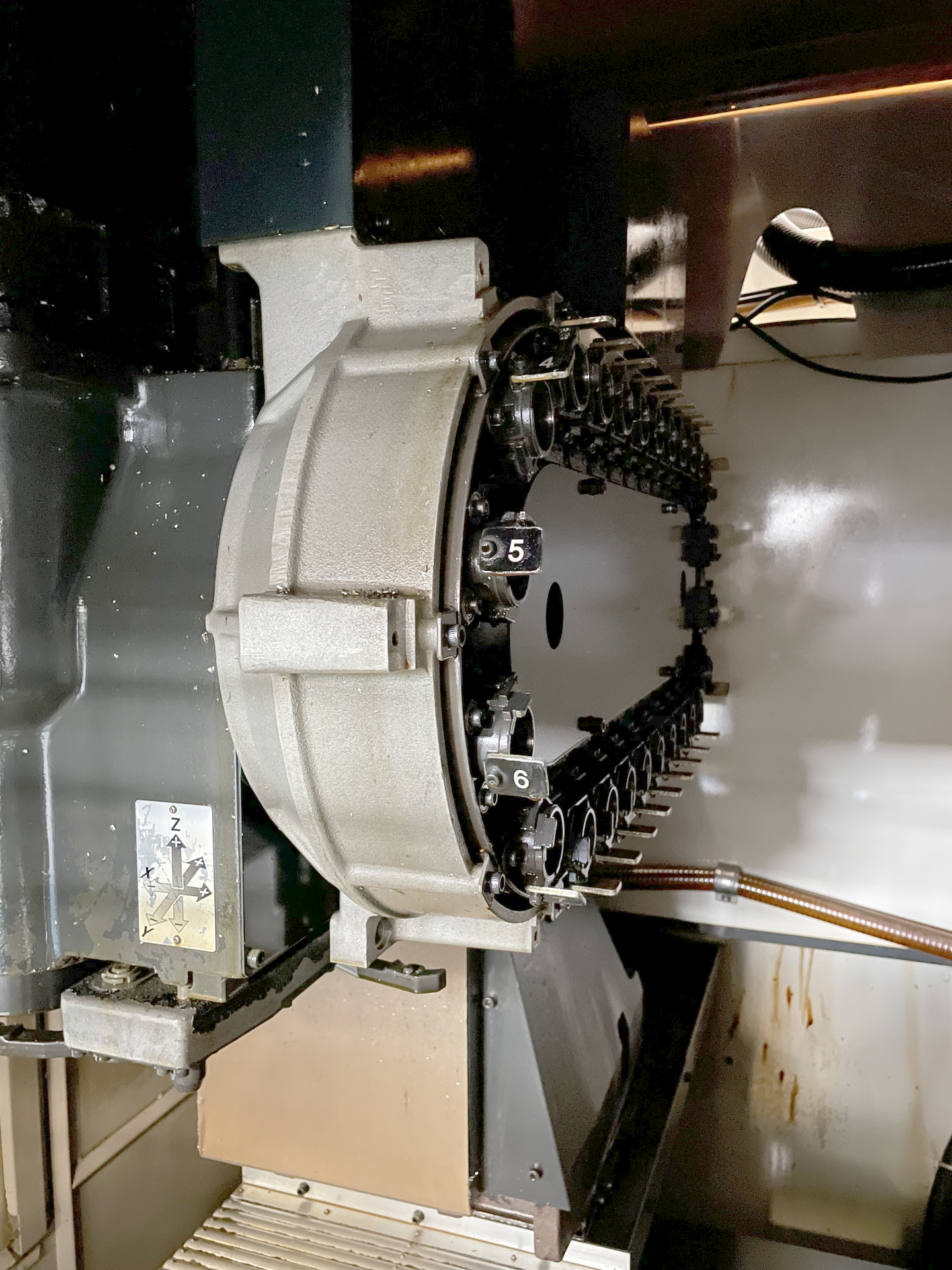

| Tool changer: | |
| Number of tools | 26 |
| Tool diameter max. | 55 mm |
| Tool lenght | 200 mm |
| Max. tool-weight | 2 kg |
| Spindle nose: BT | 30 |
| Distance spindle nose to table | 200 - 550 mm |
| Spindle speeds: | |
| stepless | |
| from | 22 t/min |
| up to | 22000 t/min |
| Feed range | 5 - 20000 mm/min |
| Rapid traverse: | 50 m/min |
| Air connect | 4 - 6 bar |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 25 kVA |
| Machine's weight about | 2100 kg |

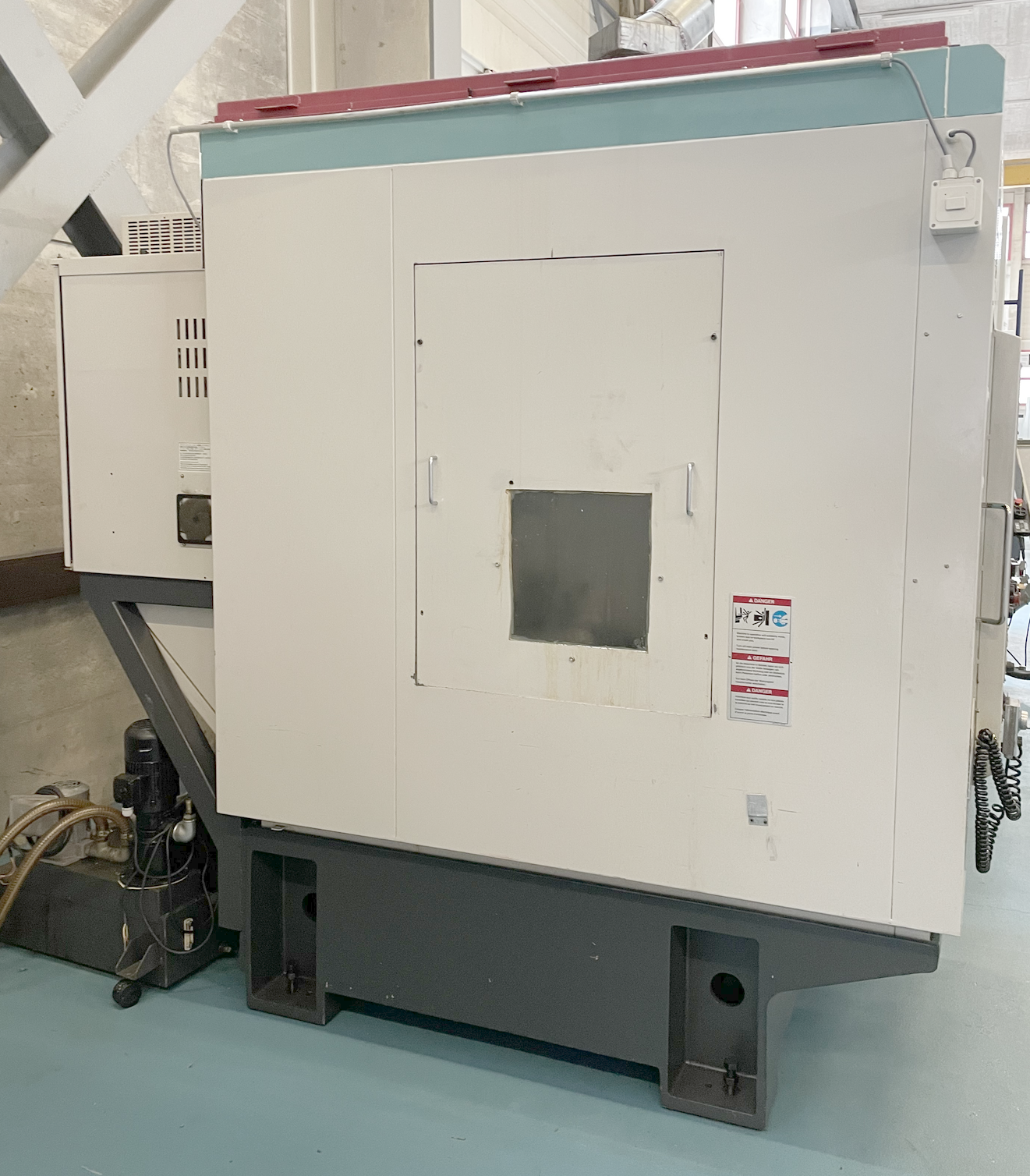

| Overall dimensions machine: | |
| Length | 2341 mm |
| Width | 1410 mm |
| Height | 2165 mm |
| Various accessories: | |
| Coolant system | |

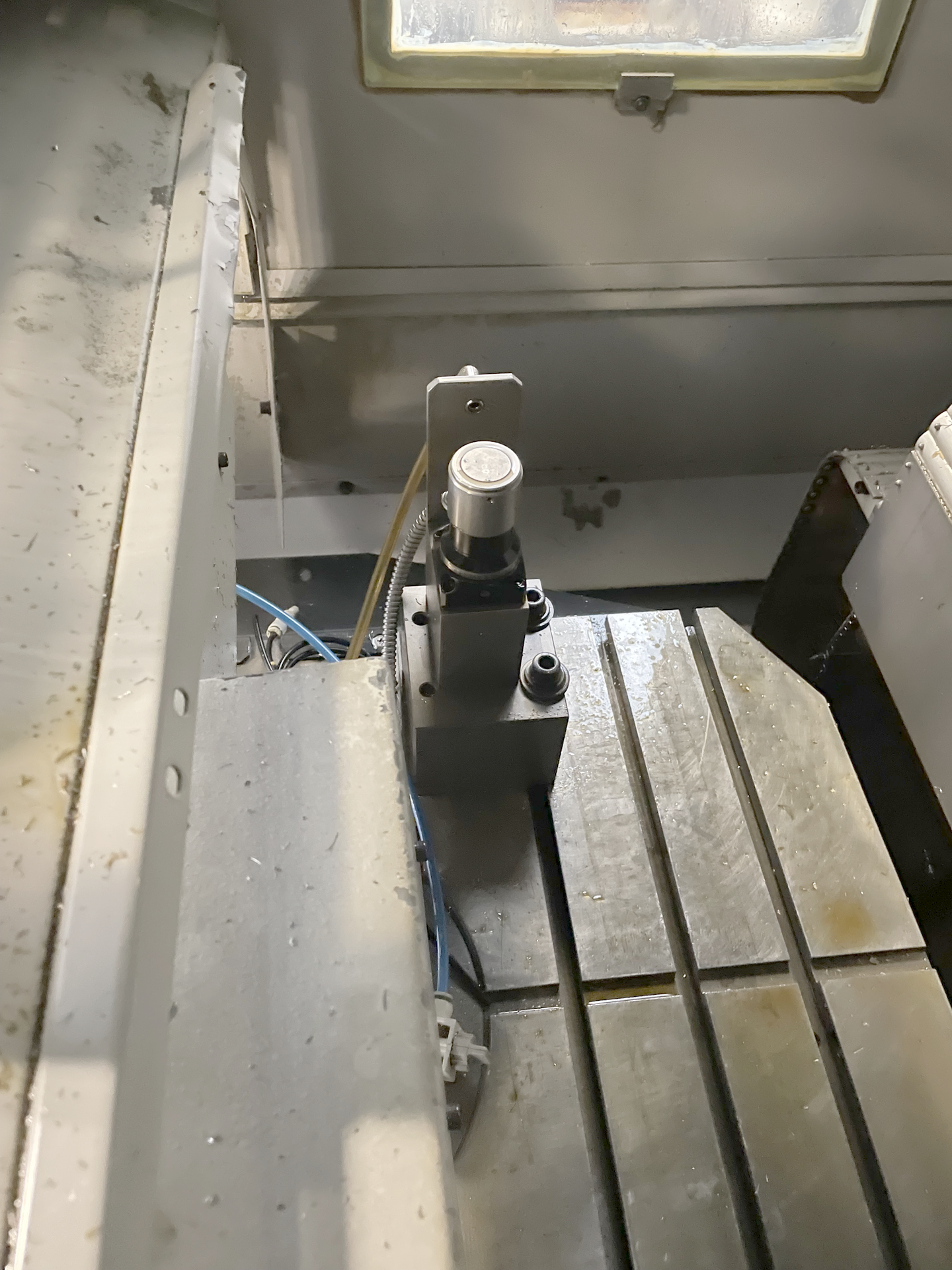

| Tool setter | |

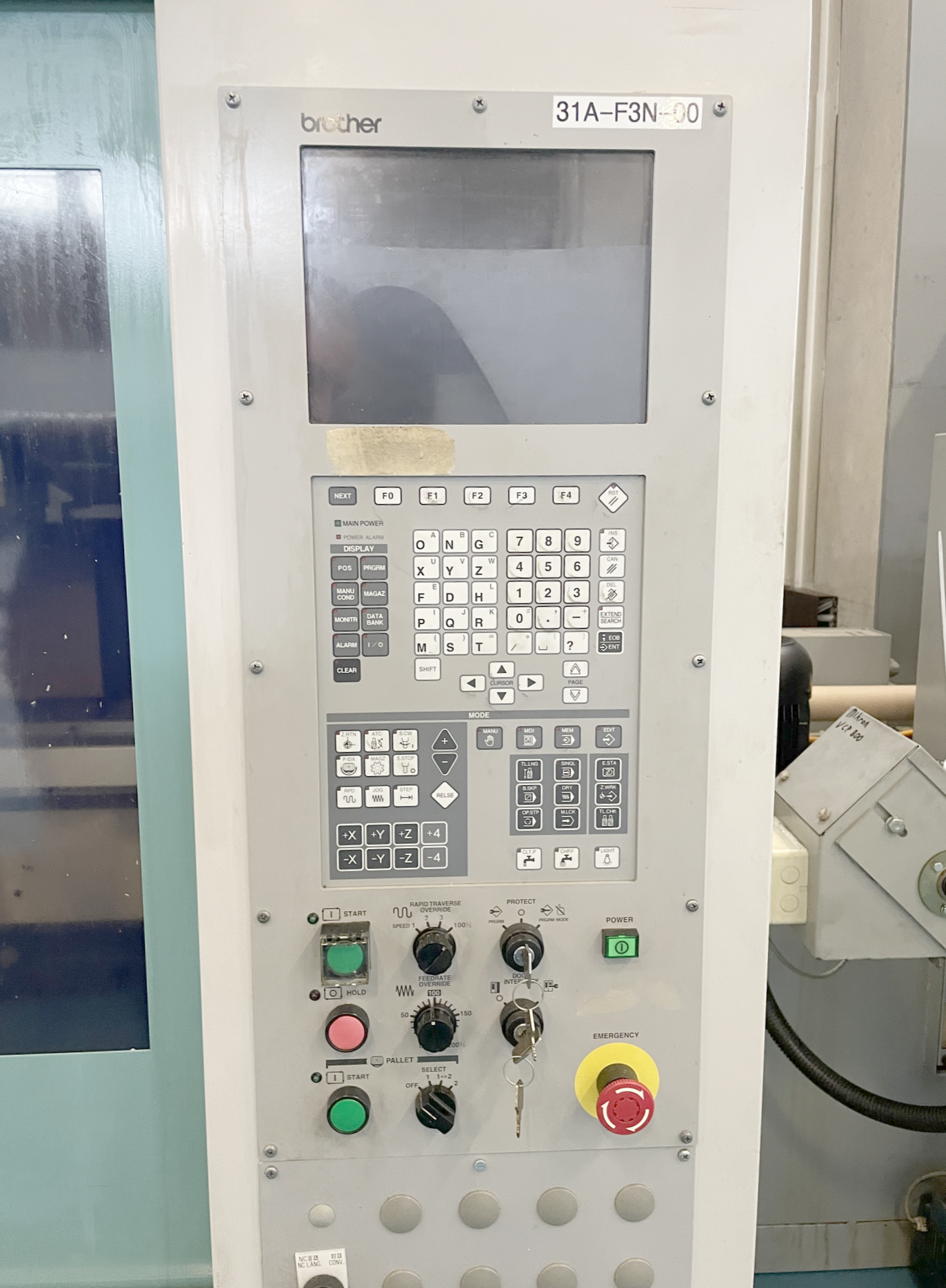

| Handwheel electroinic | |
| Rinsing Guns |
