INDEX G 200 COMPACT
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
INDEX G 200 COMPACT is a CNC Turning-Milling-Drilling Center, built for precision, high accuracy and reliability. Capacities: turning Ø200 mm, length 400 mm, spindle bore 65 mm, bar feeder up to 3200 mm. Specs: 2 spindles, 2 turrets (14 pos.), stepless to 6000 rpm, driven tools 5.5 kW, rapid X23/Z45/Y8 m/min, total power 40 kW, weight ~4280 kg, size 2500×2000×2200 mm. Accessories: collets, lamp, oil-mist extractor, LNS HYDROBAR SPRINT bar feeder, chip conveyor, RS232, ZOLLER. Achieves tight tolerances; automotive, watchmaking, machine tools, aerospace, medical.
| Number of spindles | 2 |
| Number of revolvers | 2 |
| Spindle hole | 65 mm |
| Turning diameter | 200 mm |
| Turning length | 400 mm |
| Turret slide: | |
| Number of positions turret 1 | 14 |
| Number of positions turret 2 | 14 |
| Driven tools turret 1 | 14 |
| Driven tools turret 2 | 14 |
| Spindle speeds | 6000 t/min |
| Power of driven tools | 5.5 kW |
| Inner cone DIN | 69 880 |
| Indexing time | 0.4 s |
| Upper turret head: | |
| X axis | 155 mm |
| Y axis | 120 mm |
| Z axis | 400 mm |
| Lower turret head: | |
| X axis | 105 mm |
| Z axis | 400 mm |
| Main spindle: | |
| Internal spindle diameter | 60 mm |
| Inner taper type | HEINBUCH BZI 65 |
| Spindle speeds: | |
| stepless | |
| up to | 6000 t/min |
| Back spindle: | |
| max. speed | 6000 t/min |
| Inner taper type | F66 |
| Internal spindle diameter | 60 mm |
| Spindle diameter | 160 mm |
| Back spindle stroke | 445 mm |
| Rapid traverse X | 23 m/min |
| Rapid traverse Z | 45 m/min |
| Rapid traverse Y | 8 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 40 kW |
| Machine's weight about | 4280 kg |
| Overall dimensions machine: | |
| Length | 2500 mm |
| Width | 2000 mm |
| Height | 2200 mm |
| Various accessories: | |

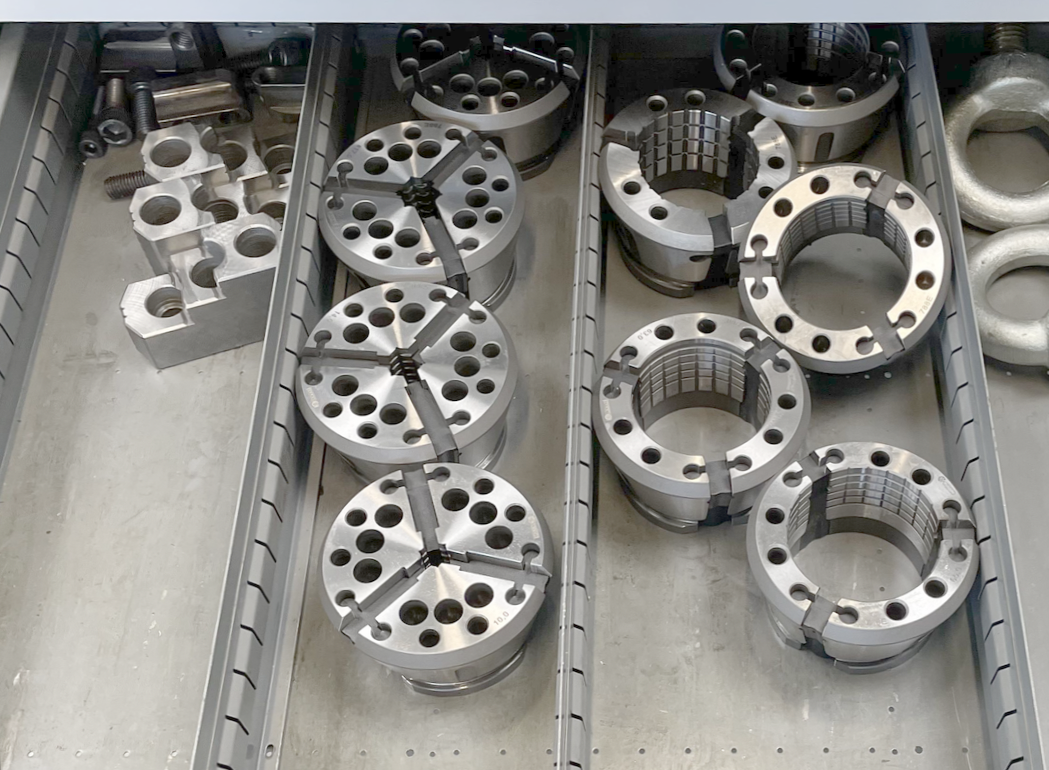

| Set of collets | |
| Lamp | |
| Oil mist extractor | |
| Bar feeder | LNS |
| Type | HYDROBAR SPRINT |
| Length of bars max. | 3200 mm |
| Interface serial port RS 232 | |
| Workpiece conveyor | |
| Chip conveyor | |
| Foot pedal | |
| Set of steel holders | |
| Set of toolholders | |
| Fire extinguishing system | |
| Rotating viewing window |
