INDEX G 200 is a CNC turning‑milling‑drilling center engineered for precision, high accuracy and reliability. Capacities: turning Ø 200 mm, turning length 400 mm, spindle hole 42 mm, main spindle bore 60 mm; 2 spindles and 2 turrets (14 pos./head, 14 driven tools). Specs: upper turret X155 Y±60 Z400, lower X105 Z400; stepless spindle up to 6300 rpm; spindle power 20/29 kW, spindle motor 39 kW; driven tools 5.5 kW; back spindle 13/22 kW, stroke 445 mm; rapid traverse X23 Z45 Y8 m/min; weight ≈4800 kg; footprint 2500×2400×2700 mm. Accessories: LNS MINI‑SPRINT S2‑42 bar feeder (bars up to 4000 mm), 3‑jaw chuck, 2 collet chucks, collet set, lamp, tool cabinet, RS232, part separator, chip conveyor, belt conveyor, foot pedal, toolholder sets, rotating viewing window. Achieves tight tolerances; typical in automotive, aerospace, medical, watchmaking and machine‑tool sectors.
| Number of spindles | 2 |
| Number of revolvers | 2 |
| Spindle hole | 42 mm |
| Turning diameter | 200 mm |
| Turning length | 400 mm |
| Turret slide: | |
| Number of positions turret 1 | 14 |
| Number of positions turret 2 | 14 |
| Driven tools turret 1 | 14 |
| Driven tools turret 2 | 14 |
| Spindle speeds | 6000 t/min |
| Power of driven tools | 5.5 kW |
| Inner cone DIN | 69 880 |
| Indexing time | 0.4 s |
| Upper turret head: | |
| X axis | 155 mm |
| Y axis | +/- 60 mm |
| Z axis | 400 mm |
| Lower turret head: | |
| X axis | 105 mm |
| Z axis | 400 mm |
| Main spindle: | |
| Internal spindle diameter | 60 mm |
| C axis (spindle,resolution) | 0.01 ° |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 6300 t/min |
| Spindle power | 20 / 29 kW |
| Torque max. | 95 / 140 Nm |
| Back spindle: | |
| max. speed | 6300 t/min |
| Internal spindle diameter | 42 mm |
| Spindle diameter | 160 mm |
| C axis (spindle,resolution) | ° |
| Back spindle stroke | 445 mm |
| Power of back spindle | 13 / 22 kW |
| Rapid traverse X | 23 m/min |
| Rapid traverse Z | 45 m/min |
| Rapid traverse Y | 8 m/min |
| Spindle motor | 39 kW |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 4800 kg |
| Overall dimensions machine: | |
| Length | 2500 mm |
| Width | 2400 mm |
| Height | 2700 mm |
| Various accessories: | |

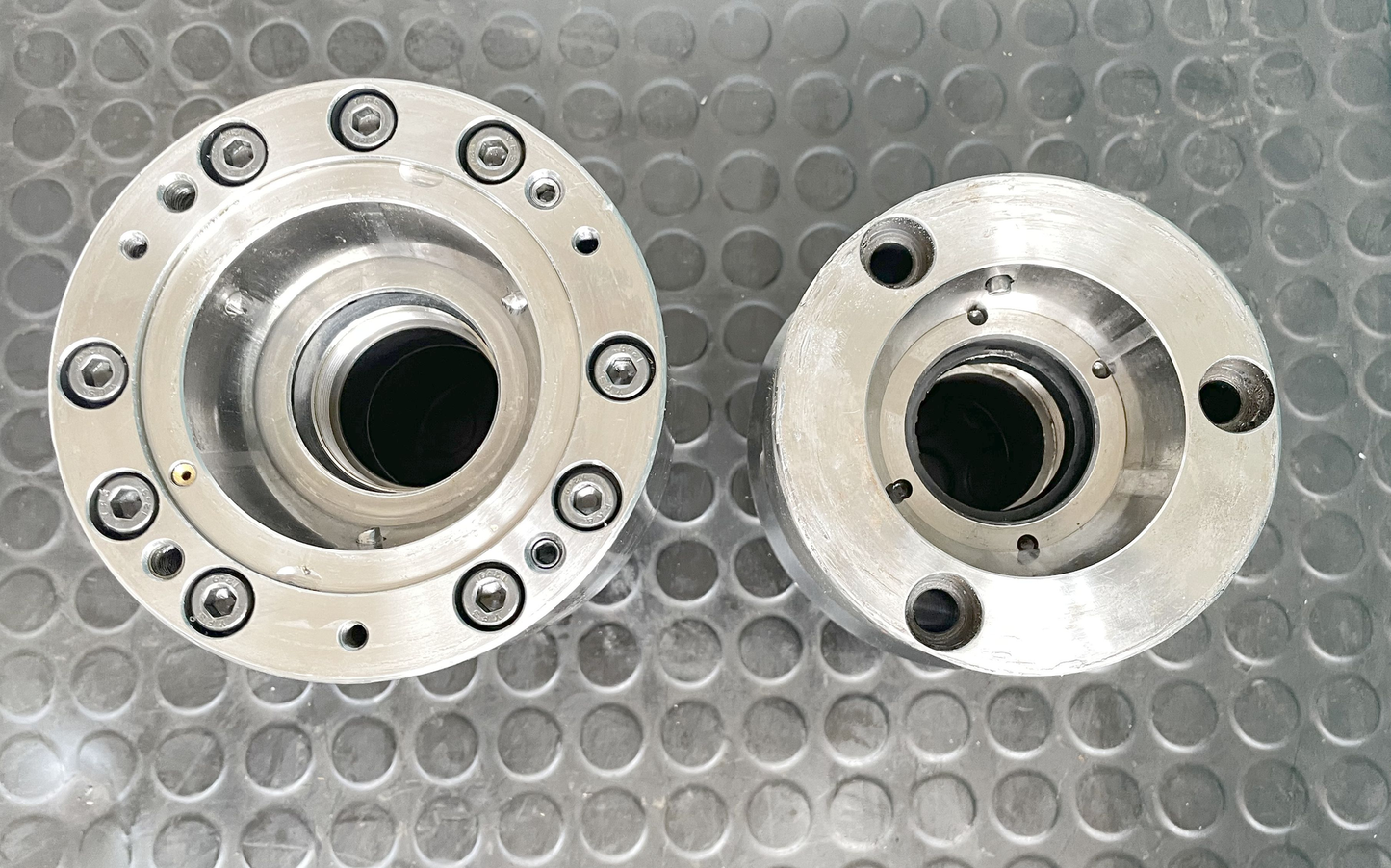

| 3-jaw chuck | |
| Collet chuck (number) | 2 |
| Set of collets | |
| Lamp | |
| Bar feeder | LNS |
| Type | MINI-SPRINT S2-42 |
| Length of bars max. | 4000 mm |
| Tool cabinet | |
| Interface serial port RS 232 | |
| Part separating device | |
| Workpiece conveyor | |
| Chip conveyor | |
| Foot pedal | |
| Set of steel holders | |
| Set of toolholders | |
| Driven tools (number) | |
| Rotating viewing window |
