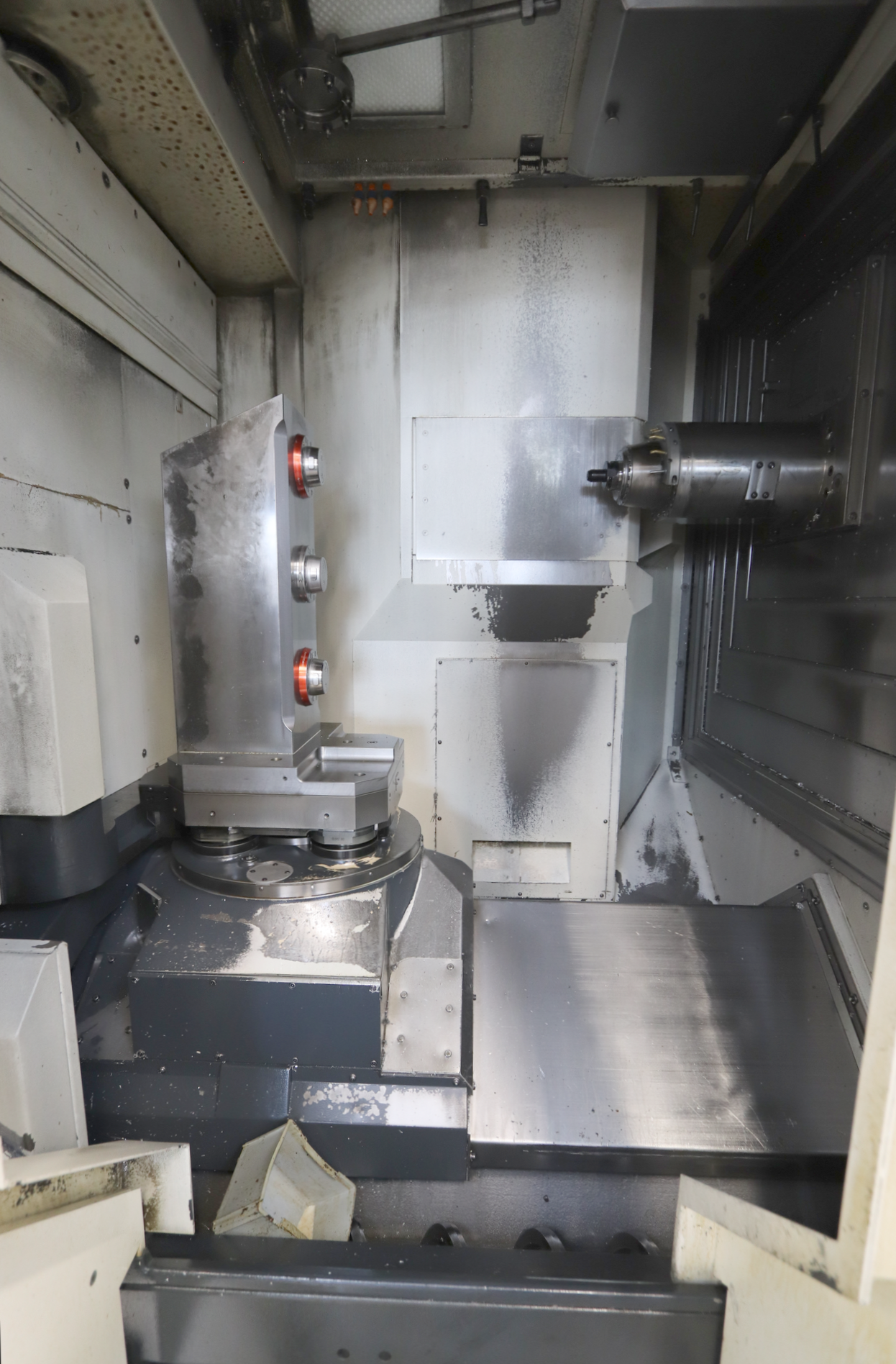

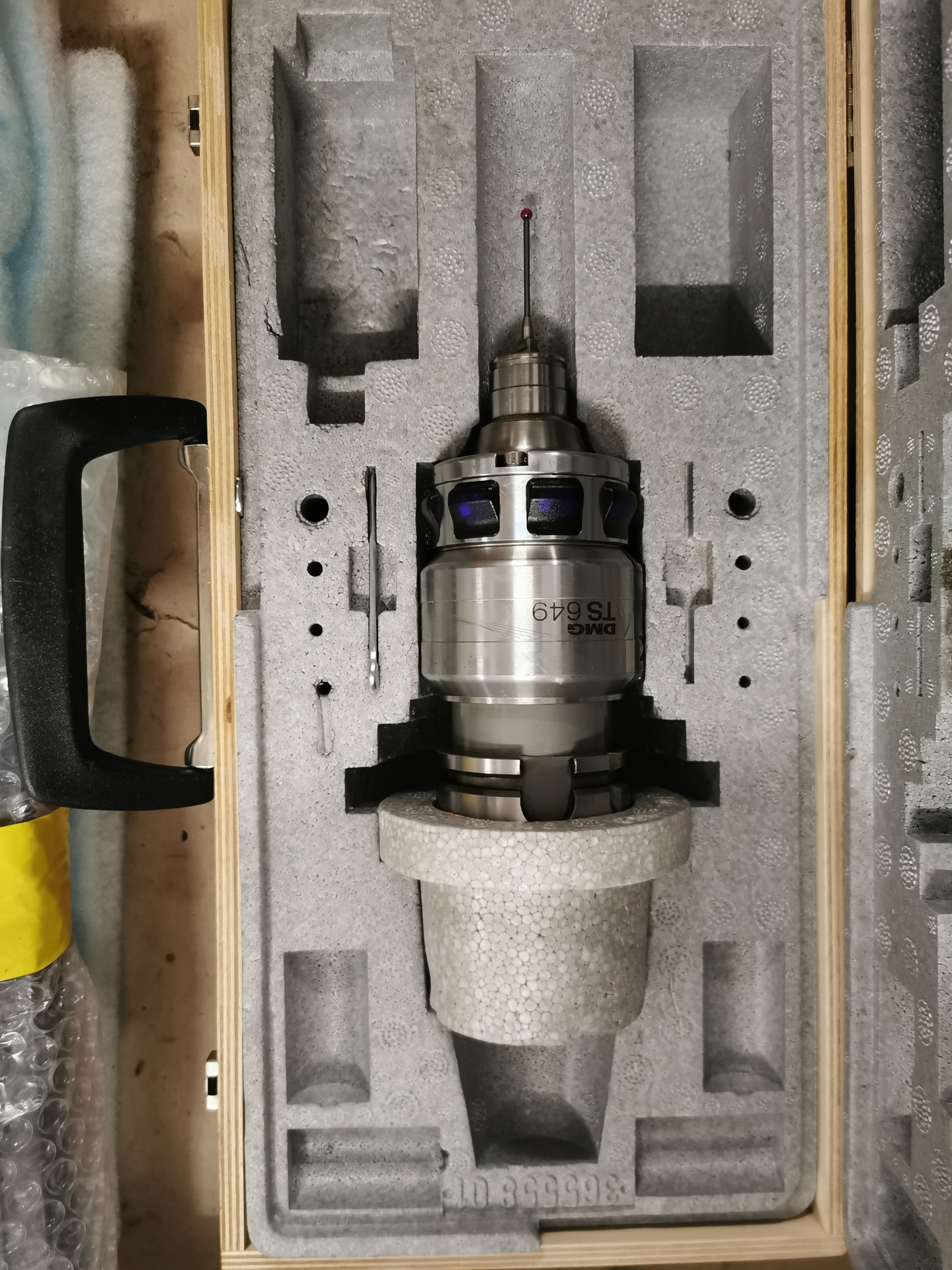

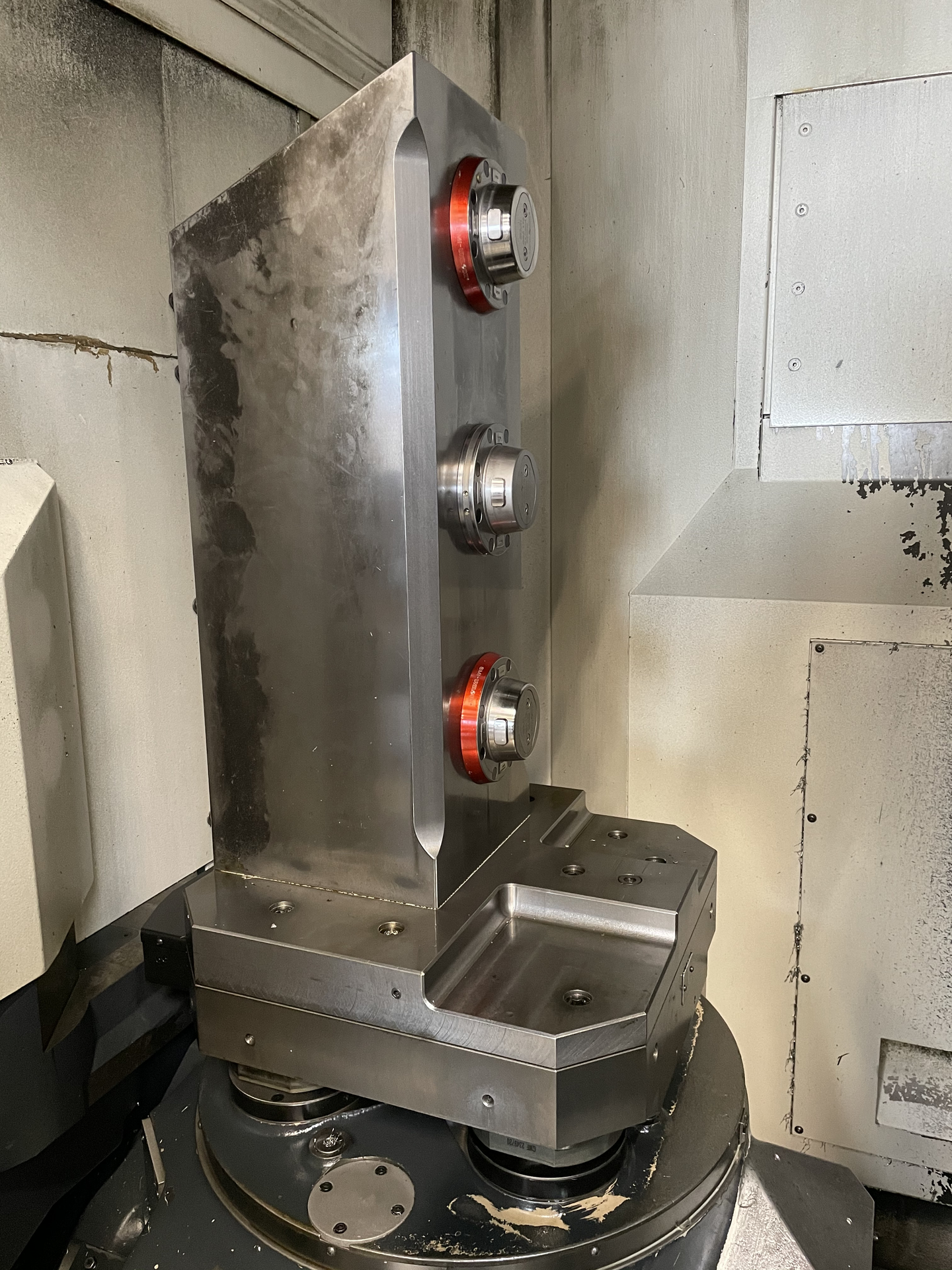

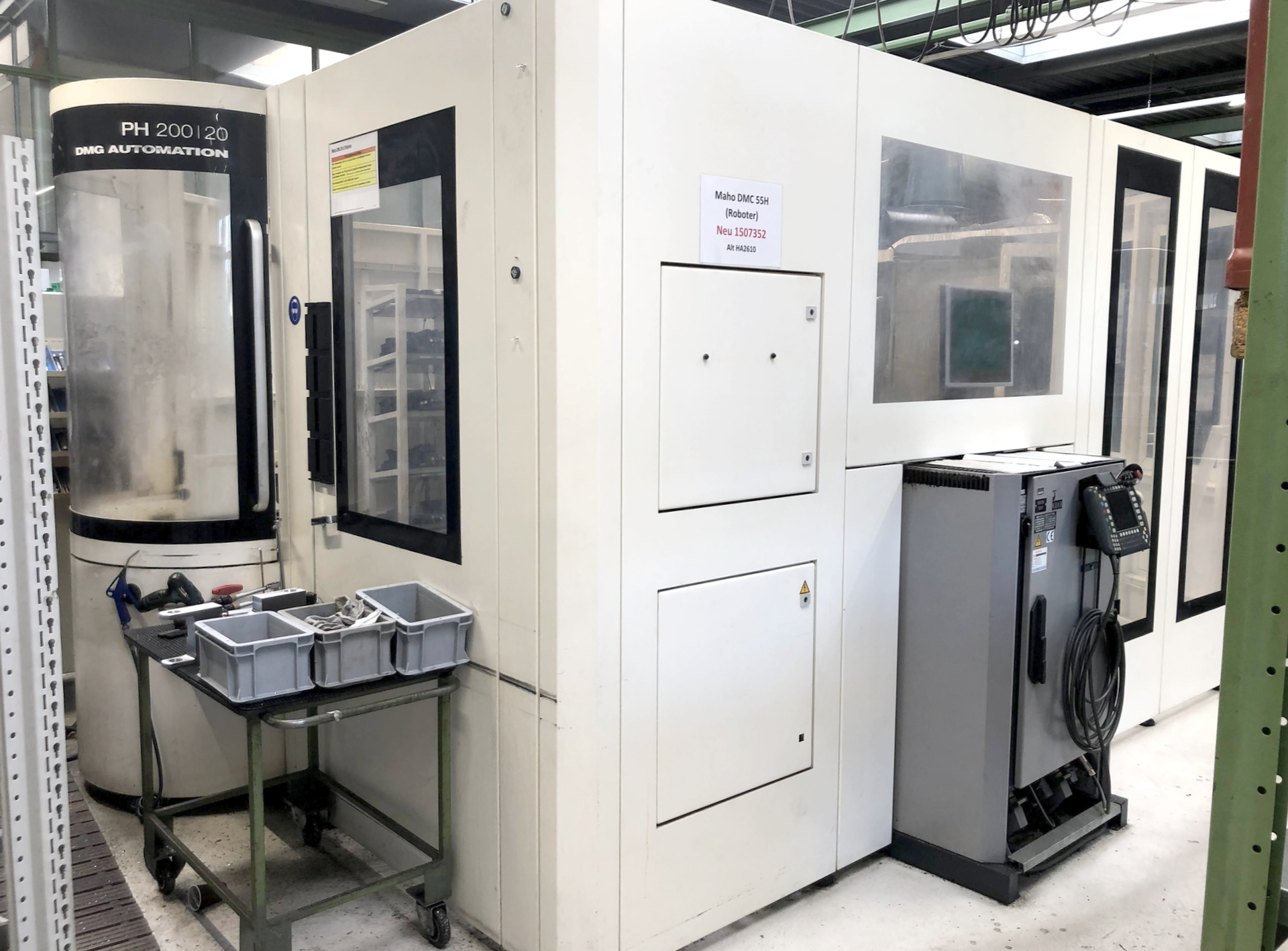

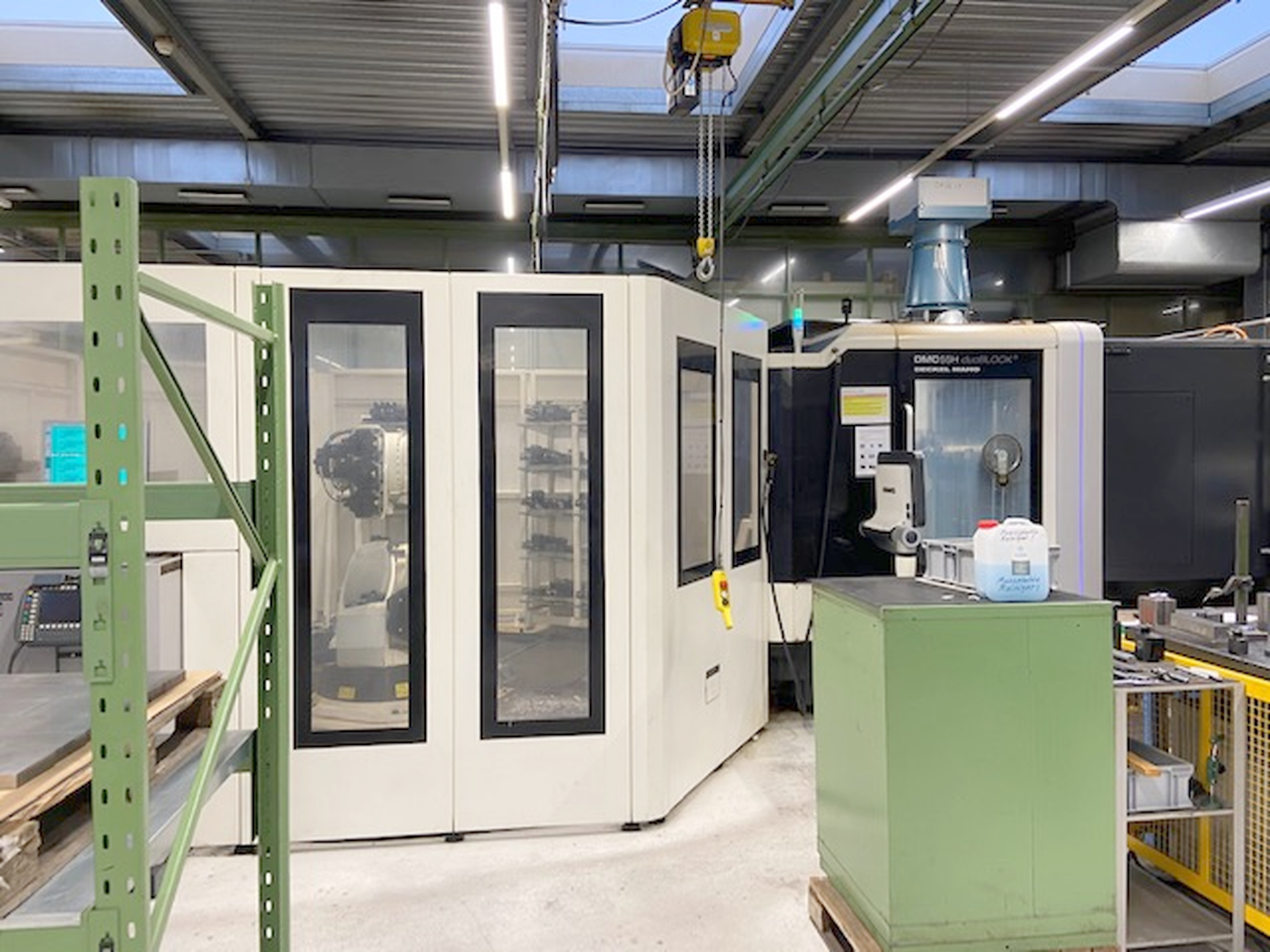

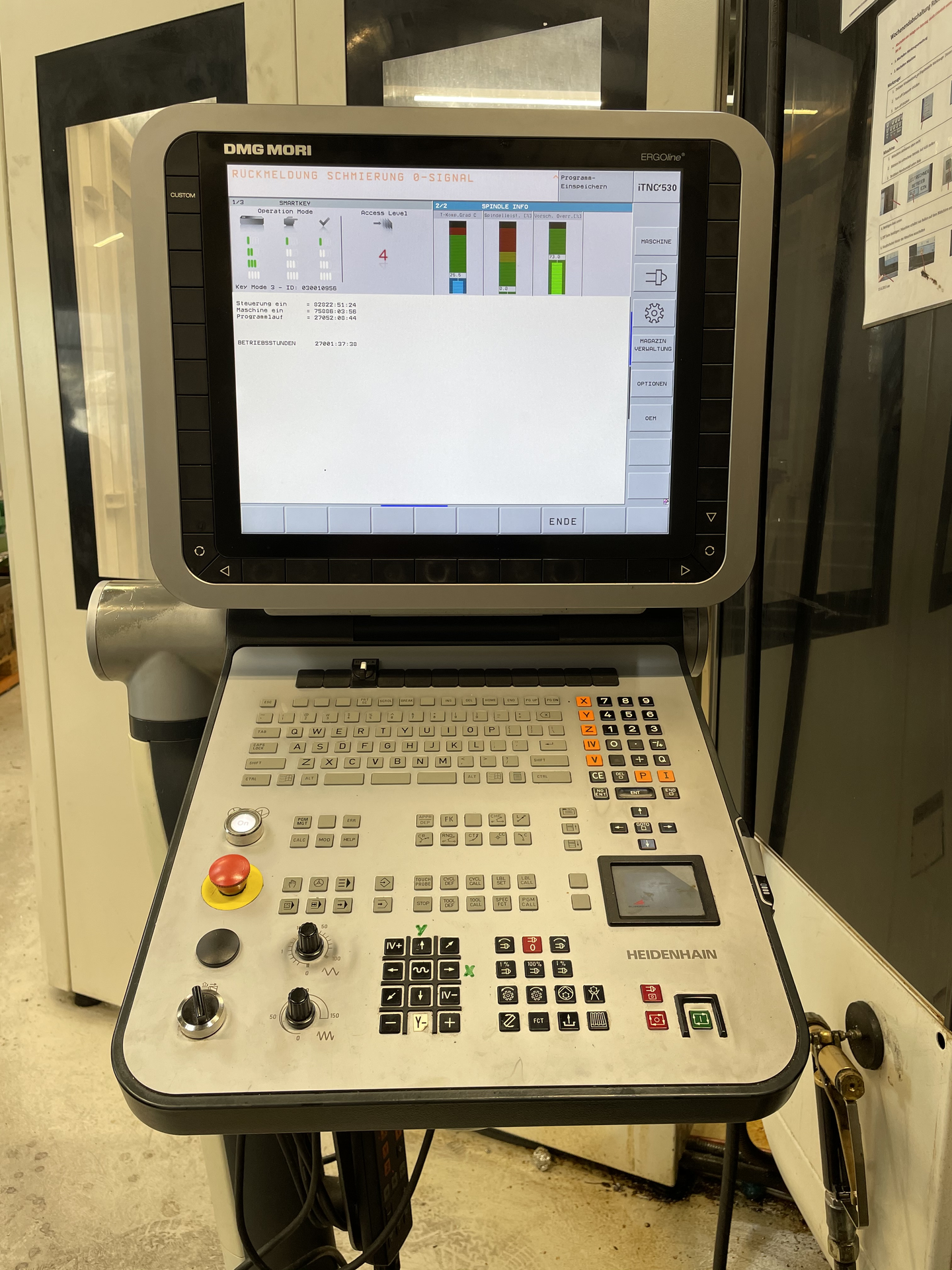

DMG DMC 55H duoBLOCK is a horizontal machining center providing high precision, strong accuracy and reliable performance. Travels X 560 mm, Y 600 mm, Z 600 mm; table Ø 630 mm, workpiece height 850 mm; table load max 500 kg; pallet 400×400 mm, B indexing 360°. Key specs: 4 axes, spindle HSK63 (Ø 225 mm) 0–12,000 rpm, spindle power 20 kW, torque max 1550 Nm; feed 0–60,000 mm/min, rapid 60 m/min; supply 3×400 V 50 Hz; weight ~9,700 kg; footprint 5000×2700×2700 mm; tool magazine 120 pos., tool Ø max 80 mm (160 mm free), tool length 400 mm. Accessories: KUKA loading robot, coolant through spindle 40 bar, chip conveyor, pallet rack, probe, high-pressure coolant, switch-cabinet air conditioner, rinsing gun; spindle changed 2017. Built to achieve tight tolerances for automotive, aerospace, medical and tooling industries.
Technical specifications are subject to change without notice

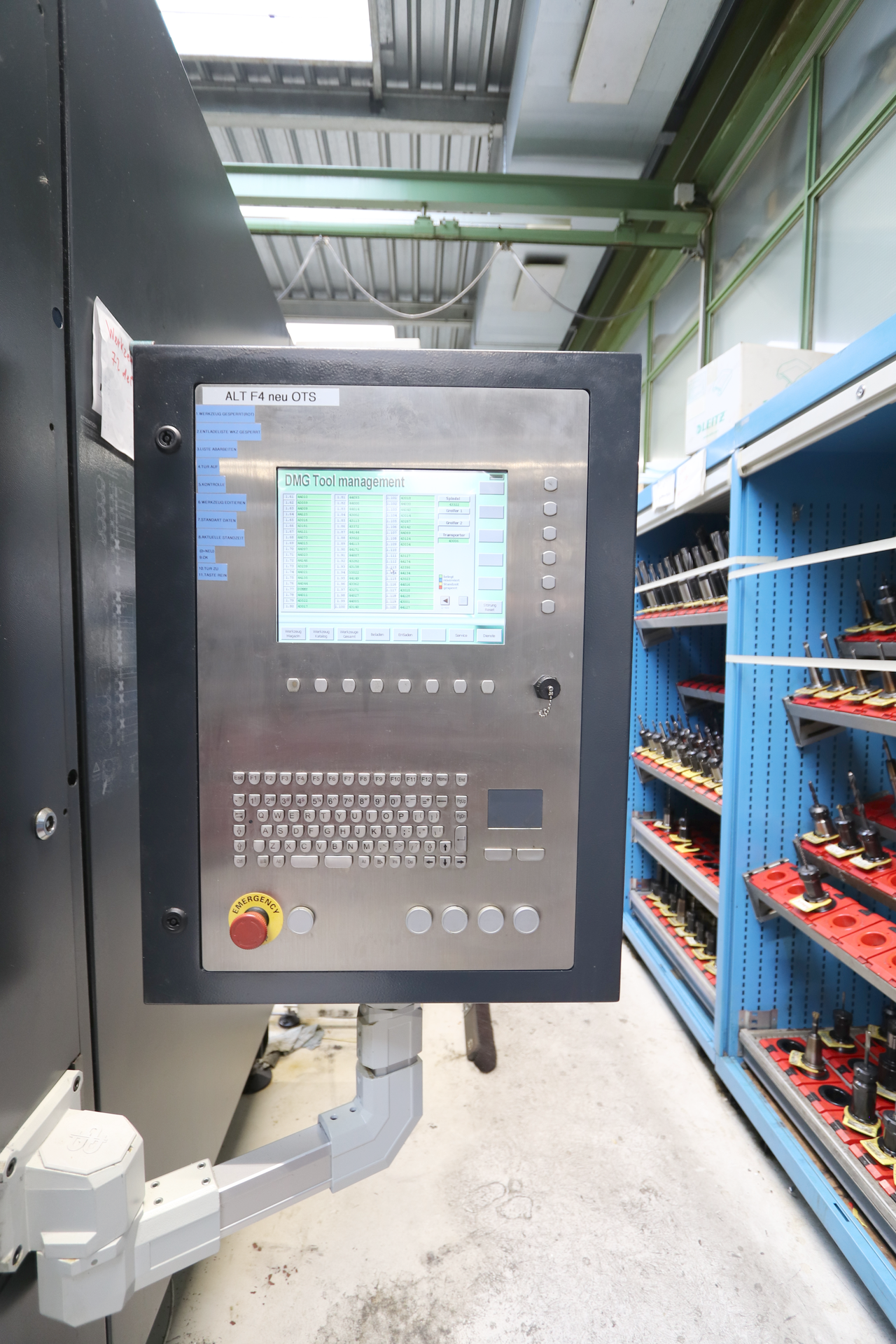

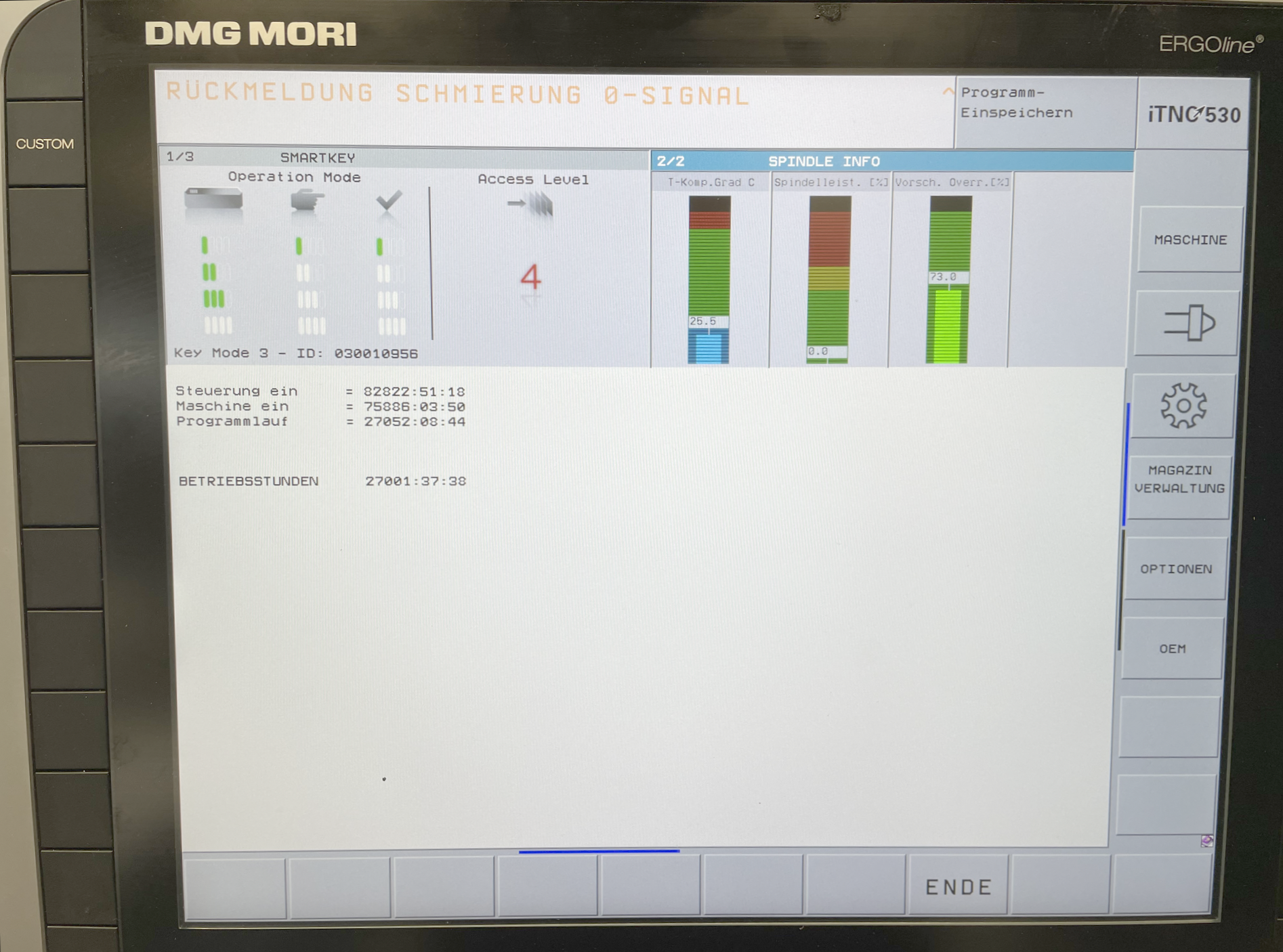

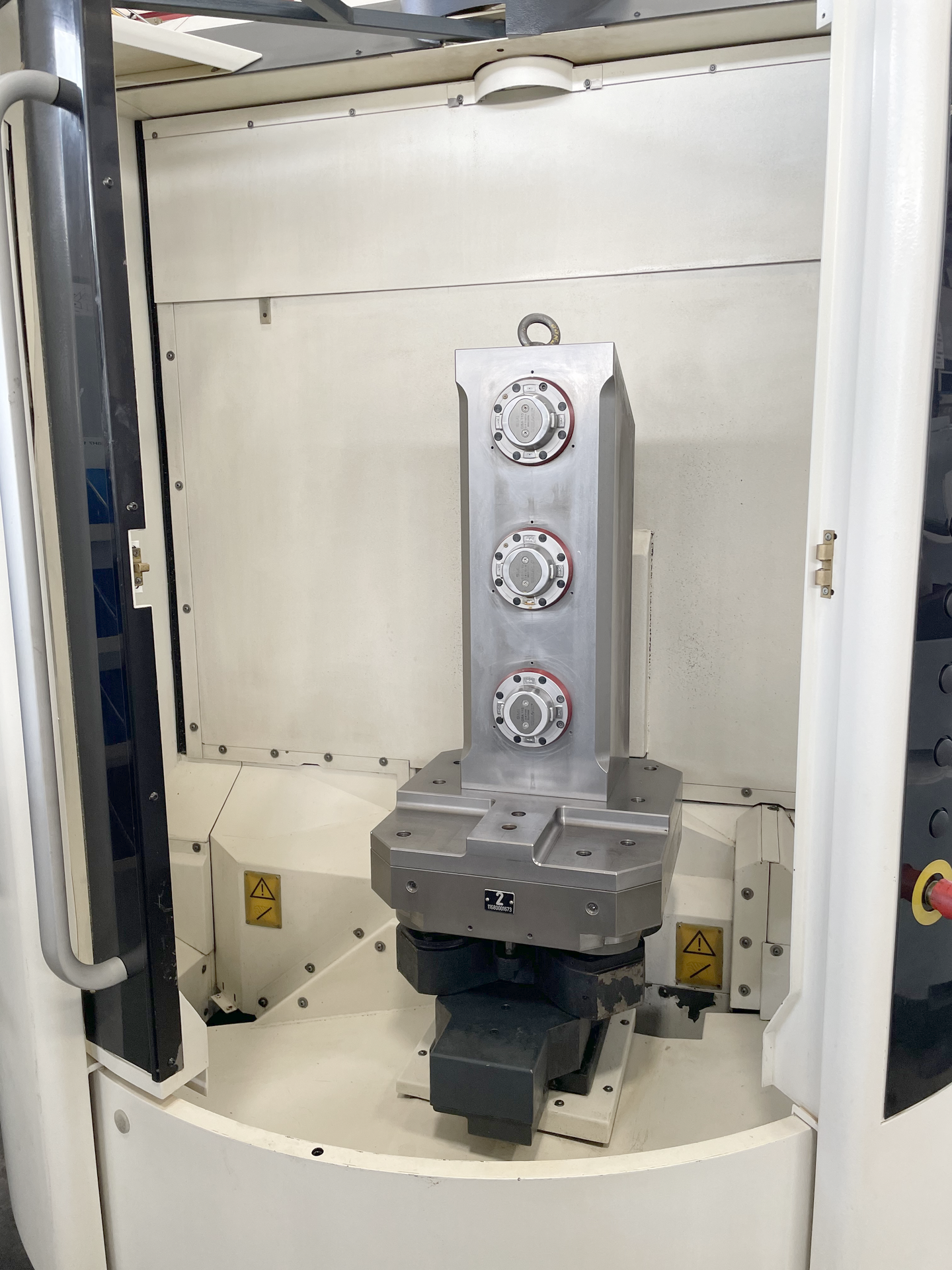

| Time under power | 75886 Heures |
| Operating time | 27052 Heures |
| Number of axis total | 4 |
| Number of spindles | 1 |
| Table load max. | 500 kg |
| Longitudinal travel (X-axis) | 560 mm |
| Transversal travel (y-axis) | 600 mm |
| Vertical travel (z axis) | 600 mm |
| Dimension of the workpice: | |
| Height | 850 mm |
| Diameter | 630 mm |
| Table divisions (B) | 360 ° |
| Resolution | ° |
| Table speed | 40 t/min |
| Holding torque of the table | 1580 / 2300 Nm |
| Torque max. | 1550 Nm |
| Pallets chanching device: | |
| Length | 400 mm |
| Width | 400 mm |
| Maximum workpiece weight | 500 kg |
| Tool changer: | |

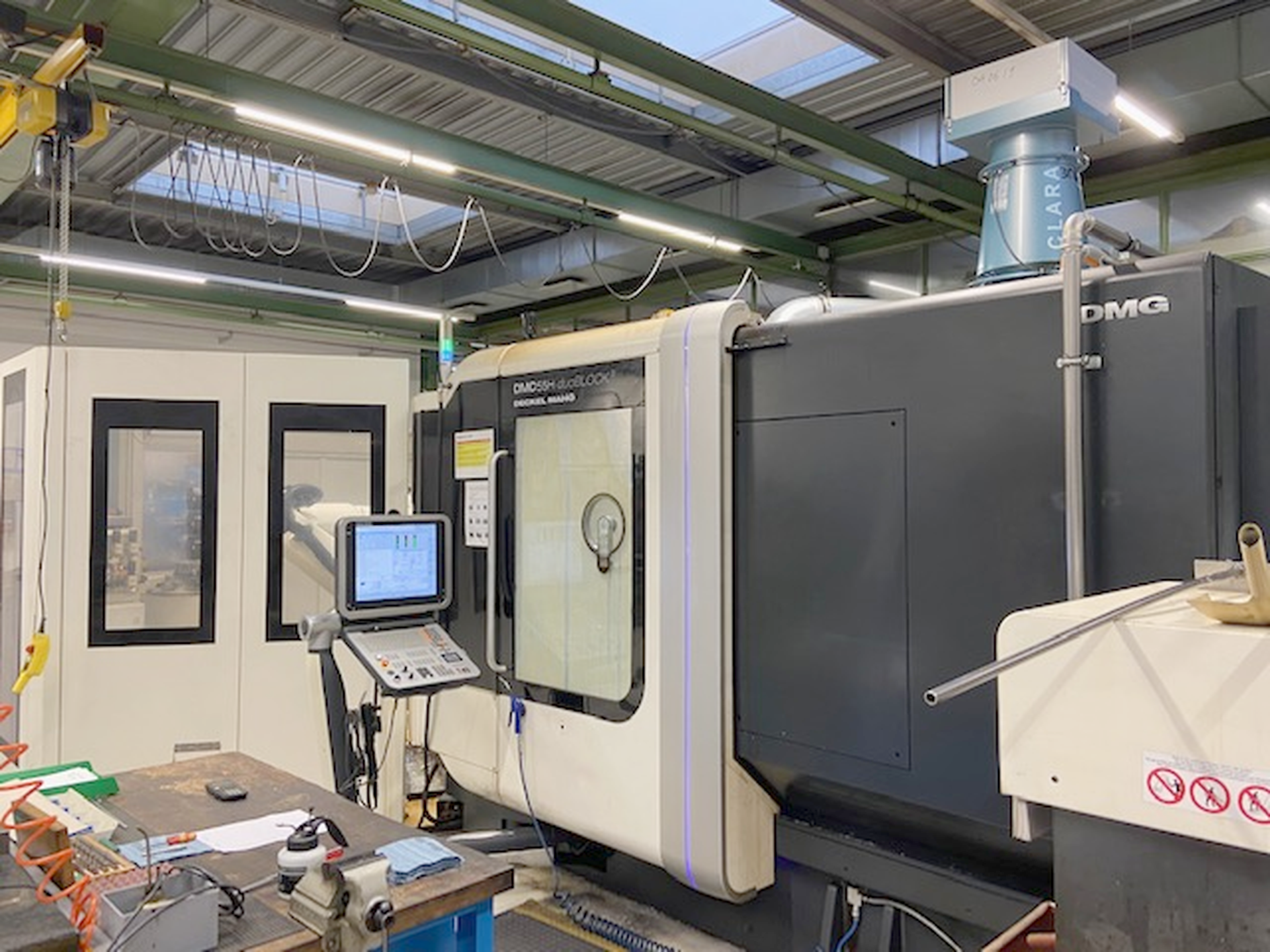

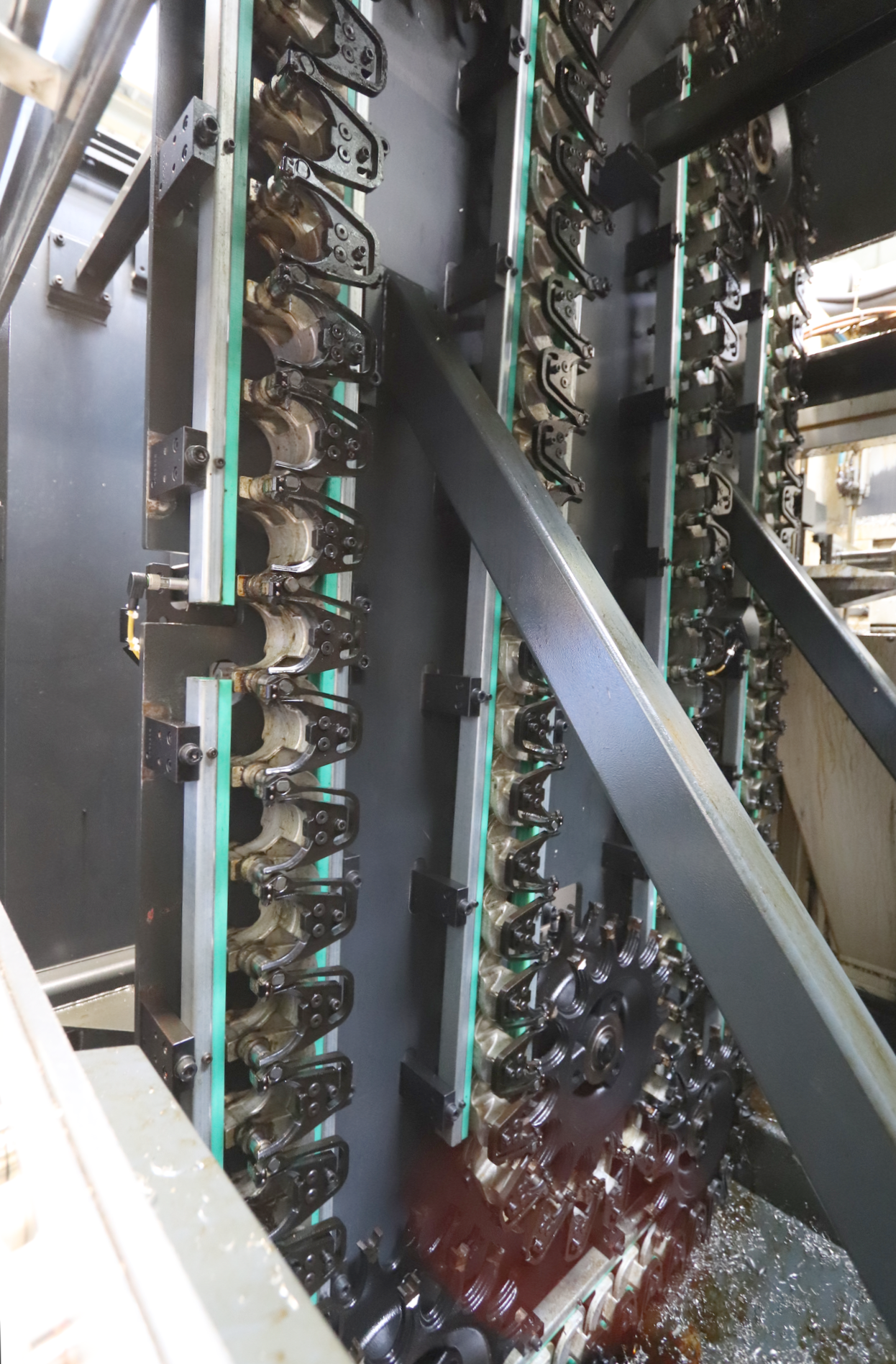

| Number of tools | 120 |
| Tool diameter max. | 80 mm |
| Diameter with free adjacent pockets | 160 mm |
| Tool lenght | 400 mm |
| Max. tool-weight | 12 kg |
| Spindle nose: HSK | 63 DIN 69893 Form A |
| Spindle diameter | 225 mm |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 12000 t/min |
| Torque max. | 1550 Nm |
| Feed range | 0 - 60000 mm/min |
| Rapid traverse: | 60 m/min |
| Max. Feed force | 10 N |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 20 kW |
| Total power required | 58 kVA |
| Machine's weight about | 9700 kg |
| Overall dimensions machine: | |
| Length | 5000 mm |
| Width | 2700 mm |
| Height | 2700 mm |
| Various accessories: | |

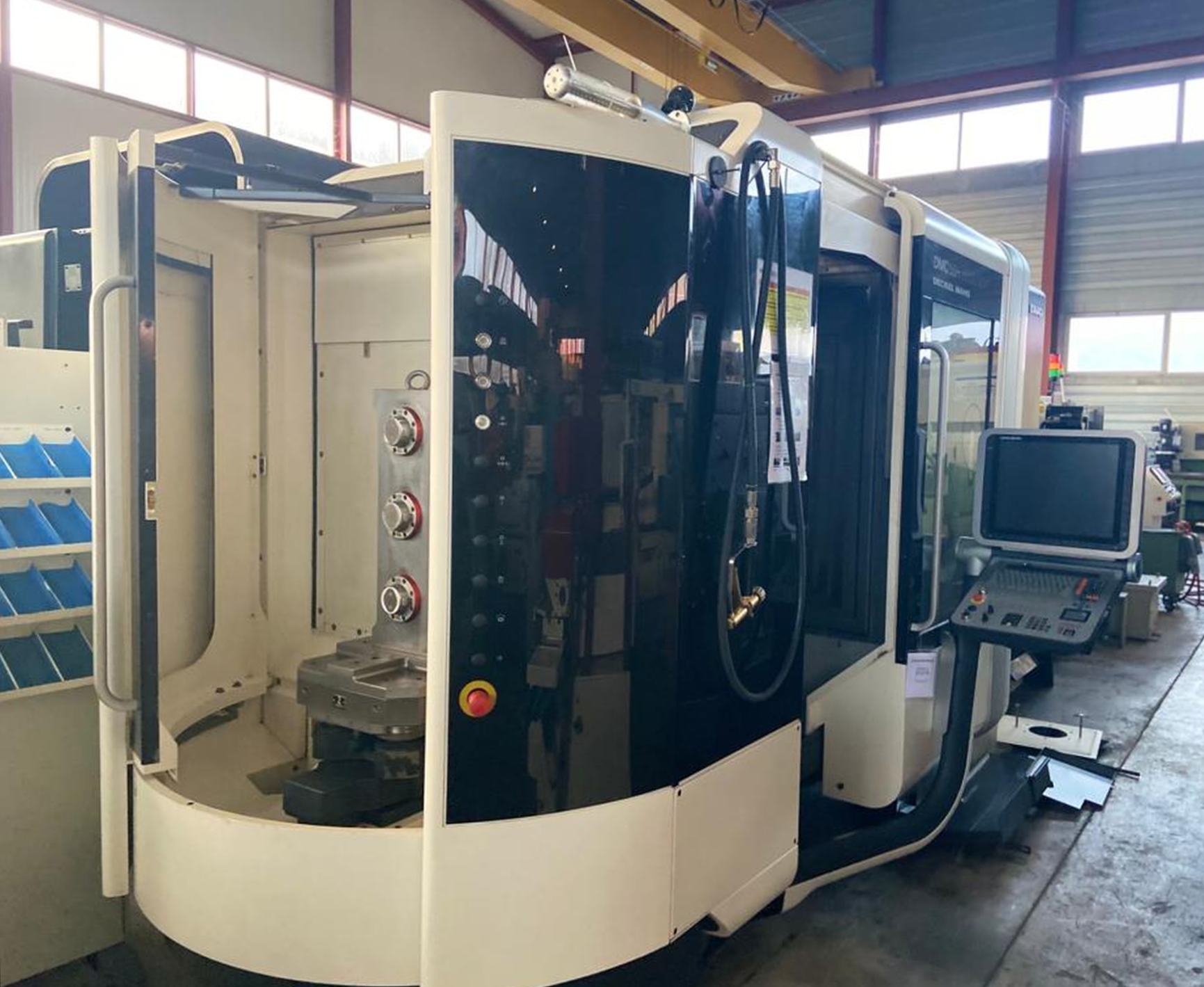

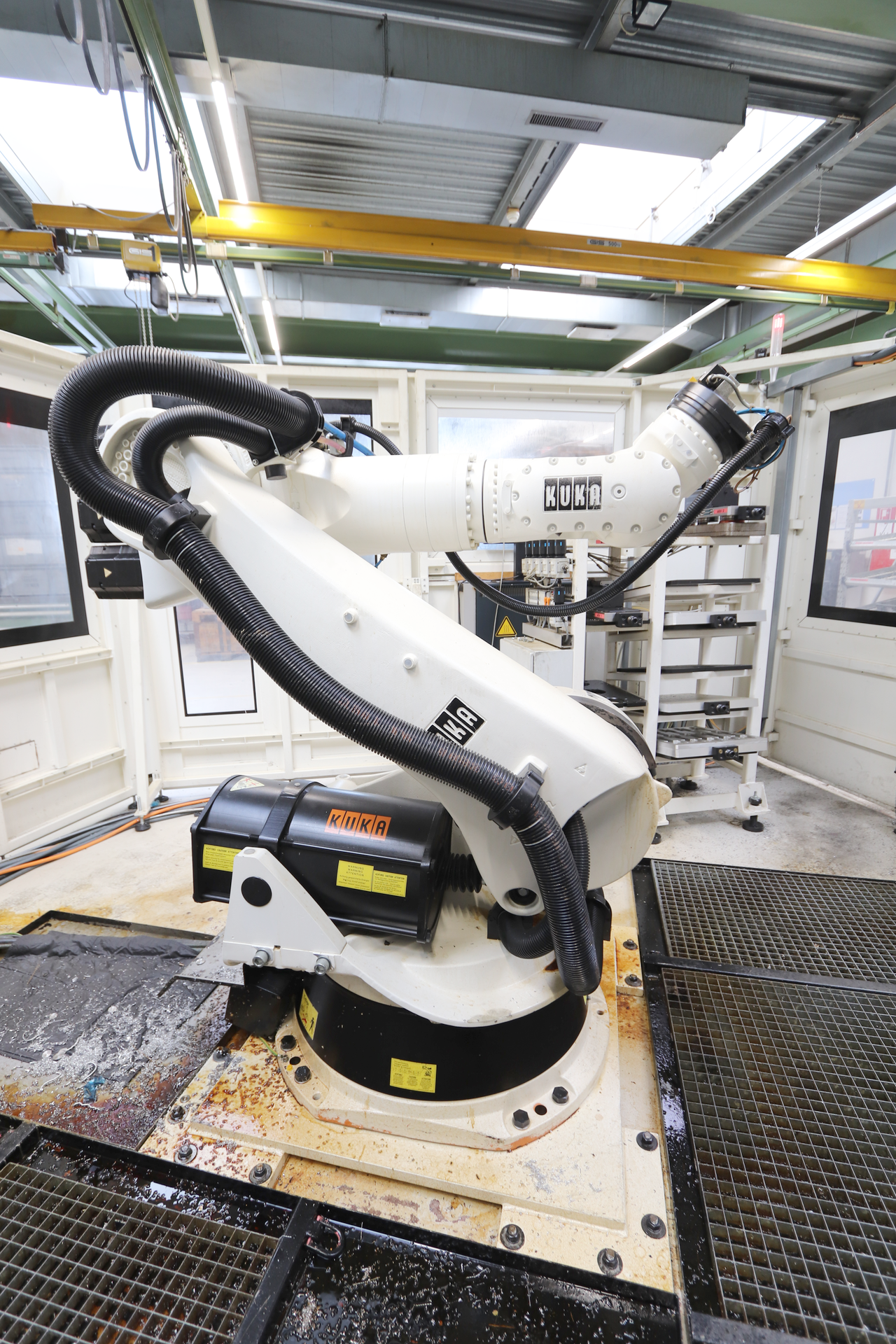

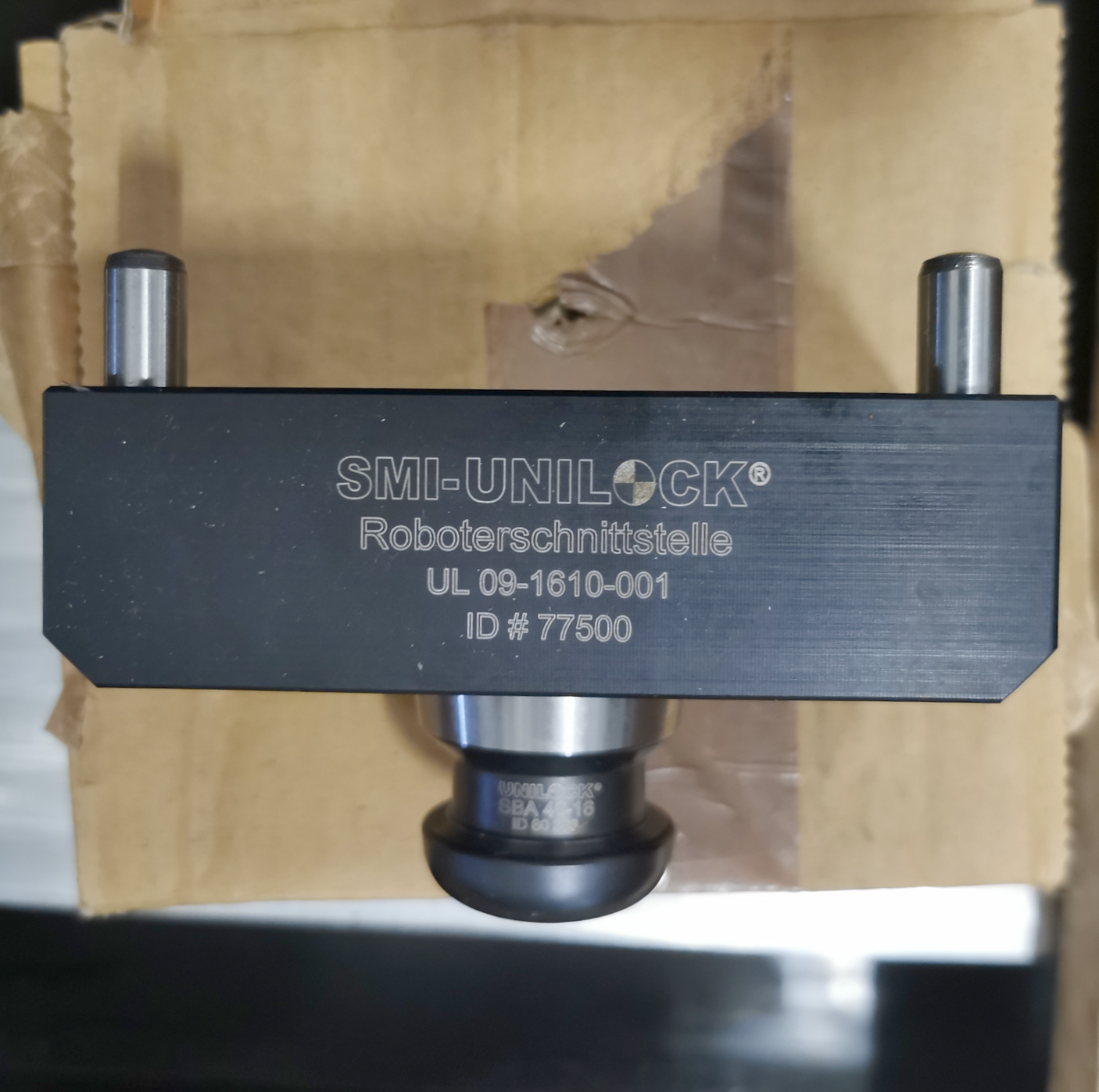

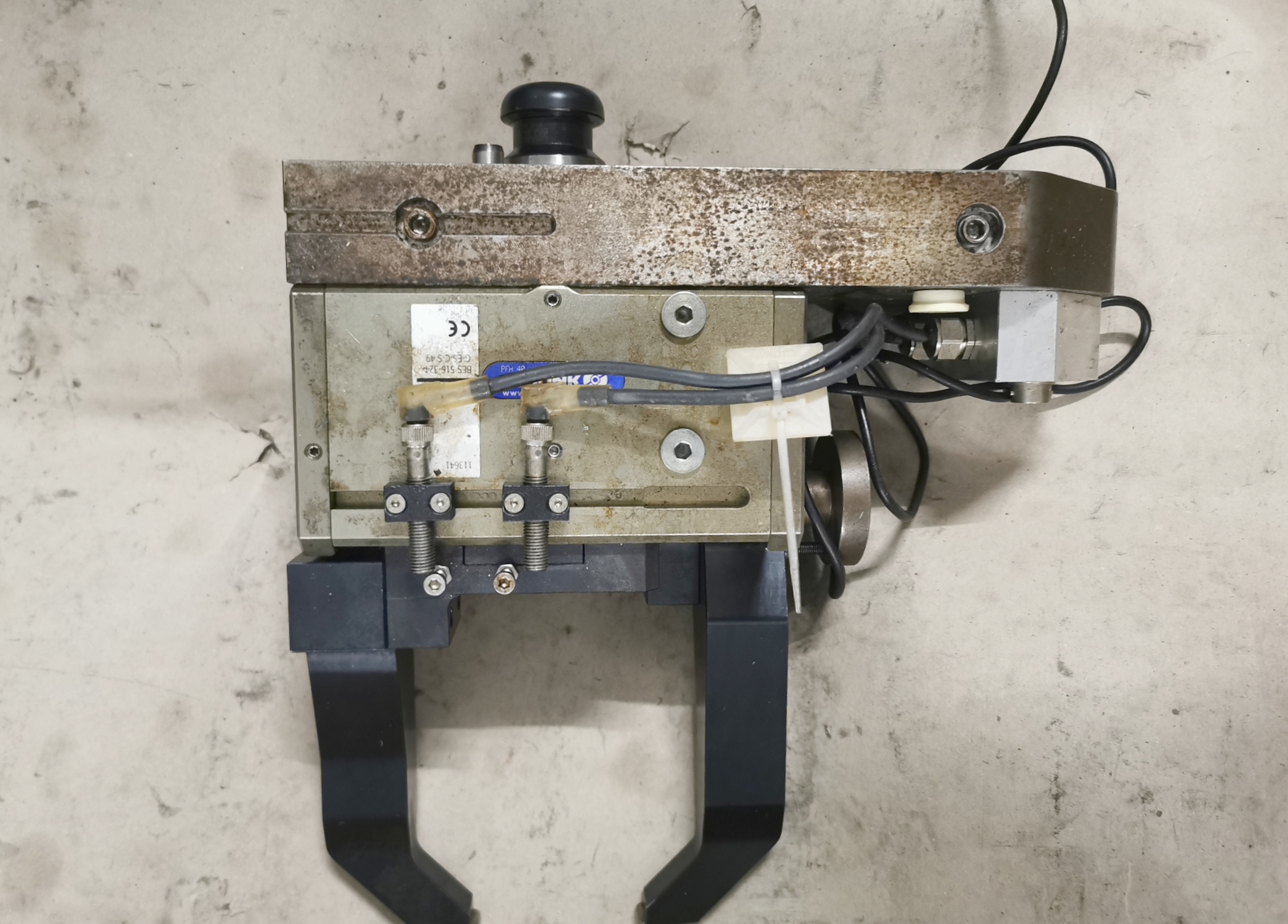

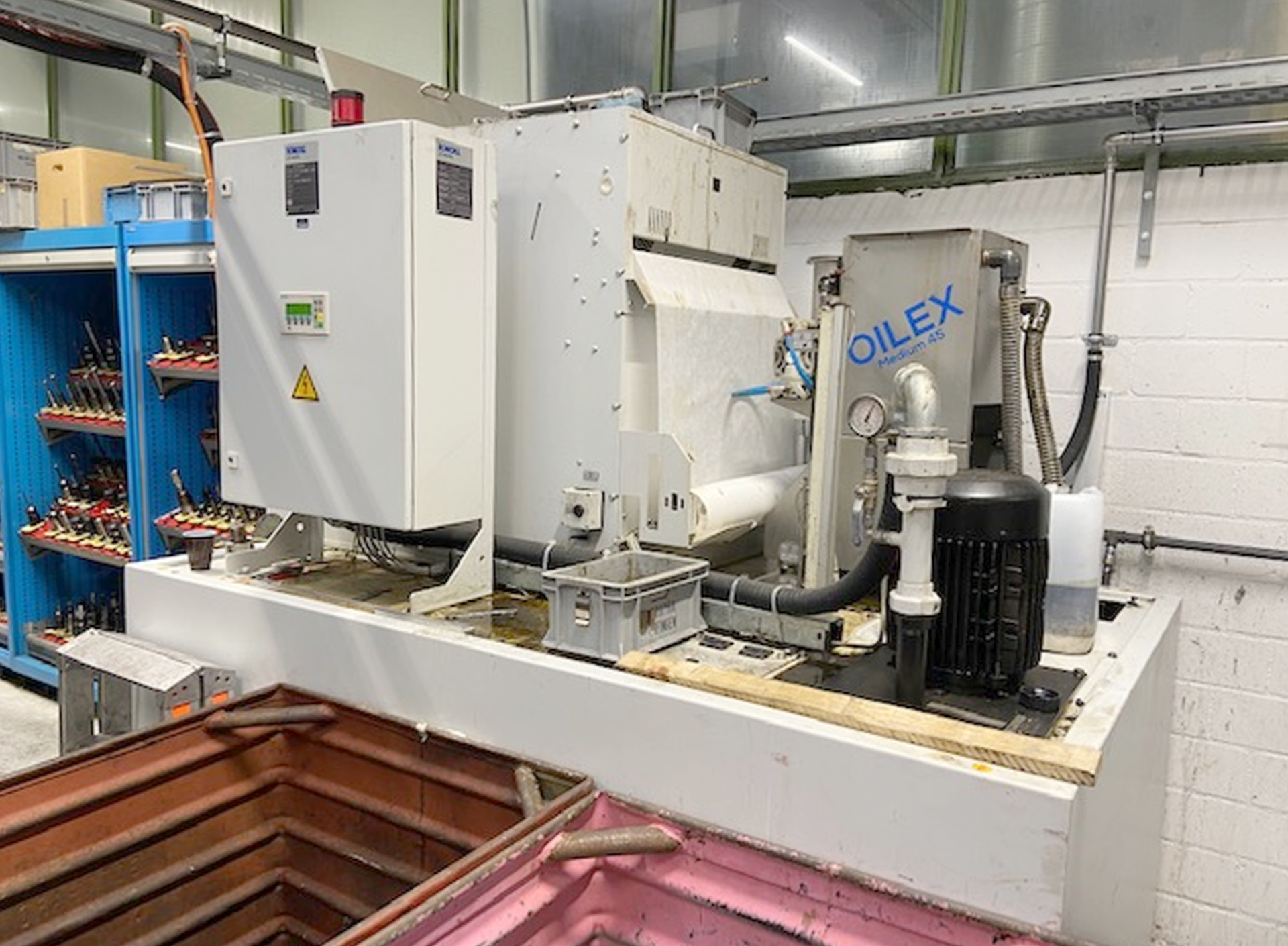

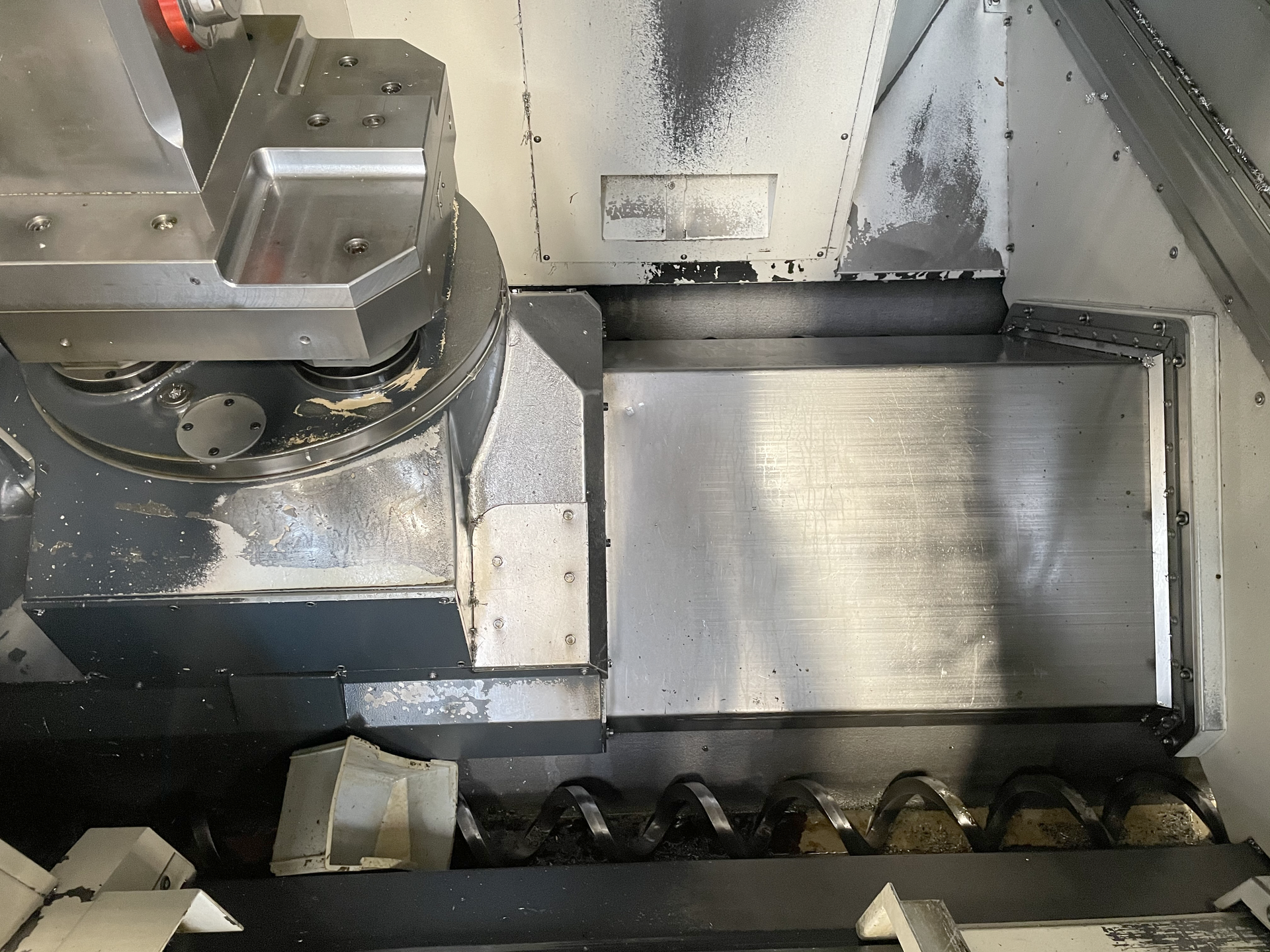

| Loading roboter | KUKA |
| High pression colant device | |
| Coolant through spindle (cts) | 40 bar |
| Spindle blow out device | |
| Tracer, feeler | |
| Chip conveyor | |

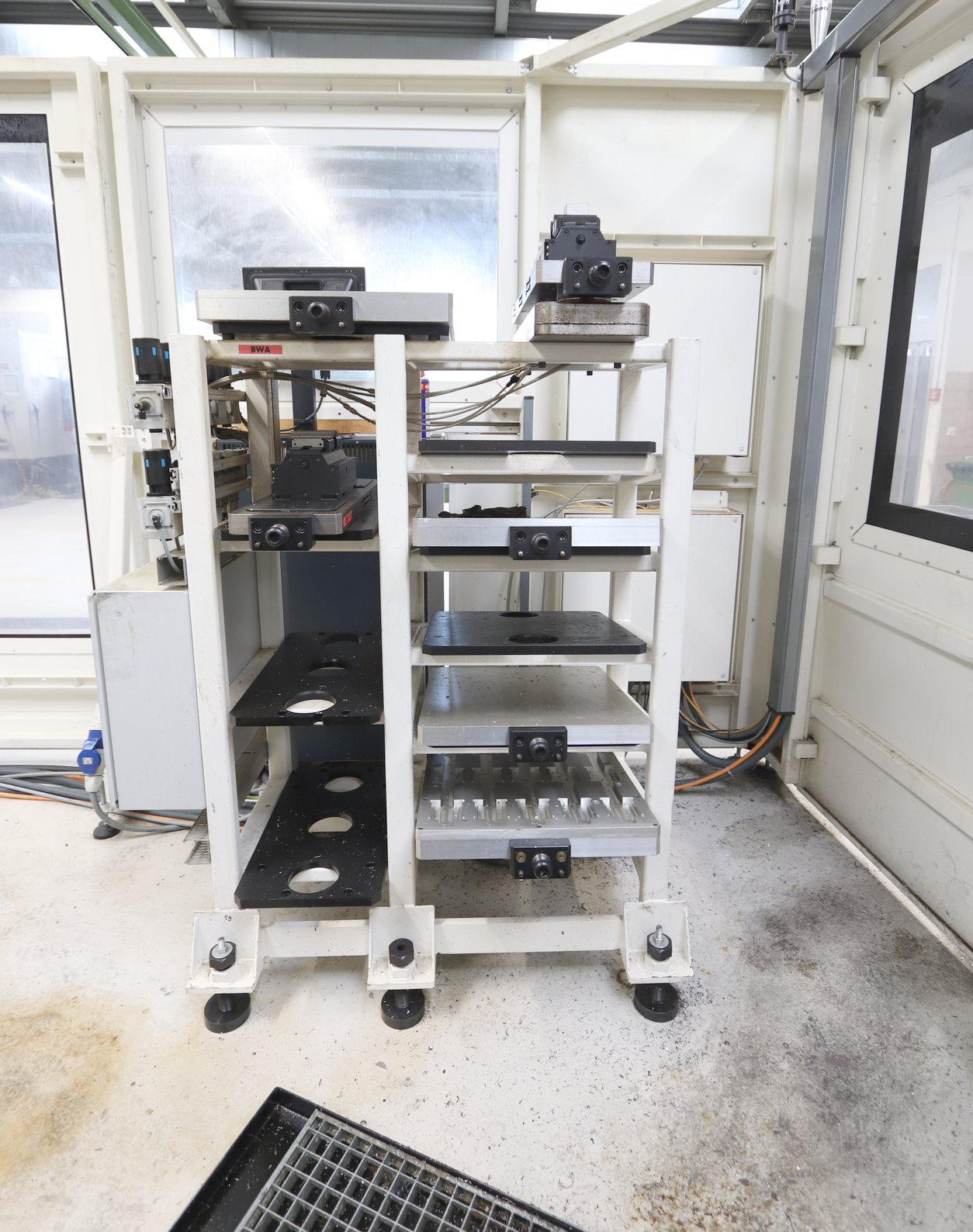

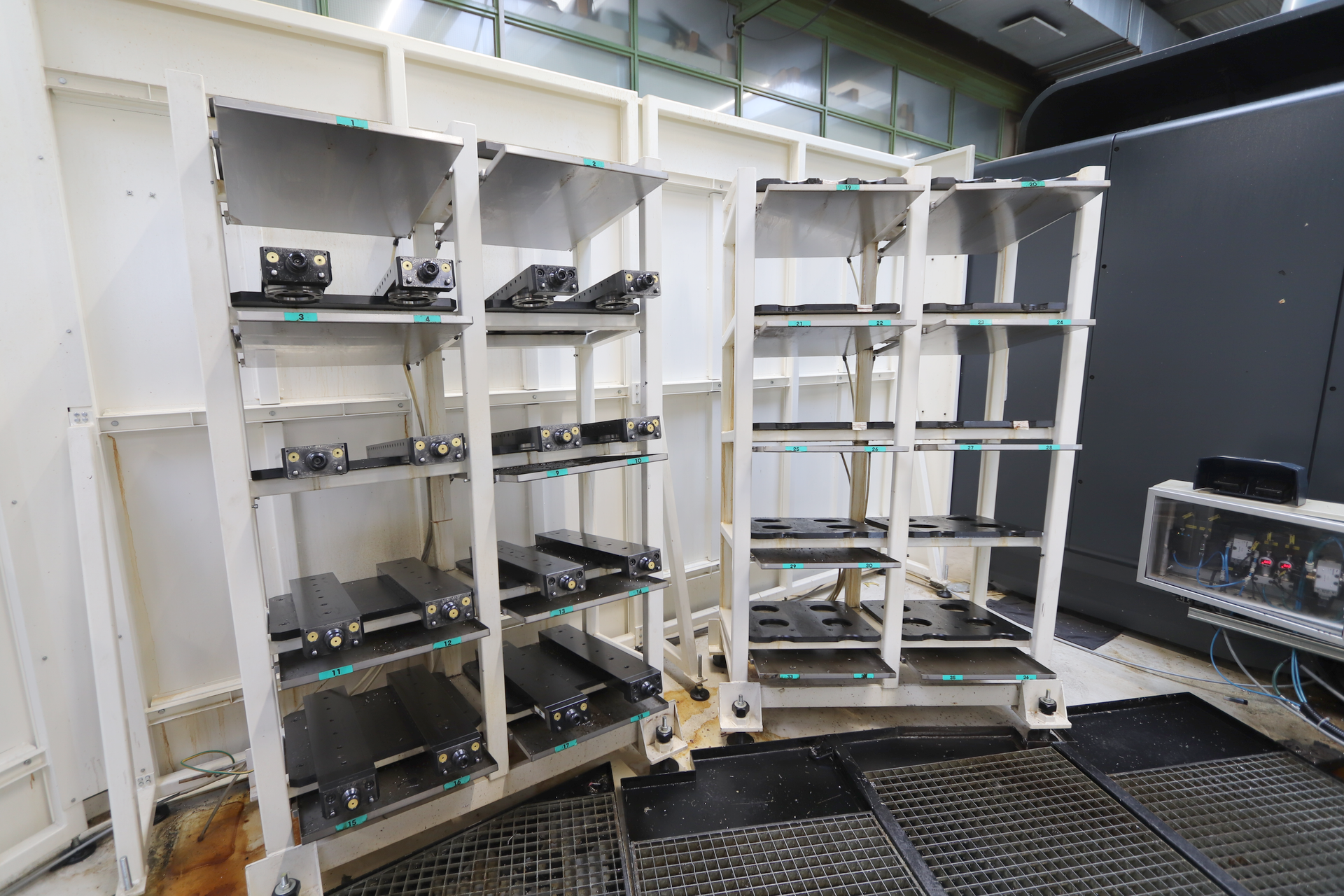

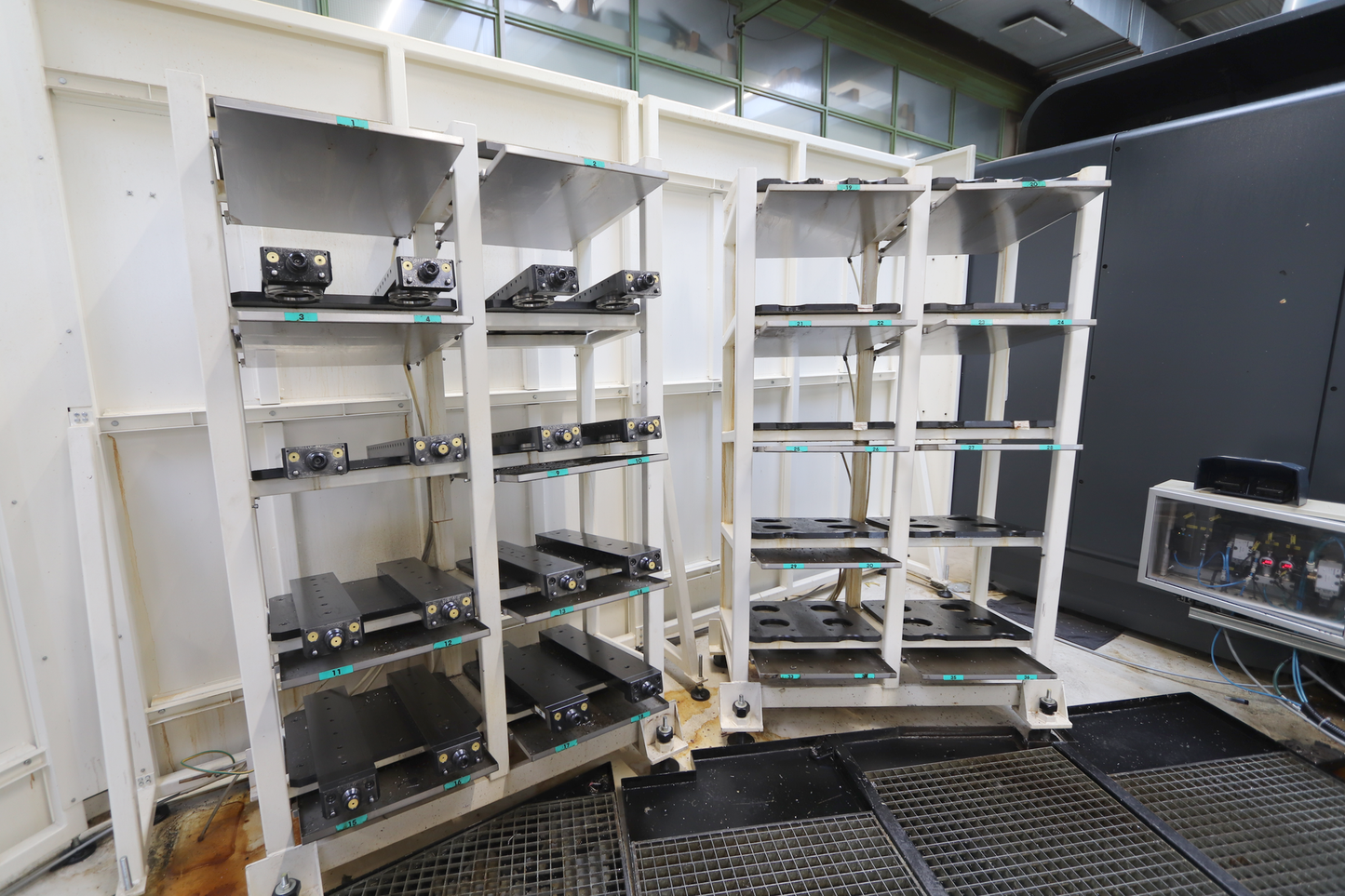

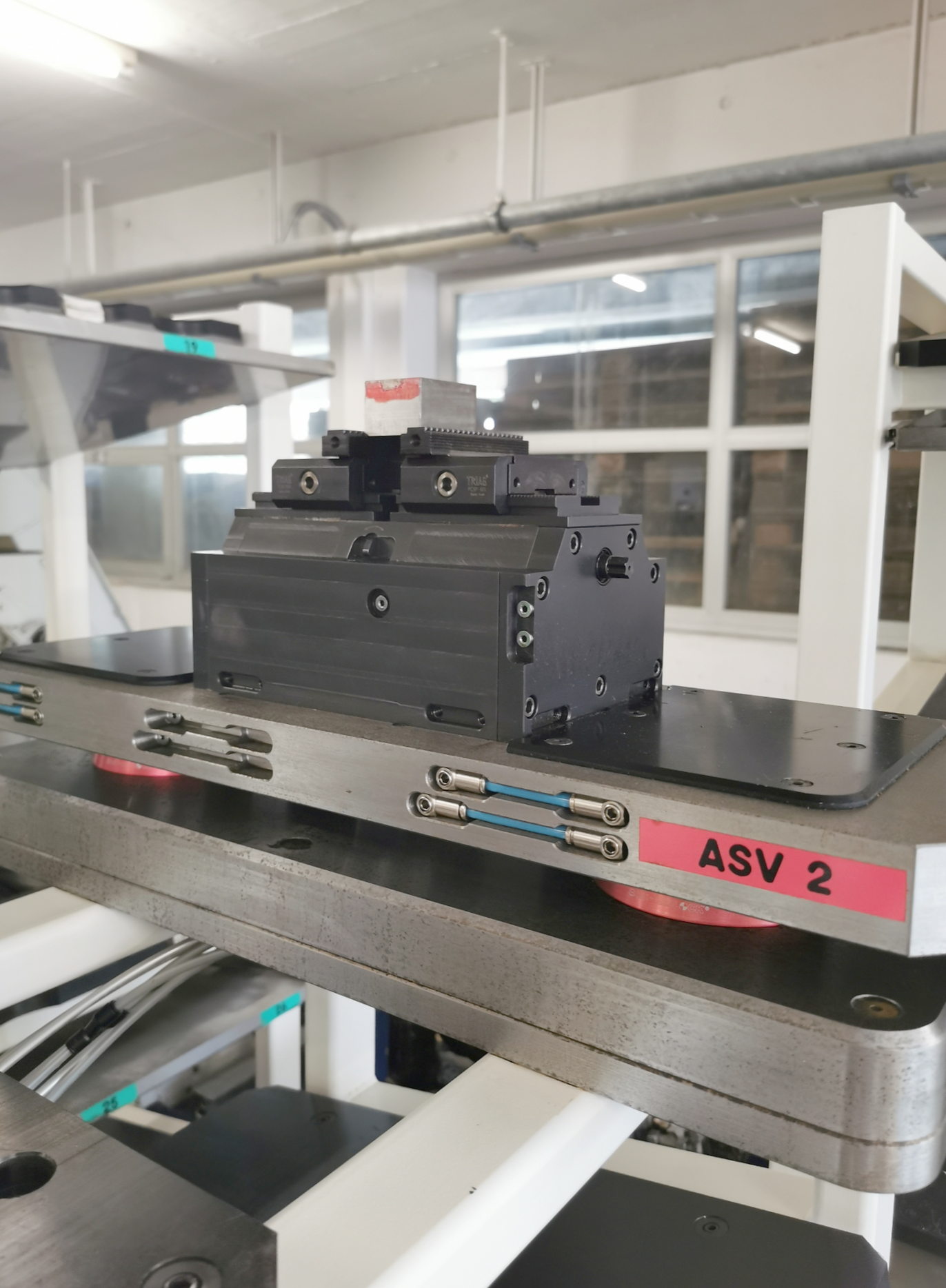

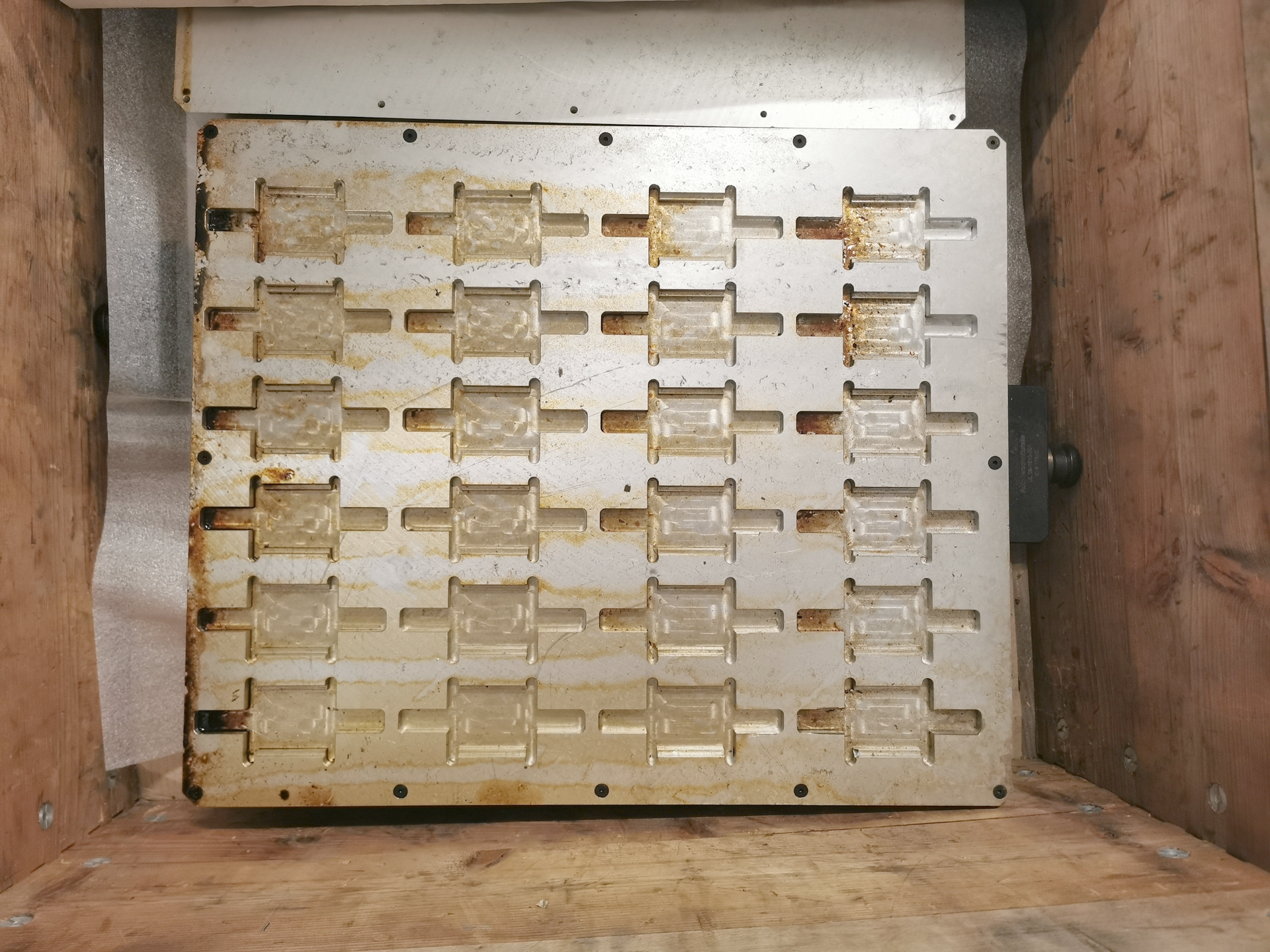

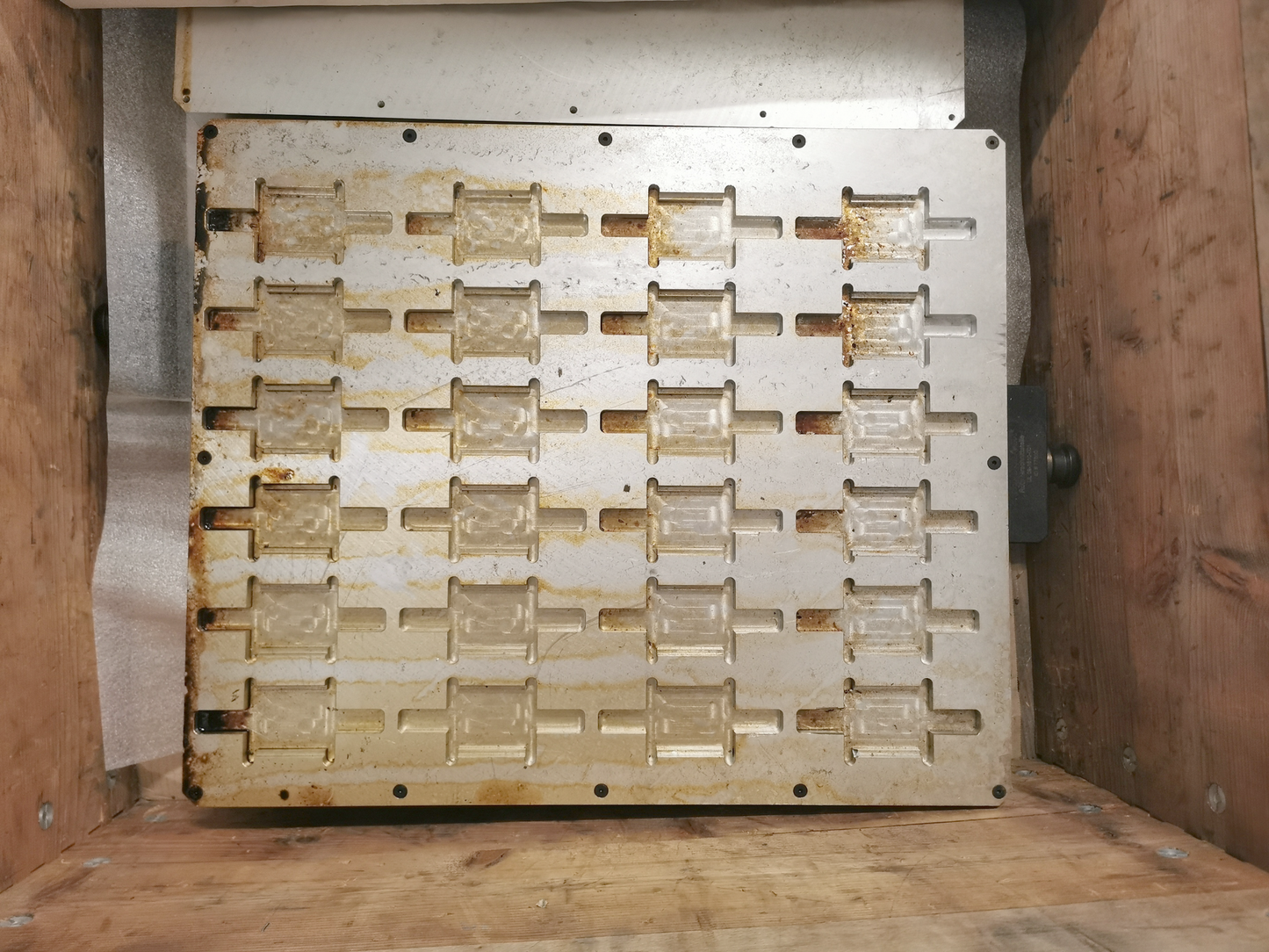

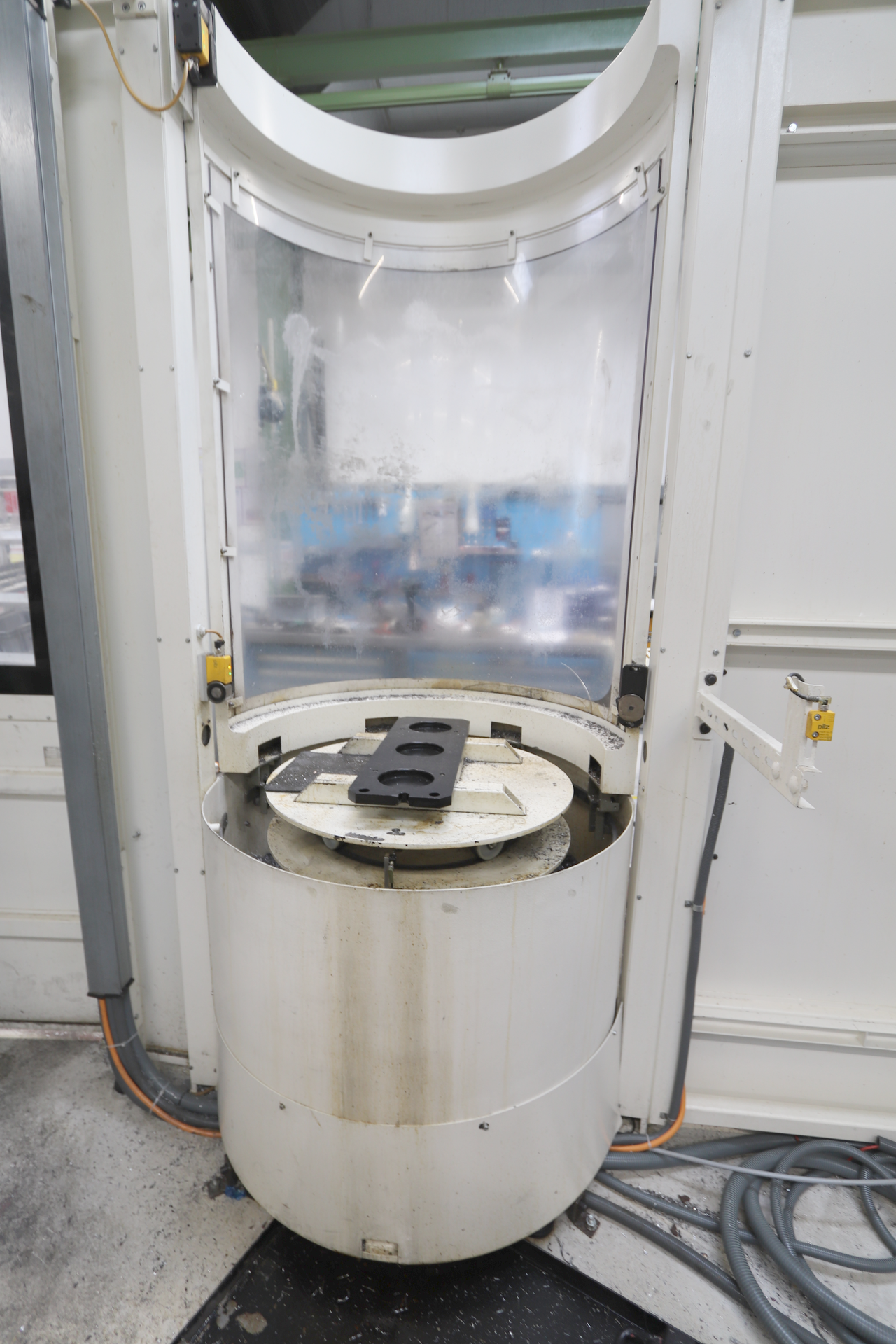

| Pallet rack | |
| Set-up place (number) | 60 (3x20) |
| Lamp | |
| Rinsing Guns | |
| Rotating viewing window | |

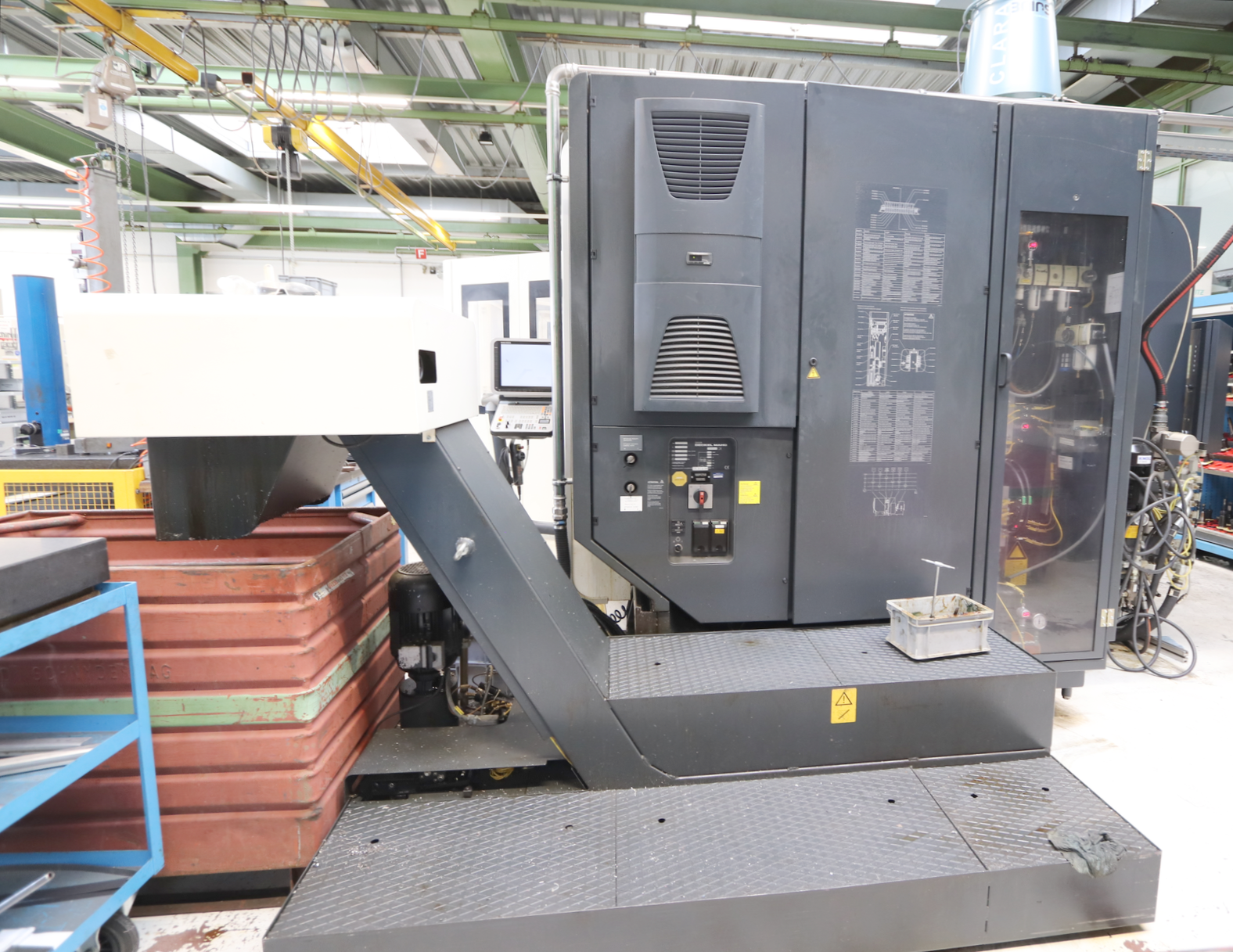

| Switch cabinet Air conditioner | |
| Foot pedal | |
| Status light | |
| Spindle changed | 2017 |
