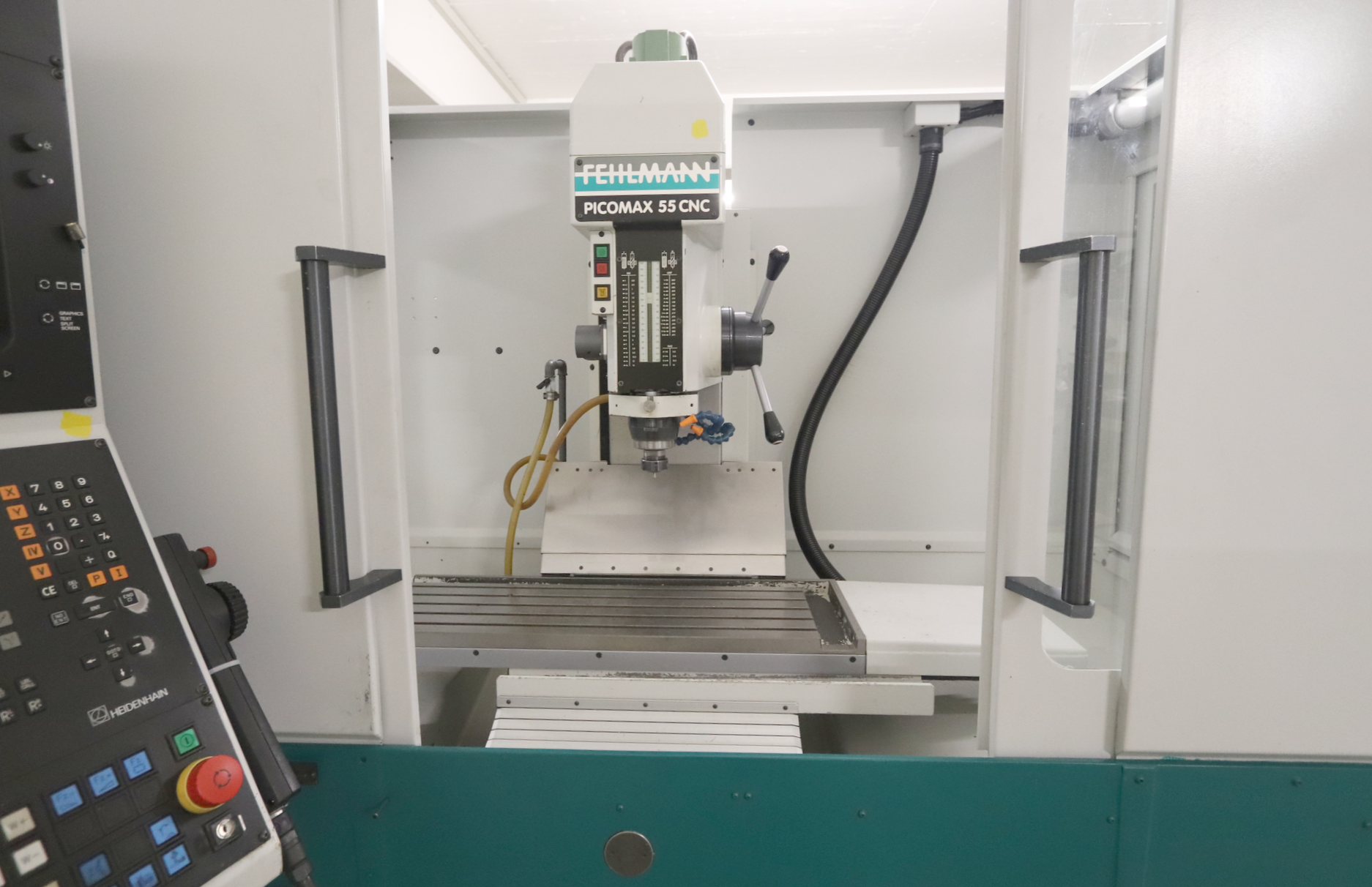

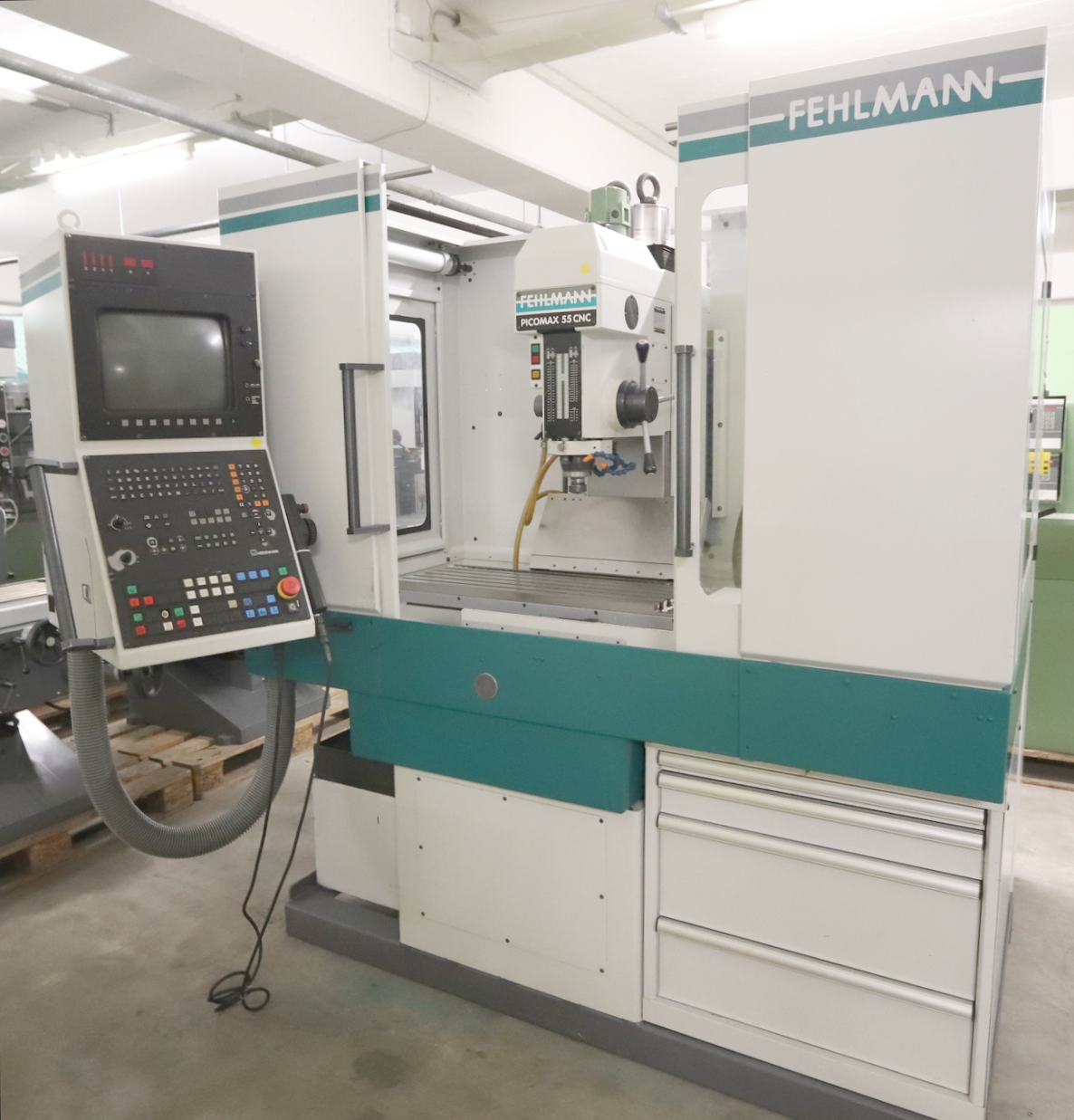

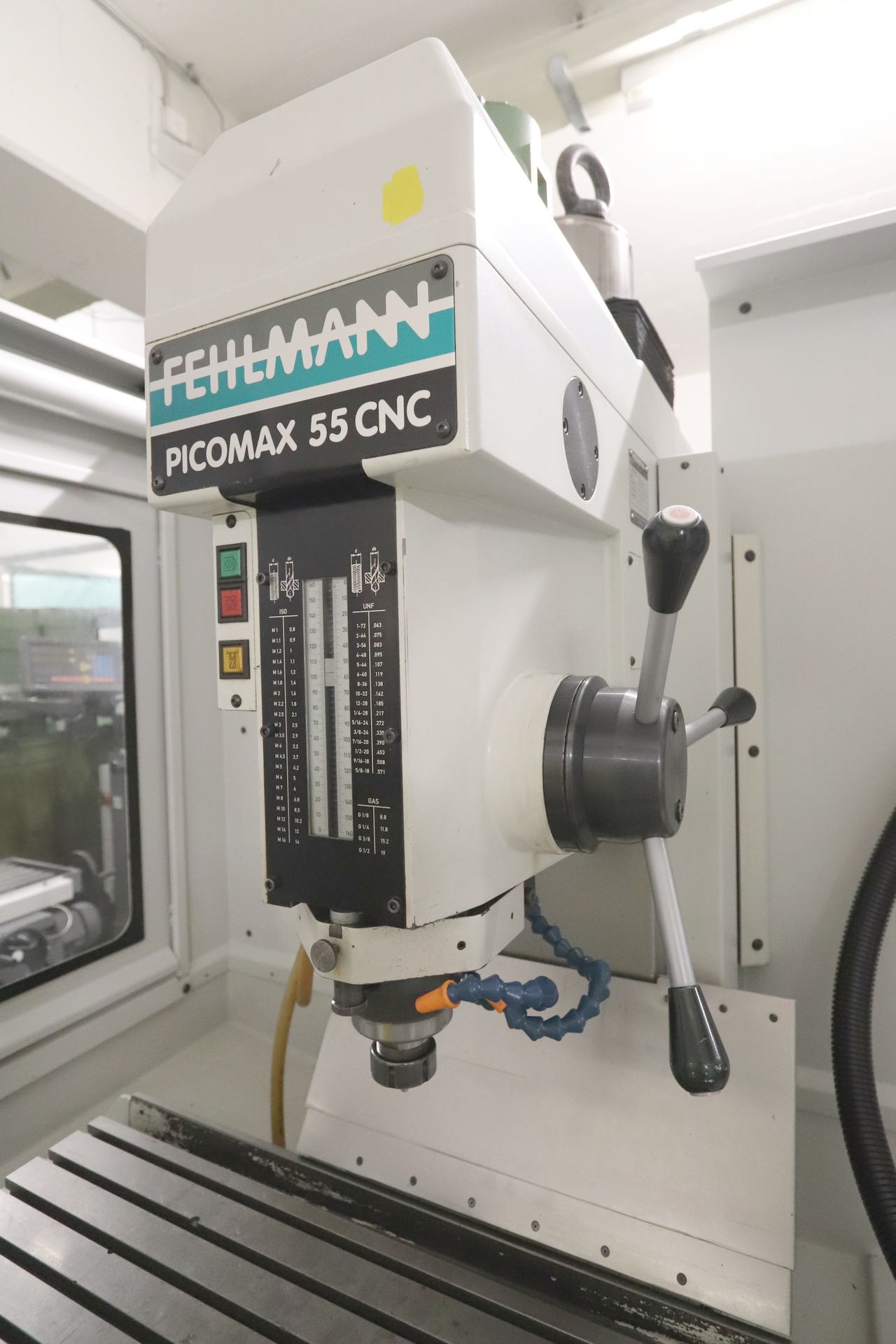

FEHLMANN Picomax 55 CNC
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
FEHLMANN Picomax 55 CNC is a CNC milling machine designed for precision, high accuracy and reliability. Working capacities: drill in steel 25 mm, thread cutting M16, milling capacity 100 cm3/min; spindle taper SF32; travels L500×T250×V145 mm; table 885×320 mm, 5 T‑slots 12 mm spaced 50 mm, table load max 250 kg, table height 1040 mm, table‑to‑spindle 0–620 mm. Technical specs: spindle speeds 50–10000 t/min; feeds X/Y 1–11000 mm/min, Z 1–6000 mm/min, W 1–3600 mm/min; rapid traverse X/Y 11 m/min Z 6 m/min; supply 3×400 V 50 Hz; power 7 kW, total installed 16 kW; weight ≈2400 kg; dimensions 1920×1850×2400 mm. Accessories: coolant 100 l, full splash cabin, electronic handwheel. Enables tight tolerances; suitable for watchmaking, automotive, aerospace, medical and machine‑tools.
| Drill capacity in steel | 25 mm |
| Threat cutting in steel M | 16 |
| Milling capacity | 100 cm3/min |

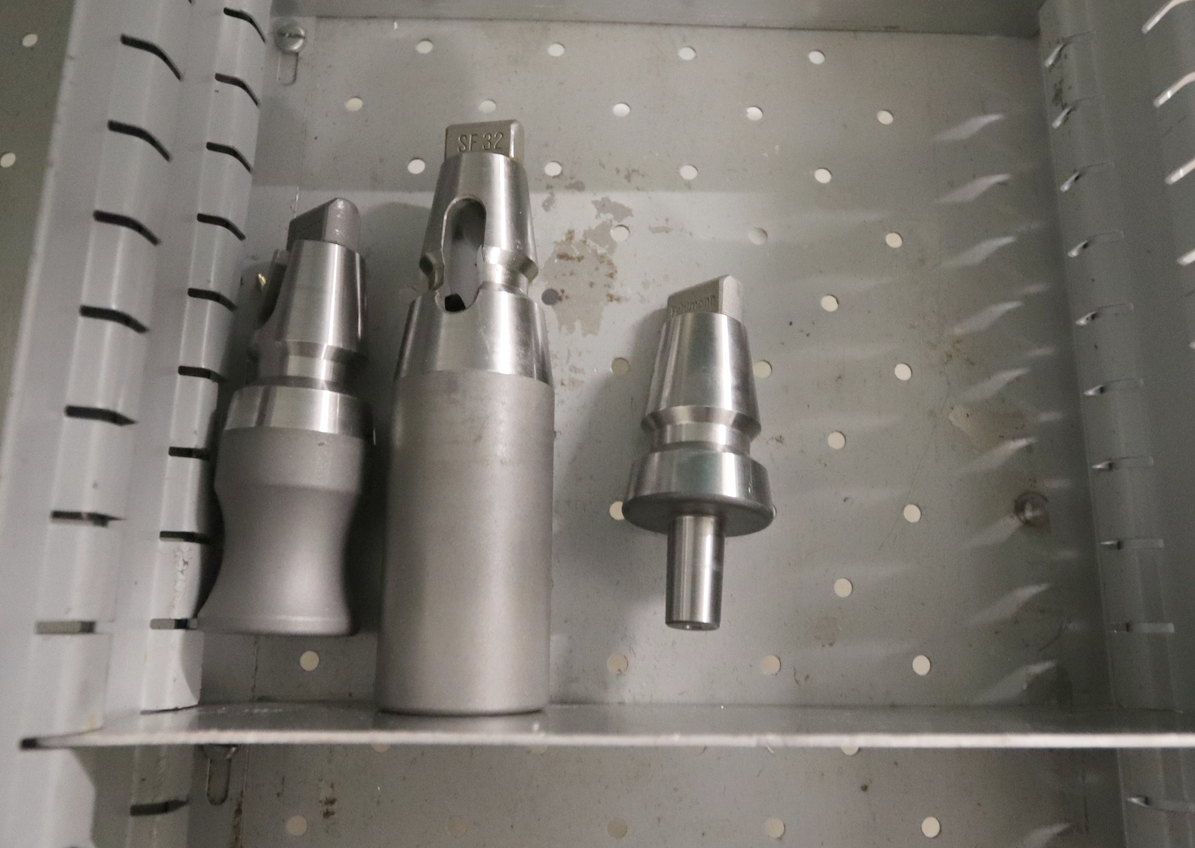

| Taper in spindle | SF32 |
| Spindle speeds: | |
| from | 50 t/min |
| up to | 10000 t/min |

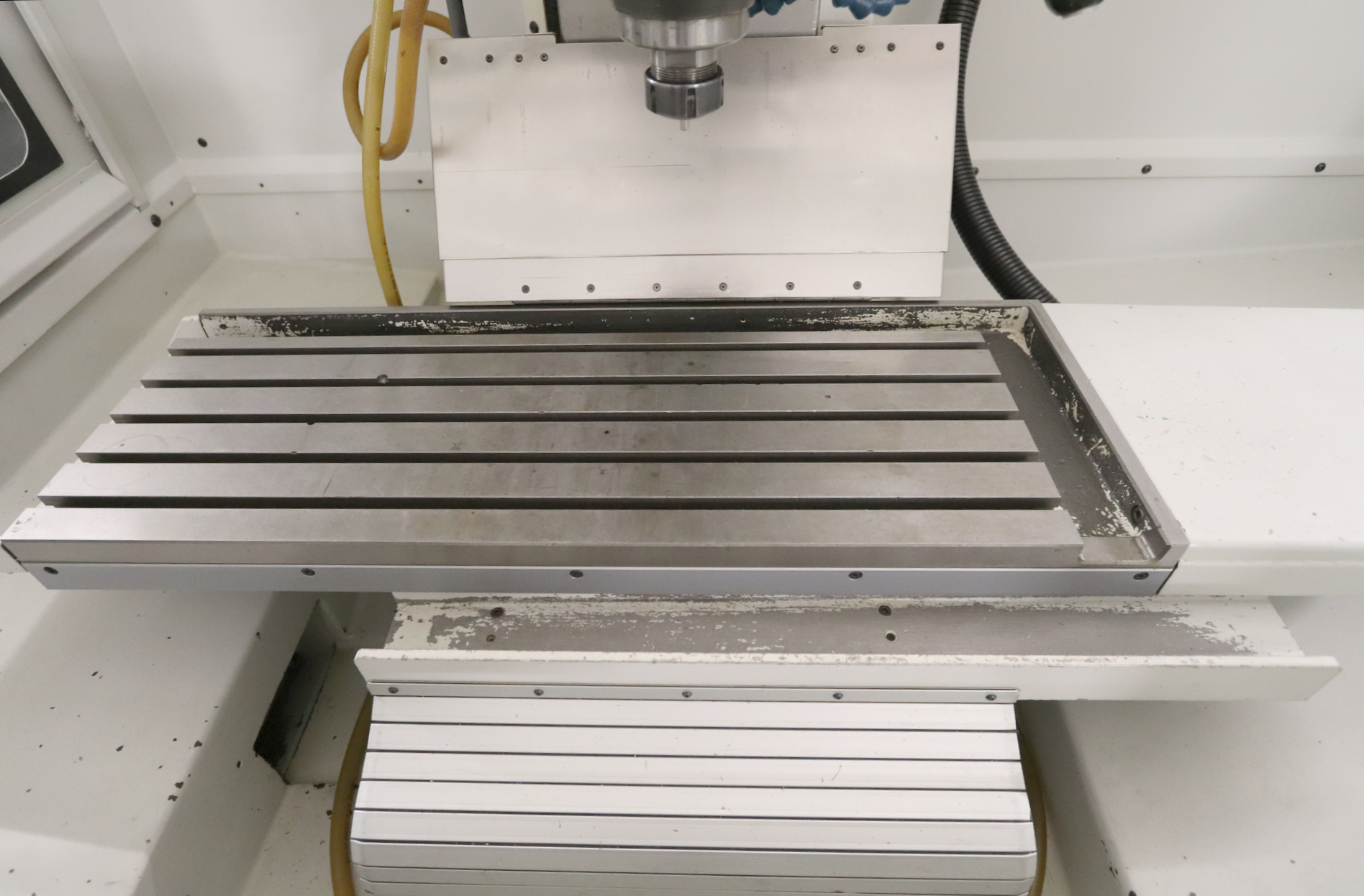

| Table length | 885 mm |
| Table width | 320 mm |
| Number of T-channels | 5 |
| T-channel width | 12 mm |
| Distance of the T-slots | 50 mm |
| Table load max. | 250 kg |
| Height of table above floor | 1040 mm |
| Min. distance from table to spindle | 0 mm |
| Max. distance from table to spindle | 620 mm |
| Longitudinal travel | 500 mm |
| Transversal travel | 250 mm |
| Vertical travel | 145 mm |
| Feeds: | |
| X axis | 1 - 11000 mm/min |
| Y axis | 1 - 11000 mm/min |
| Z axis | 1 - 6000 mm/min |
| W axis | 1 - 3600 mm/min |
| Rapid traverse X | 11 m/min |
| Rapid traverse Y | 11 m/min |
| Rapid traverse Z | 6 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Power | 7 kW |
| Total power required | 16 kW |
| Machine's weight about | 2400 kg |
| Overall dimensions machine: | |
| Length | 1920 mm |
| Width | 1850 mm |
| Height | 2400 mm |
| Various accessories: | |
| Coolant system | 100 l |

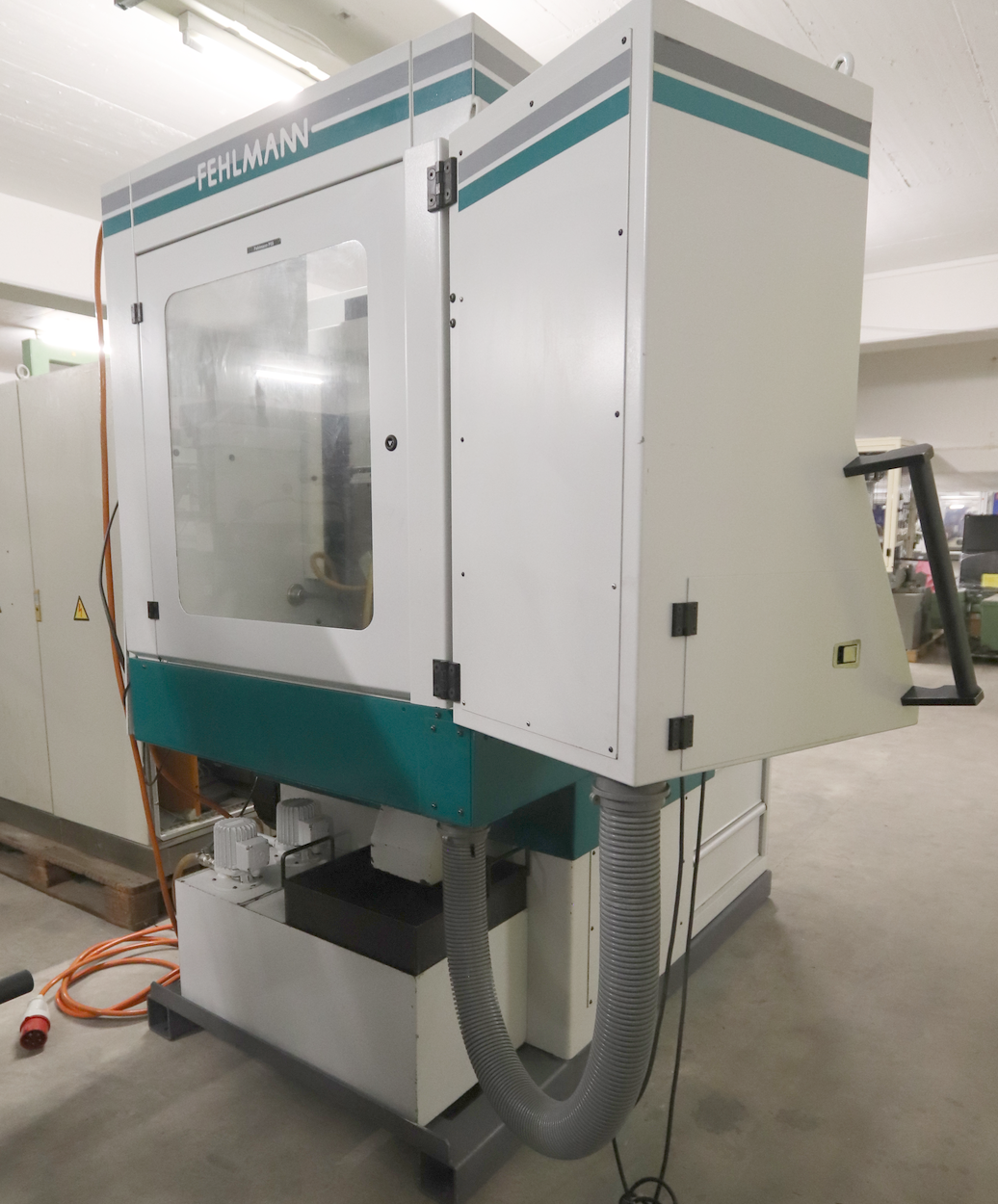

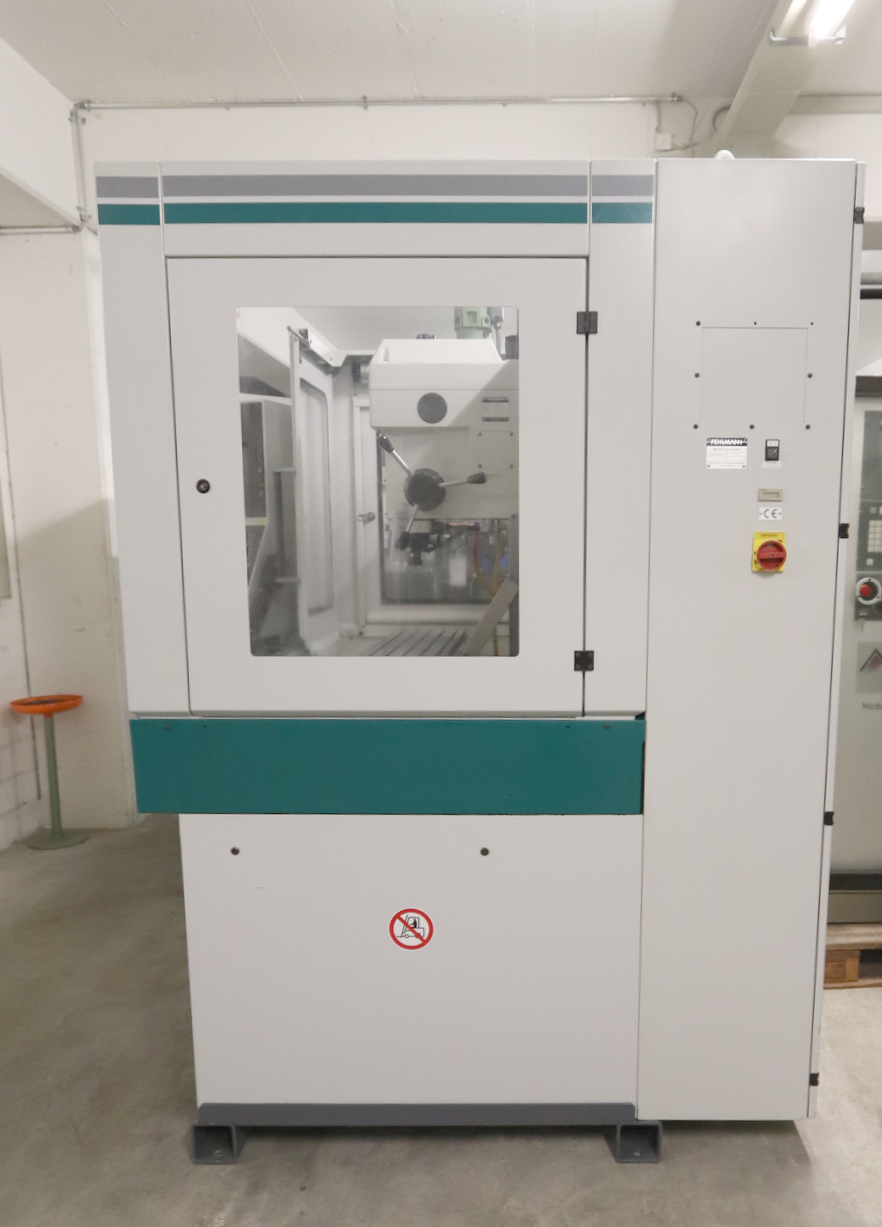

| Full splash cabin | |

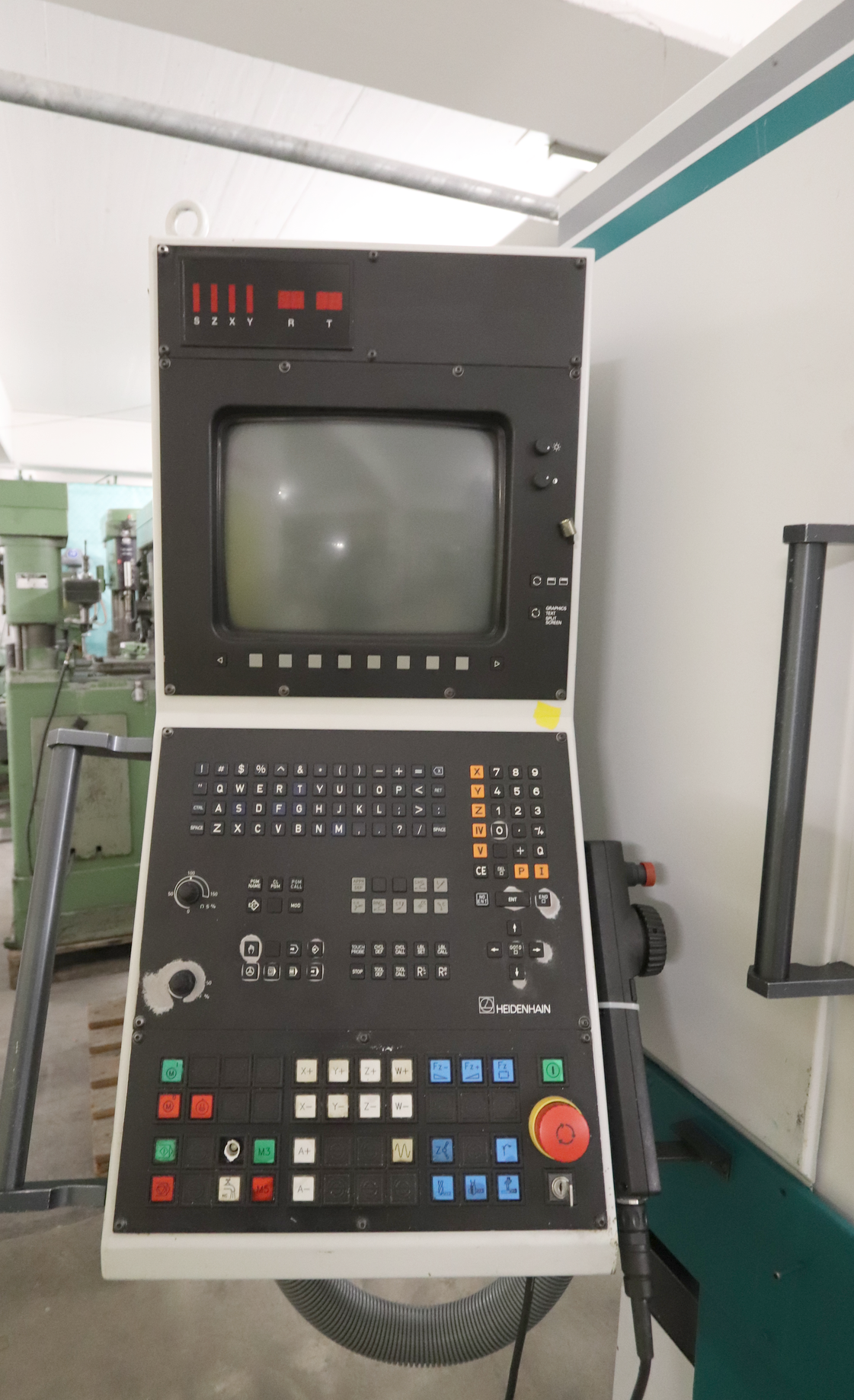

| Handwheel electroinic |
