TAKUMI F11 is a 3-axis machining center engineered for precision, high accuracy and reliability. Table 1200x625 mm, table load 1200 kg; travels X1100 mm, Y625 mm, Z500 mm; 24-tool changer, tool Ø max 80 mm, length 250 mm, tool weight 7 kg; spindle nose SK40, spindle nose–table 150–650 mm. Spindle up to 15000 rpm, spindle motor 11/18.5 kW, total power 45 kVA; work feed 12 m/min; rapid traverse X/Y 40 m/min, Z 30 m/min; machine weight ~9710 kg, size 3670x2200x3160 mm. Accessories: 4th-axis prep, set of toolholders, coolant system, coolant-through-spindle, paper filtration, water cooler, laser tool setting, chip conveyor, lamp, spindle oil cooler, status light. Delivers tight tolerances; suited for automotive, aerospace, medical, watchmaking and machine-tool sectors.
| Number of axis total | 3 |
| Table length | 1200 mm |
| Table width | 625 mm |
| Table load max. | 1200 kg |
| Longitudinal travel (X-axis) | 1100 mm |
| Transversal travel (y-axis) | 625 mm |
| Vertical travel (z axis) | 500 mm |
| Tool changer: | |
| Number of tools | 24 |
| Tool diameter max. | 80 mm |
| Tool lenght | 250 mm |
| Max. tool-weight | 7 kg |
| Spindle nose SK | 40 |
| Distance spindle nose to table | 150 - 650 mm |
| Spindle speeds: | |
| stepless | |
| up to | 15000 t/min |
| Work feed rate | 12 m/min |
| Rapid traverse: long. | 40 m/min |
| Rapid traverse: transversal | 40 m/min |
| Rapid traverse: vertical | 30 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 11 / 18.5 kW |
| Total power required | 45 kVA |
| Machine's weight about | 9710 kg |
| Overall dimensions machine: | |
| Length | 3670 mm |
| Width | 2200 mm |
| Height | 3160 mm |
| Various accessories: | |
| Preparation 4the axis | |

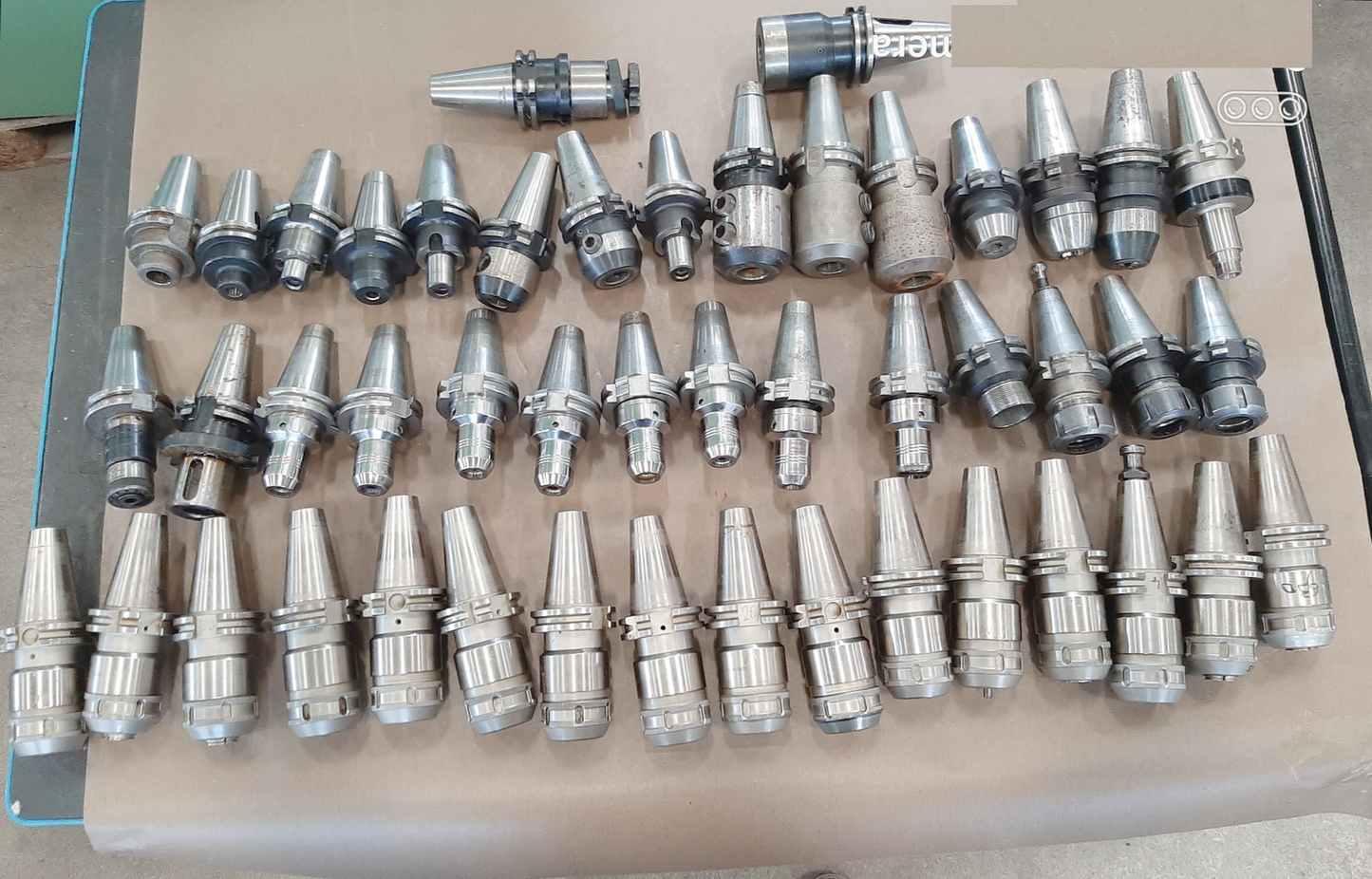

| Set of toolholders | |
| Coolant system | |
| Coolant through spindle (cts) | |
| Paper filtration system | |
| Water cooler | |
| Laser tool setting system | |
| Chip conveyor | |
| Lamp | |
| Spindle oil cooler | |
| Status light |
