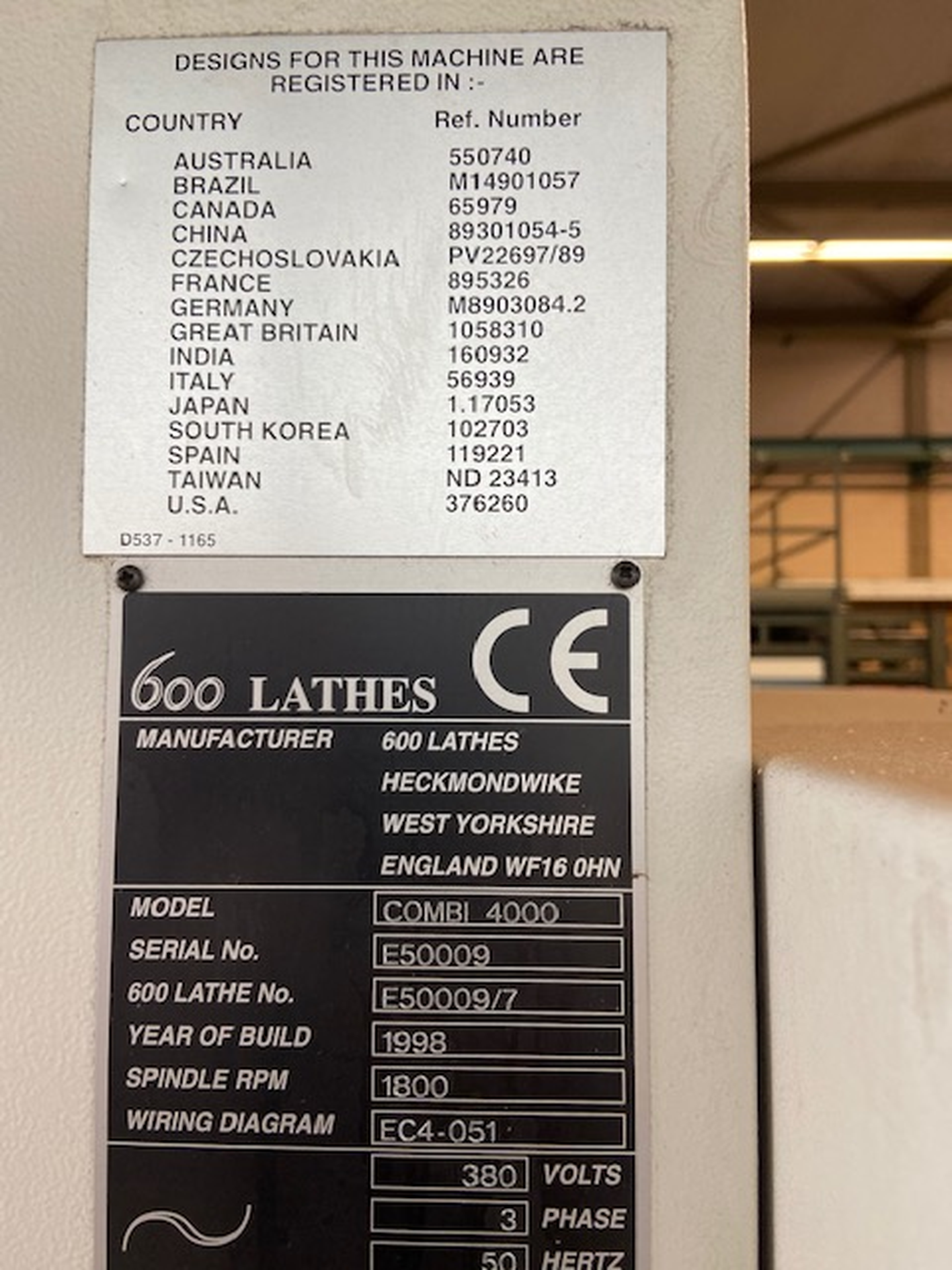

021165 - COLCHESTER COMBI 4000
Download technical sheet (PDF)
Message us on WhatsApp
| Distance between centres | 2000 mm |
| Turning diameter over cross-slide | 370 mm |
| Swing over bed | 554 mm |
| Spindle nose | D1-11 |
| Spindle hole | 104 mm |
| Maximum turning length | 2000 mm |
| Cross slide: | |
| Longitudinal travel (Z-axis) | 1920 mm |
| Transversal strocke (X axis) | 290 mm |
| Main spindle: | |
| Taper in spindle: | |
| Camlock | D1-6 CAMLOCK |
| Spindle speeds: | |
| number (steps) | 3 |
| from | 16 t/min |
| up to | 1800 t/min |
| Taper in tailstock: | |
| Morse taper | 6 CM |
| Spindle stroke | 178 mm |
| Spindle diameter | 95 mm |
| Rapid traverse: | 10 m/min |
| Spindle motor | 11 / 7.5 kW |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 4000 kg |
| Overall dimensions machine: | |
| Length | 3300 mm |
| Width | 1800 mm |
| Height | 1700 mm |
| Various accessories: | |
| 3-jaw chuck diameter | 400 mm |
| 4-jaw chuck diameter | 700 mm |
| Face plate diameter | 680 mm |
| Set of soft jaws | |
| Set of hard jaws | |
| Lamp | |
| Tailstock | |
| Coolant system | 90 l |
| Rotary centre | |
| Steady | |
| Drill chuck | |
| Toolholders | MULTIFIX |
| Set of toolholders | |
| Set of reducing bushes | |
| Lathe chuck protection |
