| Number of axis simultaneous | 5 |

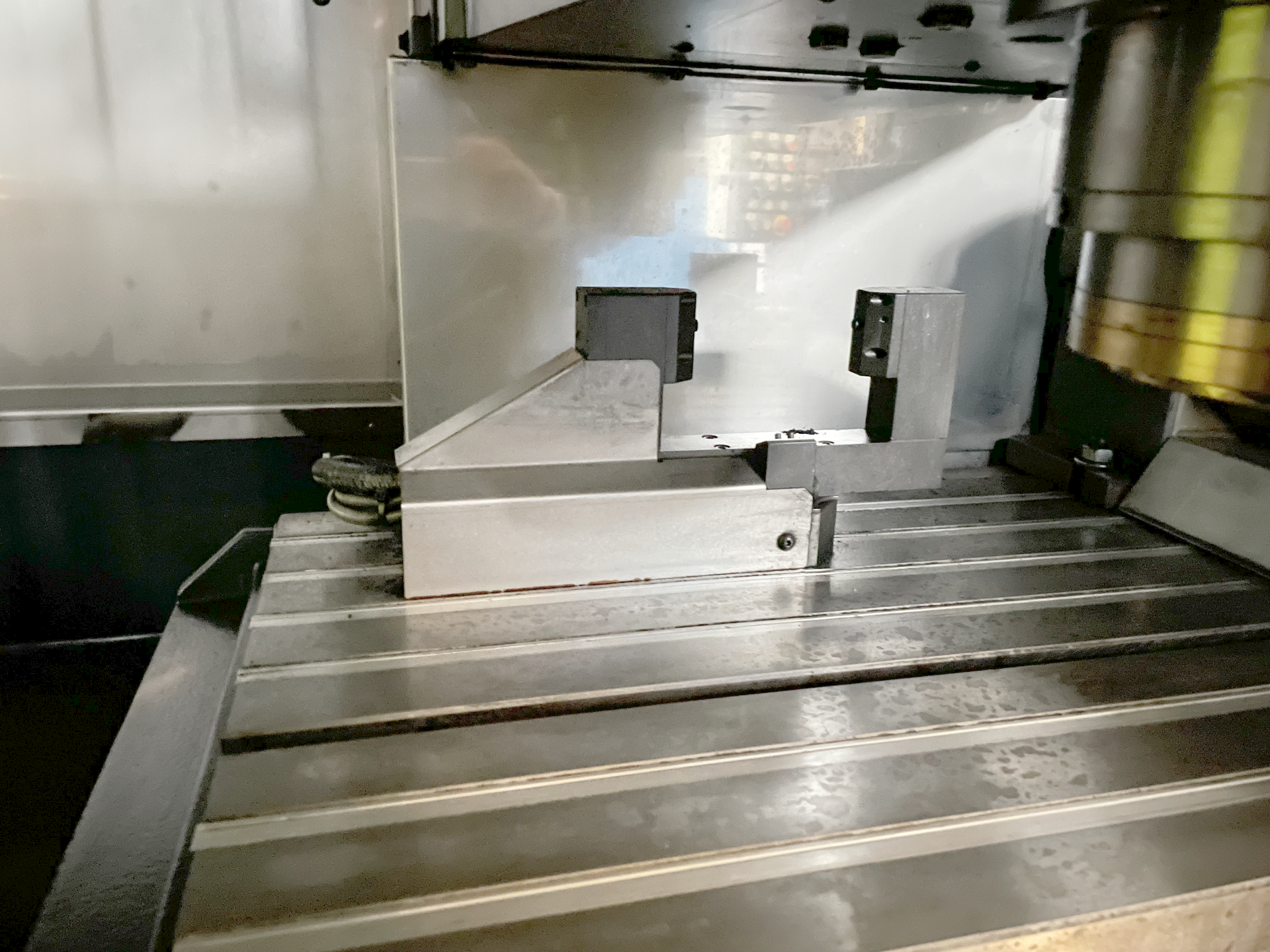

| Table length | 920 mm |
| Table width | 380 mm |
| Table load max. | 250 kg |
| Longitudinal travel (X-axis) | 505 mm |
| Transversal travel (y-axis) | 355 mm |
| Vertical travel (z axis) | 610 mm |
| Tool changer: | |
| Number of tools | 28 |
| Spindle nose: HSK | E50 |
| Spindle speeds: | |
| stepless | |
| from | 50 t/min |
| up to | 30000 t/min |
| Feed range | 1 - 20000 mm/min |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 22 kVA |
| Machine's weight about | 3750 kg |
| Overall dimensions machine: | |
| Length | 2070 mm |
| Width | 1936 mm |
| Height | 2642 mm |
| Various accessories: | |

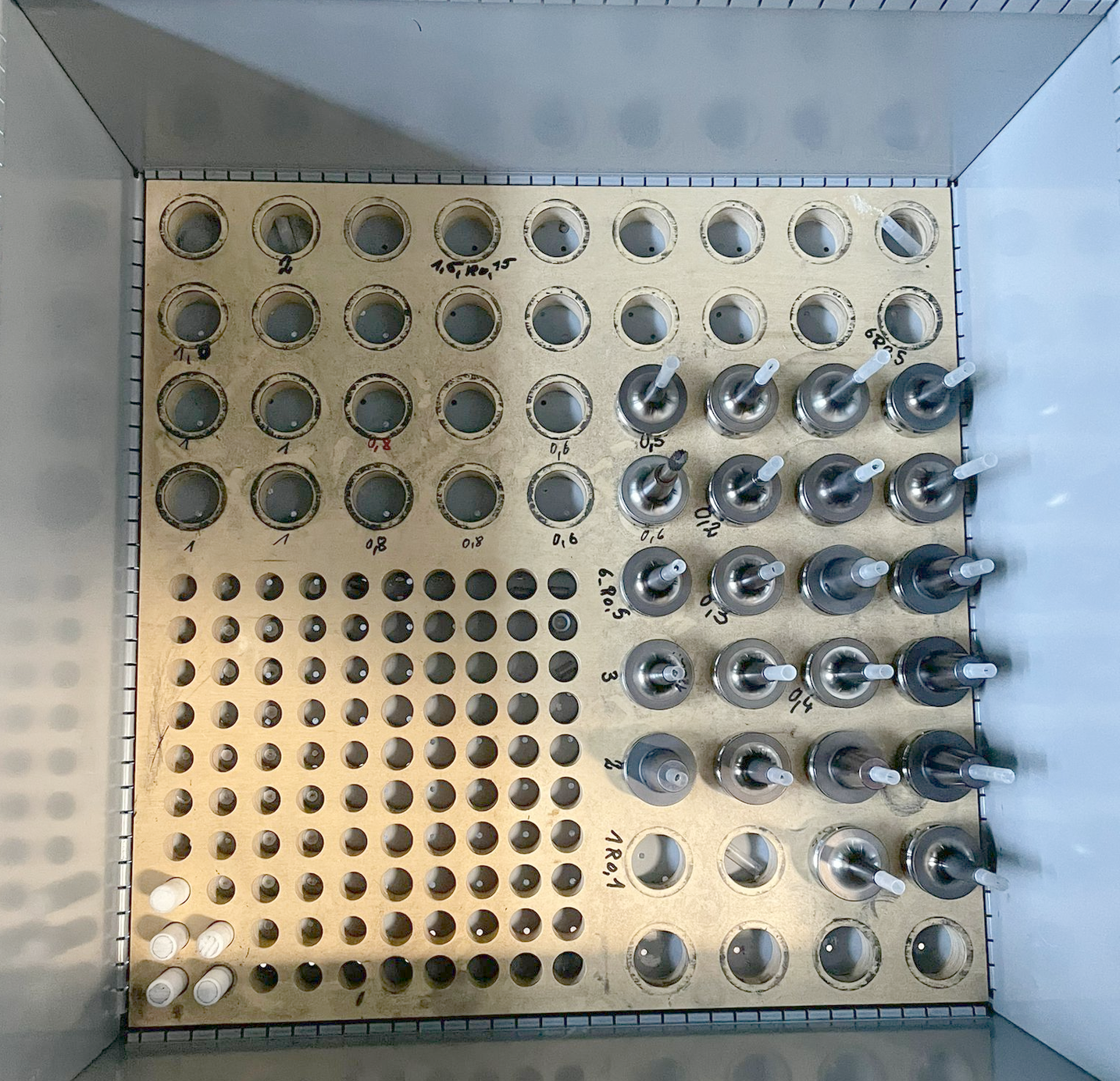

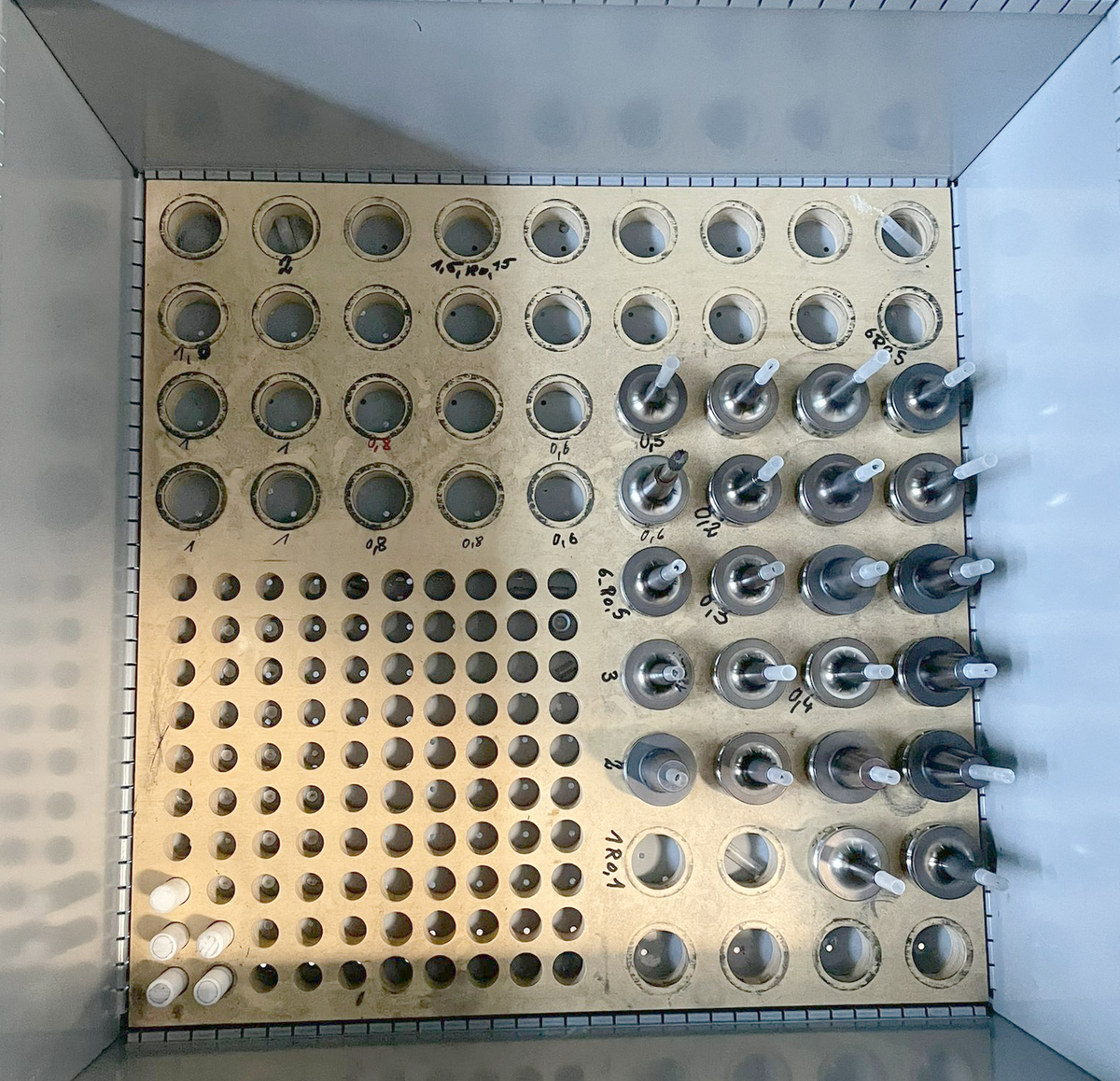

| Set of toolholders | |
| Coolant system | |

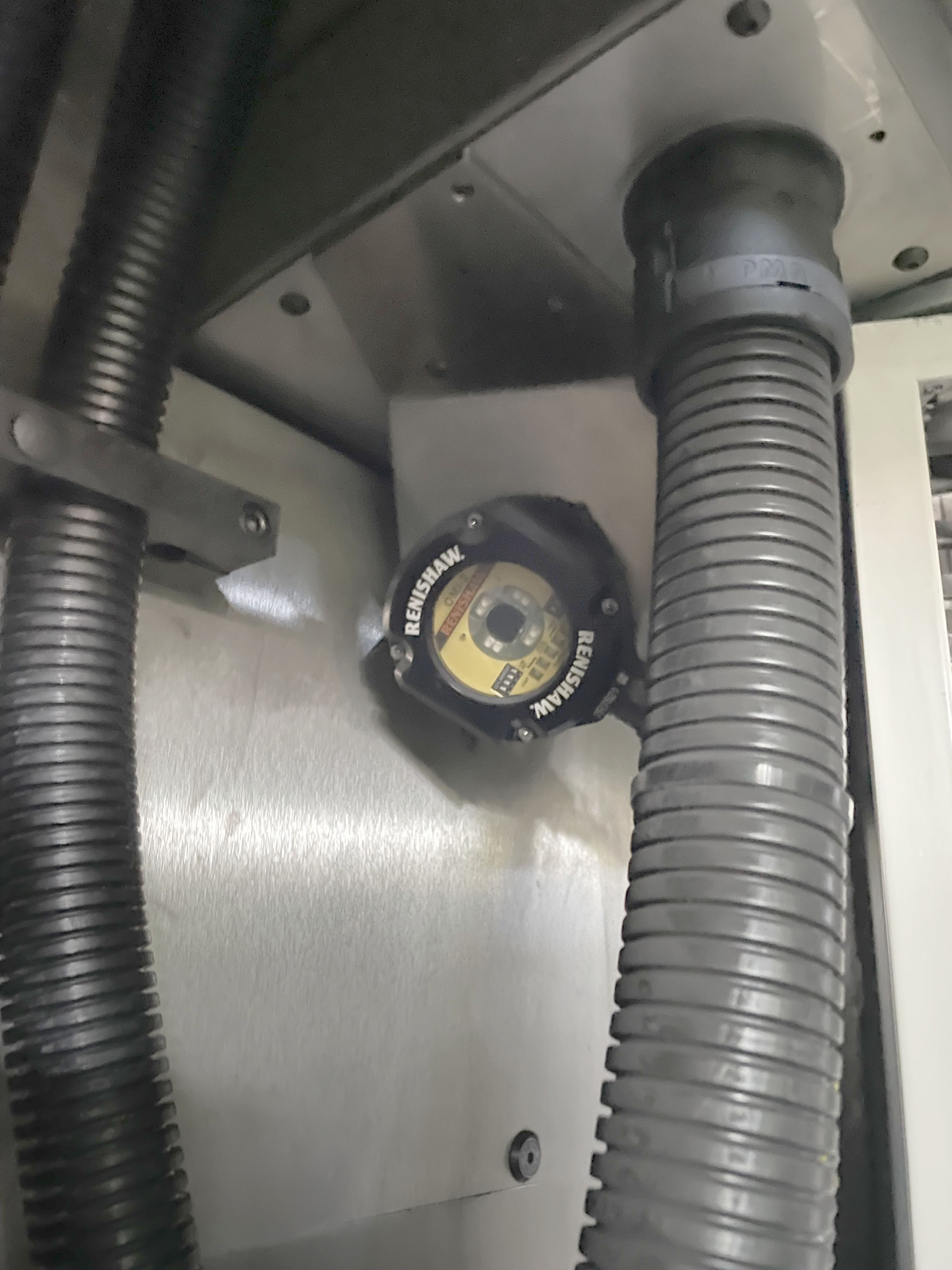

| Preparation for Renishaw 3D touch probe | MP40 |

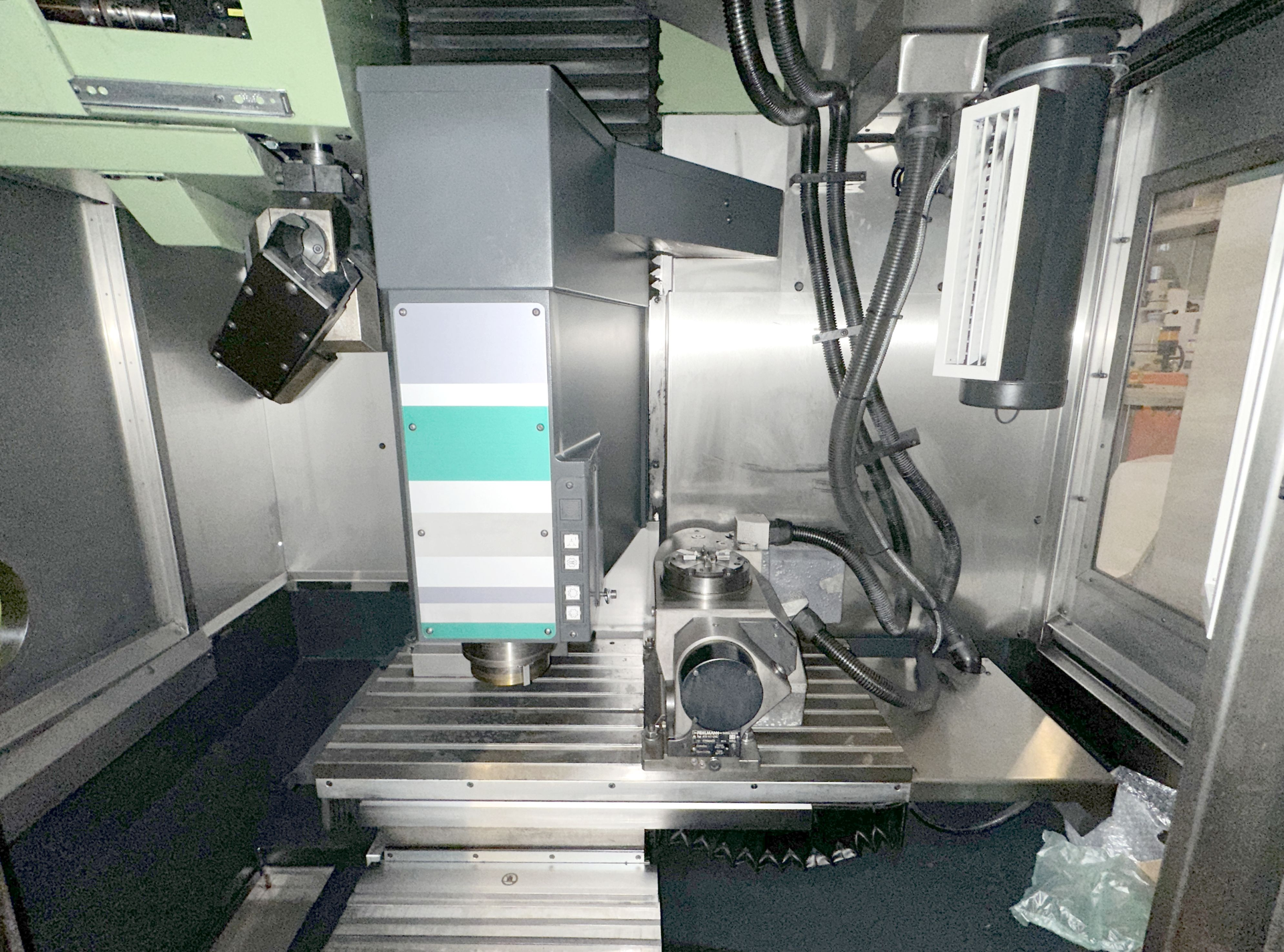

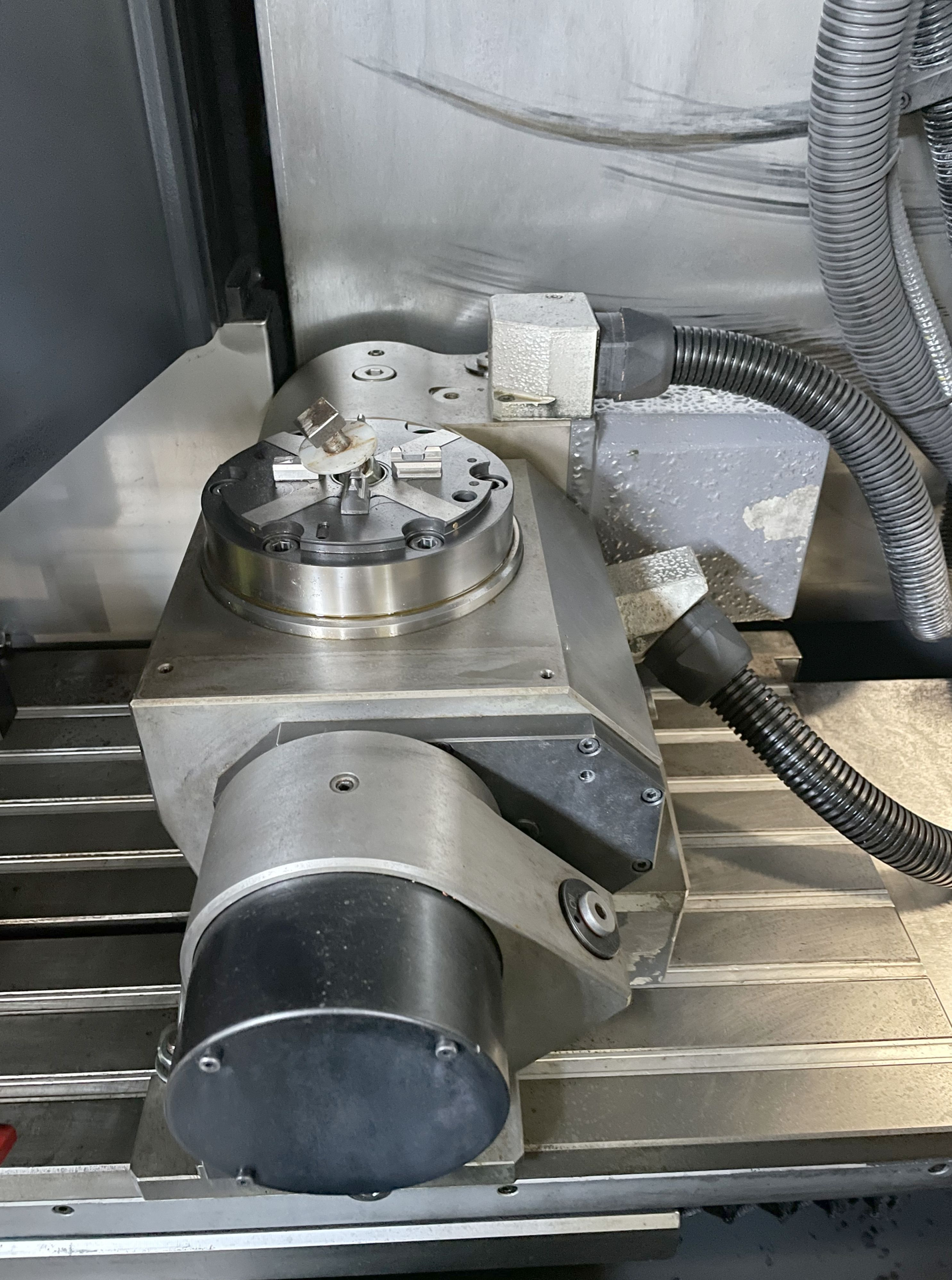

| Dividing attachment 4th and 5th axis | ATS 160 |

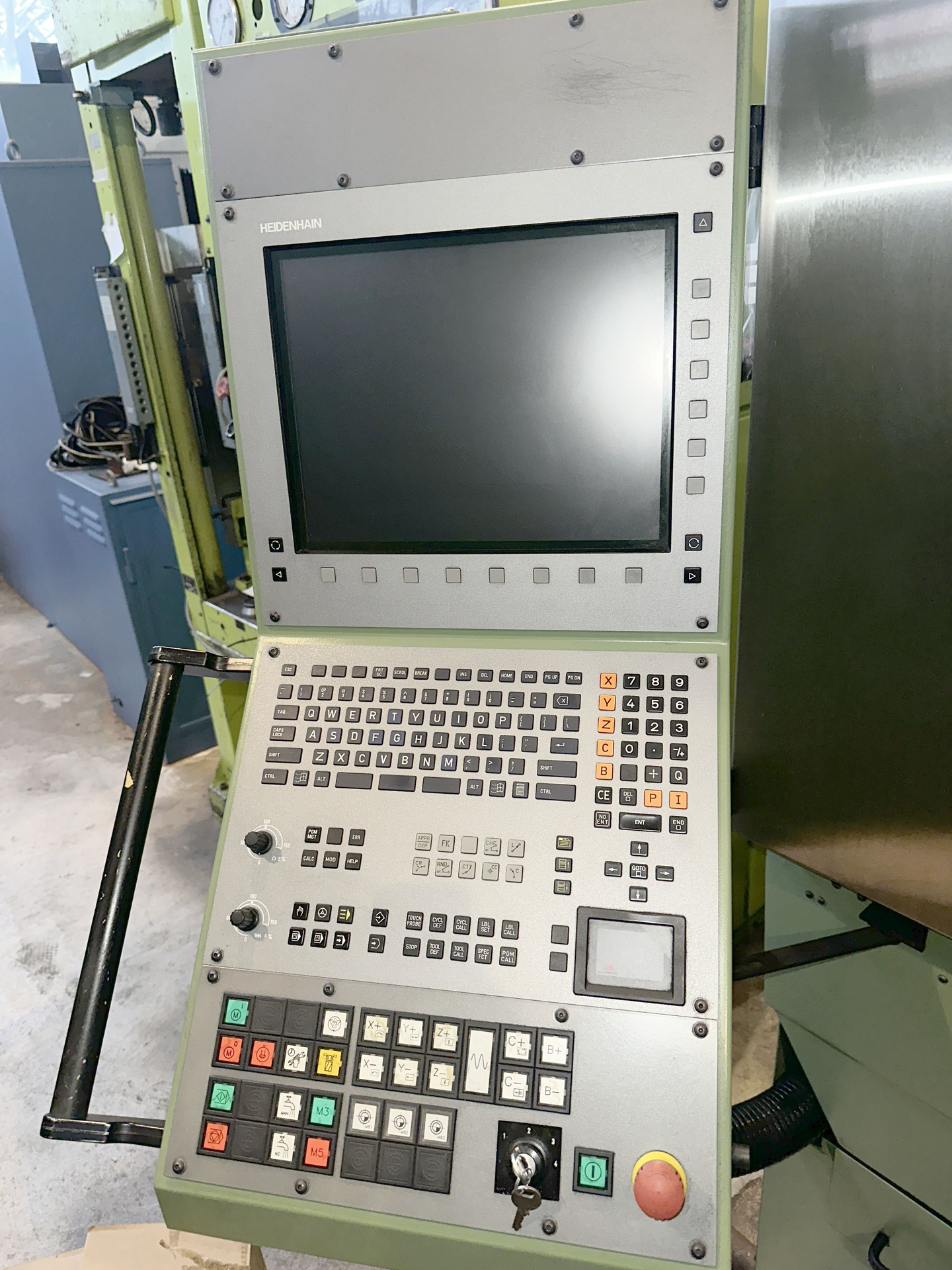

| Handwheel electroinic | |

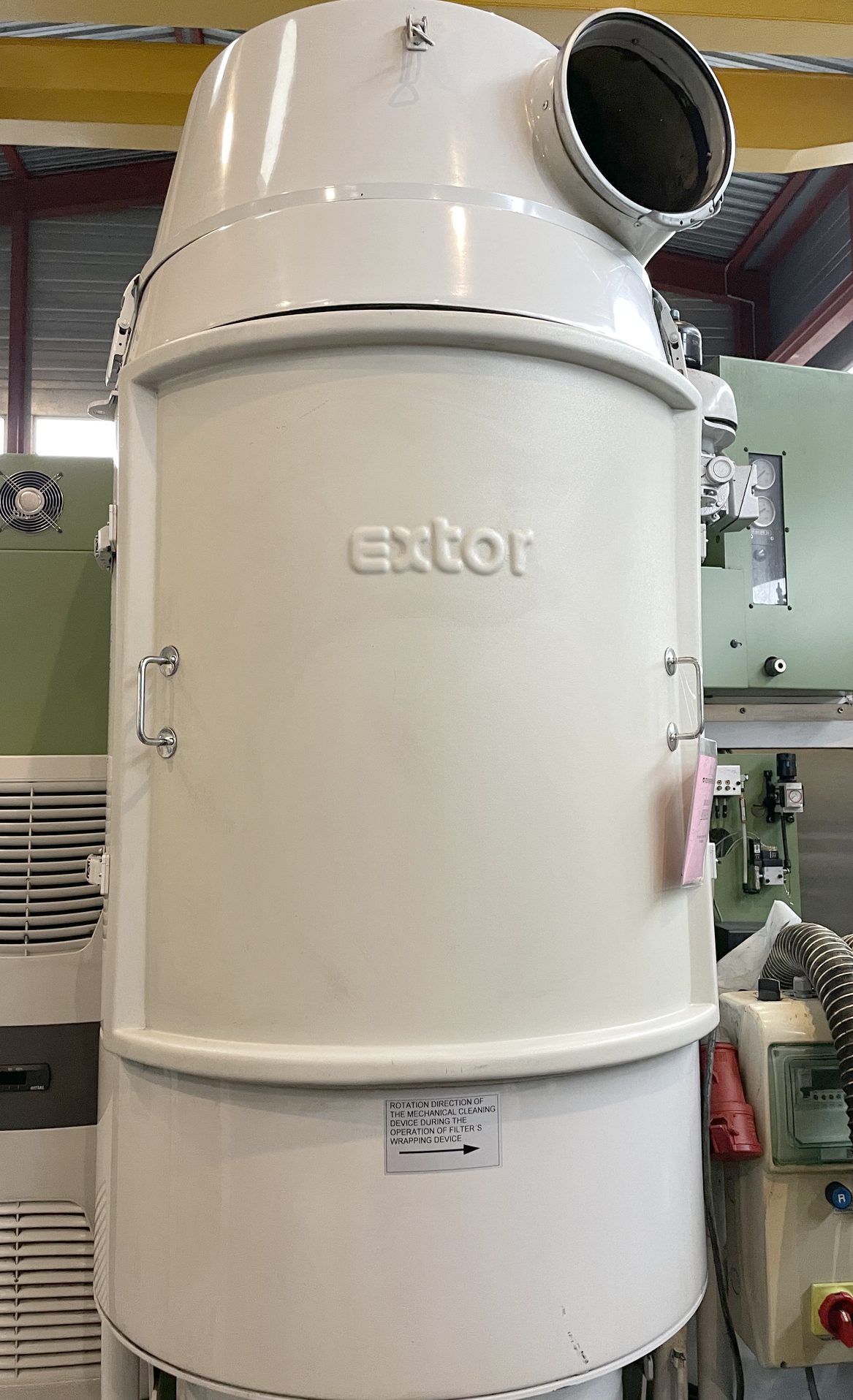

| Dust extraction for graphite | |
| Laser tool setting system | |

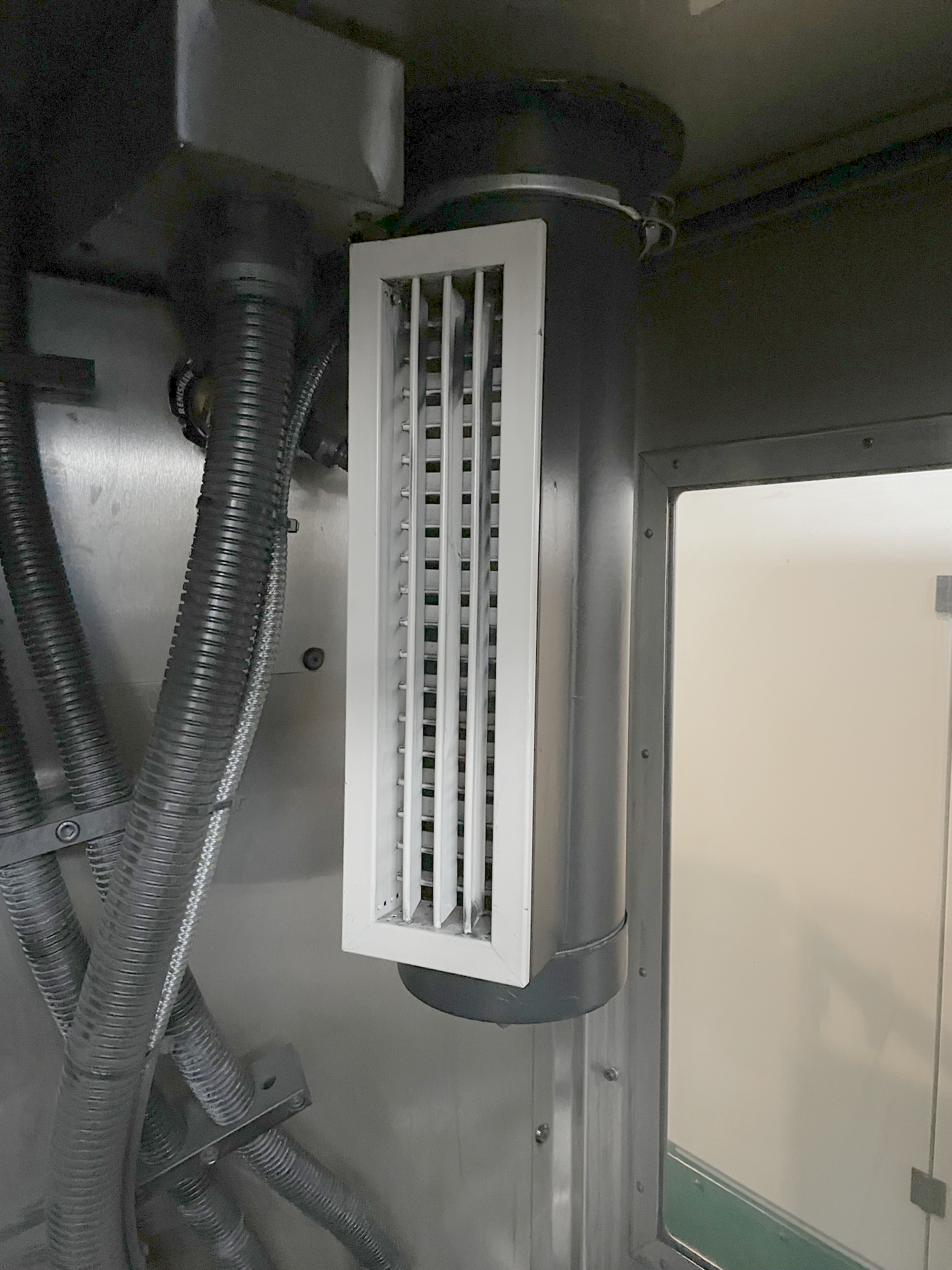

| Switch cabinet Air conditioner | |
| Notes: | |
| Spindle changed | 2016 |
