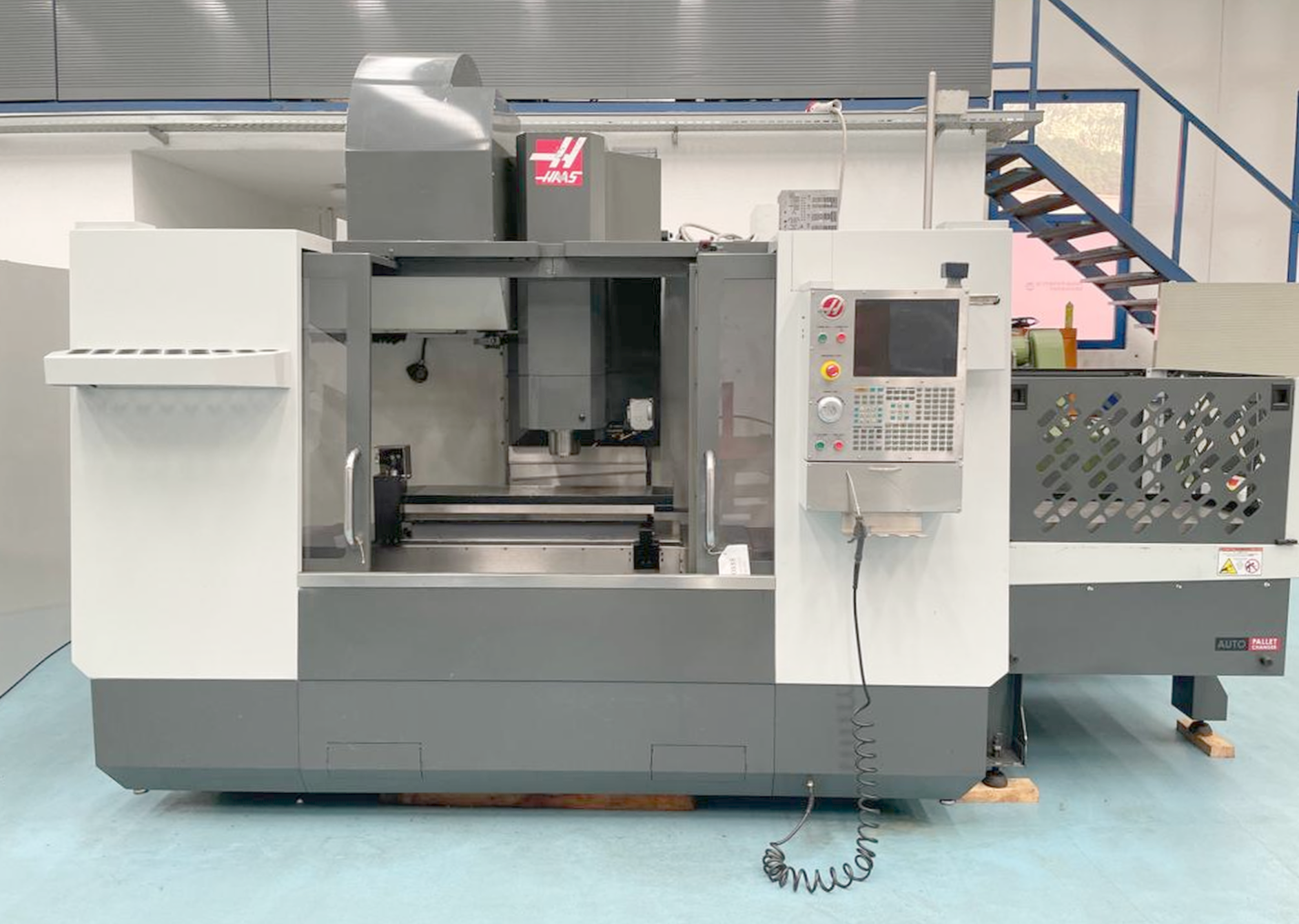

HAAS VF-3SSAPC is a 3-axis machining center built for precision, high accuracy and reliability. Table 1219x457 mm, table load max 794 kg; travels X1016 mm, Y508 mm, Z635 mm; spindle nose to table 742 mm; 2 pallets. Spindle stepless up to 12,000 rpm, 22.4 kW; work feed 21.2 m/min, rapid 35.6 m/min; 3x400 V 50 Hz; air 6 bar; machine weight ~6300 kg. 40-station tool changer (tool Ø max 64 mm; Ø with free pockets 127 mm; length 330 mm; tool weight 5.4 kg; tool change 2.8 s); coolant 208 l; Renishaw tool setter; pallet changing device. Delivers tight tolerances; suited to automotive, aerospace, medical, watchmaking and machine-tool sectors.
| Number of axis total | 3 |
| Table length | 1219 mm |
| Table width | 457 mm |
| Table load max. | 794 kg |
| Longitudinal travel (X-axis) | 1016 mm |
| Transversal travel (y-axis) | 508 mm |
| Vertical travel (z axis) | 635 mm |

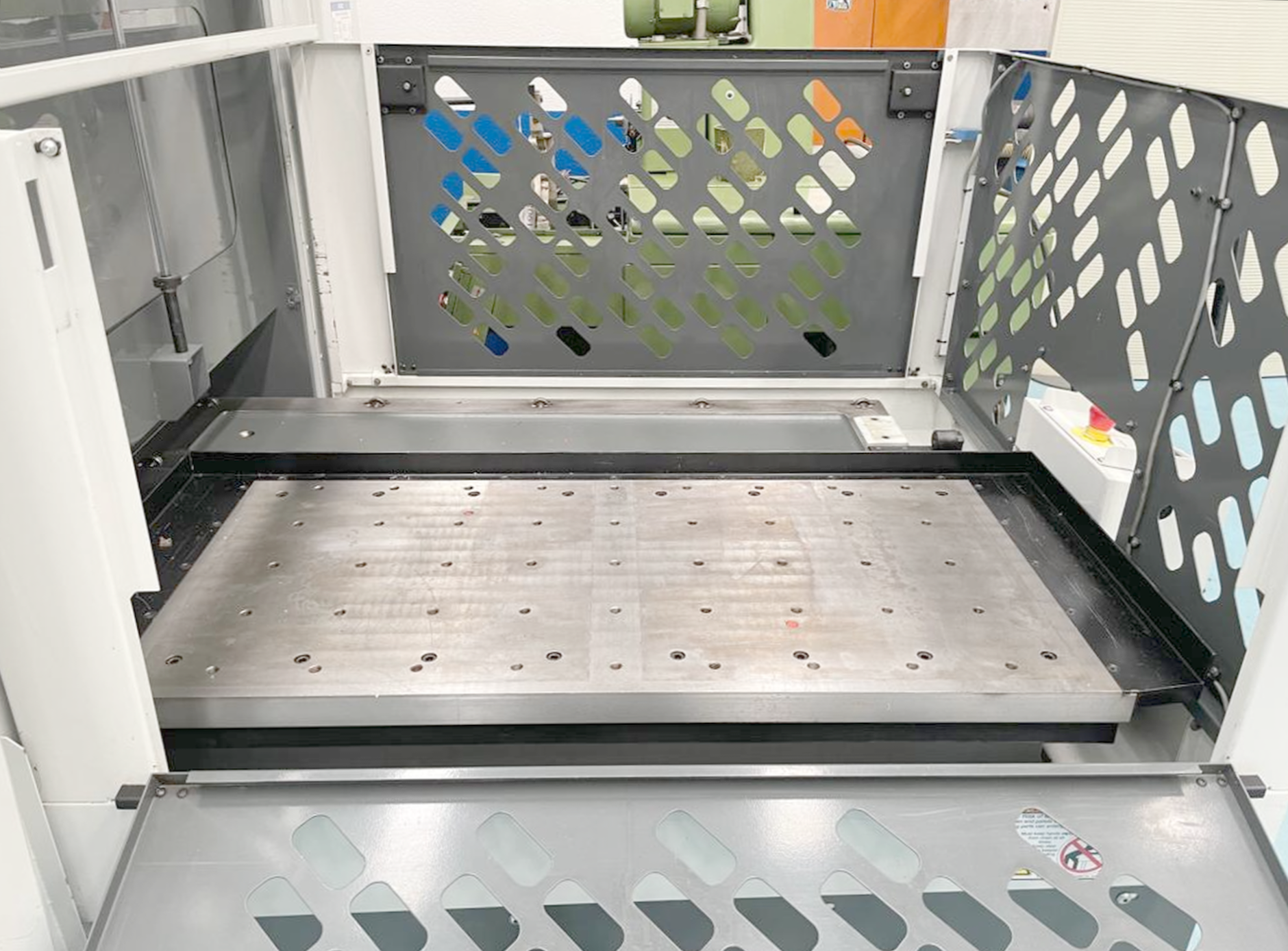

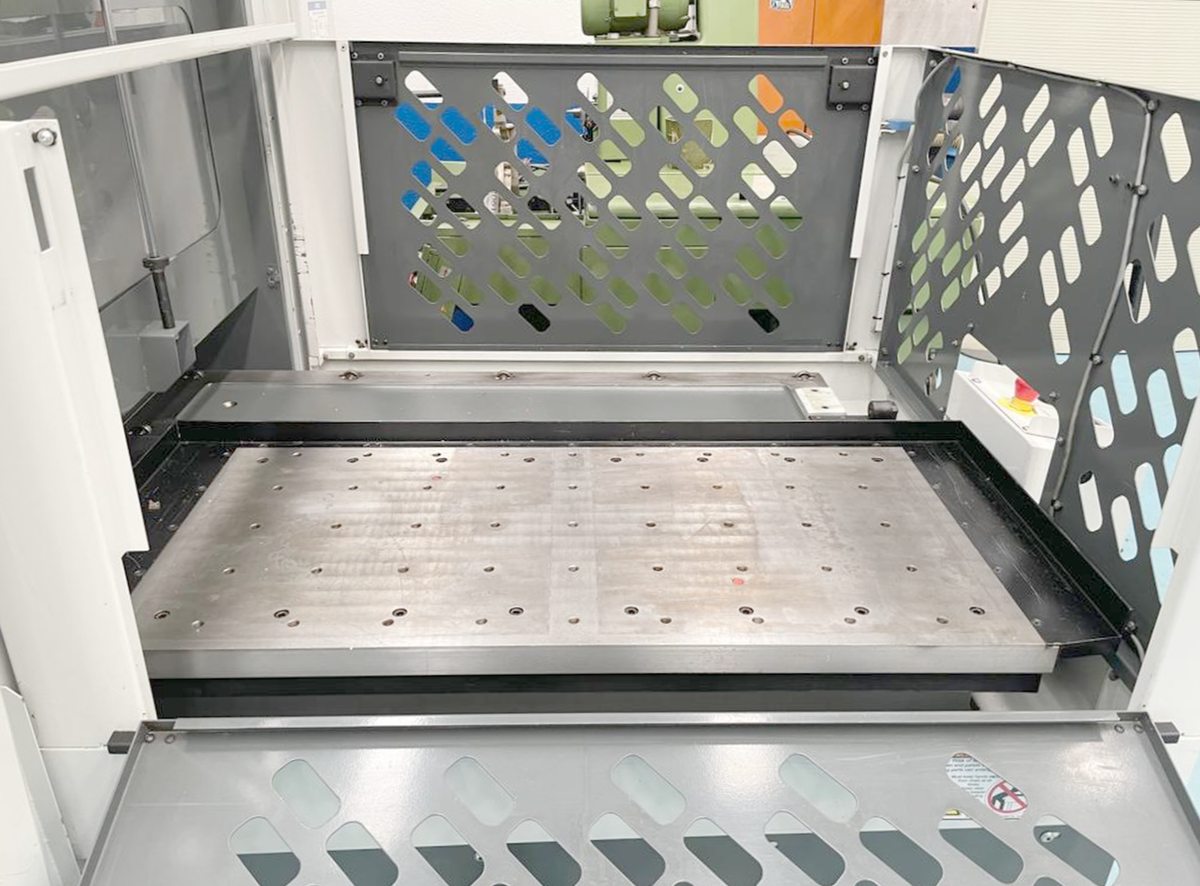

| Pallets: | |
| numbers | 2 |

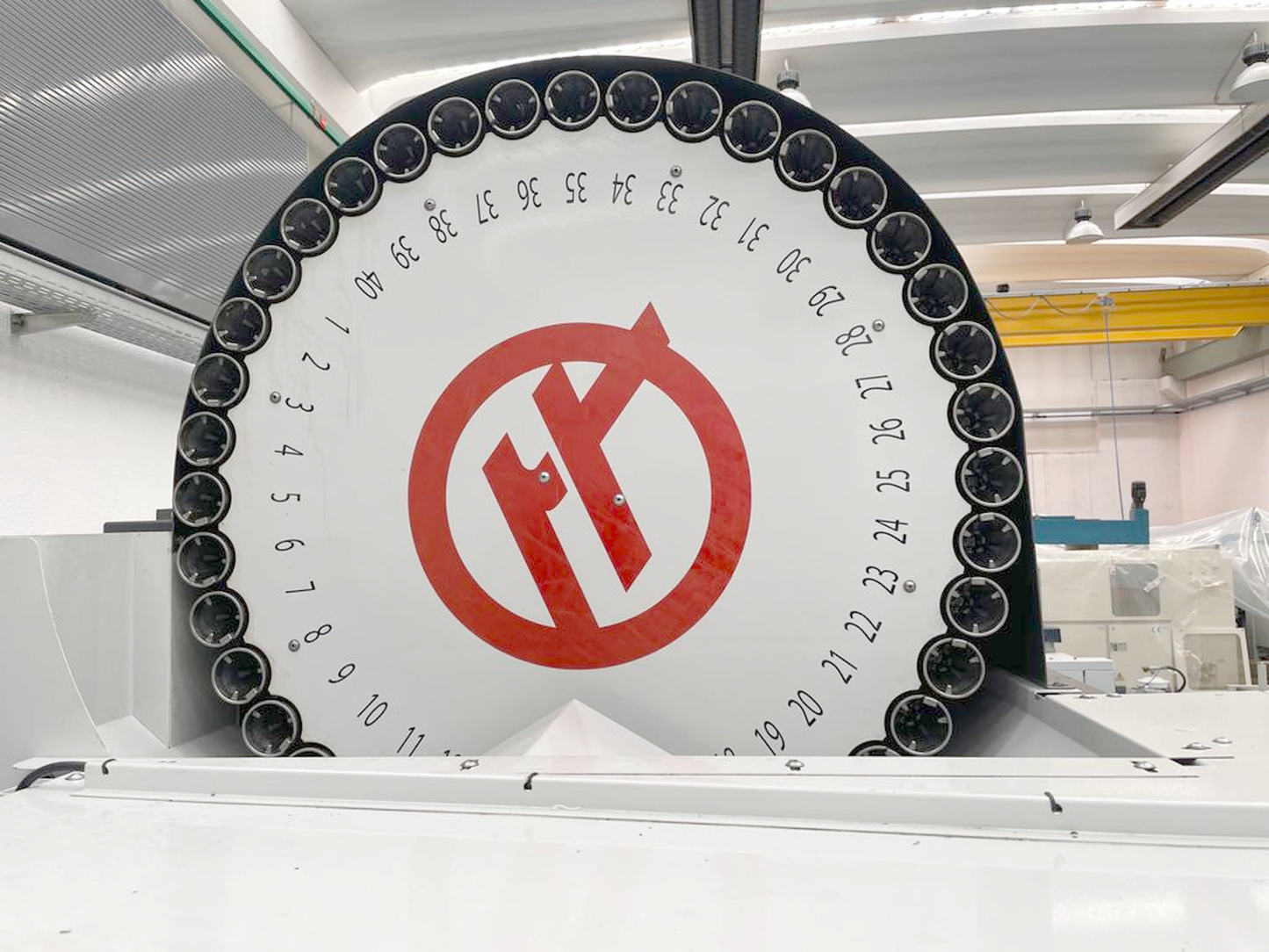

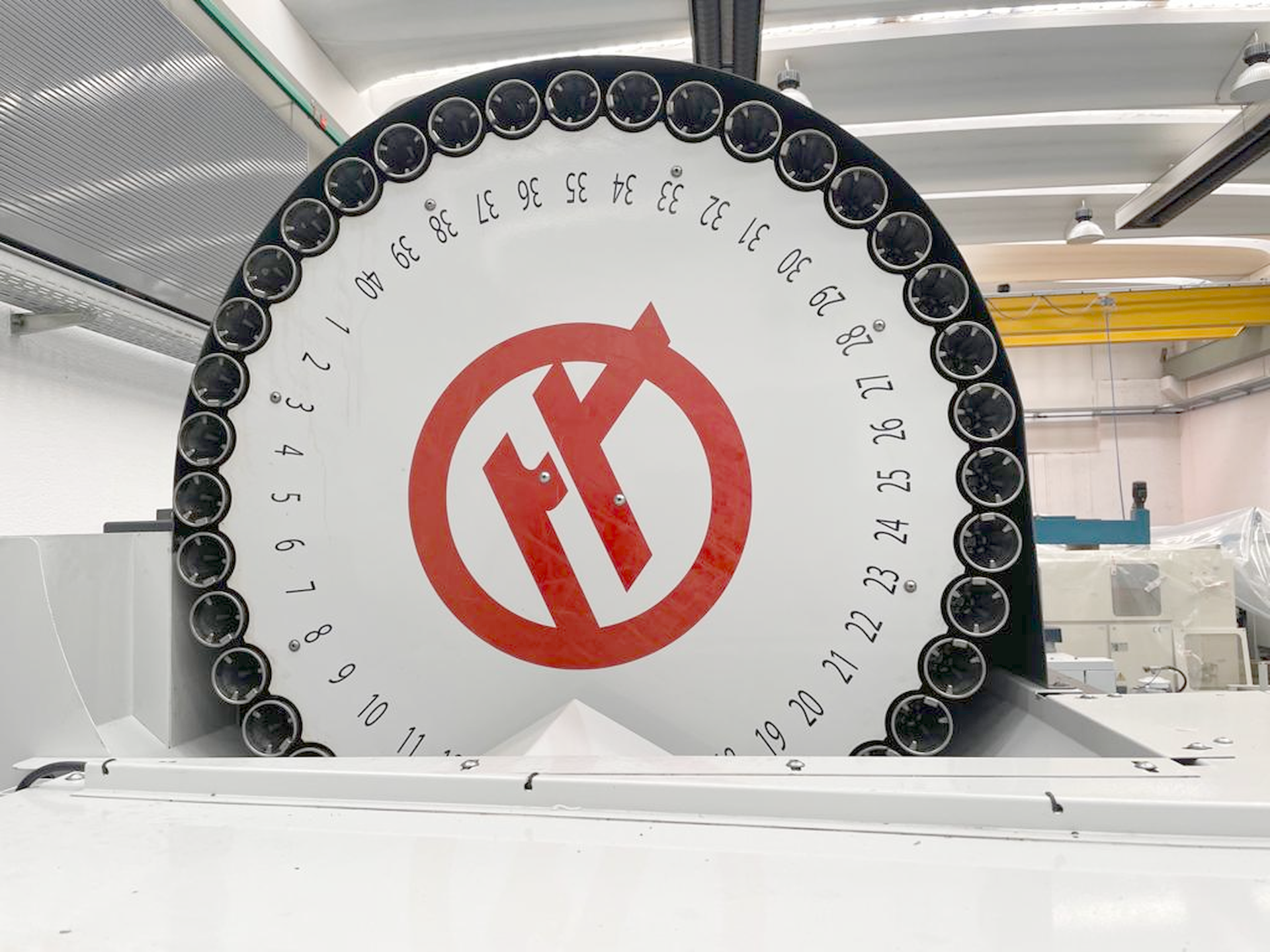

| Tool changer: | |
| Number of tools | 40 |
| Tool diameter max. | 64 mm |
| Diameter with free adjacent pockets | 127 mm |
| Tool lenght | 330 mm |
| Max. tool-weight | 5.4 kg |
| Time of tool changing | 2.8 s |
| Distance spindle nose to table | 742 mm |
| Spindle speeds: | |
| stepless | |
| up to | 12000 t/min |
| Work feed rate | 21.2 m/min |
| Rapid traverse: | 35.6 m/min |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 22.4 kW |
| Machine's weight about | 6300 kg |
| Various accessories: | |
| Coolant system | 208 l |

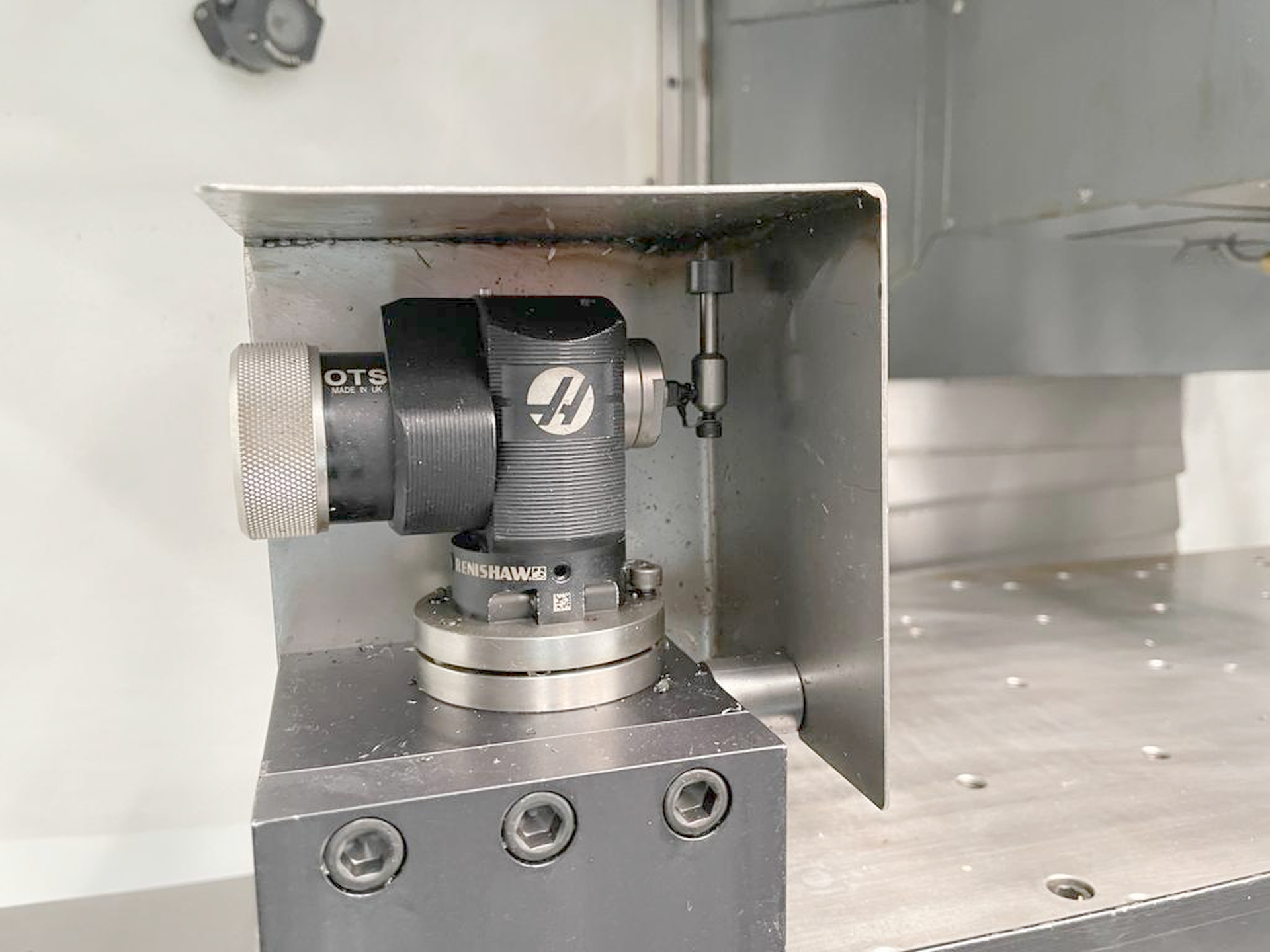

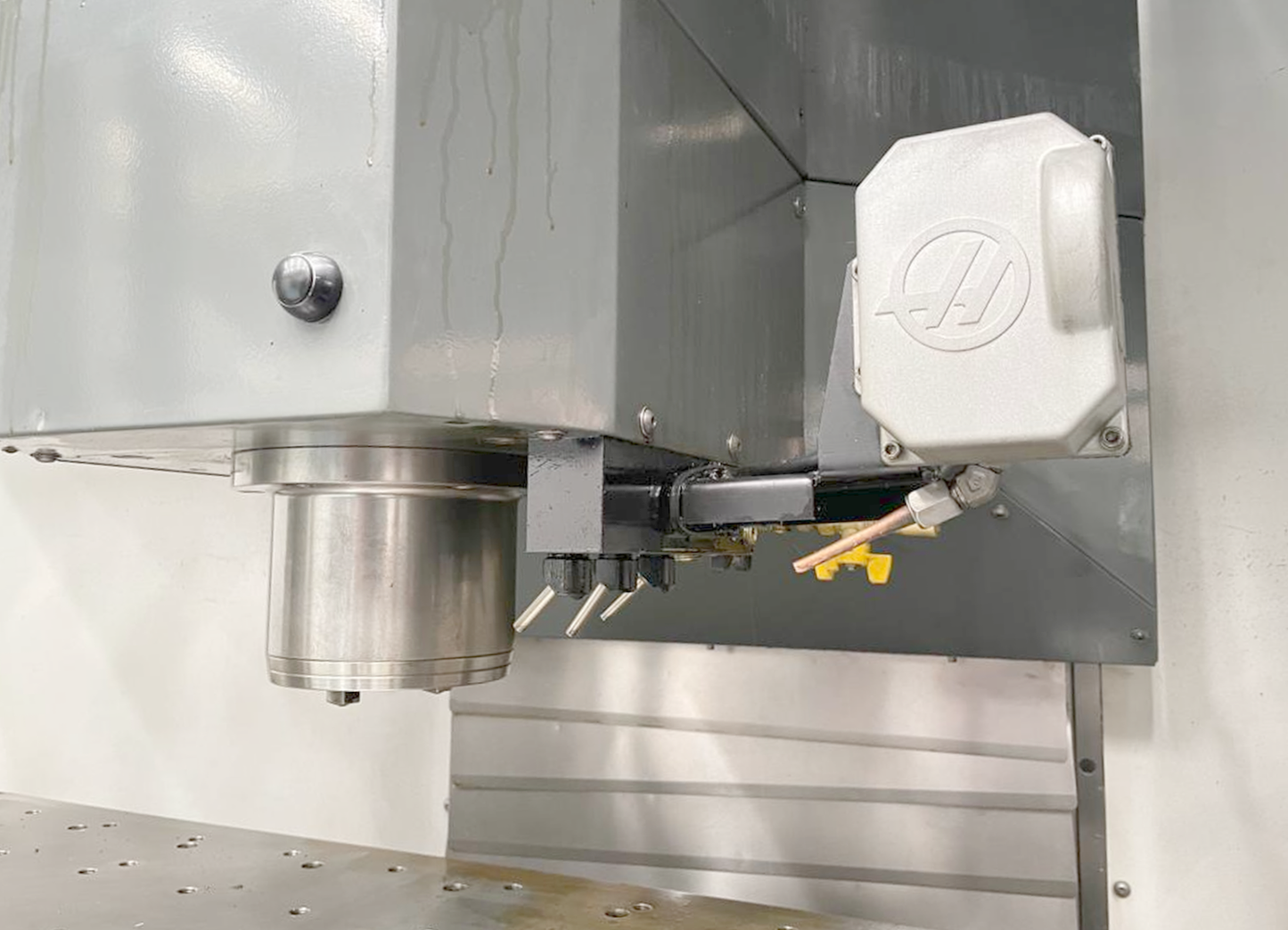

| Tool setter Renishaw | |

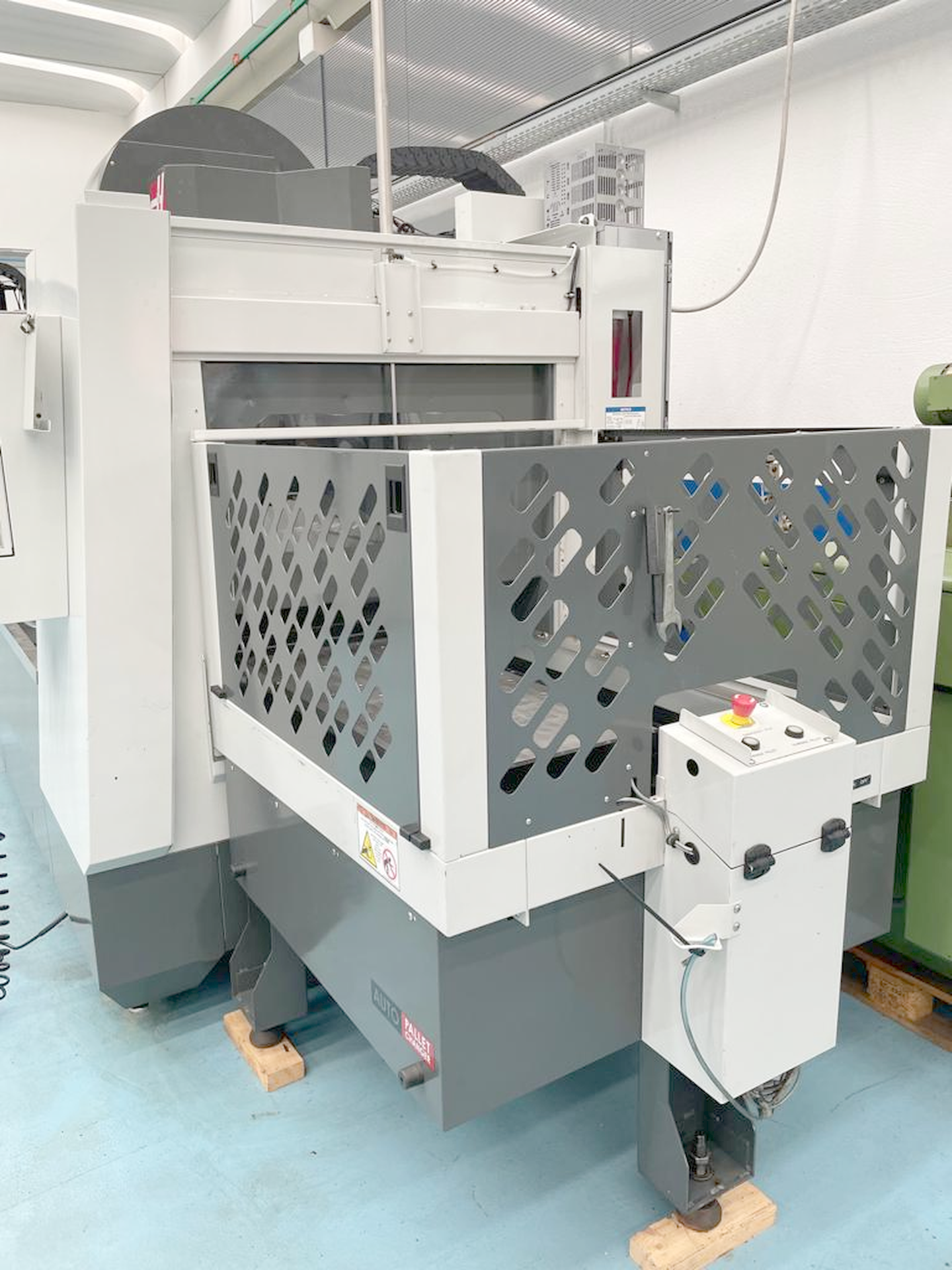

| Pallets chanching device: |
