AXA VHC-50-6000-M/2E is a 4-axis machining center designed for precision, high accuracy and reliability. Capacities: table 6400×1000 mm, load 1500 kg; travels X 6000 mm, Y 1000 mm, Z 1140/1200 mm; B ±90°, division 0.001°. Specs: spindle HSK‑A100 45–9000 t/min; spindle power 24/45 kW; total 80 kVA; feeds 1–9999 mm/min; rapid 20/20/15 m/min; air 6 bar; 3×400 V 50 Hz; weight ≈42000 kg; dims 11500×4300×4500 mm. Accessories: coolant, direct measuring system X/Y/Z, chip conveyor, orientable vertical milling head CN, oil mist extractor. Achieves tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical.
| Number of axis total | 4 |
| Table length | 6400 mm |
| Table width | 1000 mm |
| Table load max. | 1500 kg |
| Longitudinal travel (X-axis) | 6000 mm |
| Transversal travel (y-axis) | 1000 mm |
| Vertical travel (z axis) | 1140 / 1200 mm |
| B axis swivelling range | +/-90 ° |
| Milling head divisions (B) | 0.001 ° |
| Tool magazine number of tool places | 80 |
| Tool diameter max. | 100 mm |
| Diameter with free adjacent pockets | 180 mm |
| Tool lenght | 400 mm |
| Max. tool-weight | 15 kg |
| Time of tool changing | 6 s |
| Spindle nose: HSK-A | 100 |
| Spindle speeds: | |
| stepless | |
| from | 45 t/min |
| up to | 9000 t/min |
| Feeds: | |
| longitudinal from | 1 mm/min |
| up to | 9999 mm/min |
| transversal from | 1 mm/min |
| up to | 9999 mm/min |
| vertical from | 1 mm/min |
| up to | 9999 mm/min |
| Rapid traverse: long. | 20 m/min |
| Rapid traverse: transversal | 20 m/min |
| Rapid traverse: vertical | 15 m/min |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 24 / 45 kW |
| Total power required | 80 kVA |
| Machine's weight about | 42000 kg |
| Overall dimensions machine: | |
| Length | 11500 mm |
| Width | 4300 mm |
| Height | 4500 mm |
| Various accessories: | |
| Coolant system | |
| Direct measuring system X, Y and Z axis | |

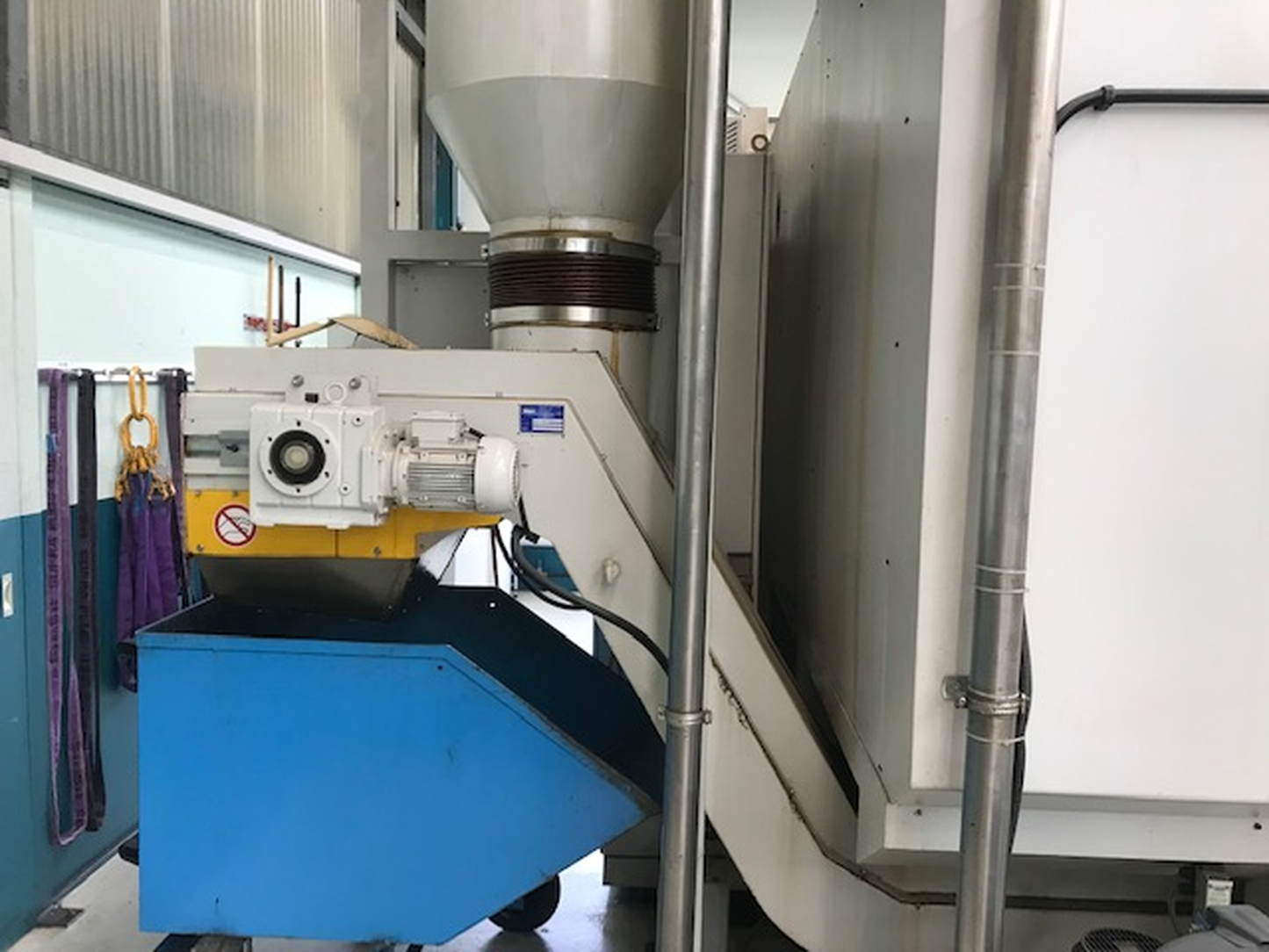

| Chip conveyor | |
| Orientable vertical milling head CN | |
| Oil mist extractor |
