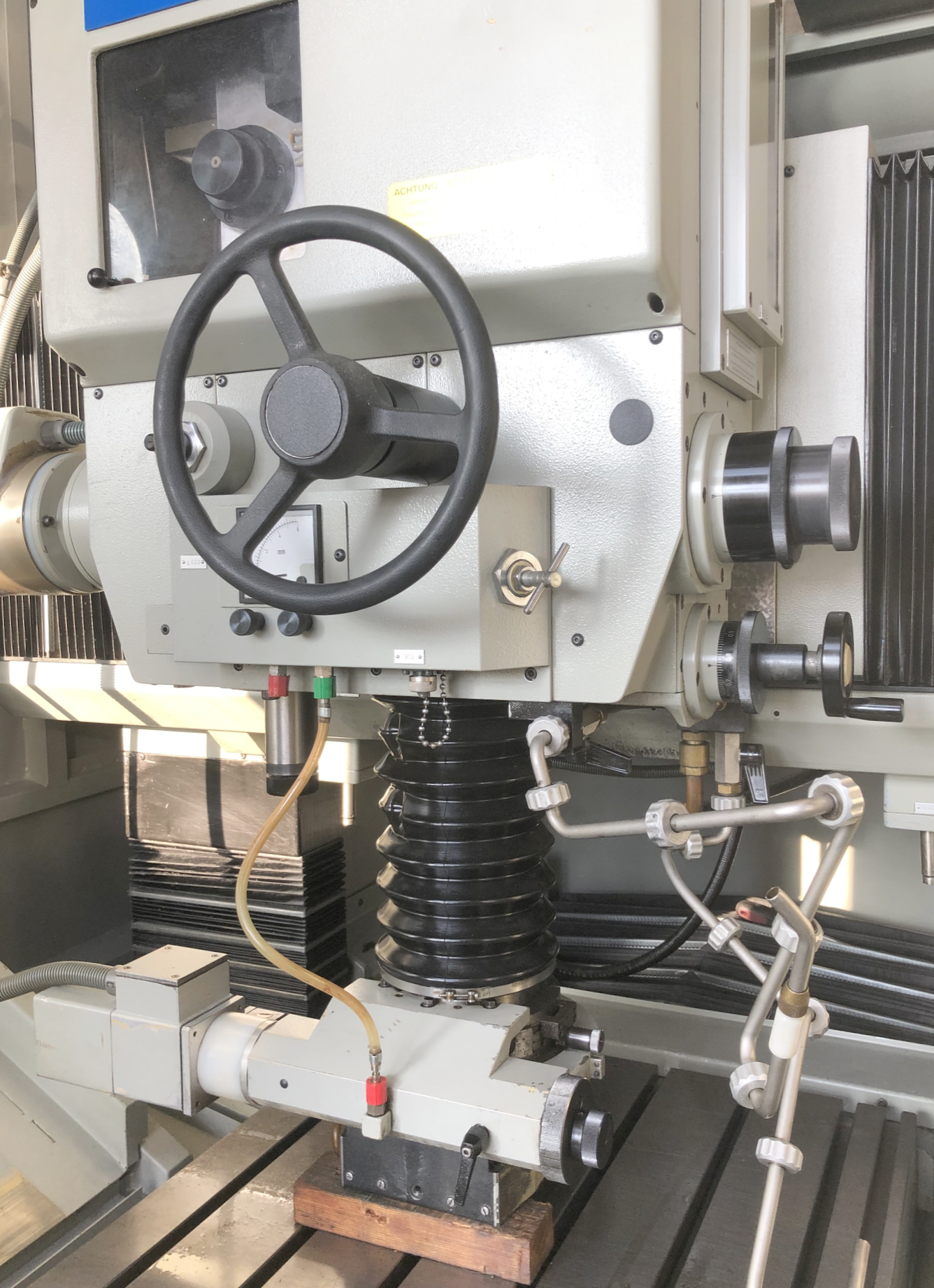

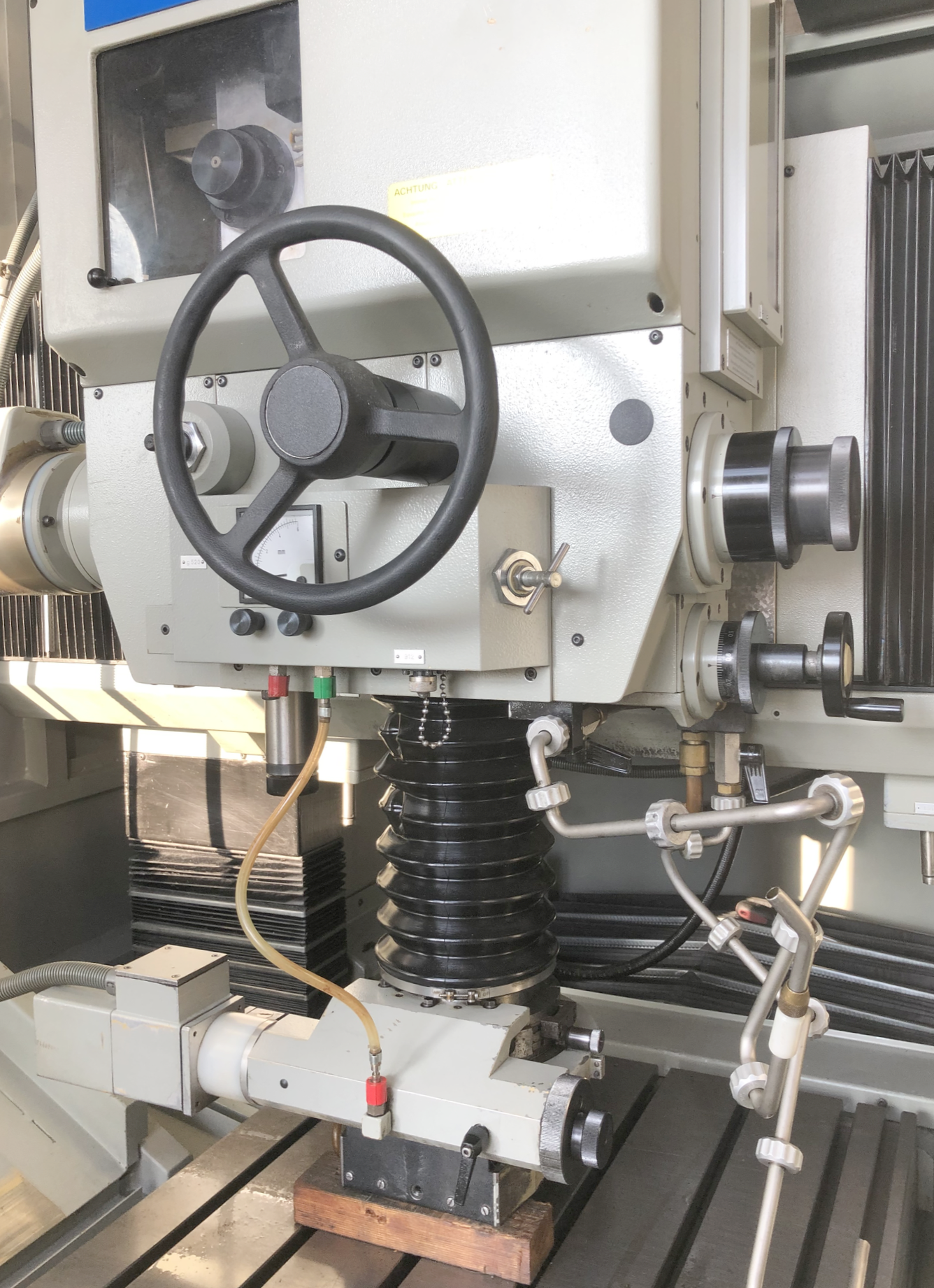

HAUSER S 40 CNC is a CNC jig grinder for high precision, superior accuracy and reliability. Table 770×630 mm, table load max 500 kg; travels X 650, Y 450, W 500 mm; max grinding Ø 230 mm (360 with display-plate); spindle-nose stroke 125 mm; taper up to 16°, grinding depth 44 mm. Stroke speed 1–12000 mm/min; Z stroke frequency 4 Hz; radial fine feed U up to 6 mm; planetary motion 5–250 t/min; grinding spindle 4500–80000 t/min (air turbine 160000 t/min); supply 3×380 V 50 Hz; weight ≈5600 kg; dims L2650×W2000×H3150 mm. Equipment: intermediate plate, air turbine, stepless adjustment. Achieves tight tolerances; sectors: automotive, watchmaking, machine tools, aerospace, medical.
| Table length | 770 mm |
| Table width | 630 mm |
| Table load max. | 500 kg |
| Longitudinal travel (X-axis) | 650 mm |
| Transversal travel (y-axis) | 450 mm |
| Verticla travel (W-axis) | 500 mm |
| Max. grinding diameter | 230 mm |
| with display-plate | 360 mm |
| Stroke of spindle-nose | 125 mm |
| Max. angle with taper grinding: | |
| up to | 16 ° |
| up to grinding depth | 44 mm |
| Alternating stroke mouvement, infinitely adjust. | |
| from Vmin. | 1 mm/min |
| up to Vmax. | 12000 mm/min |
| Stroke frequency Z | 4 Hz |
| Radiale fine feed U-axis up to | 6 mm |
| Planetary motion speeds: c axis | |
| stepless | |
| from | 5 t/min |
| up to | 250 t/min |
| Possible grinding-spindle speeds: | |
| stepless | |
| from | 4500 t/min |
| up to | 80000 t/min |
| With air-turbine max. | 160000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 5600 kg |
| Overall dimensions machine: | |
| Length | 2650 mm |
| Width | 2000 mm |
| Height | 3150 mm |
