REISHAUER US is a thread grinding machine designed for precision, high accuracy and reliability. Capacities: max grinding length 450 mm, clamping length 1055 mm, max workpiece Ø 250 mm, thread Ø 2–250 mm, spindle bore 45 mm, weight on centres 200 kg, pitch up to 100 mm, max module 10, wheels Ø 280–350 mm width 4–40 mm. Specs: wheel speeds 6 steps 1700–2540 t/min; work spindle 27 steps up to 160 t/min; 3x380 V 50 Hz; grinding spindle 4 kW; total 15 kVA; machine ≈4700 kg; dims 3300×1930×1800 mm. Accessories: coolant, wheel and flange sets, automatic profile/wheel trueing, rayon redressing device, travelling steady, set of gears, centers, oil-mist extractor, lamp. Achieves tight tolerances; suited to automotive, watchmaking, machine tools, aerospace, medical.
| Max. grinding length | 450 mm |
| Max. clamping length | 1055 mm |
| Max. work piece diameter | 250 mm |
| Thread diameter: | |
| min. | 2 mm |
| max | 250 mm |
| Workpiece spindle bore | 45 mm |
| Workpiece weight on centres max. | 200 kg |
| Thread pitch: | |
| min. | mm |
| max | 100 mm |
| Max. angle pitch + | 40 ° |
| Max. angle pitch - | 40 ° |
| Max. module | 10 |
| Grinding wheels: | |
| Diameter: | |
| min. | 280 mm |
| max | 350 mm |
| Width: | |
| min. | 4 mm |
| max | 40 mm |
| Bore | 40 mm |
| Grinding-wheel speeds: | |
| number (steps) | 6 |
| from | 1700 t/min |
| up to | 2540 t/min |
| Work-piece spindle head speed: | |
| number (steps) | 27 |
| from | t/min |
| up to | 160 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 4 kW |
| Total power required | 15 kVA |
| Machine's weight about | 4700 kg |
| Overall dimensions machine: | |
| Length | 3300 mm |
| Width | 1930 mm |
| Height | 1800 mm |
| Various accessories: | |
| Coolant system | |
| Set of grinding wheels | |
| Set of flanges | |
| Automatic profile/wheel trueing | |
| Rayon redressing device | |
| Travelling steady | |
| Set of gears | |
| Set of centers | |

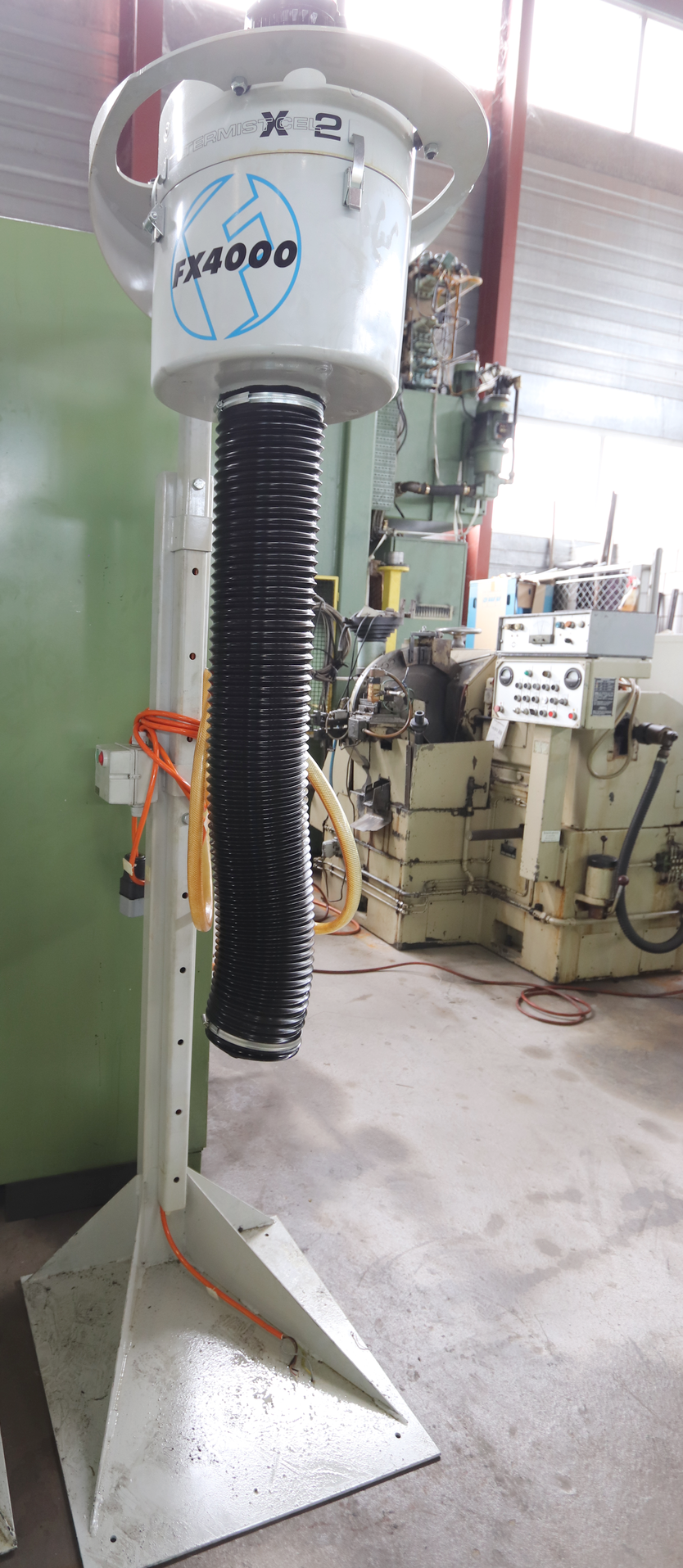

| Oil mist extractor | |
| Lamp |
