| Number of axis total | 3 |
| Table length | 1270 mm |
| Table width | 320 mm |
| Longitudinal travel (X-axis) | 750 mm |
| Transversal travel (y axis) | 400 mm |
| Vertical travel (z axis) | 610 mm |
| Table load max. | 600 kg |
| Distance from vertical | |
| spindle to table | 610 mm |
| Distance from spindle axis | |
| to slide ways | 480 mm |
| Taper in spindle | 40 ISO |
| Spindle speeds: | |
| number (steps) | 2 |
| from | 5 t/min |
| up to | 3600 t/min |
| Swivel range Vertical milling head | -90 / +90 ° |
| Feeds (X, Y, Z) | 5 - 3800 mm/min |
| Vertical quill travel | 120 mm |
| Quill feed speed | 0.04 / 0.08 / 0.15 mm/t |
| Drill capacity in steel | 35 mm |
| Threat cutting in steel M | 36 |
| Milling capacity in steel | 80 - 150 cm3/min |
| Boringout | 120 mm |
| Voltage 50 Hz 3x | 415 Volt |
| Milling spindle motor | 5.5 kW |
| Machine's weight about | 2100 kg |
| Overall dimensions machine: | |
| Length | 1800 mm |
| Width | 1650 mm |
| Height | 2400 mm |

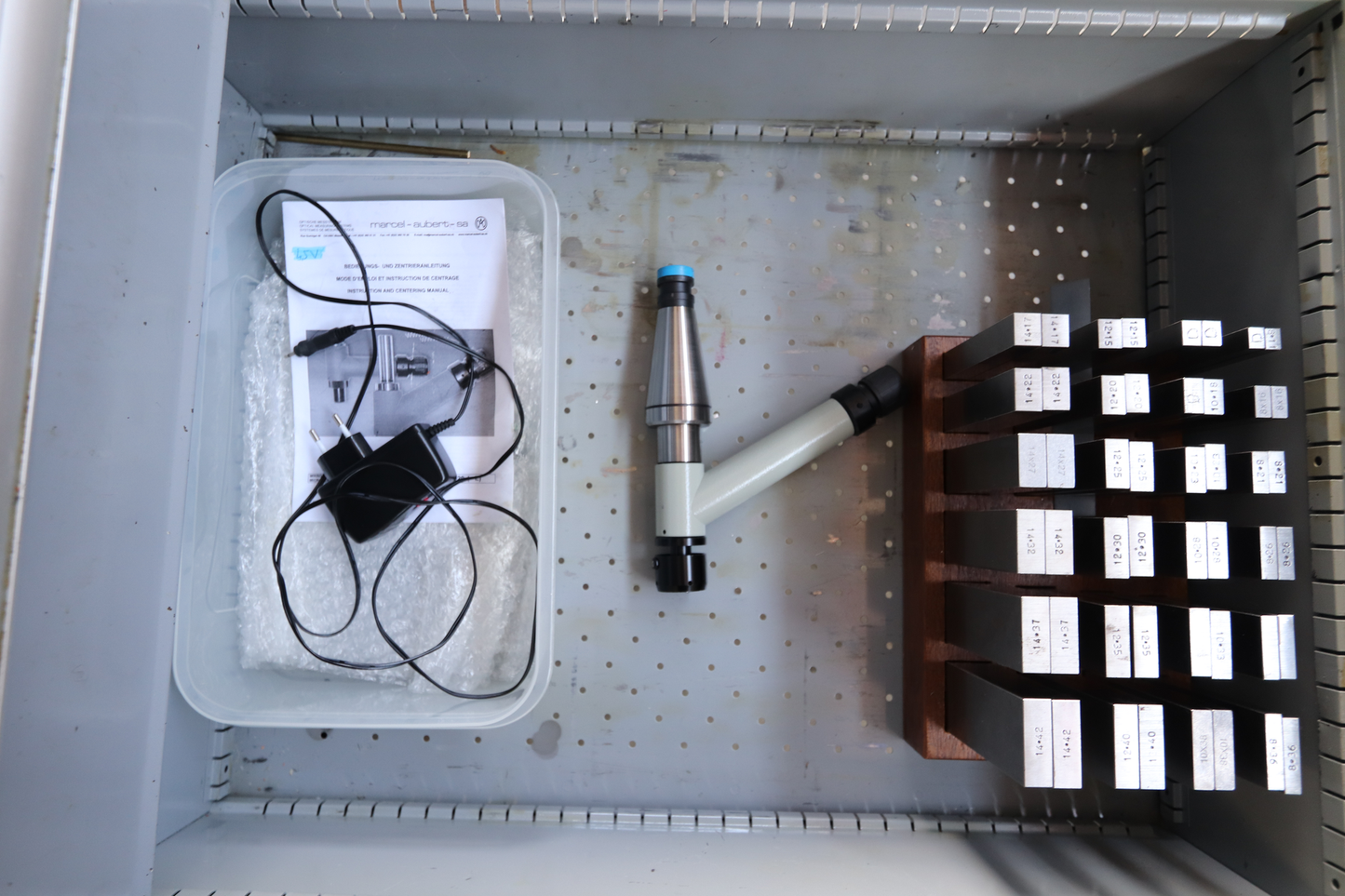

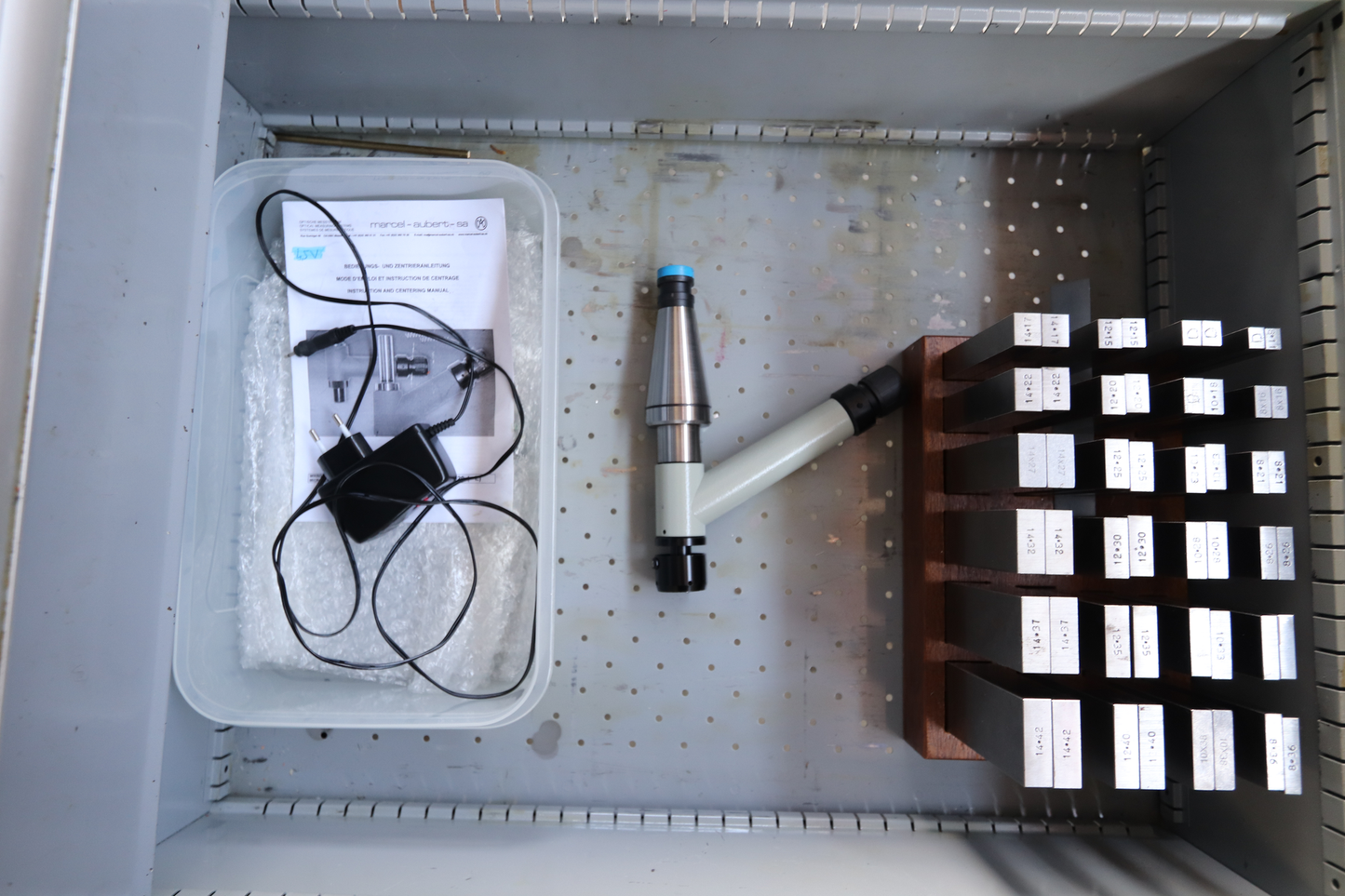

| Various accessories: | |
| Digital readout number of axis: | 3 |
| Mechanical handwheels | |
| Chip protector | |
| Set of toolholders | |
| Coolant system | |
| Machine lamp |
