| Number of axis total | 3 |
| Table length | 800 mm |
| Table width | 425 mm |
| Longitudinal travel (X-axis) | 600 mm |
| Transversal travel (y axis) | 400 mm |
| Vertical travel (z axis) | 400 mm |
| Table load max. | 250 kg |
| Distance from vertical | |
| spindle to table | 560 mm |
| Taper in spindle: | 40 SK |
| Spindle speeds: | |
| stepless | |
| horizontal from | 5 t/min |
| up to | 5000 t/min |
| vertical from | t/min |
| from | 5 t/min |
| up to | 5000 t/min |
| Swivel range Vertical milling head | +/- 90 ° |
| Feeds: | |
| stepless | |
| longitudinal from | mm/min |
| up to | 2000 mm/min |
| transversal from | mm/min |
| up to | 2000 mm/min |
| vertical from | mm/min |
| up to | 2000 mm/min |
| Rapid traverse: long. | 10 m/min |
| Rapid traverse: transversal | 10 m/min |
| Rapid traverse: vertical | 8 m/min |
| Vertical quill travel | 60 mm |

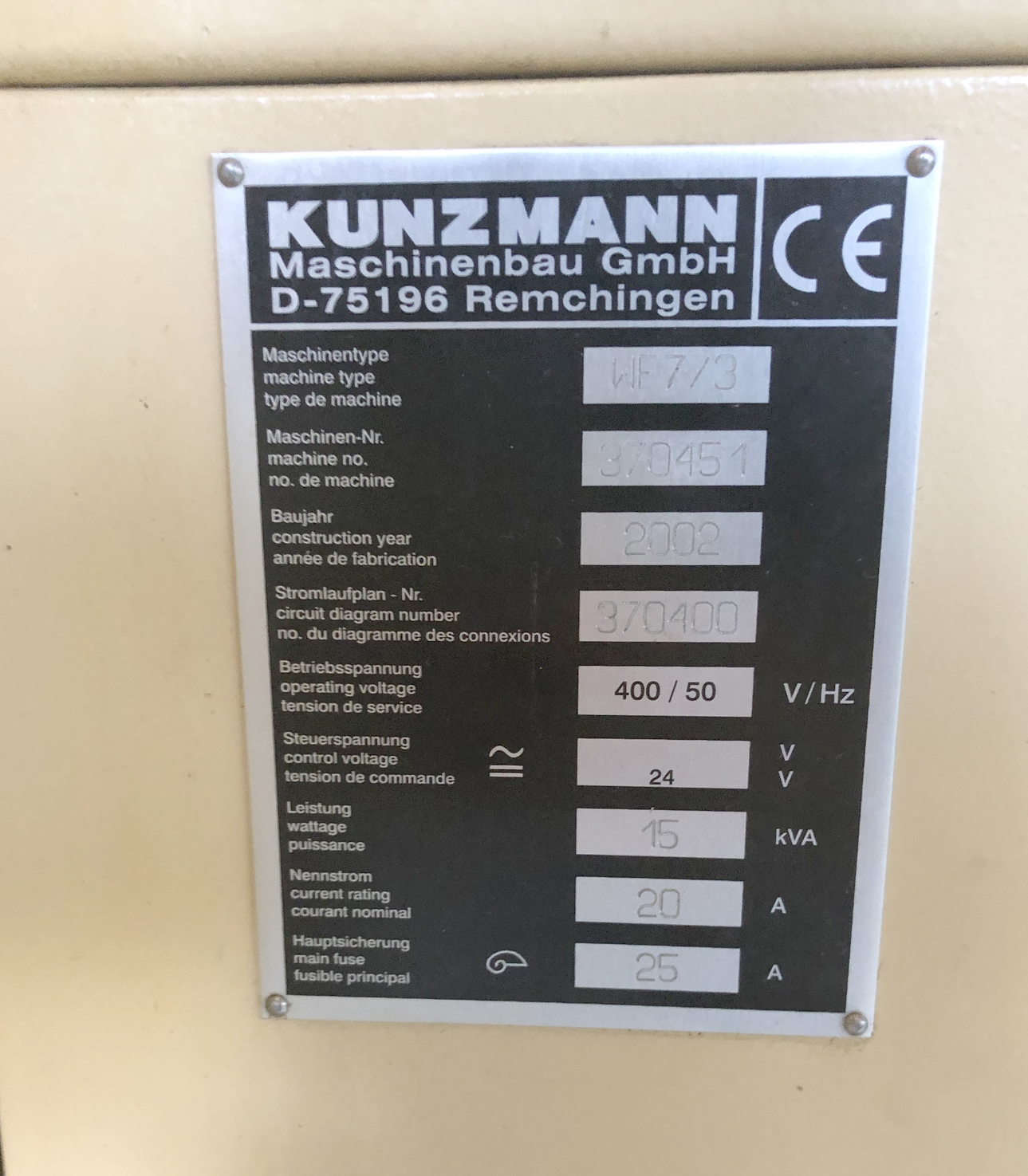

| Voltage 50 Hz 3x | 400 Volt |
| Milling spindle motor | 5.5 / 7 kW |
| Total power required | 15 kVA |
| Machine's weight about | 1800 kg |
| Overall dimensions machine: | |
| Length | 2100 mm |
| Width | 1800 mm |
| Height | 2050 mm |
| Various accessories: | |

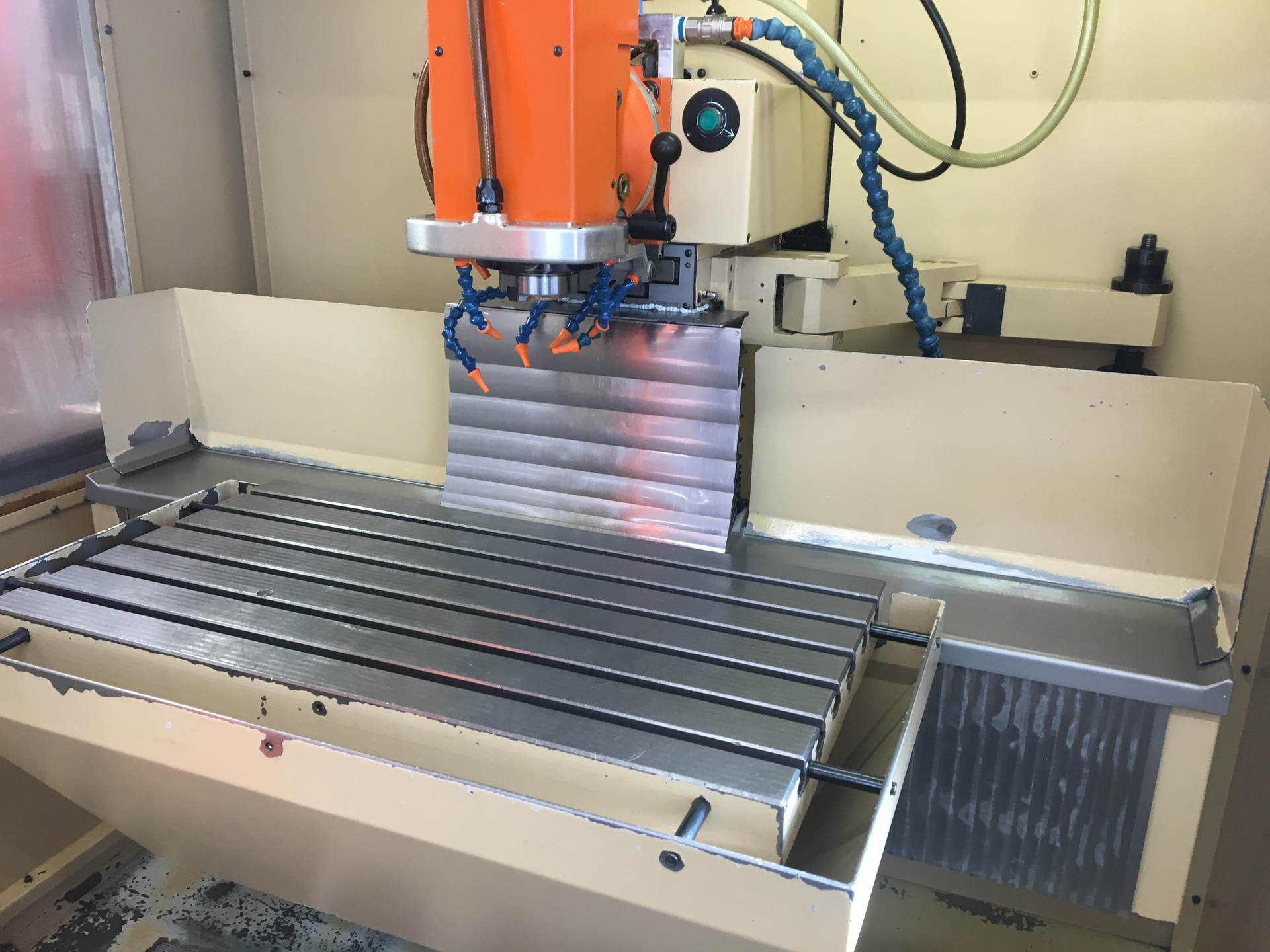

| Rigide table | |

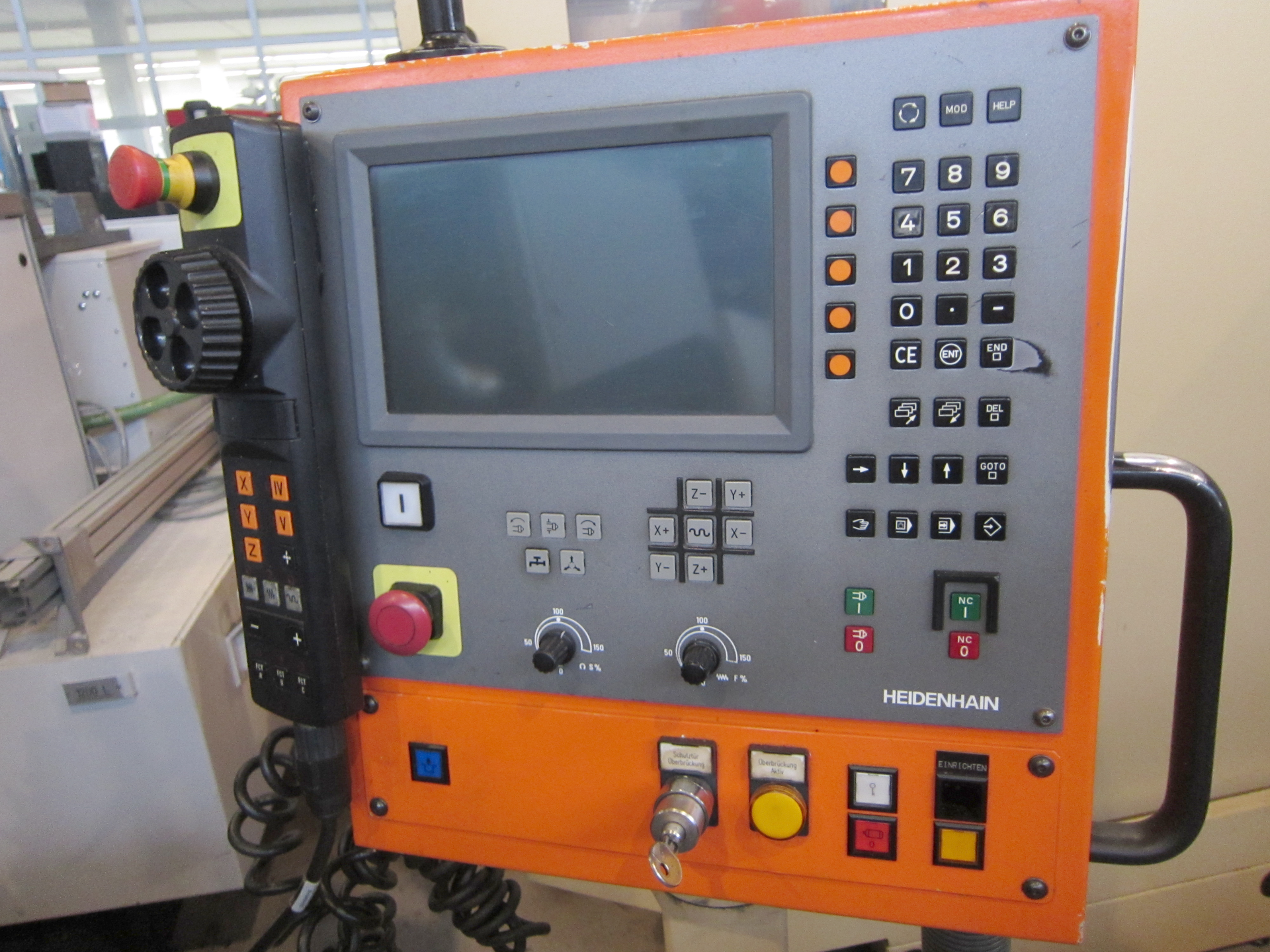

| Handwheel electroinic | |

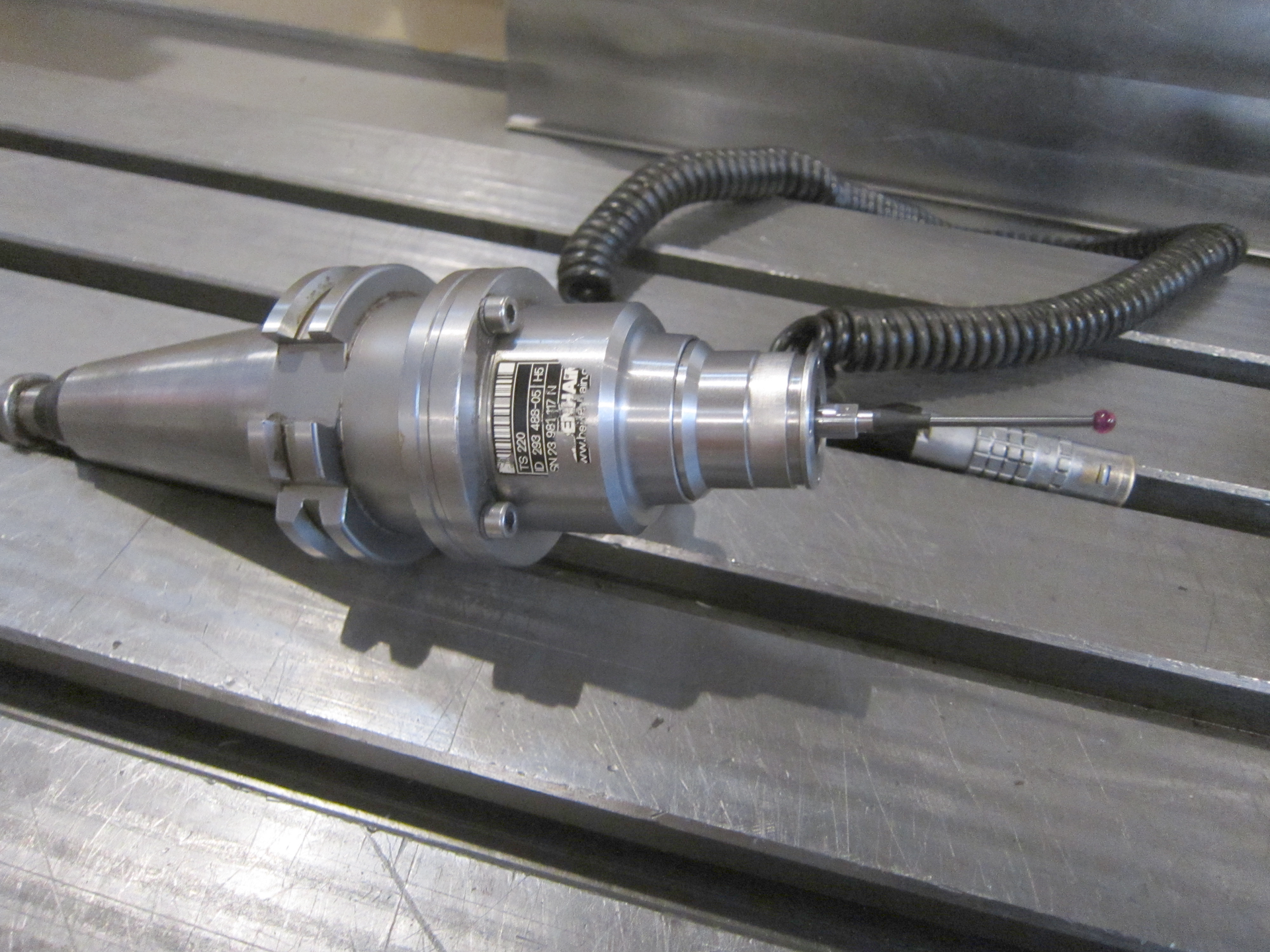

| Measuring feeler gauge | Heidenhain |

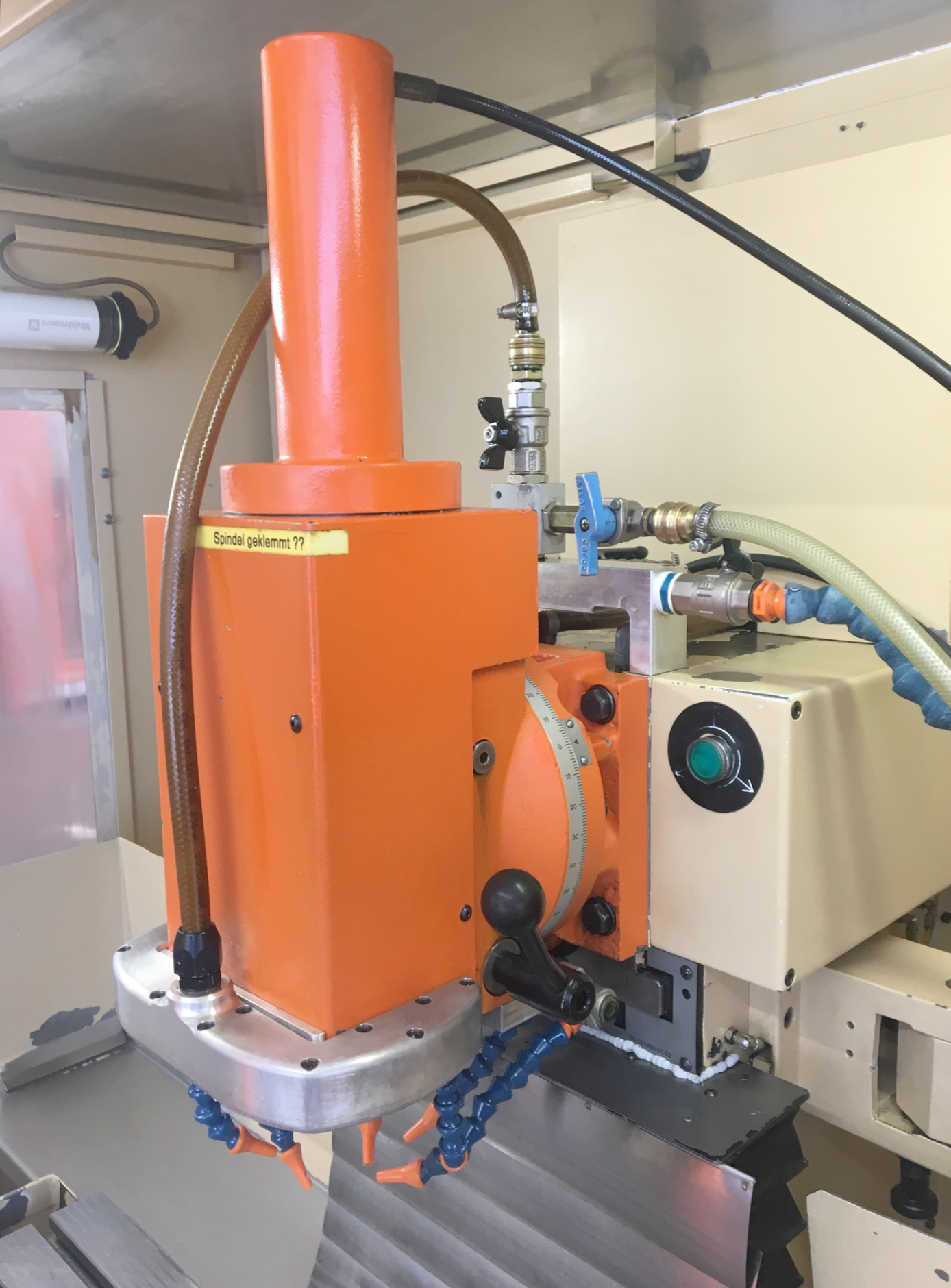

| Vertical milling head | |

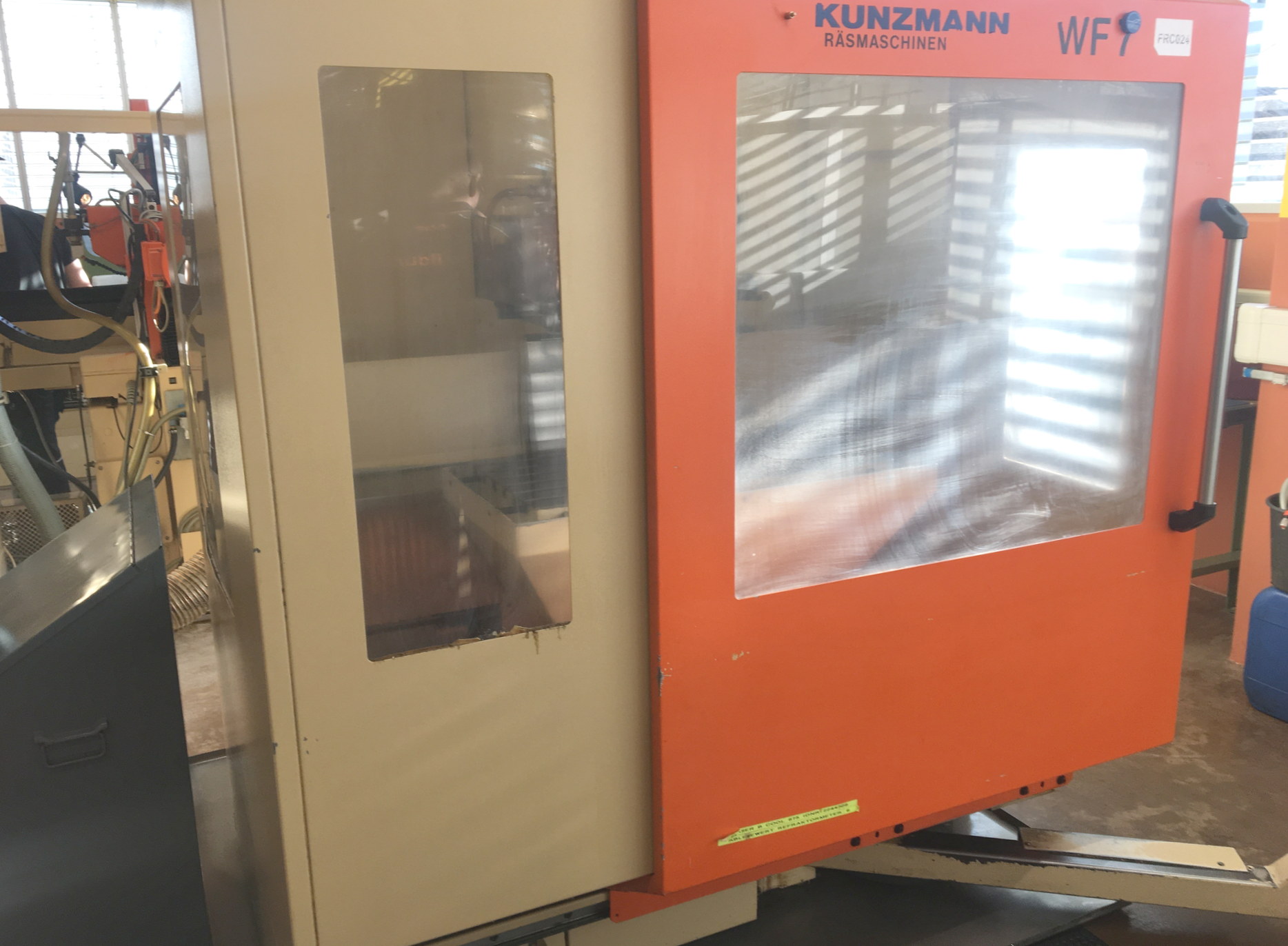

| Full splash cabin | |
| Coolant system | |
| Machine lamp |
