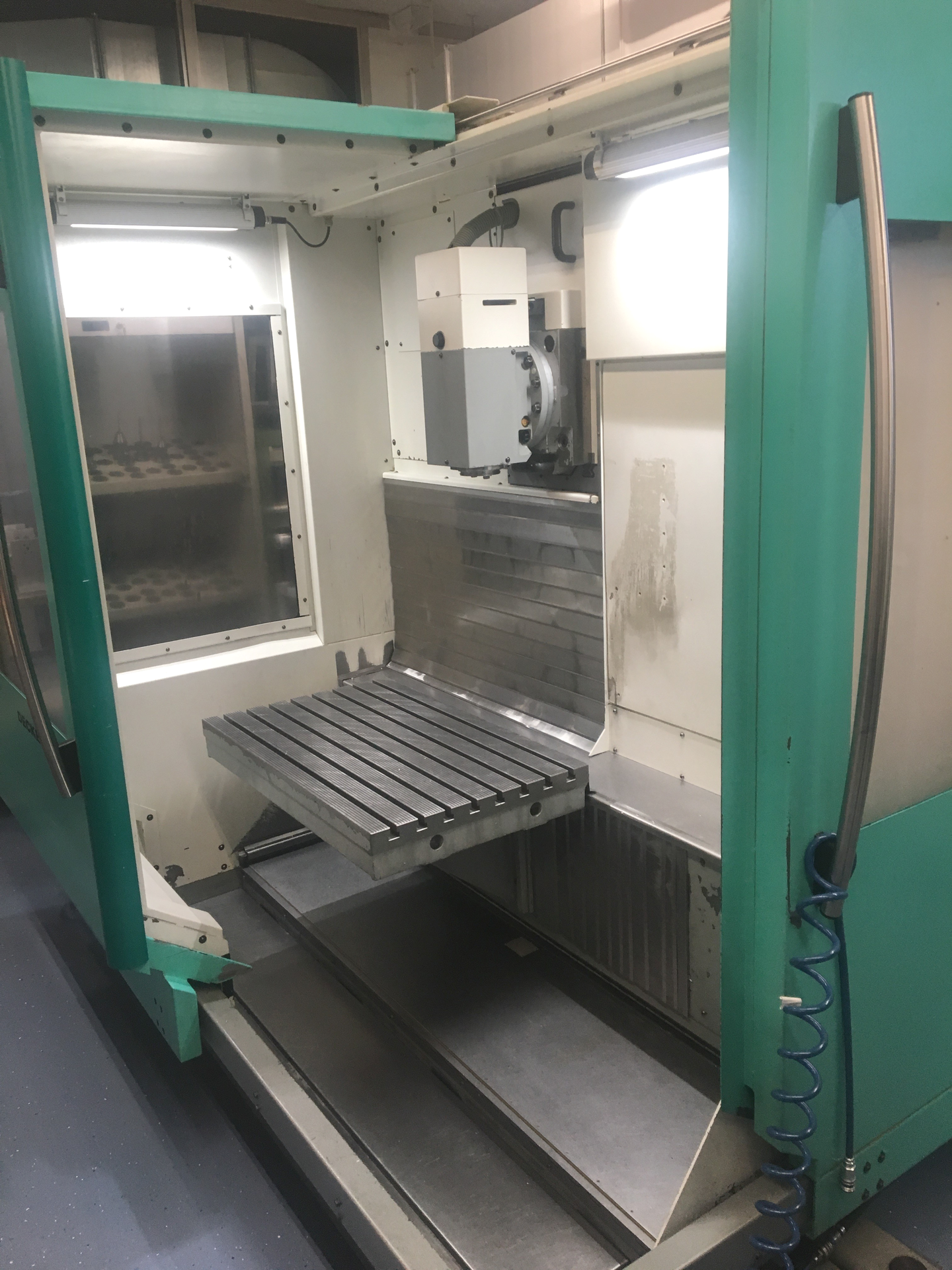

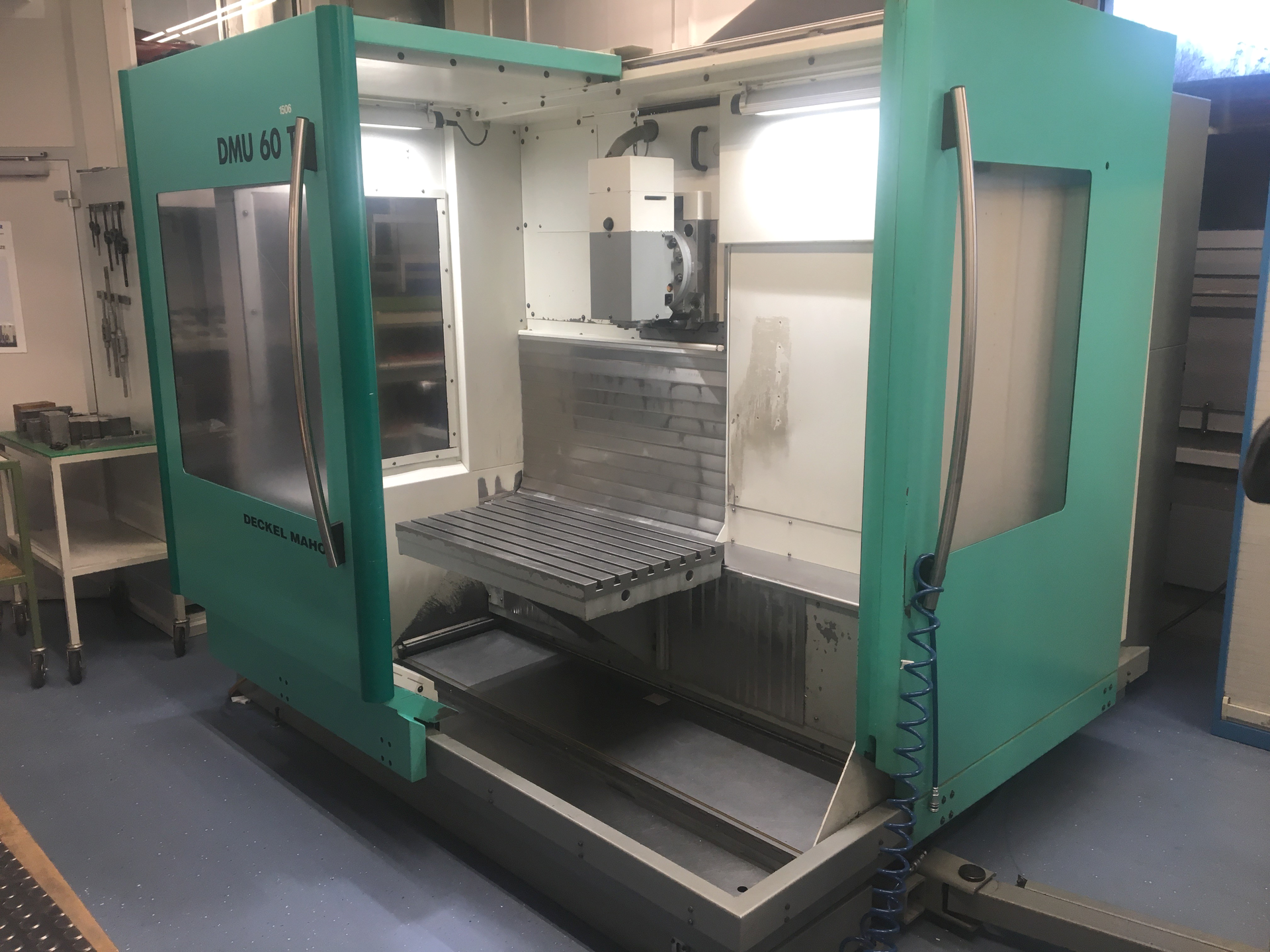

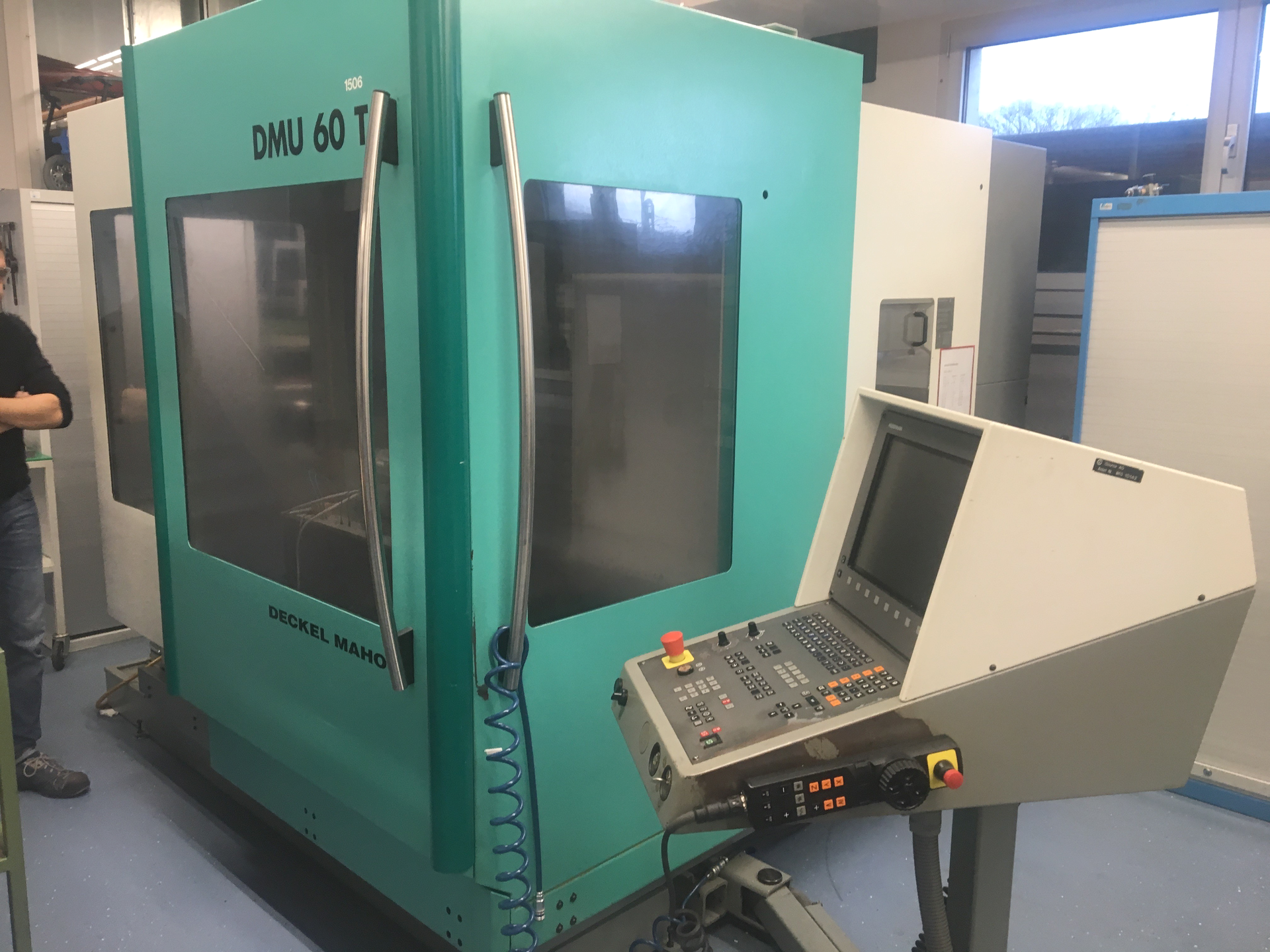

DMG DMU 60 T is a 3‑axis machining center engineered for precision, high accuracy and reliable operation. Working capacities: table 900×543 mm, table load 350 kg; travels X600 Y525 Z500 mm; tool changer 25 pos. (tool Ø 80 mm; Ø with free pockets 160 mm; L 315 mm; max tool 8 kg). Main specs: spindle nose SK40; spindle 20–12,000 rpm (stepless); spindle motor 7.5 kW; feed 20–10,000 mm/min; rapid 18 m/min per axis; quill travel 90 mm; resolution 0.001 mm; power 3x400 V 50 Hz; air 5.5–8 bar; weight ≈4100 kg; dims 2900×2000×2300 mm. Accessories: full splash cabin, coolant, handheld control, lamp, RS‑232, central lubrication. Achieves tight tolerances; suited to automotive, aerospace and medical sectors.
| Number of axis simultaneous | 3 |

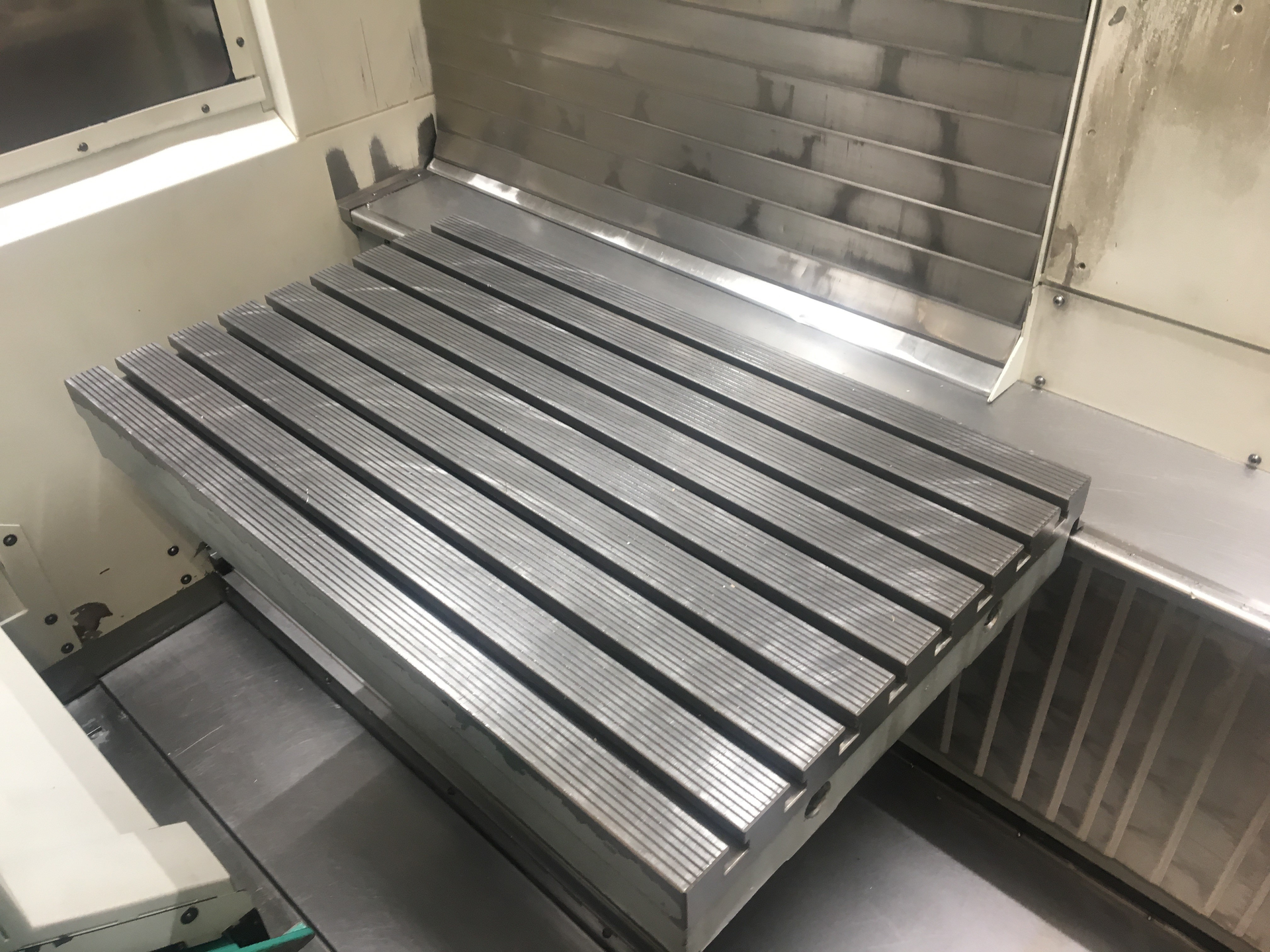

| Table length | 900 mm |
| Table width | 543 mm |
| Longitudinal travel (X-axis) | 600 mm |
| Transversal travel (y-axis) | 525 mm |
| Vertical travel (z axis) | 500 mm |
| Position accuracy | mm |
| Table load max. | 350 kg |
| Resolution | 0.001 |
| Tool changer: | |
| Number of tools | 25 |
| Tool diameter | 80 mm |
| Diameter with free adjacent pockets | 160 mm |
| Tool lenght | 315 mm |
| Max. tool-weight | 8 kg |

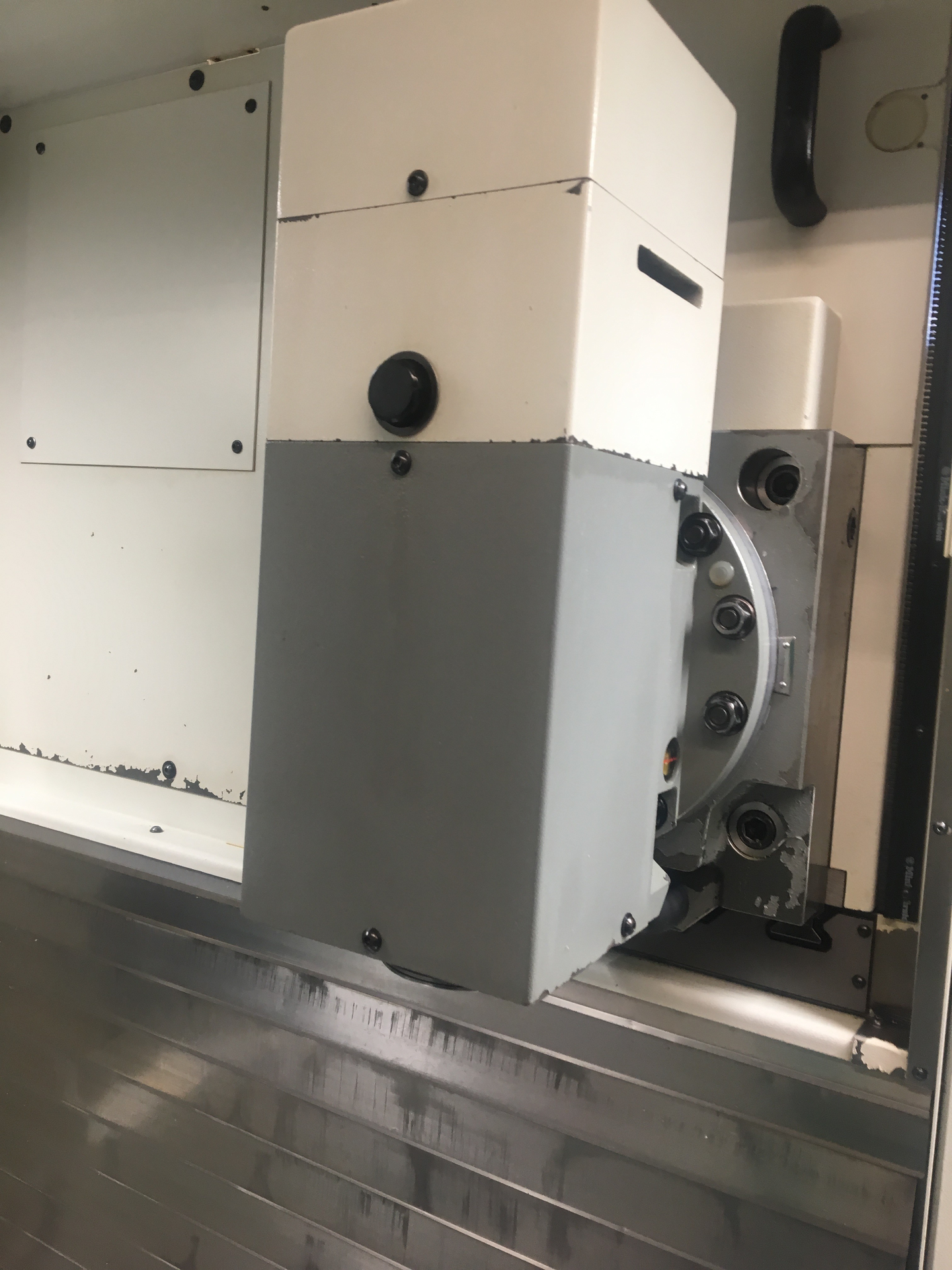

| Spindle nose SK | 40 |
| Vertical spindle speeds: | |
| stepless | |
| from | 20 t/min |
| up to | 12000 t/min |
| Feed range | 20 - 10000 mm/min |
| Input resolution | mm |
| Rapid traverse: long. | 18 m/min |
| Rapid traverse: transversal | 18 m/min |
| Rapid traverse: vertical | 18 m/min |
| Vertical quill travel | 90 mm |
| Air connect | 5.5 - 8.0 bar |

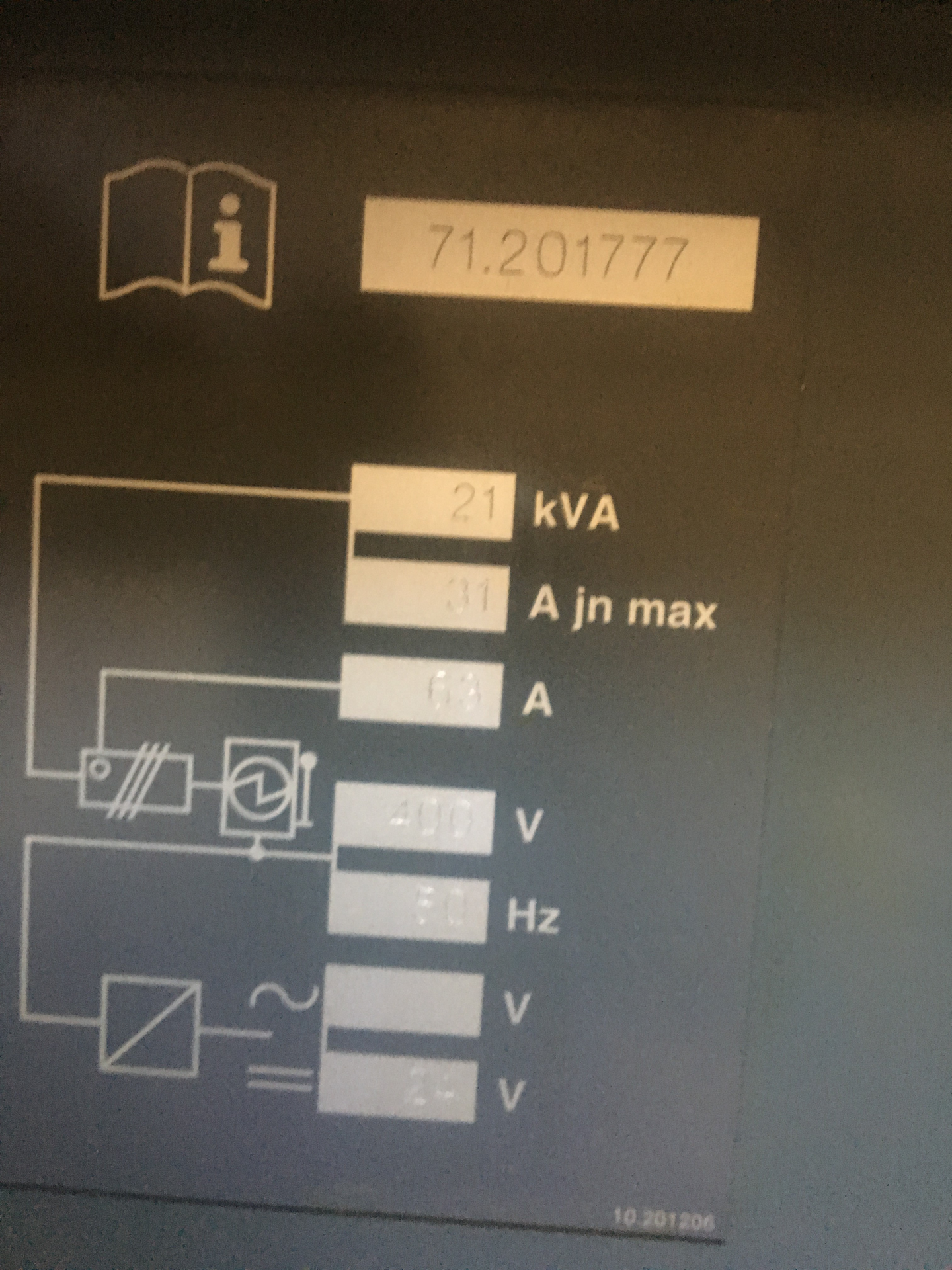

| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 7.5 kW |
| Machine's weight about | 4100 kg |
| Overall dimensions machine: | |
| Length | 2900 mm |
| Width | 2000 mm |
| Height | 2300 mm |
| Various accessories: | |
| Full splash cabin | |

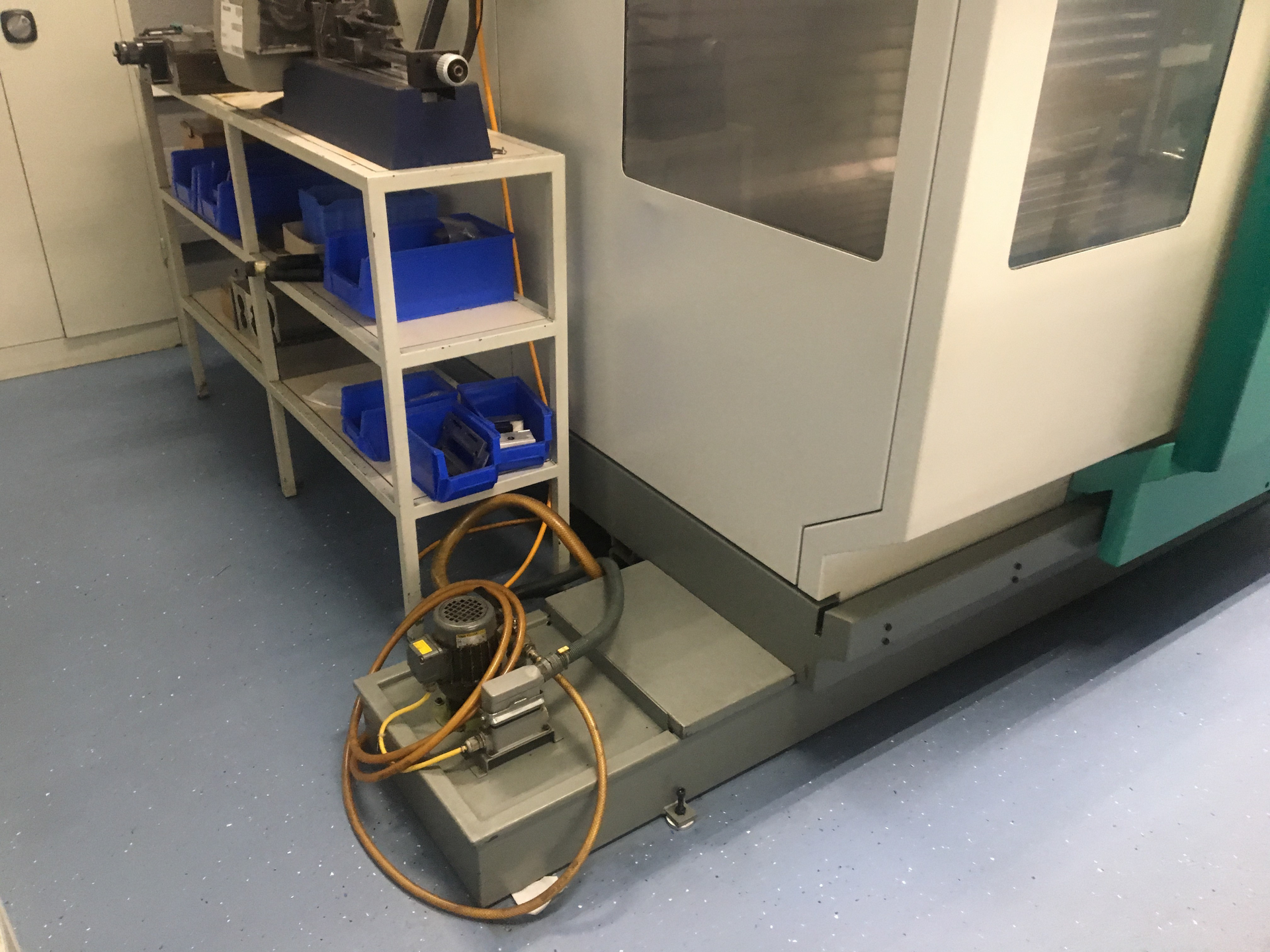

| Coolant system | |

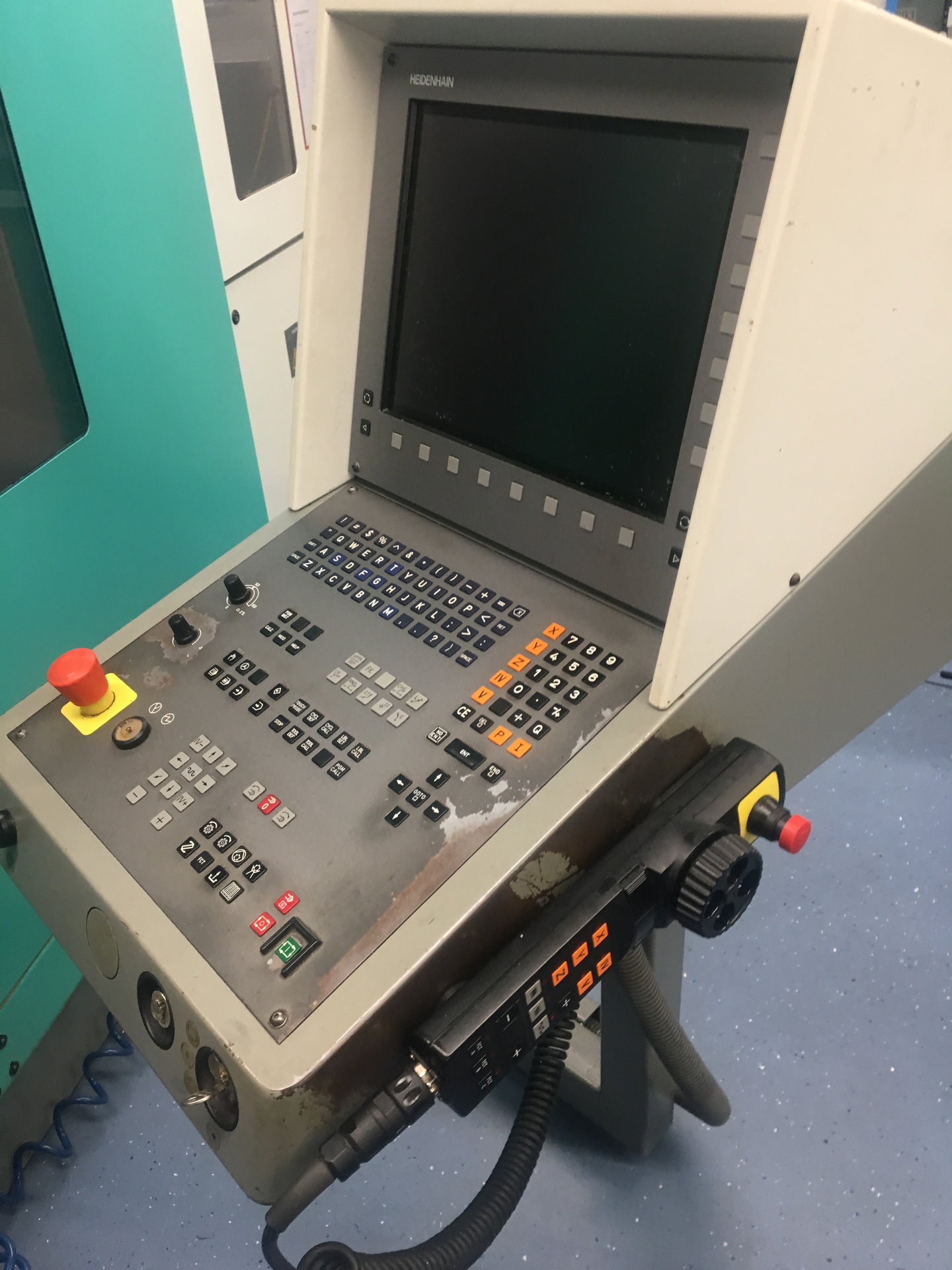

| Electronic hand held control | |
| Lamp | |
| RS-232 Interface | |
| Central lubrification |
