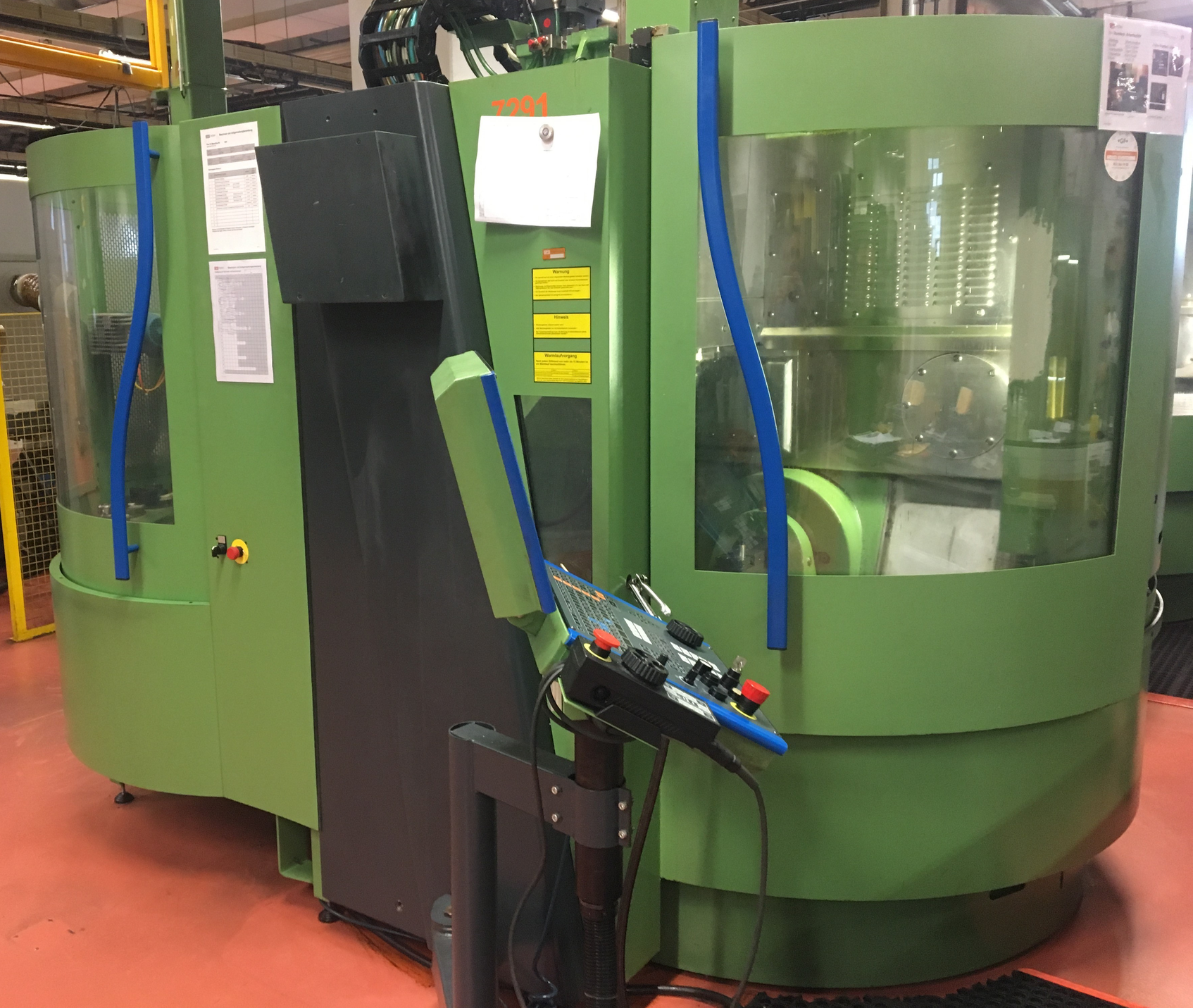

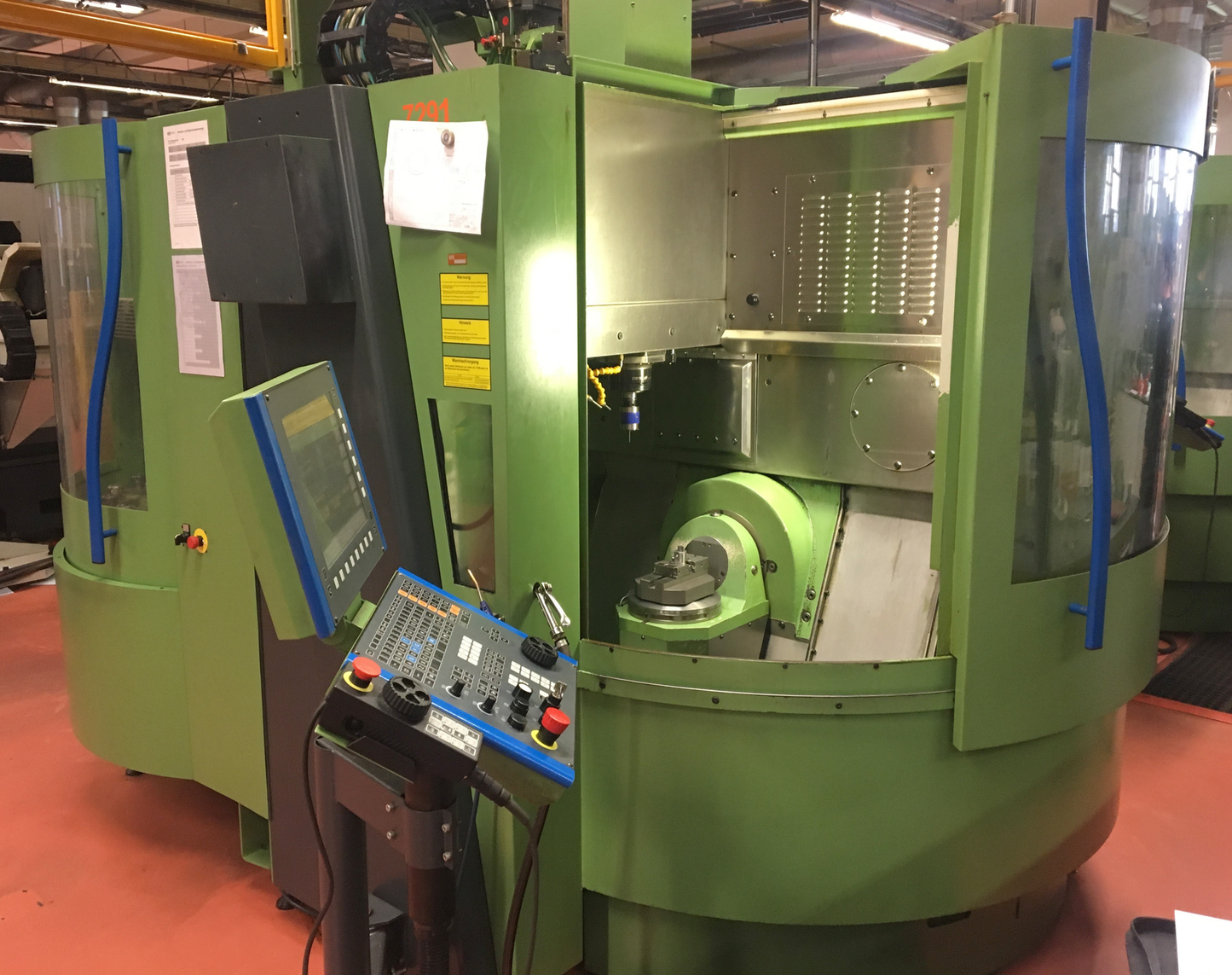

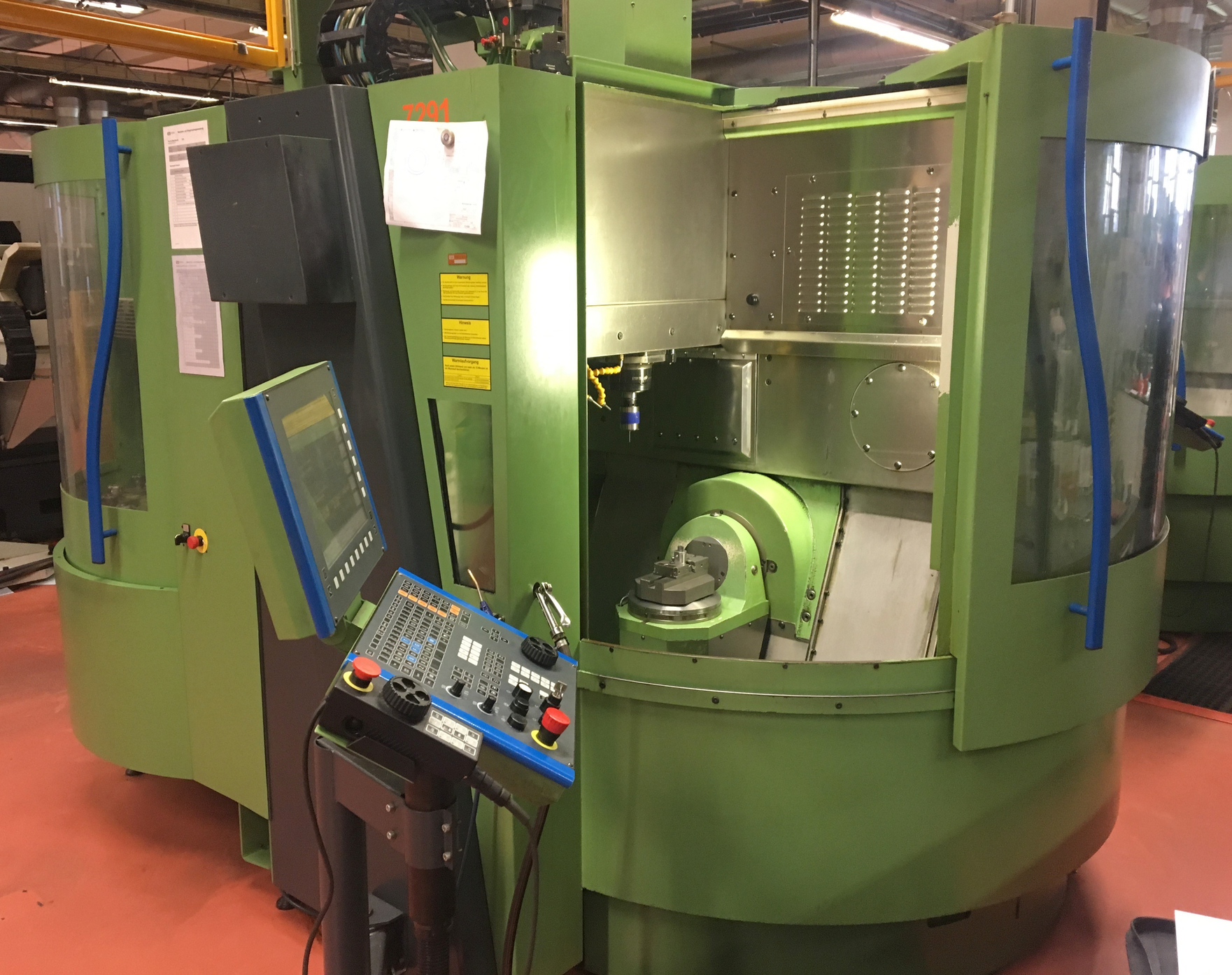

020569 - MIKRON HSM 400 U
Type: HSM 400 U
Manufacturer: MIKRON

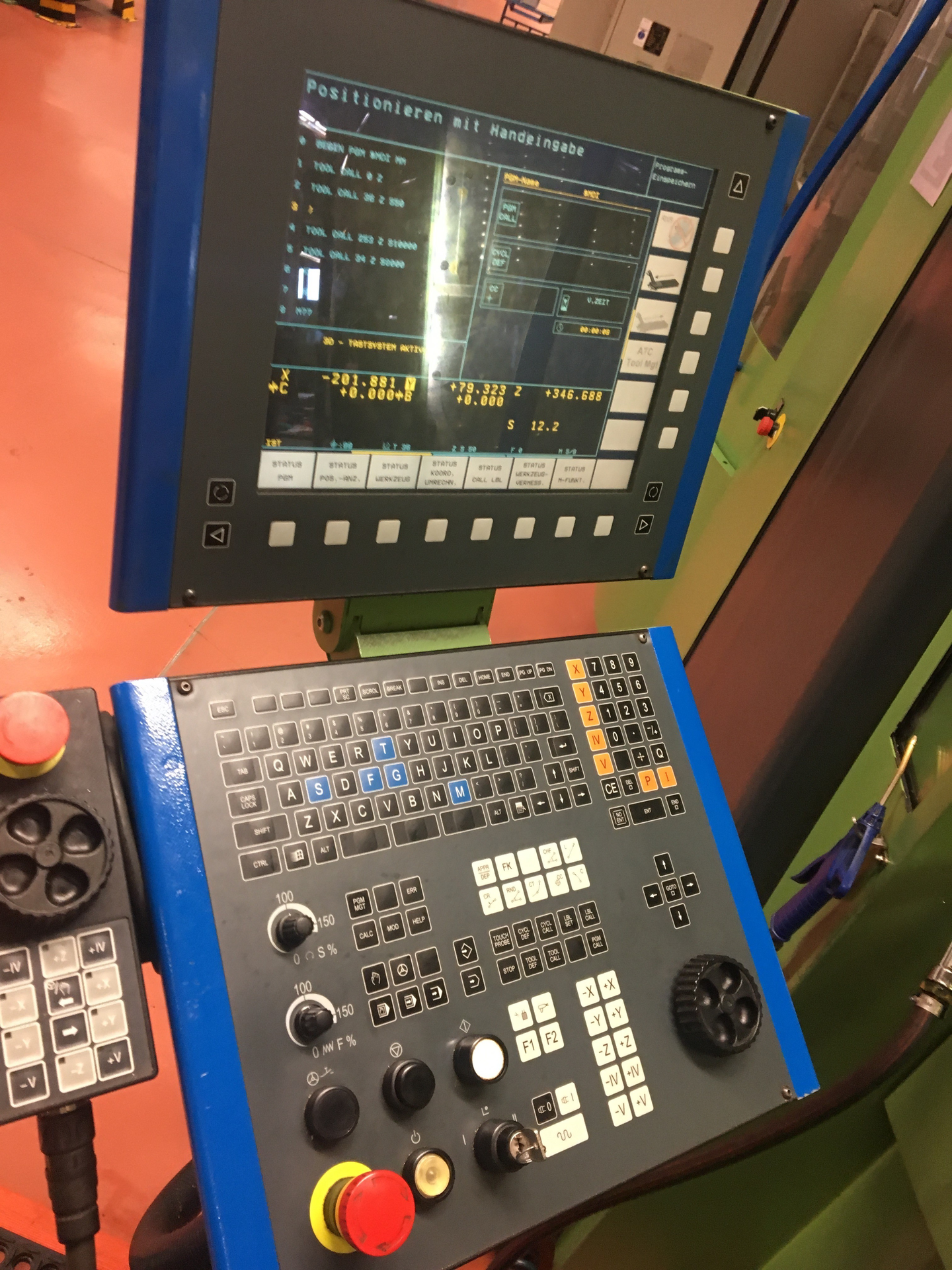

Control: HEIDENHAIN iTNC 530
Year: 2003
Stock: 020569

Special Price

CHF 49 000

Special offer machines are sold as-is, without any warranty or inspection from us.

Download technical sheet (PDF)
MIKRON HSM 400 U is a 5‑axis machining center designed for high precision, excellent accuracy and industrial reliability. Rotary table Ø250 mm; travels X400 Y240 Z350; B ±110°; C 360°. TCD tool changer 36 stations, HSK‑40E OptiCool; StepTec spindle 100–42,000 rpm. Spindle motor 13 kW; feeds 1–40,000 mm/min; rapid traverse 42 m/min; supply 3x400 V 50 Hz; weight ≈6500 kg; dims 3800×2900×2500 mm. Fitted with Renishaw touch probe, EROWA ITS 148 mm pallet changer (20 pallets), electronic handwheel, lamp. Achieves tight tolerances; suited to automotive, aerospace, medical, watchmaking and machine‑tool sectors.

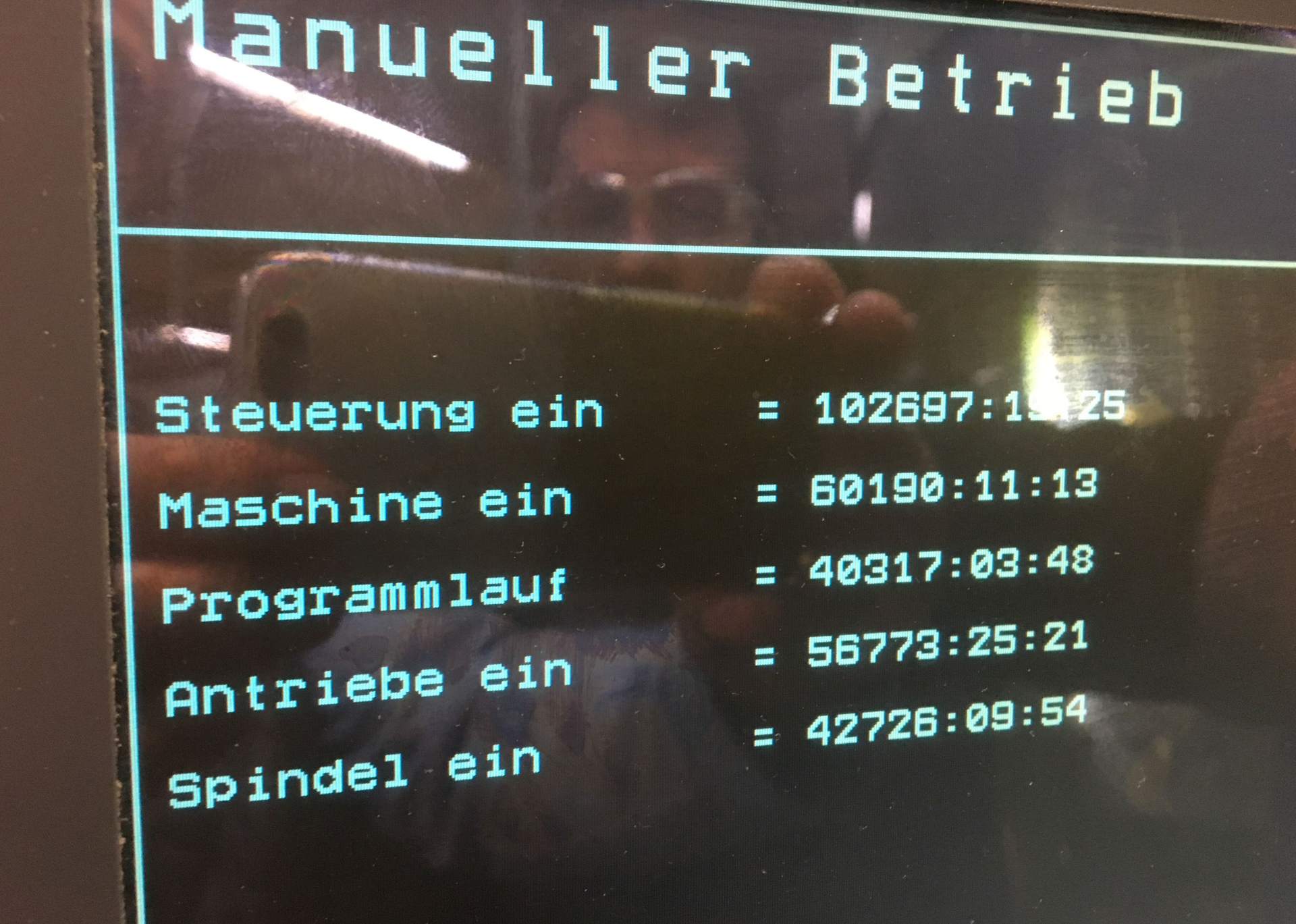

Time under power 60190 Heures
Operating time 56773 Heures
Spindle run time 42726 Heures
Number of axis total 5

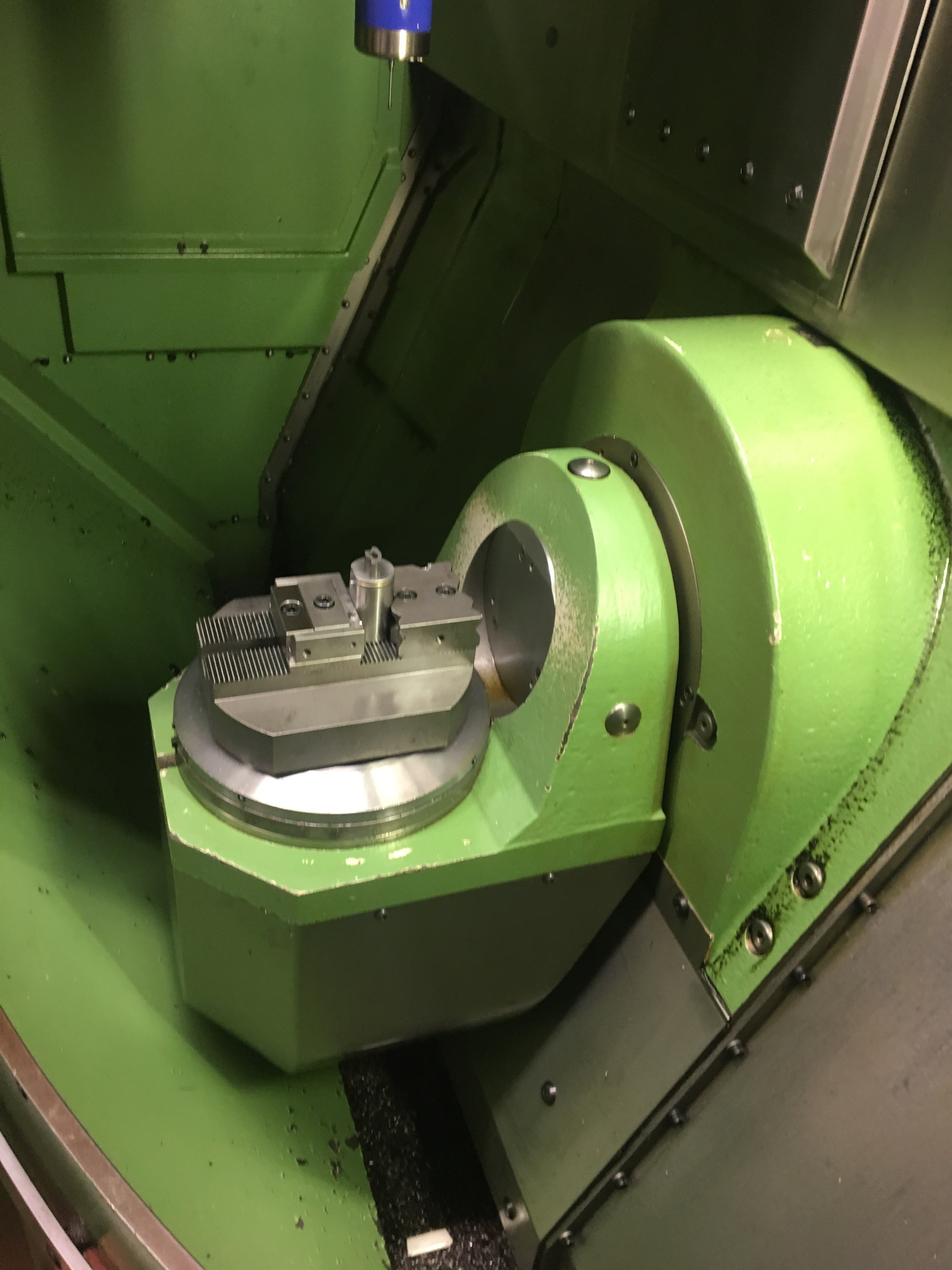

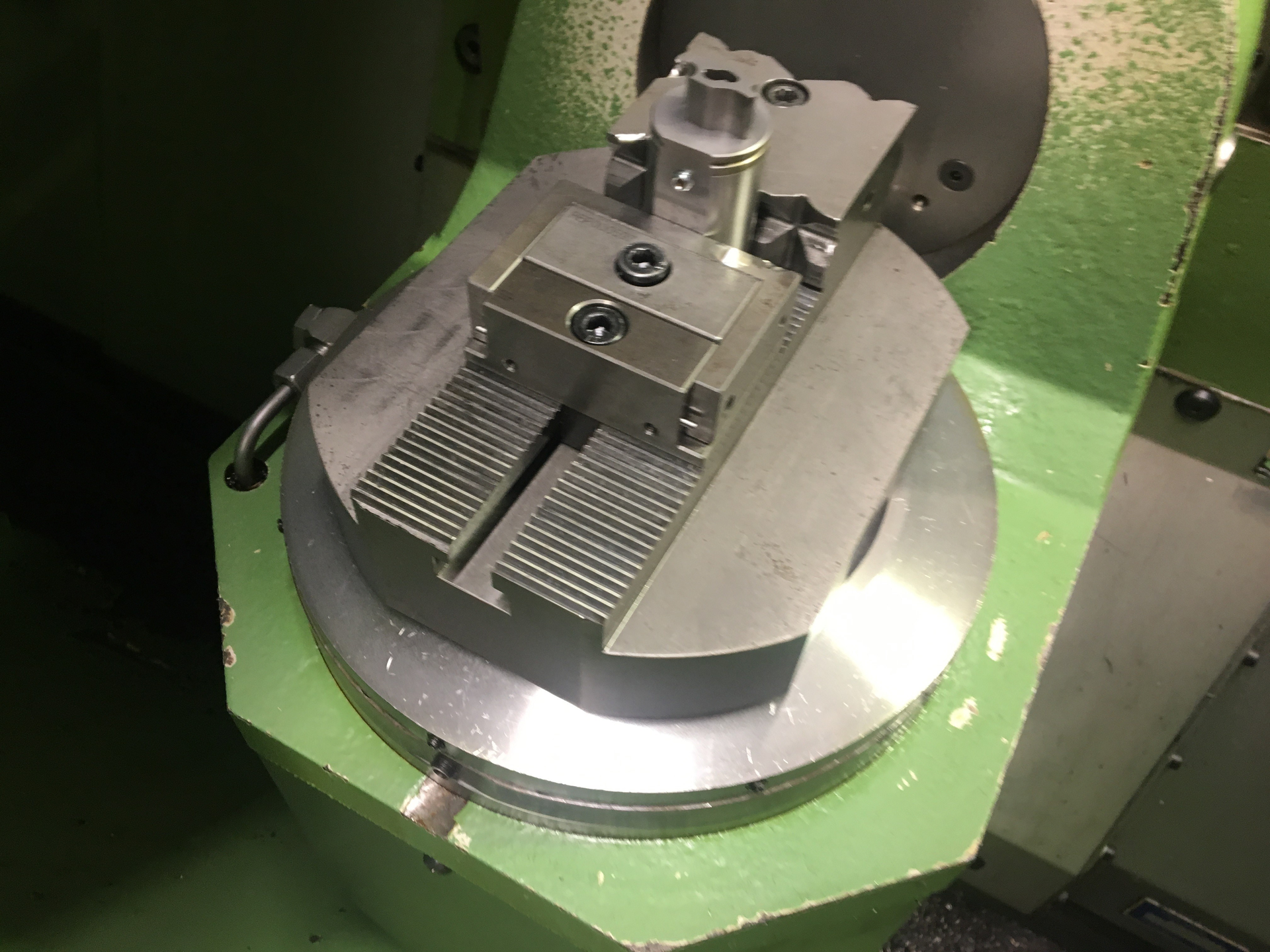

Rotary table:diameter 250 mm
Longitudinal travel (X-axis) 400 mm
Transversal travel (y-axis) 240 mm
Vertical travel (z axis) 350 mm
B axis swivelling range +/-110 °
C axis 360 °

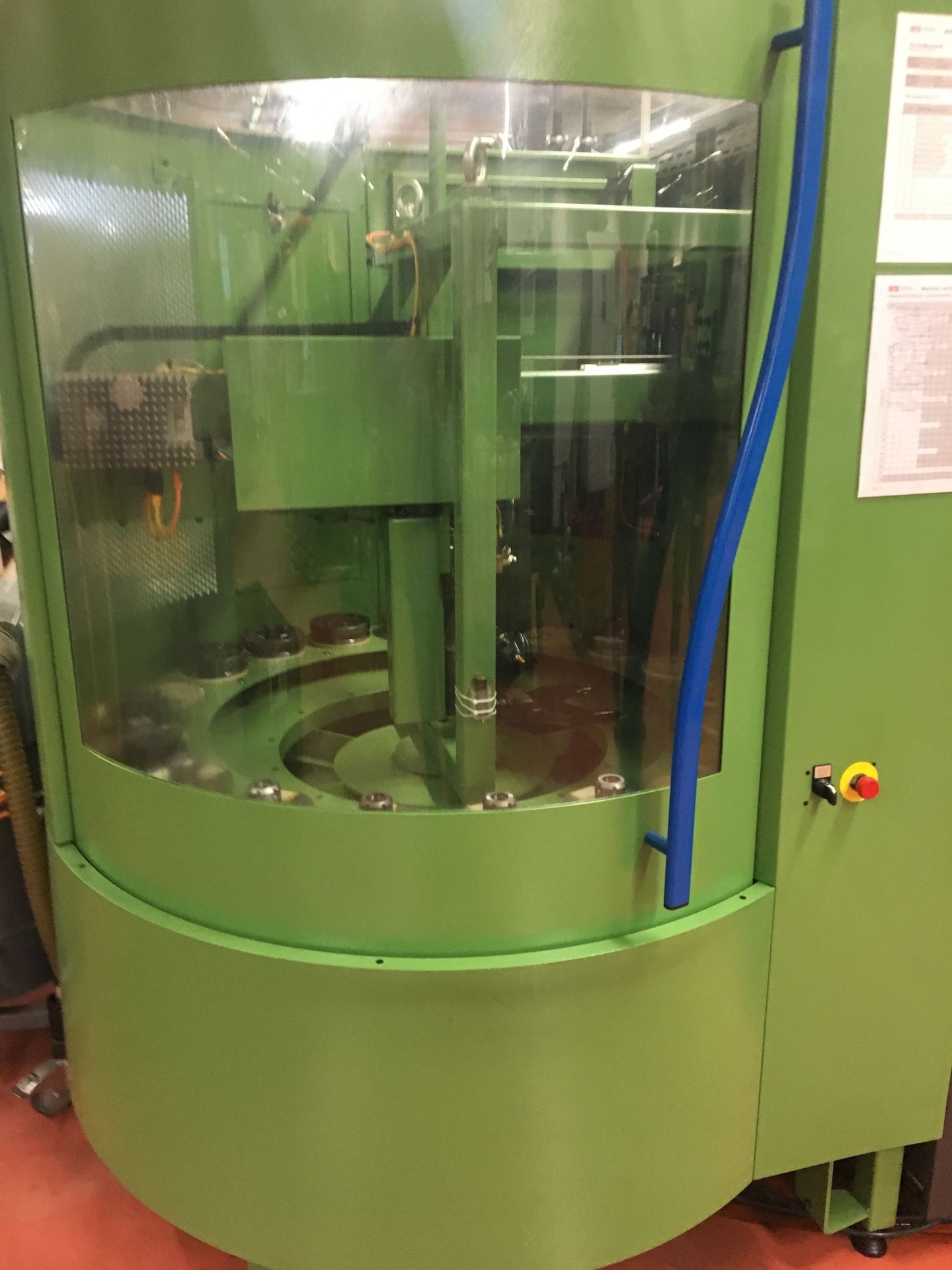

Tool changer: TCD
   Number of tools 36
Spindle nose: HSK 40E OptiCool

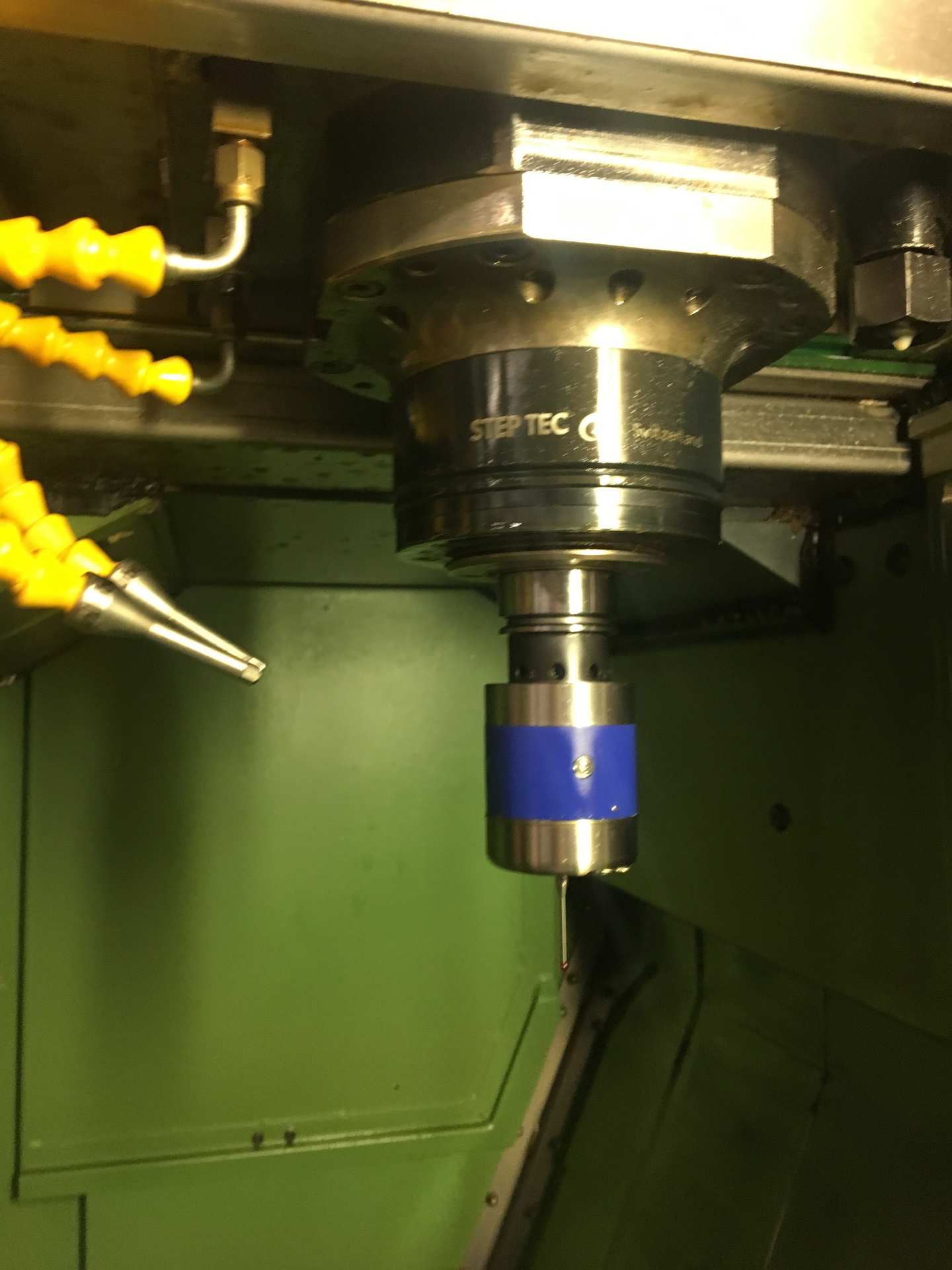

Spindle speeds: StepTec
   stepless
   from 100 t/min
   up to 42000 t/min
Feeds:
   stepless
   longitudinal from 1 mm/min
   up to 40000 mm/min
   transversal from 1 mm/min
   up to 40000 mm/min
   vertical from 1 mm/min
   up to 40000 mm/min
Rapid traverse: 42 m/min

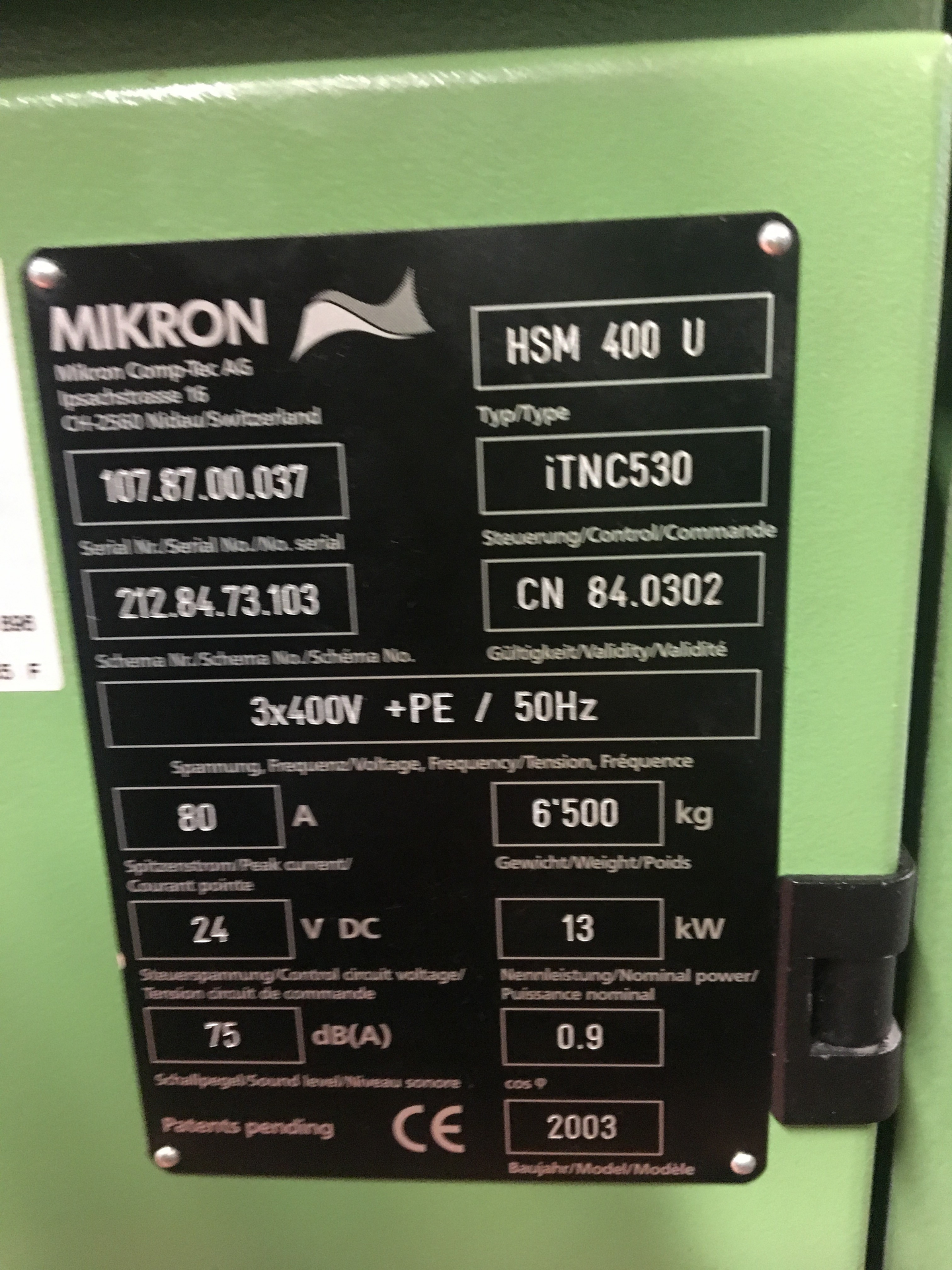

Voltage 50 Hz 3x 400 Volt
Spindle motor 13 kW
Machine's weight about 6500 kg
Overall dimensions machine:
   Length 3800 mm
   Width 2900 mm
   Height 2500 mm
Various accessories:
Touch Probe Renishaw
Pallets chanching device: EROWA ITS 148mm
   Pallets: number 20
Handwheel electroinic
Lamp
Measuring feeler gauge
