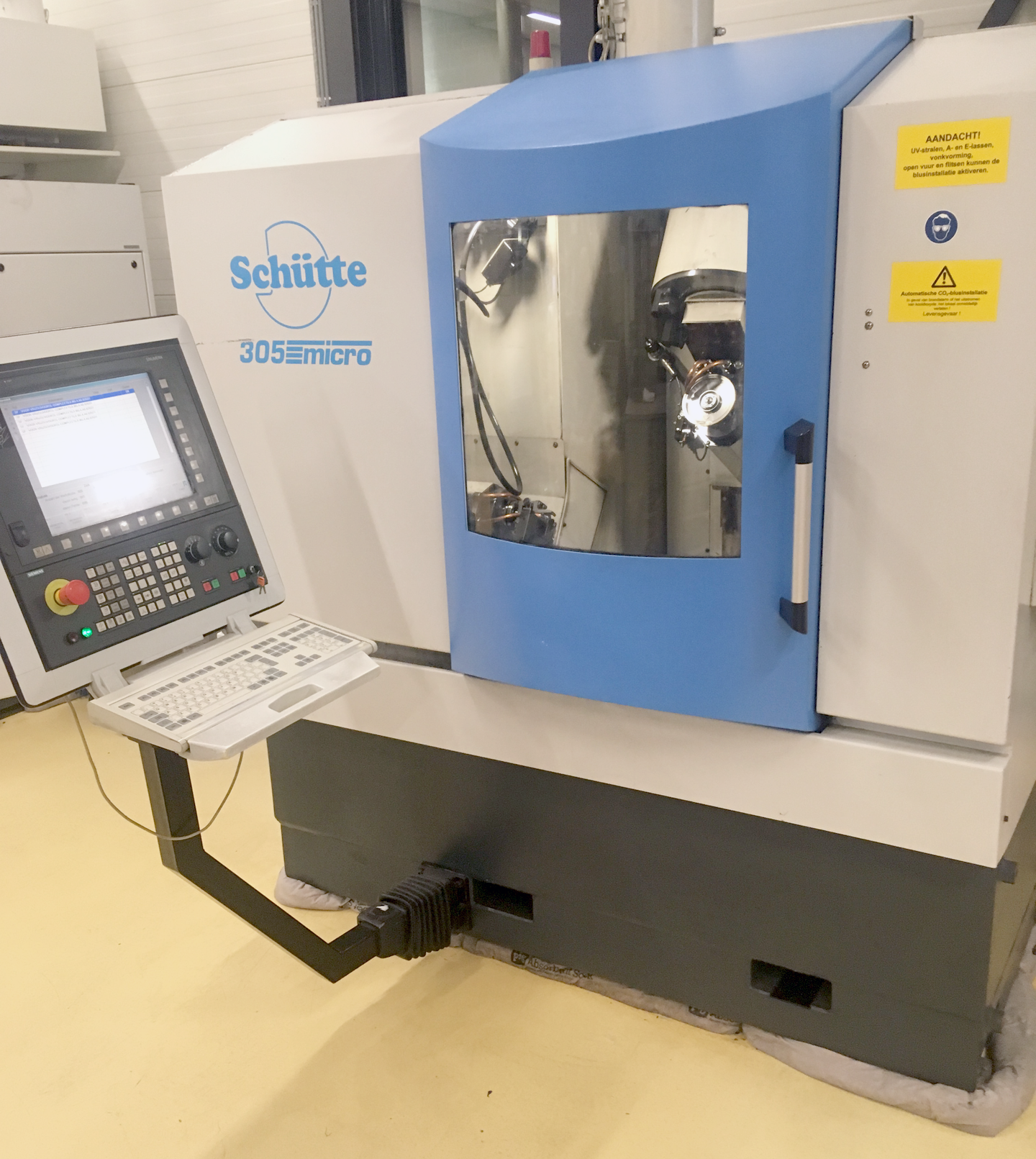

020483 - SCHÜTTE WU 305L micro
Download technical sheet (PDF)
Message us on WhatsApp
| Number of axis total | 5 |
| Rotary axes axes direct drives | |
| Linear Axes direct driven | |
| Direct measuring system X, Y and Z axis | |
| X axis | 400 mm |
| Y axis | 250 mm |
| Z axis | 250 mm |
| Tool lenght | mm |
| grinding diameter | 1 - 10 mm |
| Distance from table to | |
| A axis | HSK 50E |
| Collet attachment | 15 W |
| Spindle nose: HSK | 50 |
| Grinding spindle speeds: | |
| stepless | |
| up to | 12000 t/min |
| Grinding spindle motor | 8 kW |
| Total power required | 20 kVA |
| Machine's weight about | 2800 kg |
| Overall dimensions machine: | |
| Length | 1990 mm |
| Width | 1640 mm |
| Height | 1960 mm |
| Various accessories: | |
| Grinding wheel changer 5-fold Automatic | |
| Workpiece guiding system | |
| Central lubrification | |
| Fire extinguishing system |
