FEHLMANN PICOMAX 80
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
FEHLMANN PICOMAX 80 is a 4-axis machining center designed for precision, high accuracy and reliable operation. Working capacities: table 1230×410 mm, 7 T-slots 12H8 at 50 mm, table load max 250 kg; travels X700 Y315 Z495 V180 mm; throat 370 mm; spindle-to-table 620 mm. Key specs: stepless spindle 50–9200 t/min; feed 1–9000 mm/min; rapid traverse X/Y 9 m/min, Z 4 m/min; supply 3×380 V 50 Hz; total power 16 kW; weight ~3200 kg; overall 2500×2500×2450 mm. Accessories: 4th-axis dividing attachment FEHLMANN AT 100 CNC, lamp. Enables tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical sectors.
| Number of axis total | 4 |
| Table length | 1230 mm |
| Table width | 410 mm |
| Number of T-channels | 7 |
| Distance of the T-slots | 50 mm |
| T-channel width | 12H8 mm |
| Table load max. | 250 kg |
| Longitudinal travel (X-axis) | 700 mm |
| Transversal travel (y-axis) | 315 mm |
| Vertical travel (z axis) | 495 mm |
| Verticla travel (V-axis) | 180 mm |
| Depth of throat | 370 mm |
| spindle to table | 620 mm |
| Spindle speeds: | |
| stepless | |
| from | 50 t/min |
| up to | 9200 t/min |
| Feed range | 1 - 9000 mm/min |
| Rapid traverse: long. | 9 m/min |
| Rapid traverse: transversal | 9 m/min |
| Rapid traverse: vertical | 4 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 16 kW |
| Machine's weight about | 3200 kg |
| Overall dimensions machine: | |
| Length | 2500 mm |
| Width | 2500 mm |
| Height | 2450 mm |
| Various accessories: | |
| Coolant system | |

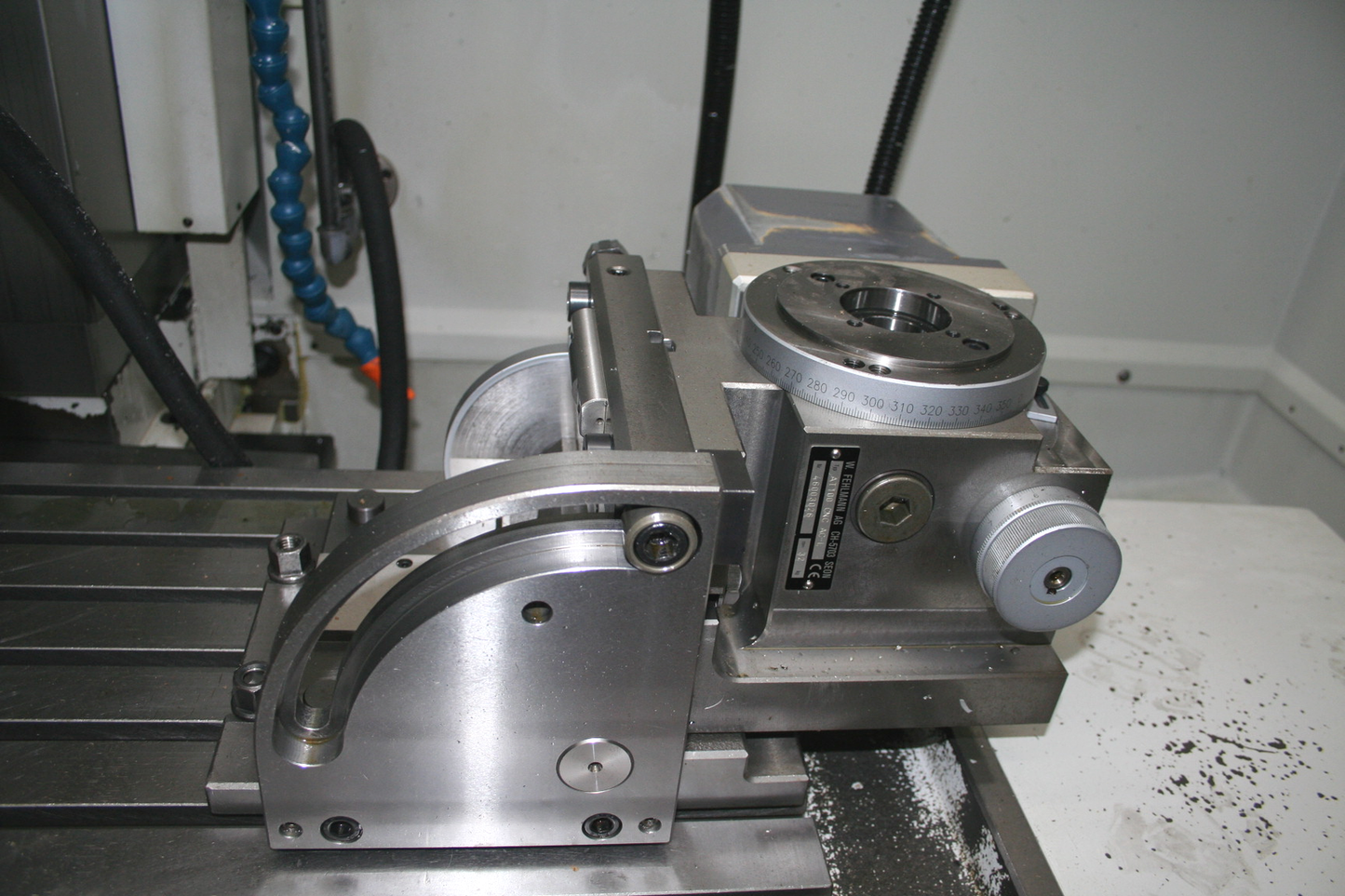

| Dividing attachment 4th axis | FEHLMANN AT 100 CNC |
| Lamp |
