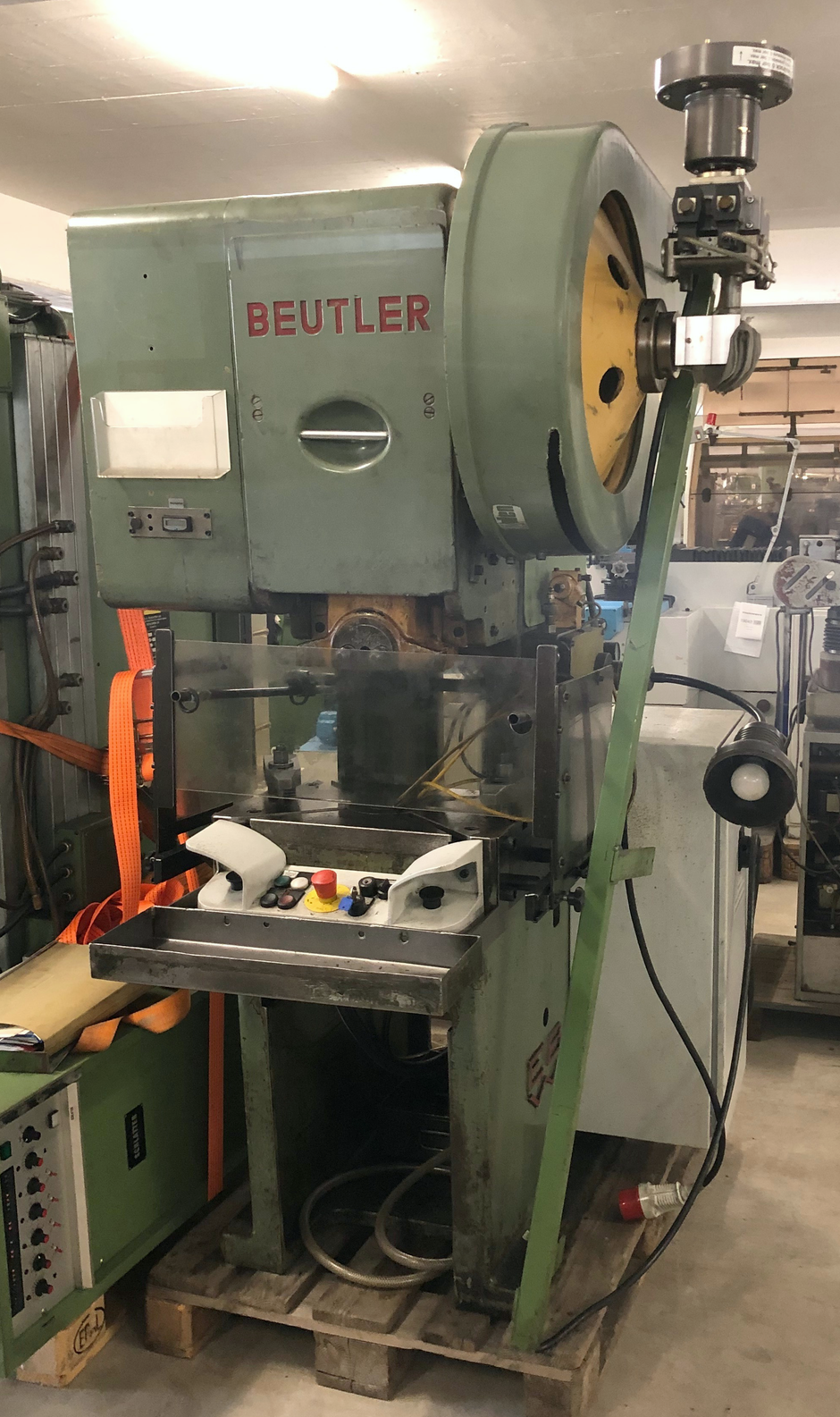

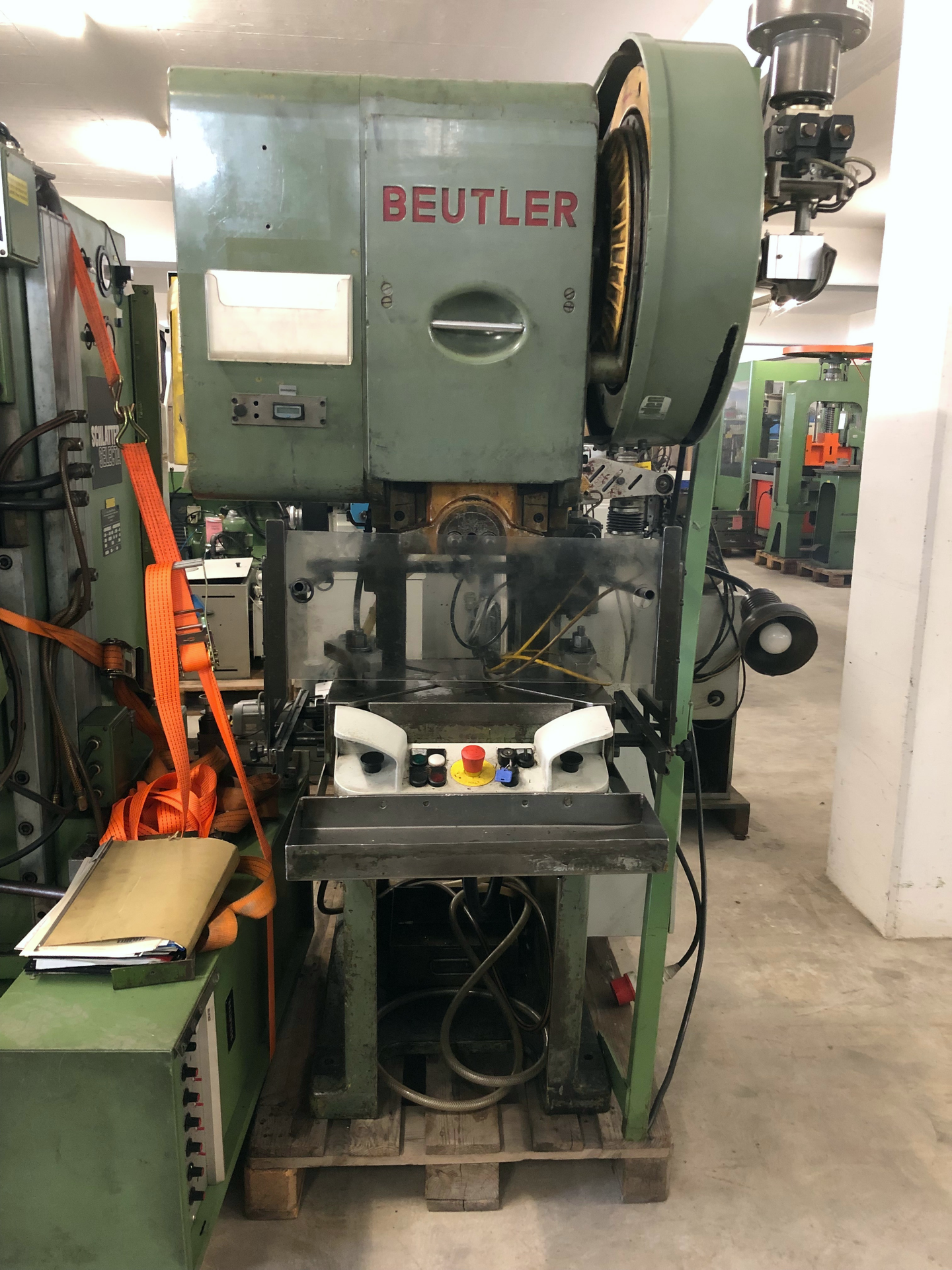

BEUTLER PD 16 MK is an excentric press engineered for precision, high accuracy and reliability. Working capacities: pressure 16 to; fixed table 500×300 mm; slide to support 150 mm; table hole Ø105 mm; table–slide distance max 250 mm; adjustable stroke 6–80 mm; up to 140 c/min; tool-holder bore 40 mm. Technical specs: 50 Hz 3x380 V supply; power 1.50 CV; overall L1000×W800×H1900 mm. Accessories: foot pedal, lamp, two-hand release. Achieves tight tolerances; suitable for automotive, aerospace, medical, watchmaking and machine tool applications.
| Pressure | 16 to |
| Execution: number of columns | |
| Machine frame: fixed | |

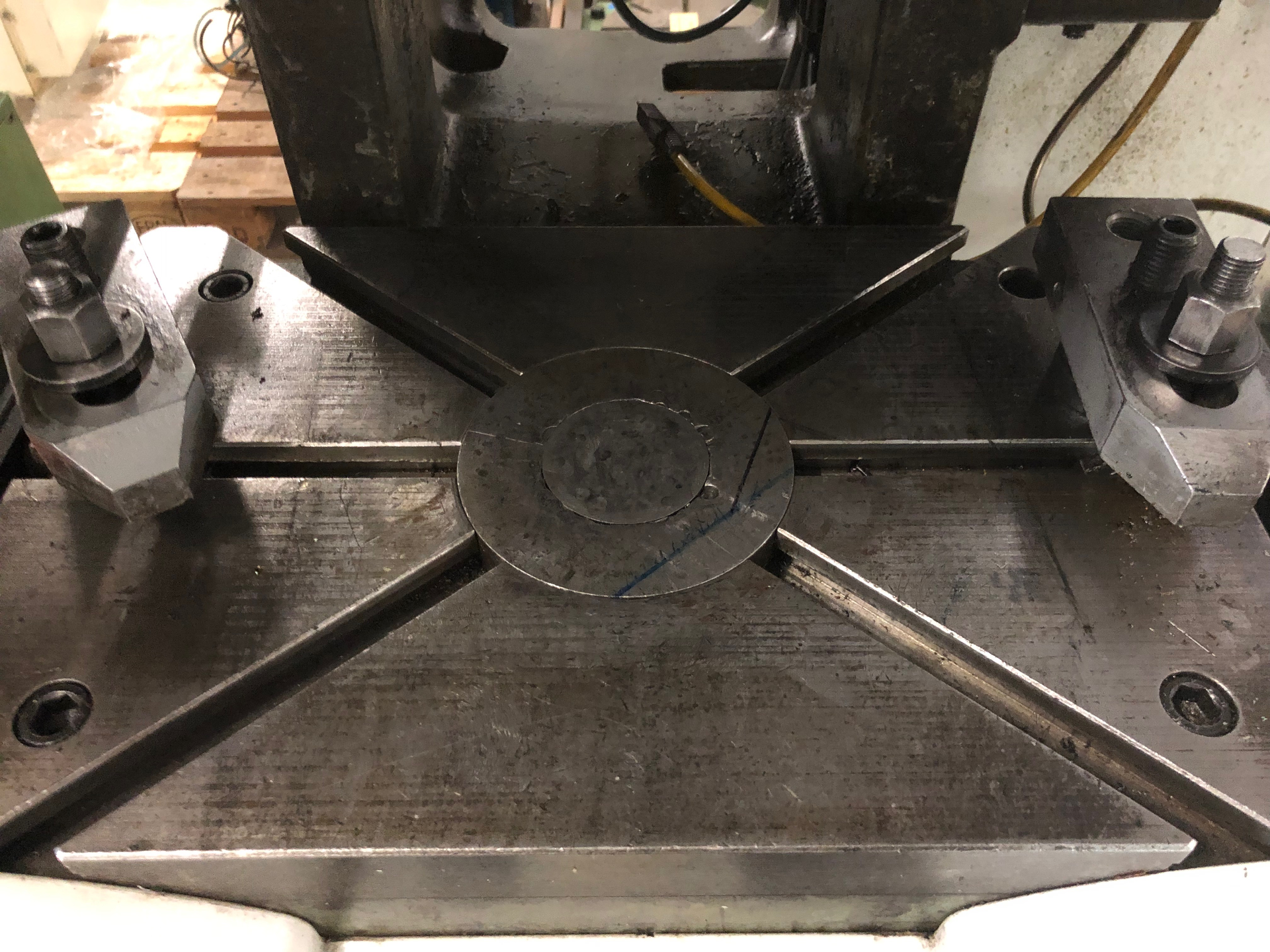

| Fixed table: length | 500 mm |
| Width | 300 mm |
| Die from the middle of the | |
| slide to the support | 150 mm |
| diameter | 105 mm |
| Distance working table to slide: | |
| max | 250 mm |
| Number of strokes: | |
| up to | 140 c/min |
| Tool-holder: | |
| bore | 40 mm |
| Adjustable stroke: | |
| from | 6 mm |
| up to | 80 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 1.50 CV |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 800 mm |
| Height | 1900 mm |
| Various accessories: | |
| Foot pedal | |
| Lamp | |

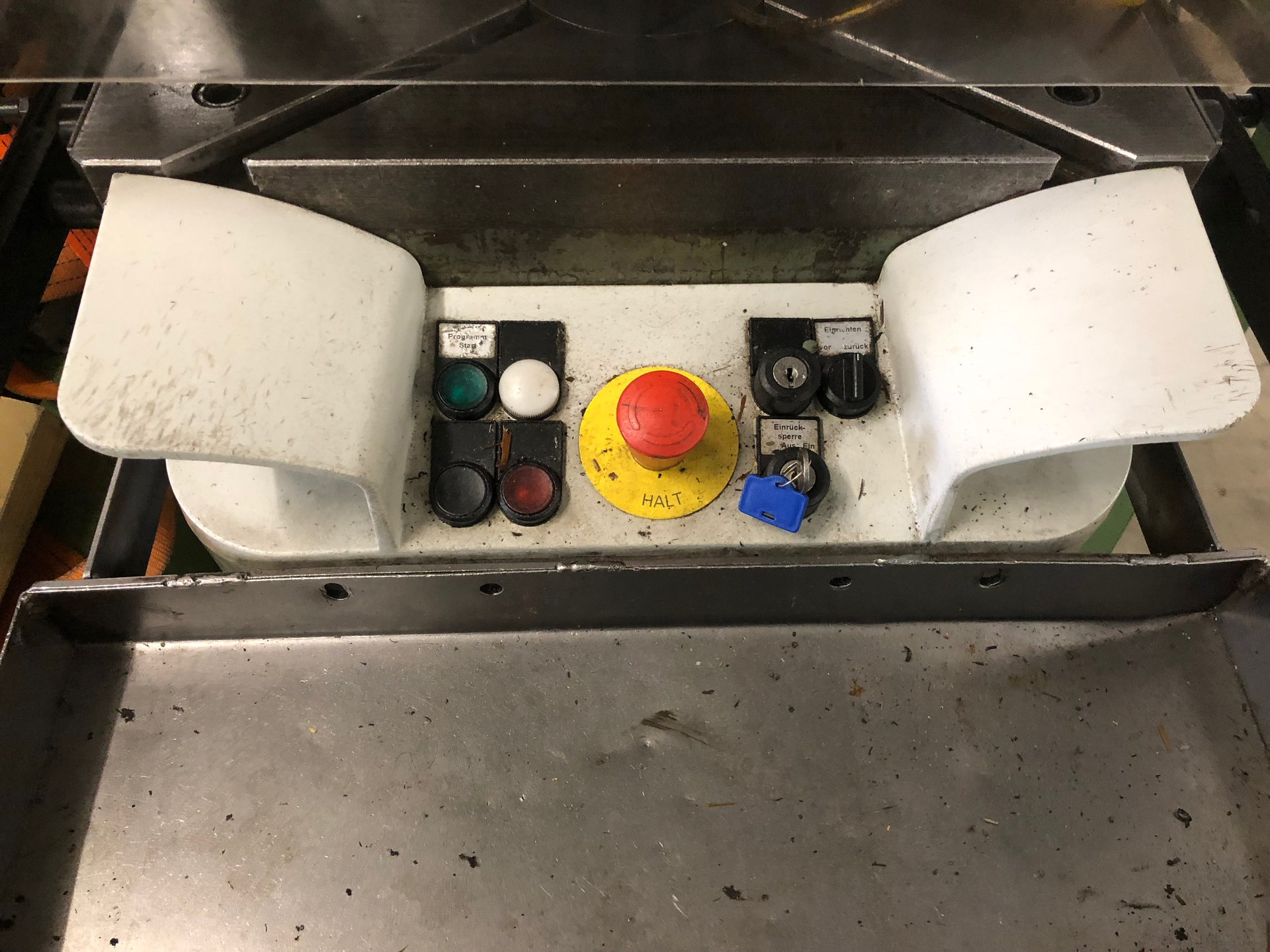

| Déclanchement à deux mains |
