MIKRON VCP 1000 is a 4-axis machining center designed for precision, high accuracy and reliability. Travels X1000 / Y750 / Z750 mm; table 1150×700 mm; 60 turret stations, TC30 toolchanger with 30 tool positions; tool Ø 77 mm (115 mm with free adjacent pockets); tool length 305 mm; spindle‑to‑table 115 mm. Spindle up to 24,000 rpm; feed 1500 mm/min; rapid traverse 22 m/min; 50 Hz 3x400 V; total power 40 kW; weight ≈10500 kg; dimensions 5220×3100×2840 mm; time under power 21859 h, operating time 7308 h, spindle run 1564 h. Accessories: TC30 changer, coolant through spindle, chip conveyor, 4th‑axis dividing attachment, set of toolholders 45 pc., LISTA tool cabinet. Achieves tight tolerances; suited to automotive, watchmaking, machine tool, aerospace and medical sectors.
Technical specifications are subject to change without notice
| Time under power | 21859 Heures |
| Operating time | 7308 Heures |
| Spindle run time | 1564 Heures |
| Number of axis total | 4 |
| Table length | 1150 mm |
| Table width | 700 mm |
| Turret stations: | 60 |
| Longitudinal travel (X-axis) | 1000 mm |
| Transversal travel (y-axis) | 750 mm |
| Vertical travel (z axis) | 750 mm |
| Tool changer: | TC 30 |
| Number of tools | 30 |
| Tool diameter | 77 mm |
| Diameter with free adjacent pockets | 115 mm |
| Tool lenght | 305 mm |
| Spindle nose: HSK | A63 |
| Distance from vertical | |
| spindle to table | 115 mm |
| Spindle speeds: | |
| stepless | |
| up to | 24000 t/min |
| Feed range | 1500 mm/min |
| Rapid traverse: | 22 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 40 kW |
| Machine's weight about | 10500 kg |
| Overall dimensions machine: | |
| Length | 5220 mm |
| Width | 3100 mm |
| Height | 2840 mm |
| Various accessories: | |
| Tool changer: | |
| Number of tools | 30 |
| Coolant through spindle (cts) | |
| Chip conveyor | |
| Dividing attachment 4th axis | |
| Set of toolholders | 45 pce. |

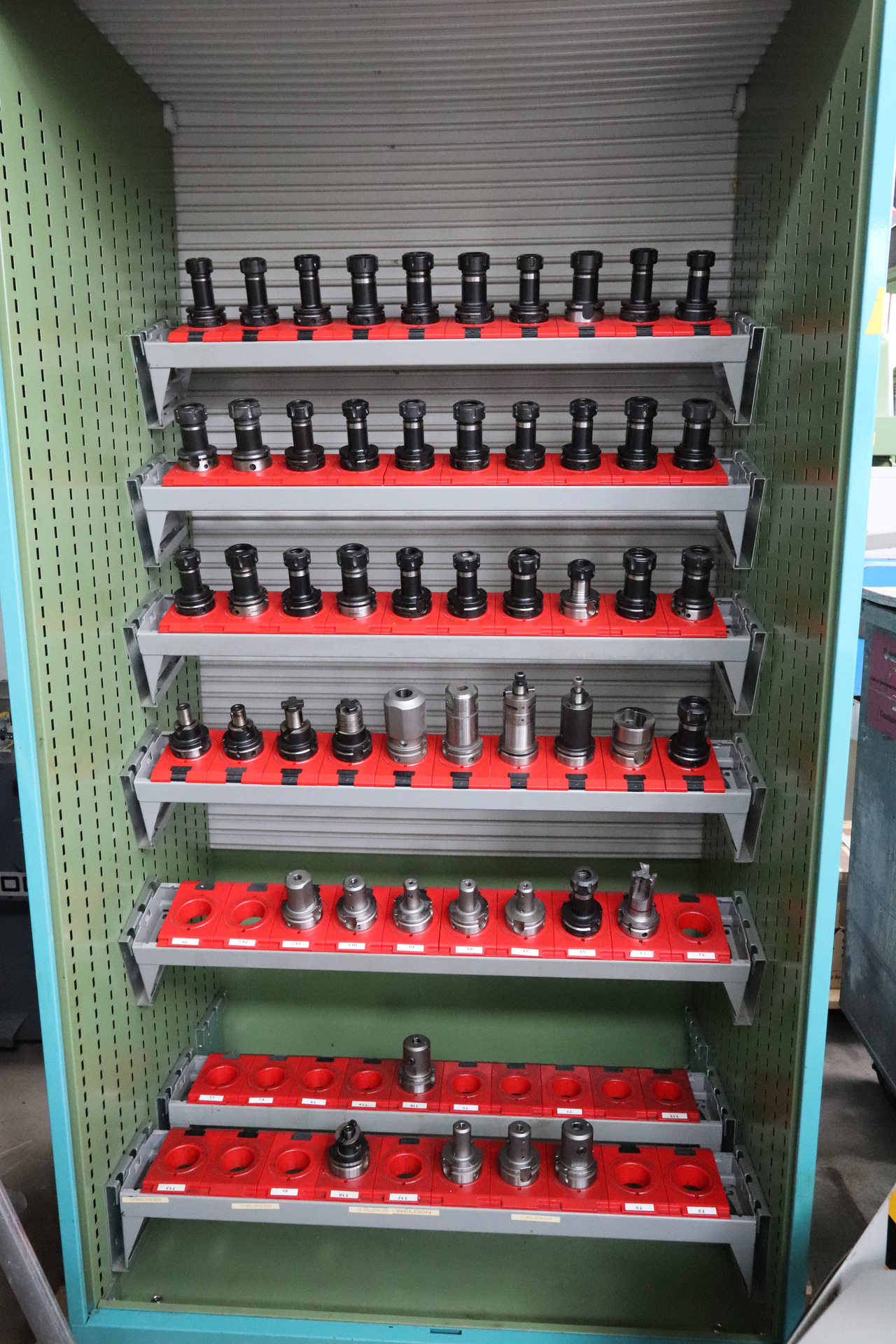

| Tool cabinet | LISTA |
