DECKEL FP 3 is a universal milling machine for precision machining, providing high accuracy and reliability. Table 600×350 mm; travels X 500 Y 300 Z 380 mm; spindle–table distance 470 mm; quill travel 100 mm. Spindle taper CN40, 18 speeds 40–2000 t/min. Feeds 10–500 mm/min; rapid 1.5 m/min. Power 3×380V 50Hz; motor 4.0 CV; weight ~1100 kg; dimensions 2200×1800×2000 mm. 3‑axis digital readout (Mitutoyo). Suited for tight‑tolerance sectors: automotive, toolmaking, aerospace, watchmaking, medical.
| Table length | 600 mm |
| Table width | 350 mm |
| Longitudinal travel (X-axis) | 500 mm |
| Transversal travel (y axis) | 300 mm |
| Vertical travel (z axis) | 380 mm |
| Distance from vertical spindle to table | 470 mm |
| Spindle speeds: | |
| number (steps) | 18 |
| from | 40 t/min |
| up to | 2000 t/min |
| Taper in spindle CN | 40 |
| Feeds steps: | 18 |
| longitudinal from | 10.0 mm/min |
| up to | 500 mm/min |
| transversal from | 10.0 mm/min |
| up to | 500 mm/min |
| vertical from | 10.0 mm/min |
| up to | 500 mm/min |
| Vertical quill travel | 100 mm |
| Rapid traverse: | |
| longitudinal | 1.5 m/min |
| transversal | 1.5 m/min |
| vertical | 1.5 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 4.0 CV |
| Machine's weight about | 1100 kg |
| Overall dimensions machine: | |
| Length | 2200 mm |
| Width | 1800 mm |
| Height | 2000 mm |

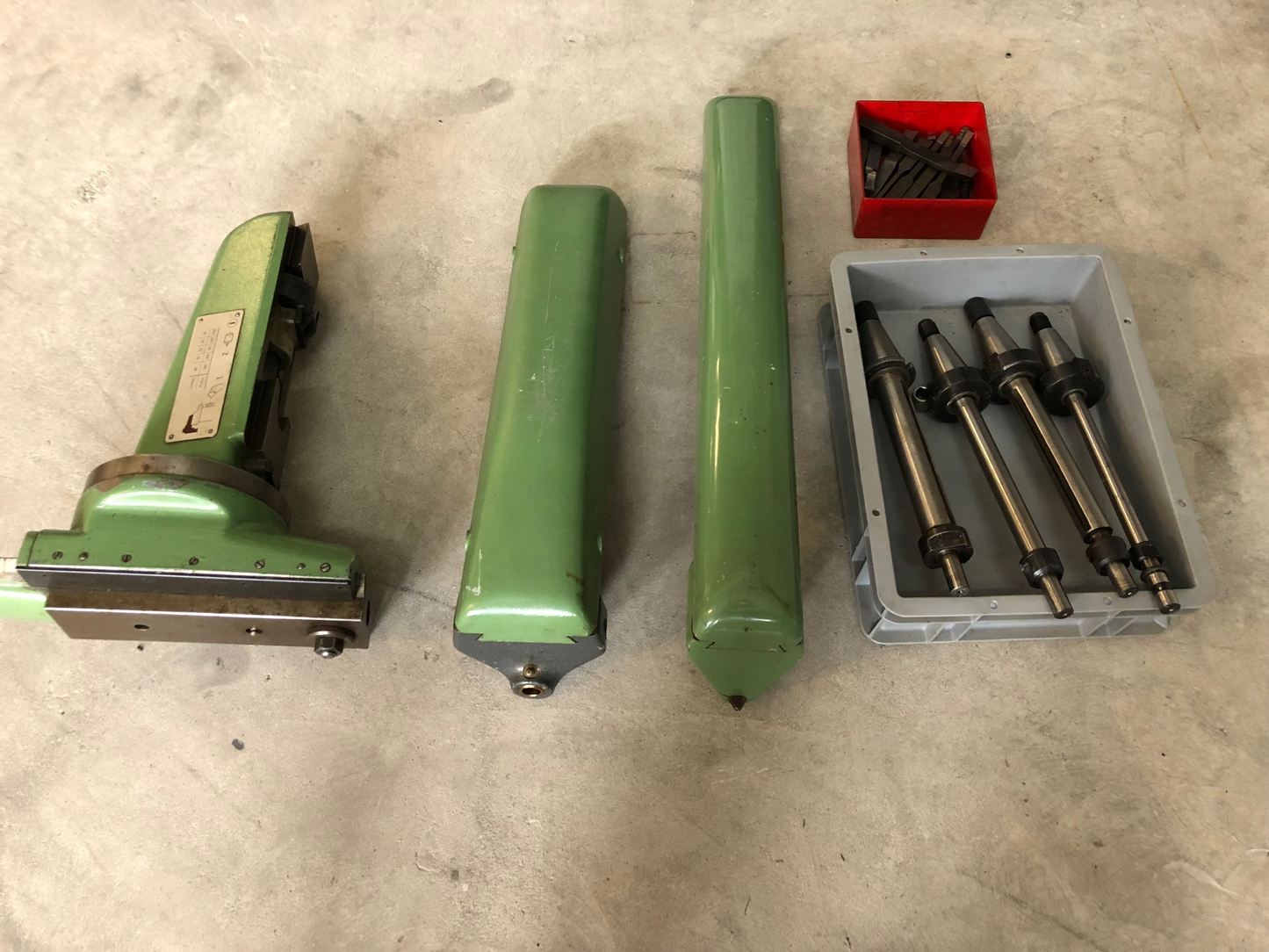

| Various accessories: | |
| Digital readout number of axis: | 3 |
| Manufacturer | Mitutoyo |
