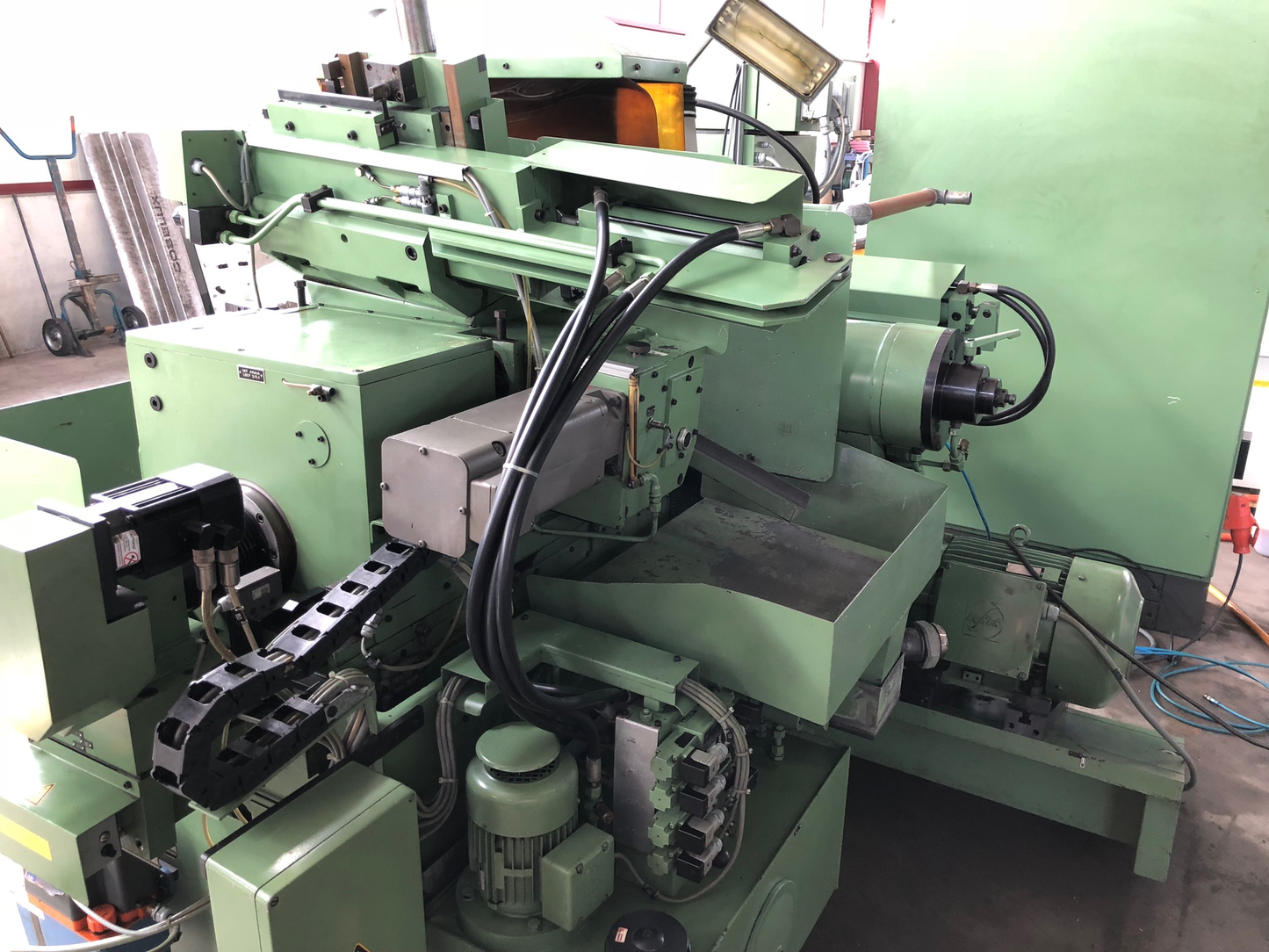

KOEBAU MULTIMAT 150-6 is a centreless grinding machine of high precision, providing great accuracy and reliability. Grinding Ø 2–100 mm; wheel width 200 mm; main wheel new Ø600/used 400 mm, bore 305 mm; regulating wheel new Ø300/used 180/210 mm, bore 127/152 mm. Wheel speeds 23–45 m/s; regulating spindle stepless 10–100 t/min. Supply 3x380 V 50 Hz; main motor 18.5 kW; size 2500×2100×2200 mm; weight ≈4200 kg. Coolant system. Suitable for tight tolerances in automotive, tooling, aerospace, medical and watchmaking.
| Min. grinding diameter | 2 mm |
| Max. grinding diameter | 100 mm |
| Width of the grinding wheel | 200 mm |
| Grinding wheel: | |
| diameter new wheel | 600 mm |
| diameter used wheel | 400 mm |
| Width | 200 mm |
| Bore | 305 mm |
| Speeds: | |
| from | 23 m/s |
| up to | 45 m/s |
| Regulating spindle: | |
| diameter new wheel | 300 mm |
| diameter used wheel | 180/210 mm |
| Width | 200 mm |
| Bore | 127/152 mm |
| Speeds: | |
| stepless | |
| from | 10 t/min |
| up to | 100 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Main motor | 18.5 kW |
| Machine's weight about | 4200 kg |
| Overall dimensions machine: | |
| Length | 2500 mm |
| Width | 2100 mm |
| Height | 2200 mm |
| Various accessories: | |
| Coolant system |
