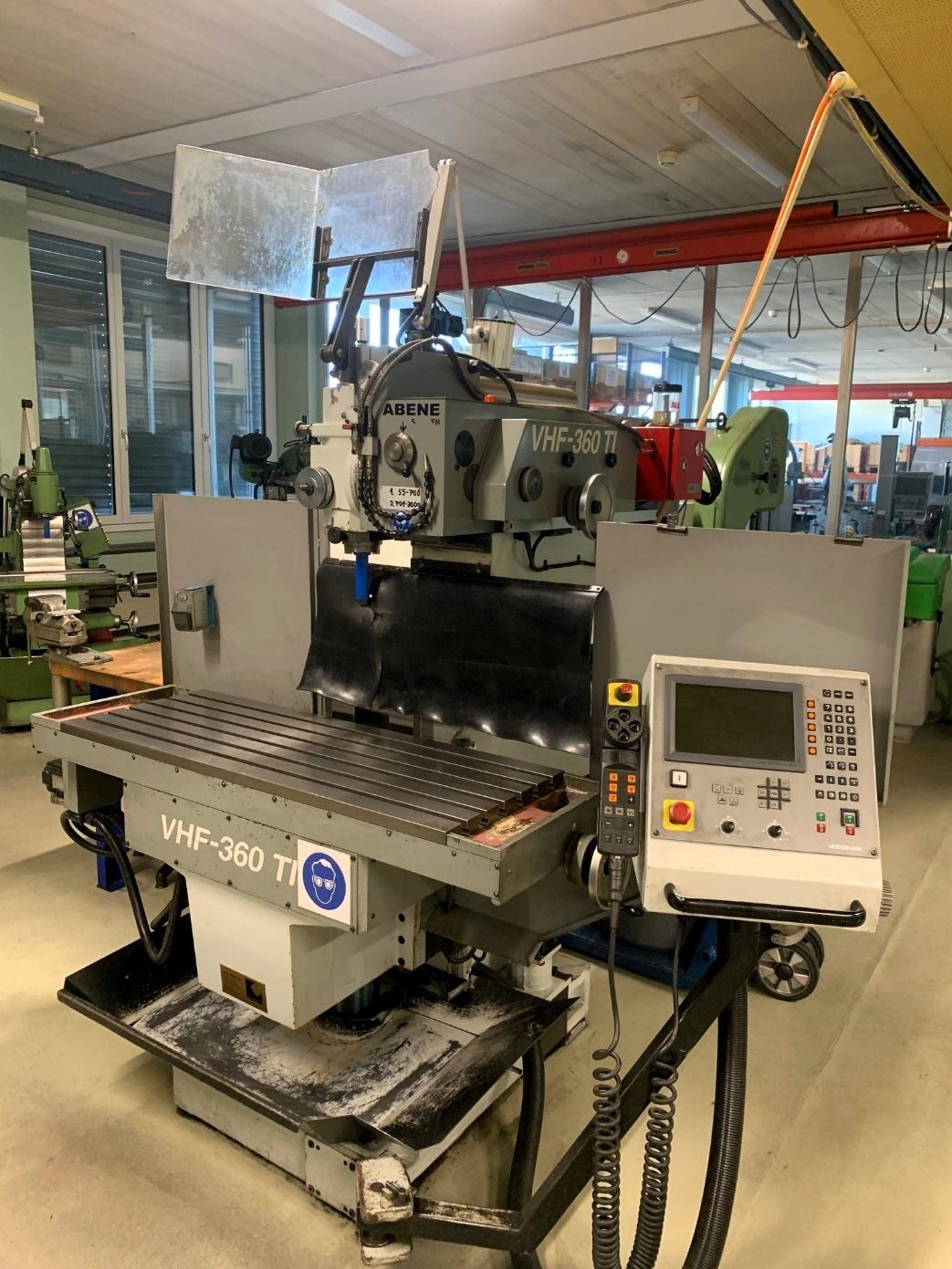

ABENE VHF 360 TI is a CNC milling machine engineered for precision work with high accuracy and reliability. Capacity: table 1200x450 mm, travels X650 Y480 Z475 mm, table load max 400 kg, spindle stroke 75 mm, swivel 0–140°, spindle nose ISO40. Specs: stepless spindle 55–4000 rpm, feeds stepless up to 4000 mm/min (X/Y) and 1500 mm/min (Z), spindle motor 7.5 kW, total power 14 kW, 3x400 V 50 Hz, machine weight ~2300 kg, footprint 3000x3000 mm. Accessories: drilling spindle, mechanical handwheels, coolant system, machine lamp. Achieves tight tolerances; typical applications: automotive, watchmaking, tooling, aerospace and medical.

Technical specifications are subject to change without notice
