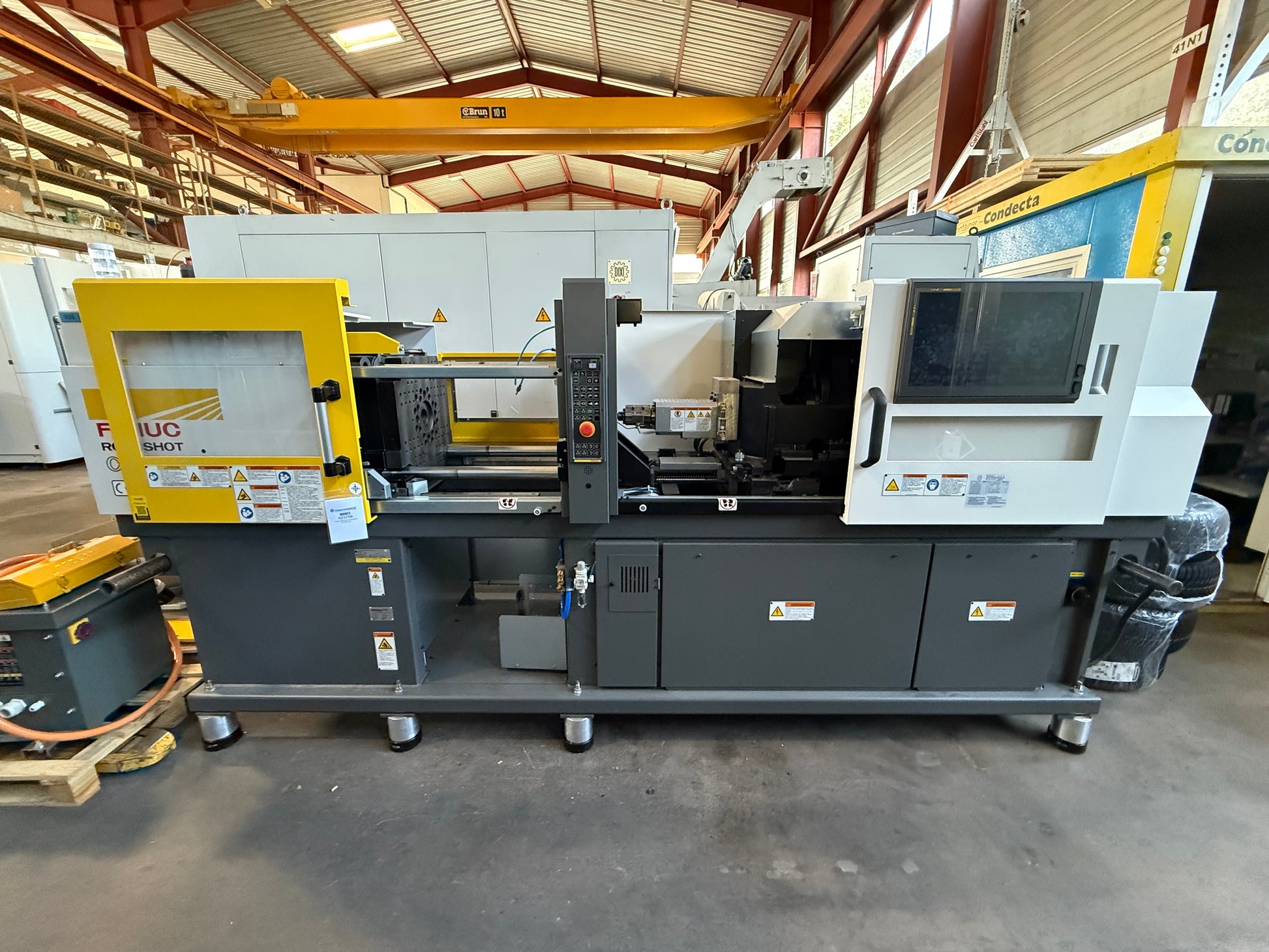

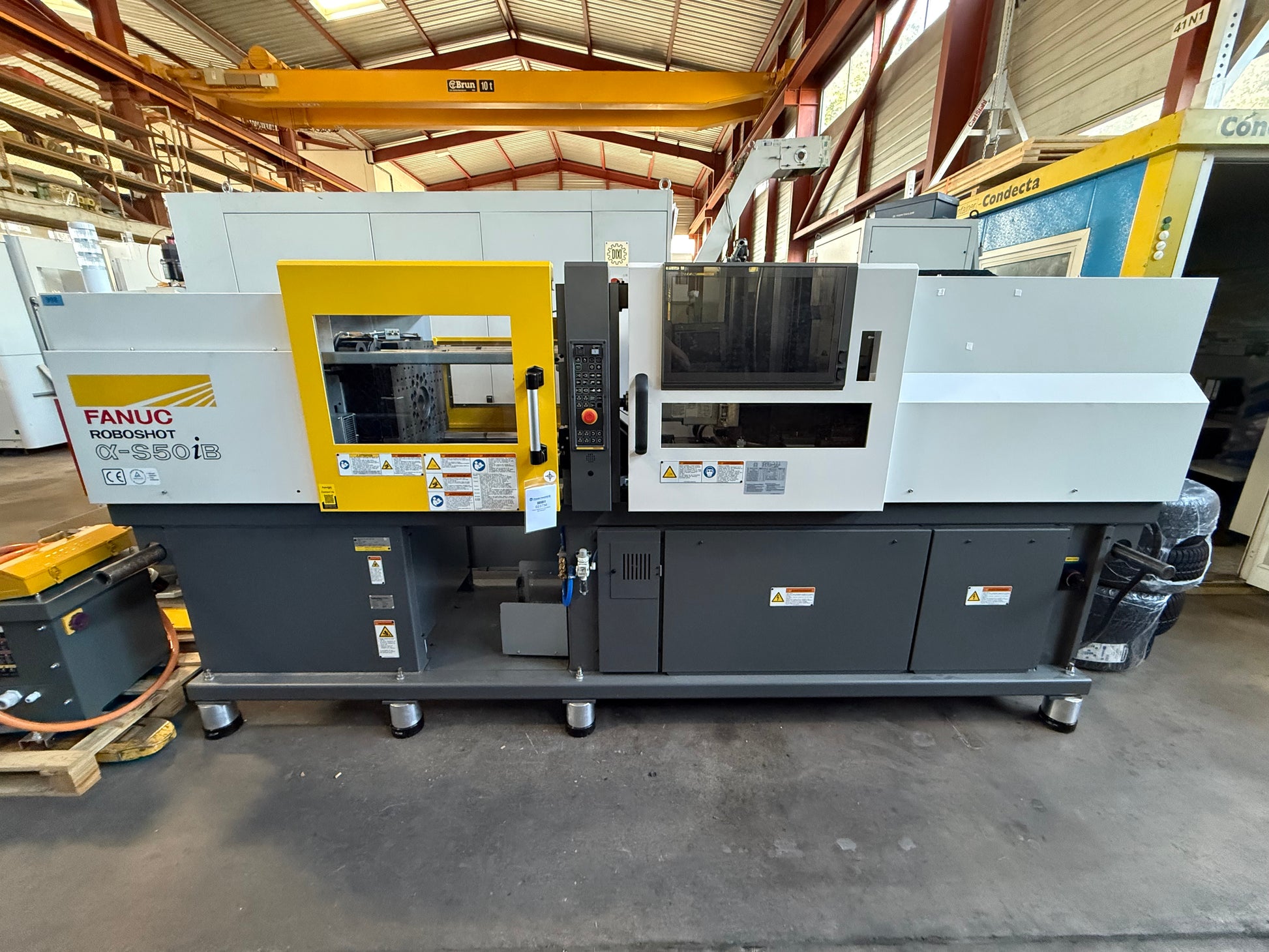

FANUC ROBOSHOT ALPHA-S50 iB is an injection moulding machine designed for precision, high accuracy and reliability. Capacities: clamping force 50 t; capacity per shot 19–76 cm3; ejector stroke 70 mm; ejector force 20 kN; max tool weight 300 kg; screw diameter 18–32 mm; screw stroke 95 mm; screw speeds up to 450 t/min; opening 250 mm; table 500×470 mm; distance horizontal/front 360 mm, vertical 320 mm. Specs: injection pressure 3600 bar; machine weight about 2900 kg; overall dims L3700×W1100×H1500 mm. Delivers tight tolerances; typical applications: automotive, medical, aerospace, watchmaking, machine tool industry

Technical specifications are subject to change without notice
