UNISIGN UNICOM 6000
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

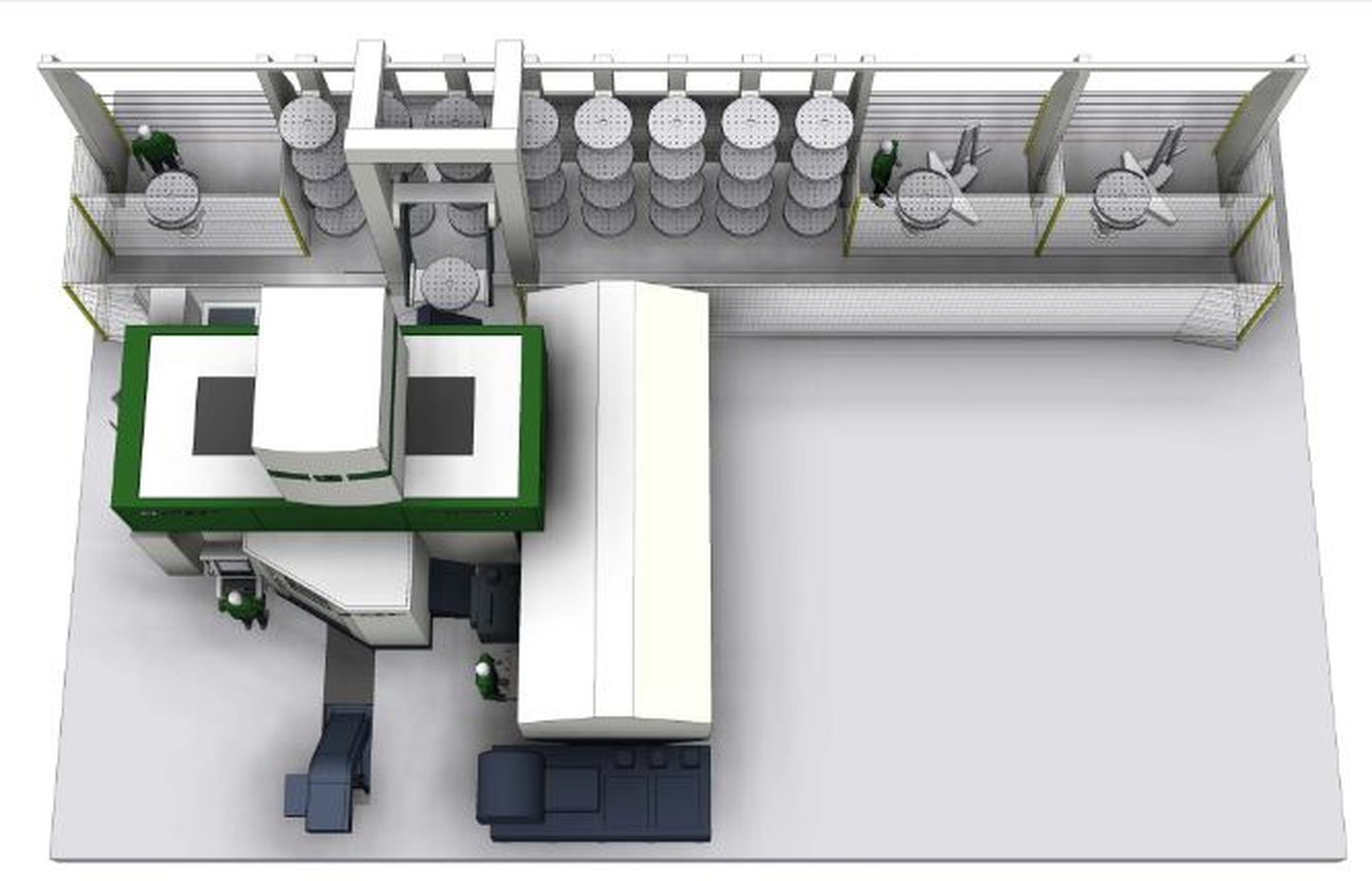

UNISIGN UNICOM 6000 is a Vertical machining and turning center engineered for precision, high accuracy and reliability. Maximum swing circle 2000 mm; table Ø1600 mm; travels X1950 mm, Y1425 mm, Z1000 mm; workpiece capacity 3000 kg. Spindle HSK100 up to 6000 rpm; spindle motors 36/26 kW; supply 3x400V 50Hz; total installed power 120 kVA; machine weight ~7000 kg; footprint 7500×7500×5000 mm. Tool changer 78 tools with double gripper; coolant through spindle, chip conveyor, angular milling head, automatic H/V head, electronic hand control, lamp, vertical turning carousel, head changer. Delivers very tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical industries.
| Maximum swing circle of up to | 2000 mm |
| Longitudinal travel (X-axis) | 1950 mm |
| Transversal travel (y-axis) | 1425 mm |
| Vertical travel (z axis) | 1000 mm |
| Pallets chanching device: | |
| Diameter | 1600 mm |
| Transport weight | 3000 kg |
| Tool changer: | |
| with double gripper | |
| Number of tools | 78 |
| Spindle nose: HSK | 100 |
| Vertical spindle speeds: | |
| up to | 6000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 36 / 26 kW |
| Total power required | 120 kVA |
| Machine's weight about | 7000 kg |
| Overall dimensions machine: | |
| Length | 7500 mm |
| Width | 7500 mm |
| Height | 5000 mm |
| Various accessories: | |
| Coolant through spindle (cts) | |
| Chip conveyor | |
| Angular milling head | |
| Automatic horizontal / vertical head | |
| Electronic hand held control | |
| Lamp | |
| Set-up place (number) | |
| Vertical turning station | |
| Machining heads changer |
