| Centre height | 100 mm |
| Distance between centres | 400 mm |
| Max. Longitudinal travel | 425 mm |
| Grinding wheel right side: | |
| Diameter | 350 mm |
| Width | 50 mm |
| Bore | 127 mm |
| Workpiece weight on centres max. | 30 kg |
| Grinding wheel speeds: | |
| from | 1800 t/min |
| up to | 2000 t/min |
| Work piece spindle head: | |
| speeds: | |
| stepless | |
| from | 50 t/min |
| up to | 780 t/min |
| rotatable | 0 - 90 ° |
| Spindle taper (collets) | 25mm |
| Spindle taper | 4 CM |
| Taper in tailstock: | 3 CM |
| Table angular displacement | 3 / 30 ° |
| Table speed: | |
| stepless | |
| from | m/min |
| up to | 5 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| External Grinding wheel motor | 3.7 kW |
| Workpiece spindle motor | 1 kW |
| Machine's weight about | 2200 kg |
| Overall dimensions machine: | |
| Length | 3000 mm |
| Width | 1750 mm |
| Height | 1600 mm |
| Various accessories: | |

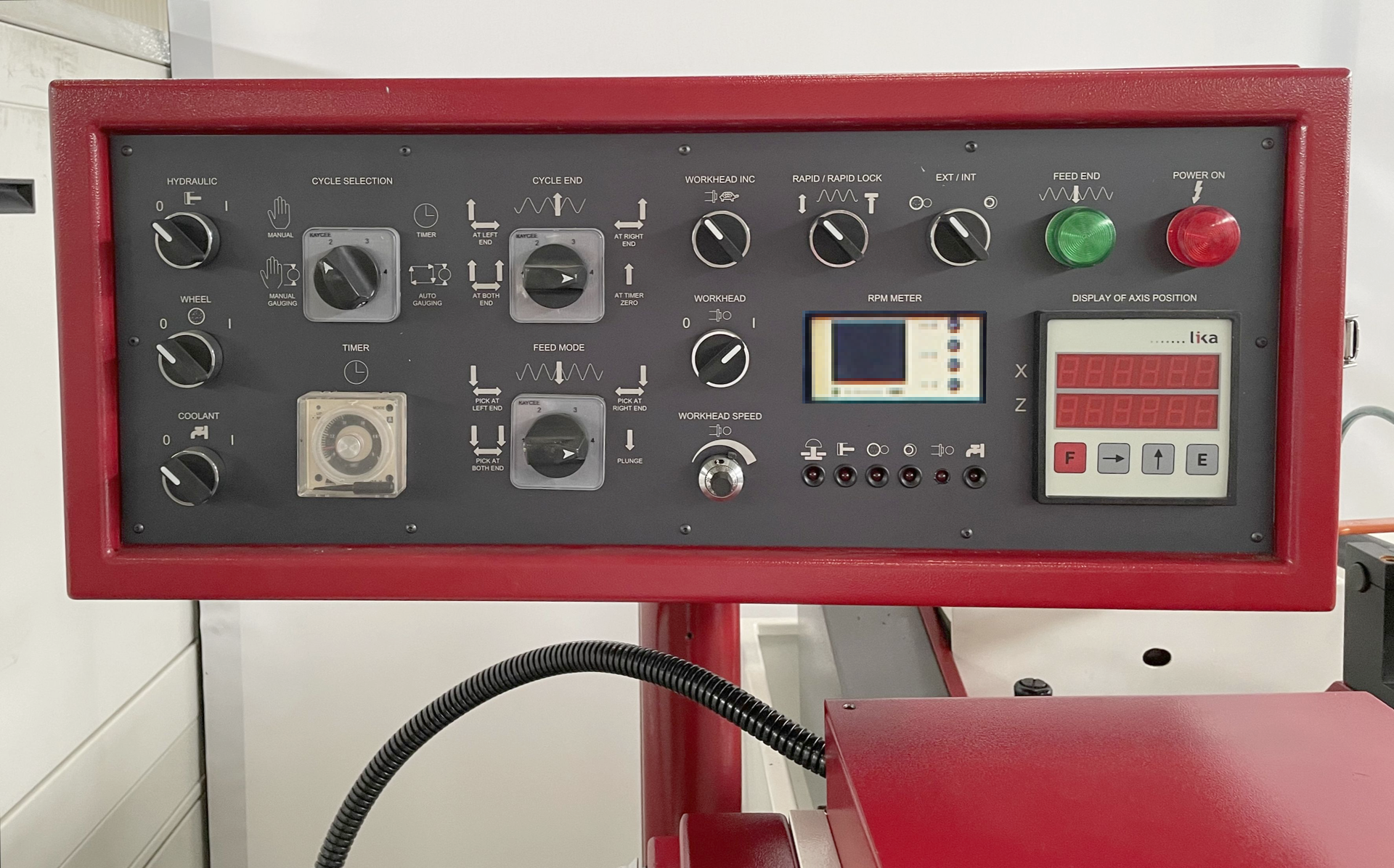

| Digital readout number of axis: | 2 |
| Internal grinding attachment | |
| Spindle speeds | 42000 t/min |
| Positionar Passiv | |

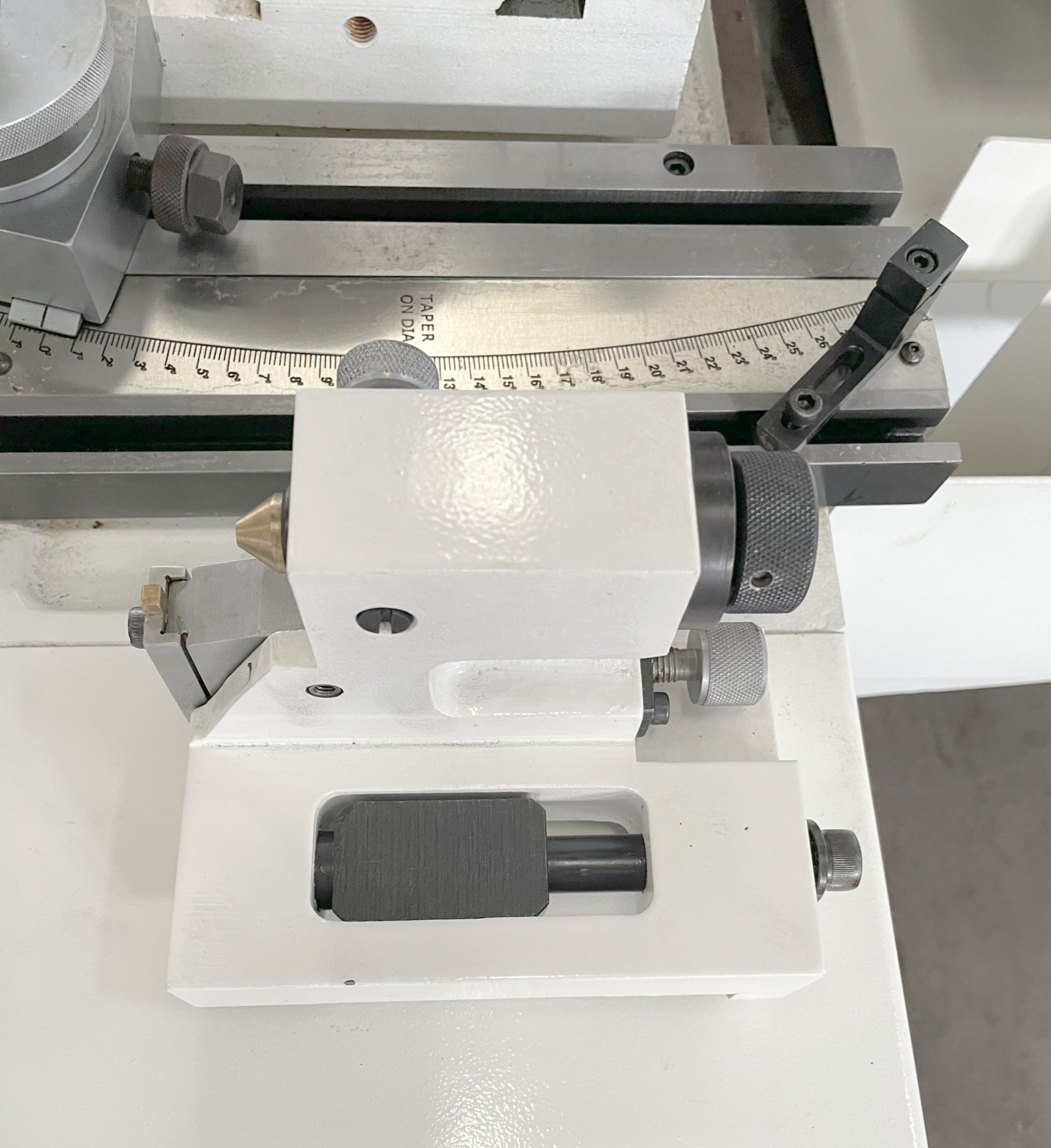

| Redressing device | |
| Swivel-Wheel dressing device | |

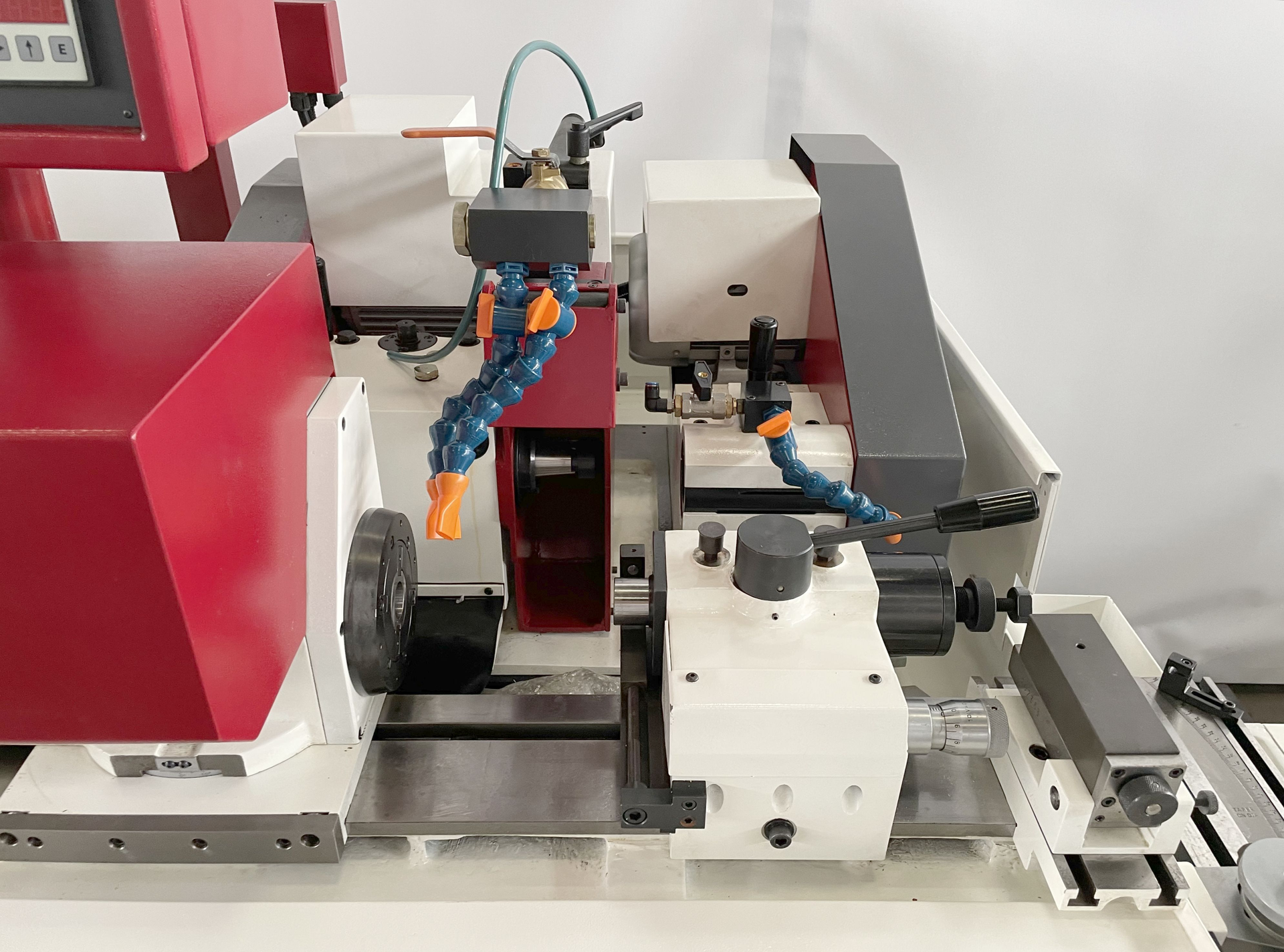

| Coolant system | |
| Set of grinding wheels | |
| Set of driving dogs | |
