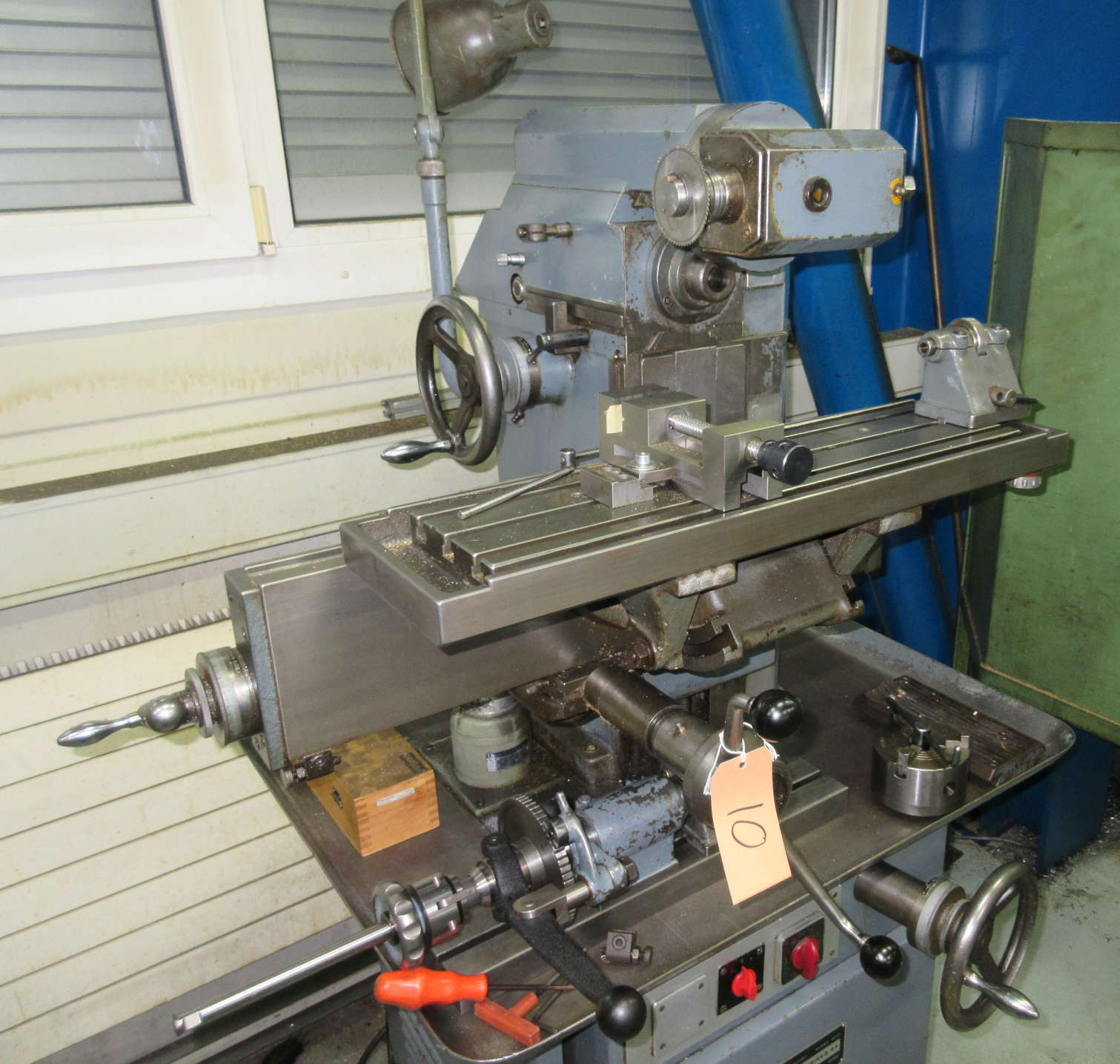

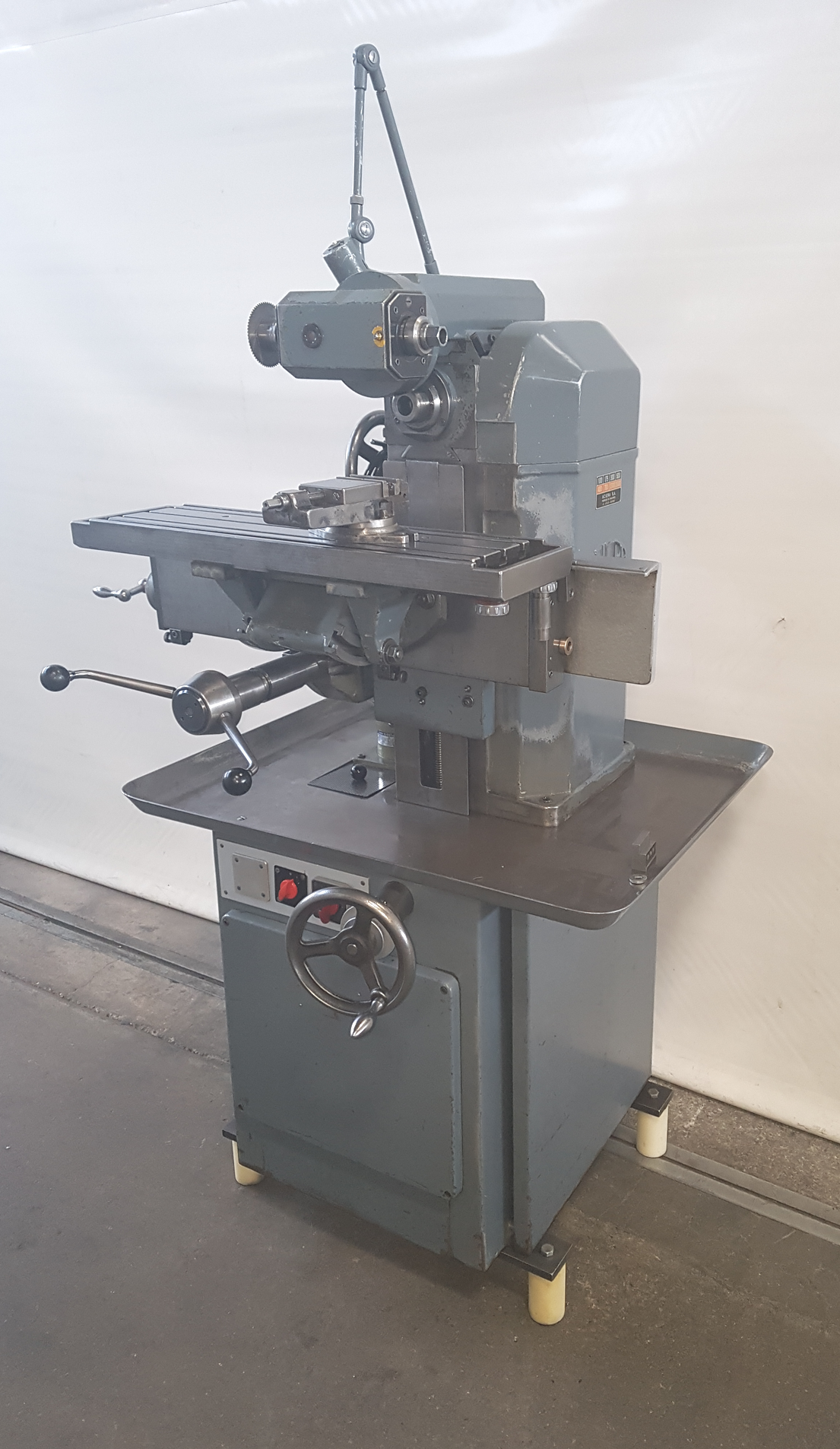

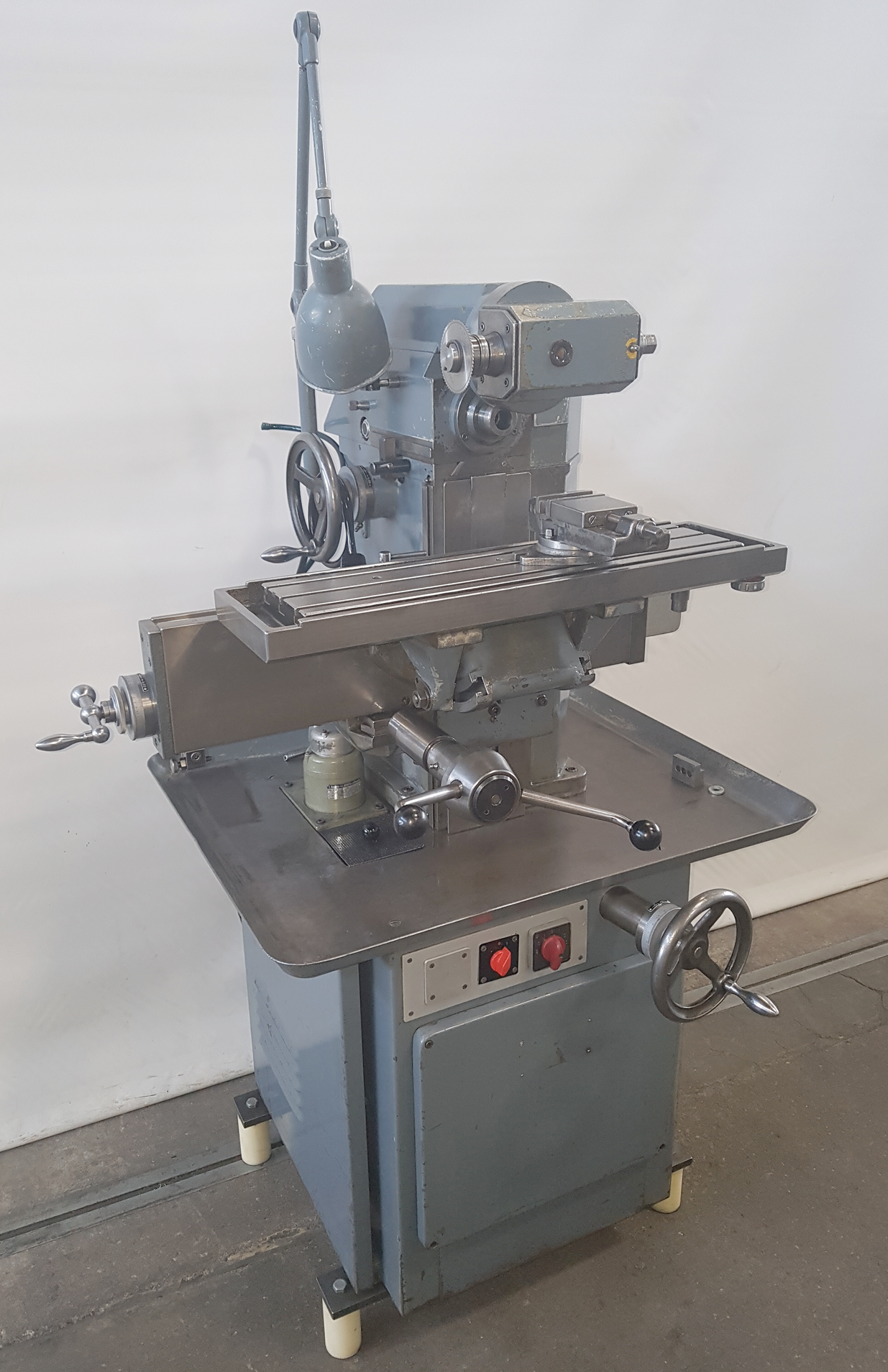

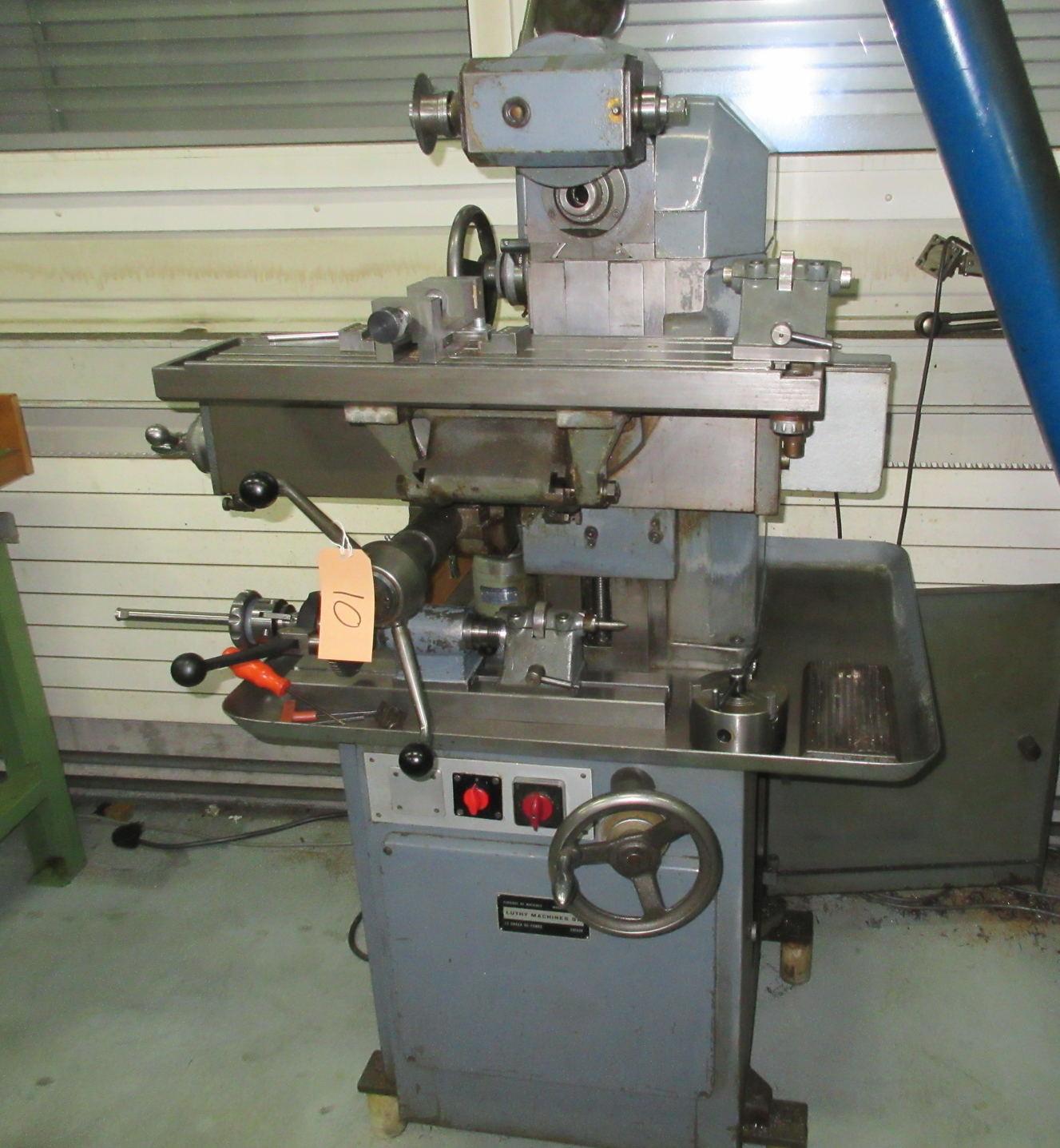

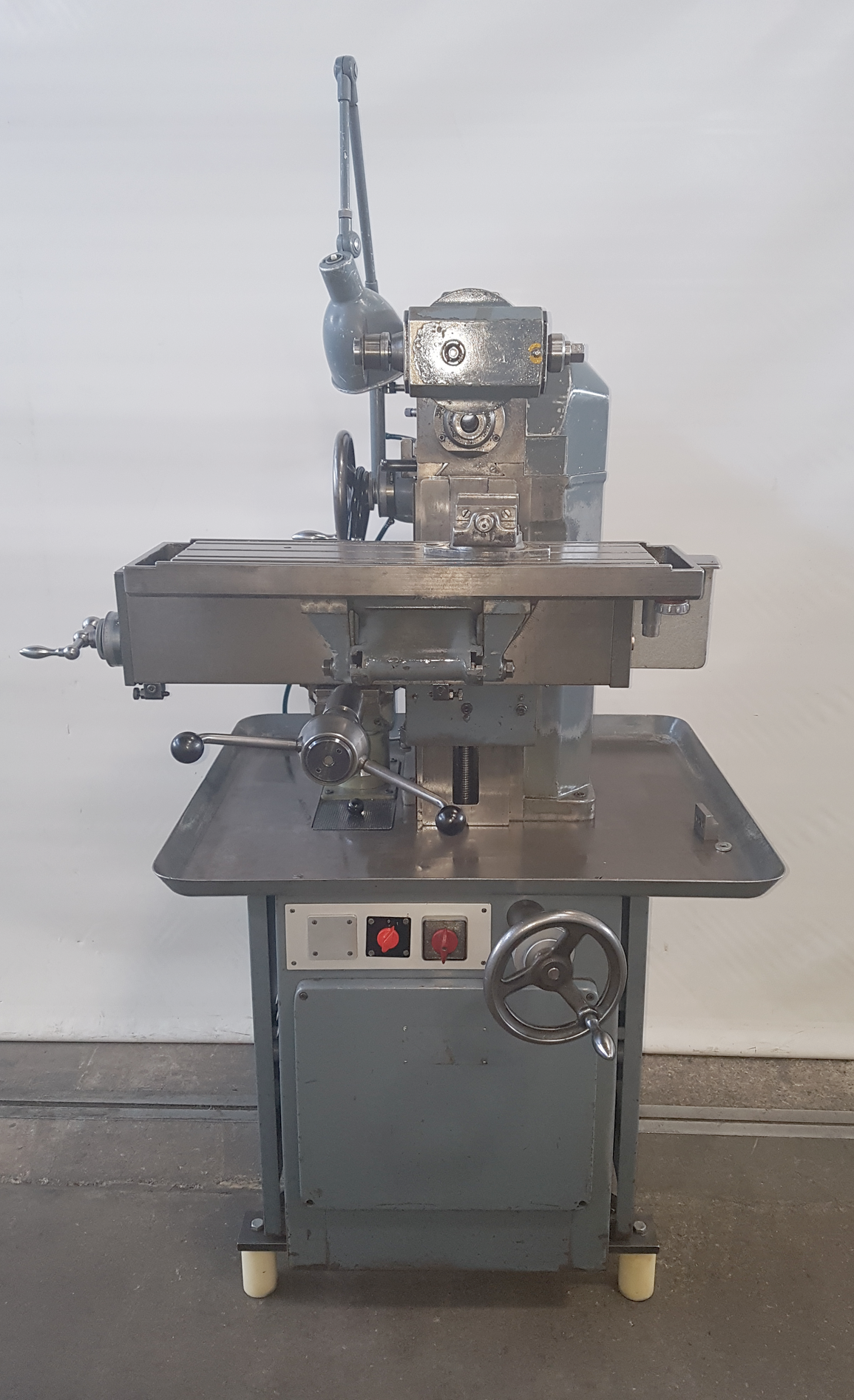

ACIERA F 3 is a Universal milling machine engineered for precision, high accuracy and reliability. Working capacities: table 600x190 mm; travels X 300 mm, Y 135 mm, Z 300 mm; centre height 85 mm; vice jaw width 50 mm. Main specs: spindle 8 steps 100–1500 t/min, taper 20 W; 8 feed steps 12.0–232 mm/min; 50 Hz 3x380 V; motor 2.0 CV; weight ~620 kg; dimensions 1100x900x1600 mm. Accessories: dividing attachment, tilting and swivel table, vertical milling head, vice, lamp. Suitable for achieving tight tolerances in automotive, watchmaking, machine tools, aerospace and medical sectors.
| Table length | 600 mm |
| Table width | 190 mm |
| Longitudinal travel (X-axis) | 300 mm |
| Transversal travel (y axis) | 135 mm |
| Vertical travel (z axis) | 300 mm |
| Spindle speeds: | |
| number (steps) | 8 |
| from | 100 t/min |
| up to | 1500 t/min |
| Taper in spindle: | 20 W |
| Feeds steps: | 8 |
| longitudinal from | 12.0 mm/min |
| up to | 232 mm/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 2.0 CV |
| Machine's weight about | 620 kg |
| Overall dimensions machine: | |
| Length | 1100 mm |
| Width | 900 mm |
| Height | 1600 mm |

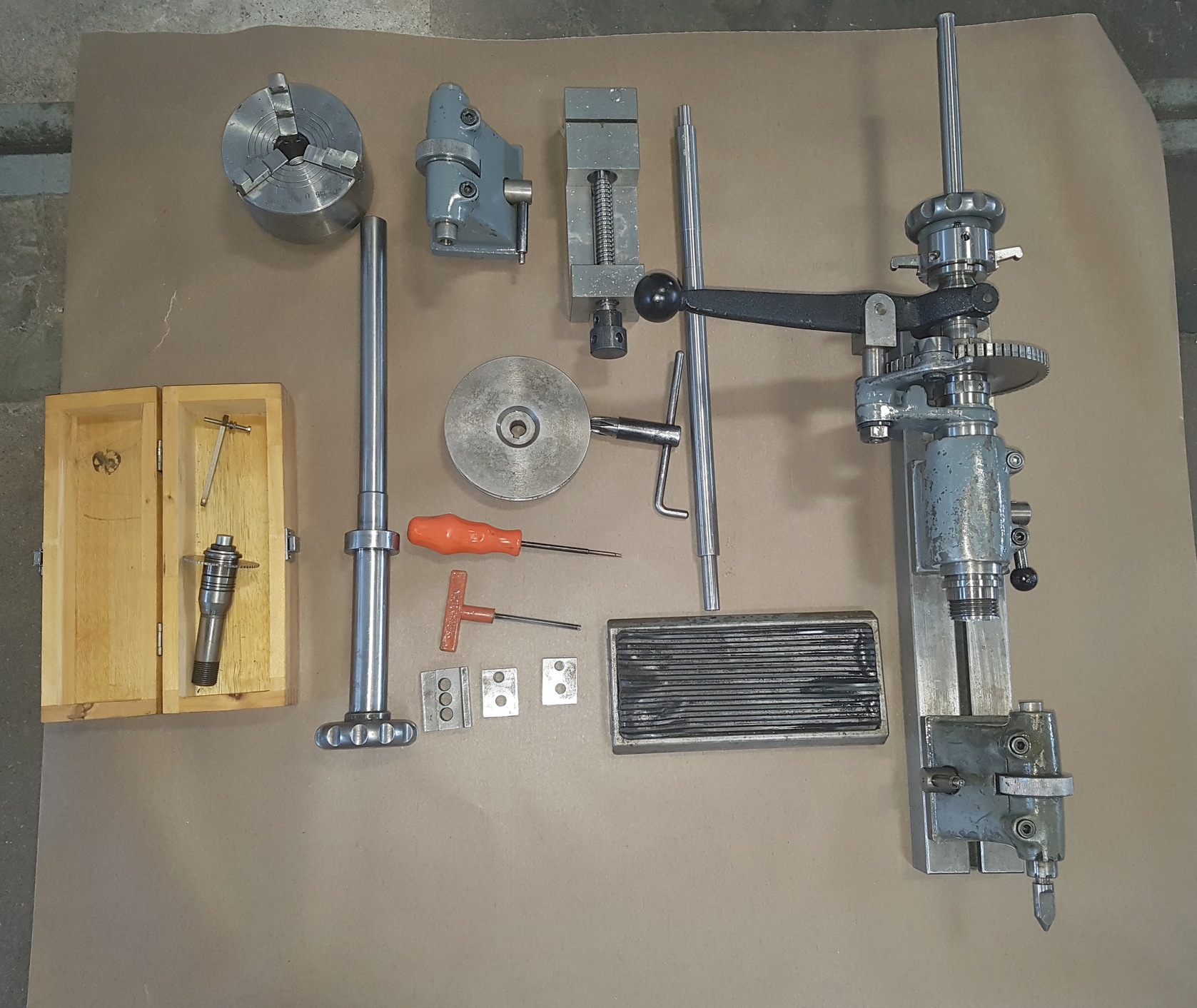

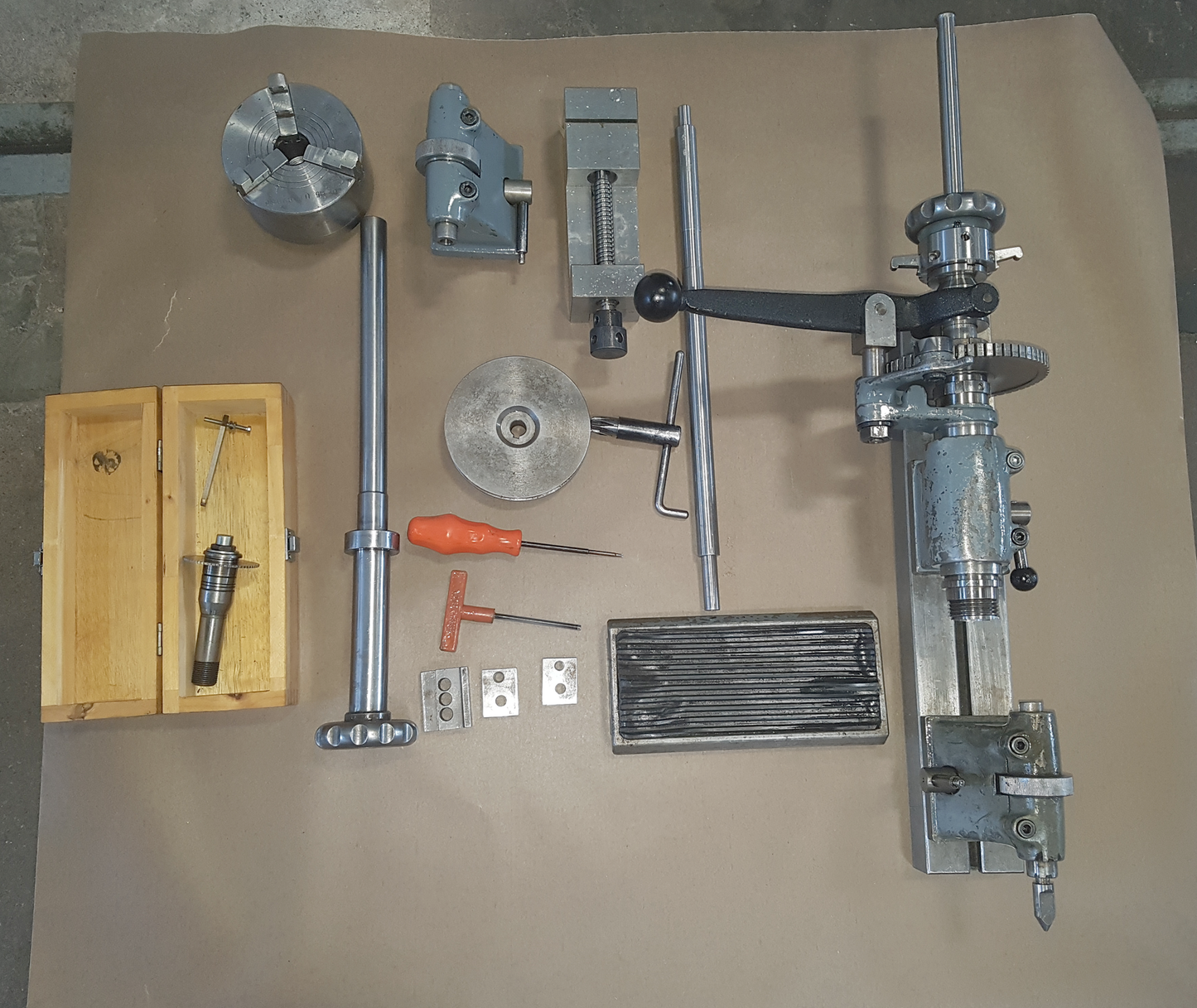

| Various accessories: | |
| Dividing attachment | |
| Centre height | 85 mm |
| Vice: width | 50 mm |
| Tilting and swivel table | |
| Vertical milling head | |
| Lamp |
