DMG DMU 60 P hy-din
Special Price
CHF 45 000
Special offer machines are sold as-is, without any warranty or inspection from us.
Need Assistance? Just WhatsApp Us!

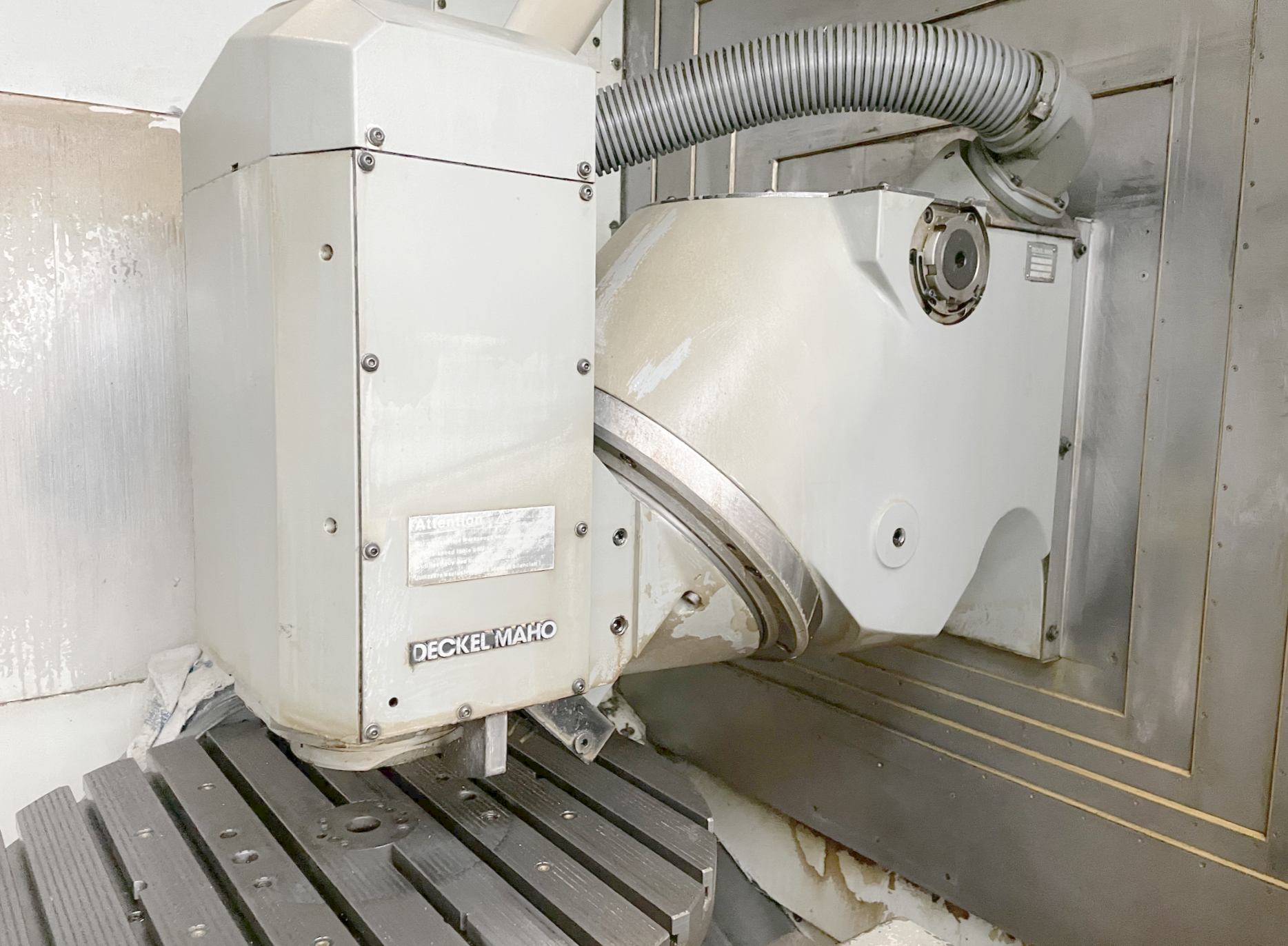

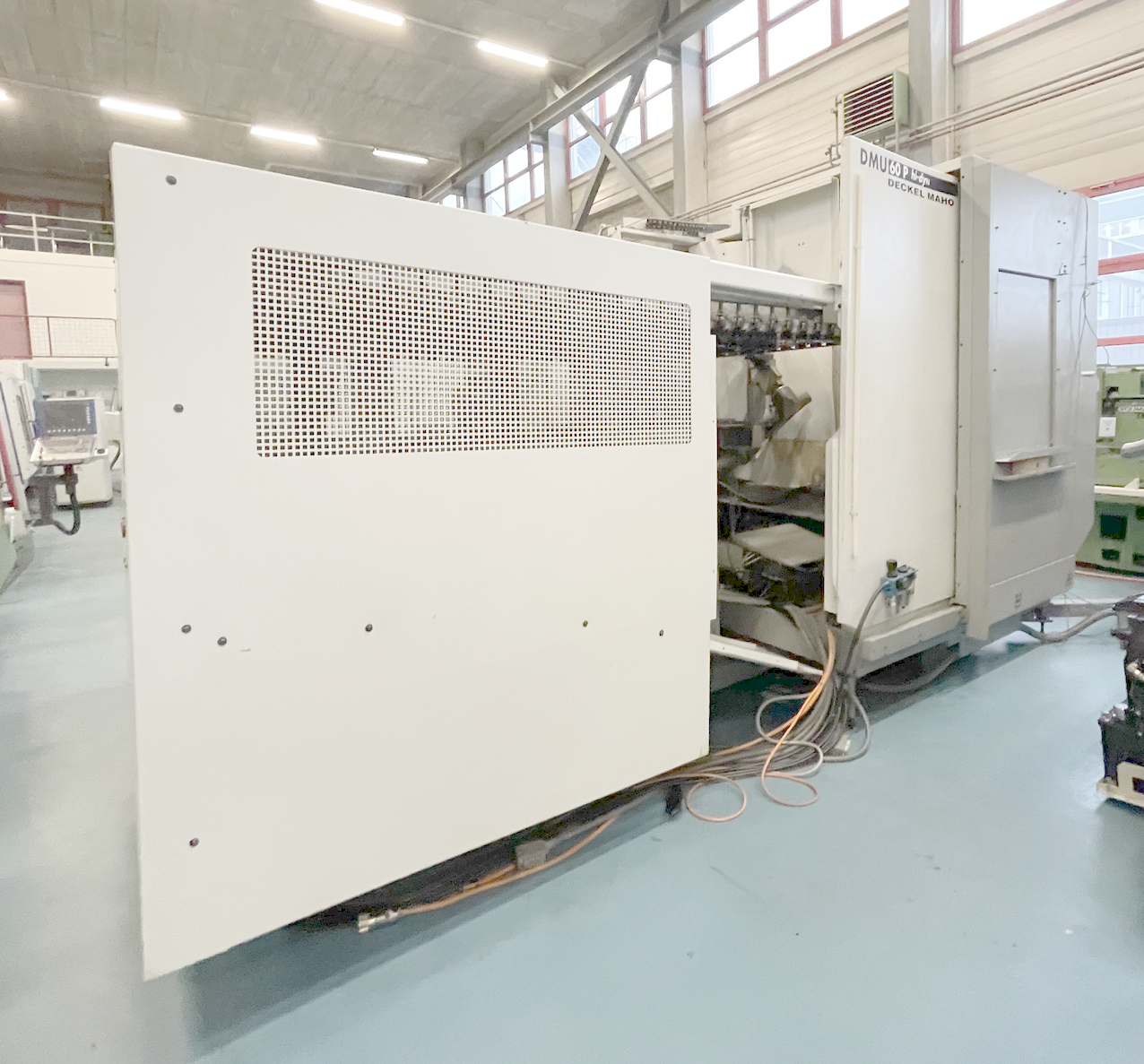

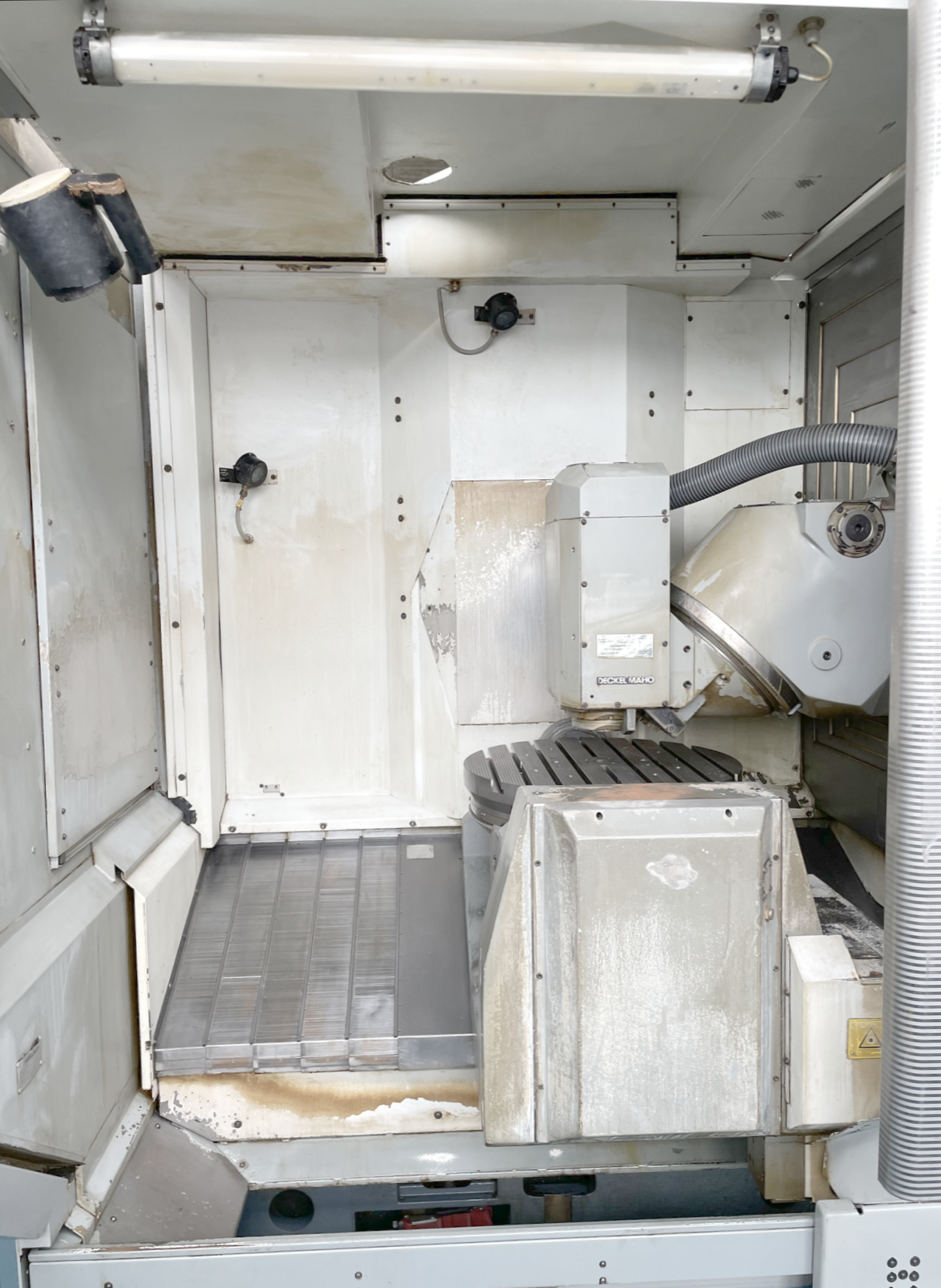

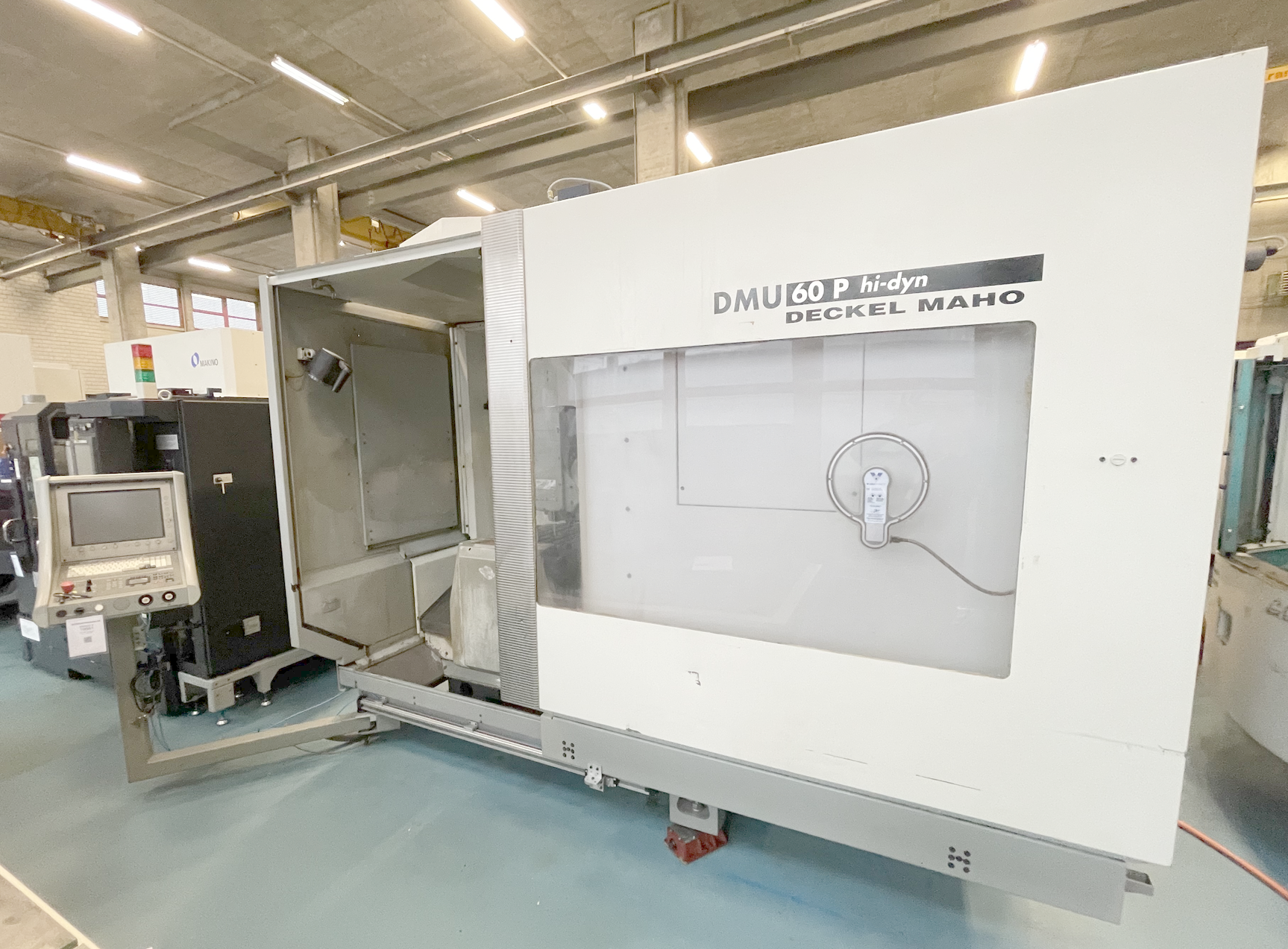

DMG DMU 60 P hy-din is a 5-axis machining center, engineered for precision, high accuracy and reliability. Capacities: rotary table Ø630 mm, 9 T-slots (63 mm pitch, 14H7), centering bore 50H6; travels X600 Y700 Z600 mm; workpieces up to Ø920×H1000 mm; table load 500 kg; table indexing 360°; A-axis +45/-30°. Specs: spindle nose SK40 DIN 69871, spindle stepless up to 18,000 min⁻¹, feeds 20–15,000 mm/min per axis, rapid traverse 40 m/min; holding torque A 3866 Nm, clamping torque C 6008 Nm, torque max 2650 Nm; air 5–8 bar; supply 3x400V 50Hz, 44 kVA; machine weight ≈7500 kg; footprint 7500×4500×2628 mm; noise 80 dB(A). Accessories: 180-place tool magazine, set of SK40 toolholders (~150), high-pressure coolant 40 bar, coolant through spindle, Renishaw tool setter, lamp, rotating viewing window, switch-cabinet air conditioner. Delivers tight tolerances; suited for automotive, aerospace, medical, watchmaking and machine tool sectors.
| Number of axis simultaneous | 5 |
| Number of spindles | 1 |
| Number of tables | 1 |

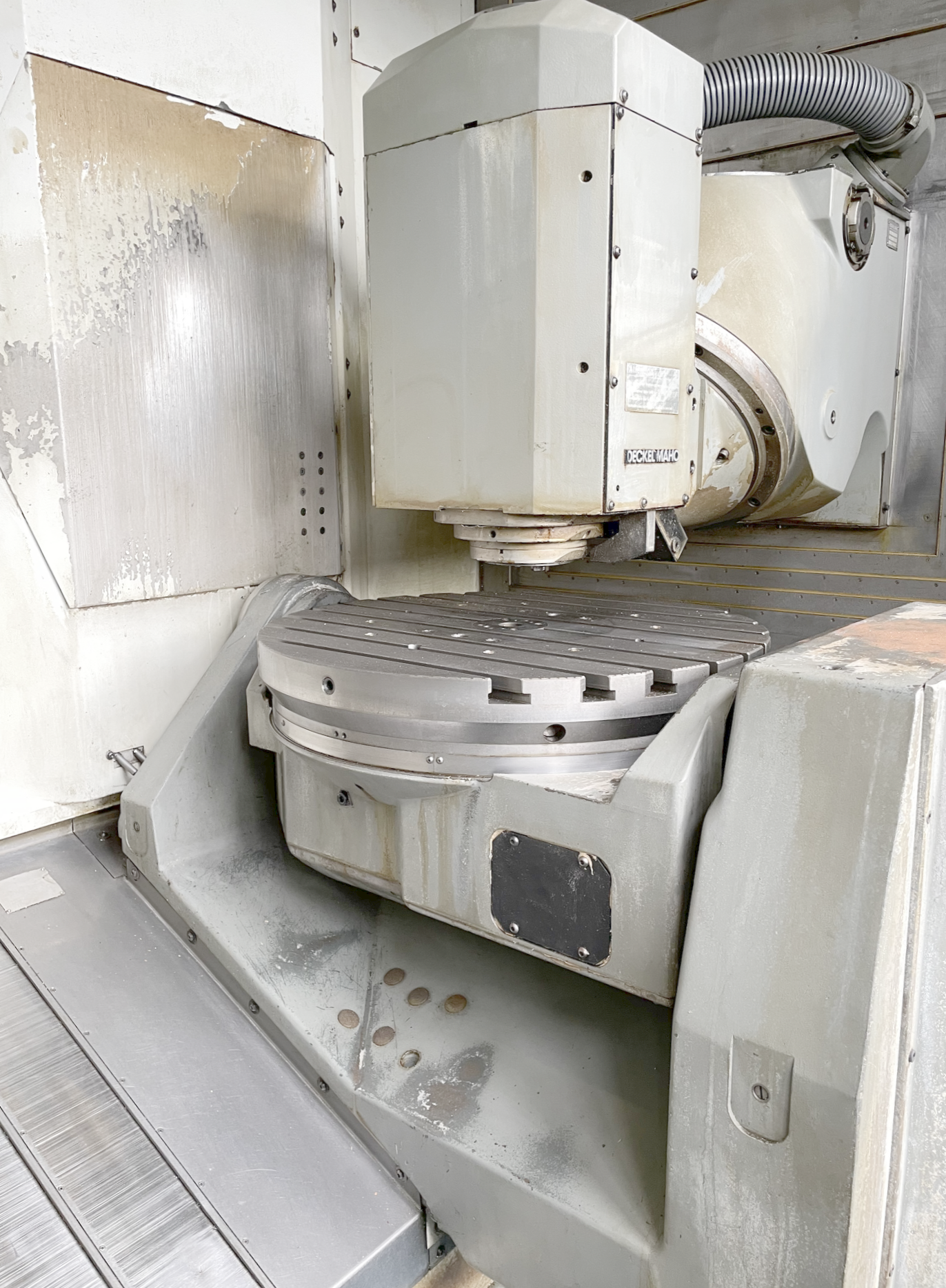

| Circulary table diameter | 630 mm |
| Number of T-channels | 9 |
| Distance of the T-slots | 63 mm |
| T-channel width | 14H7 mm |
| Centering bore diameter | 50H6 mm |
| Longitudinal travel (X-axis) | 600 mm |
| Transversal travel (y-axis) | 700 mm |
| Vertical travel (z axis) | 600 mm |
| Dimension of the workpice: | |
| Height | 1000 mm |
| Diameter | 920 mm |
| Table load max. | 500 kg |
| Table divisions (B) | 360 ° |
| A axis | |
| Swivel angle (a-axis) | +45/-30 ° |
| Holding torque A-axis | 3866 Nm |
| Clamping torque C-axis | 6008 Nm |
| Torque max. | 2650 Nm |

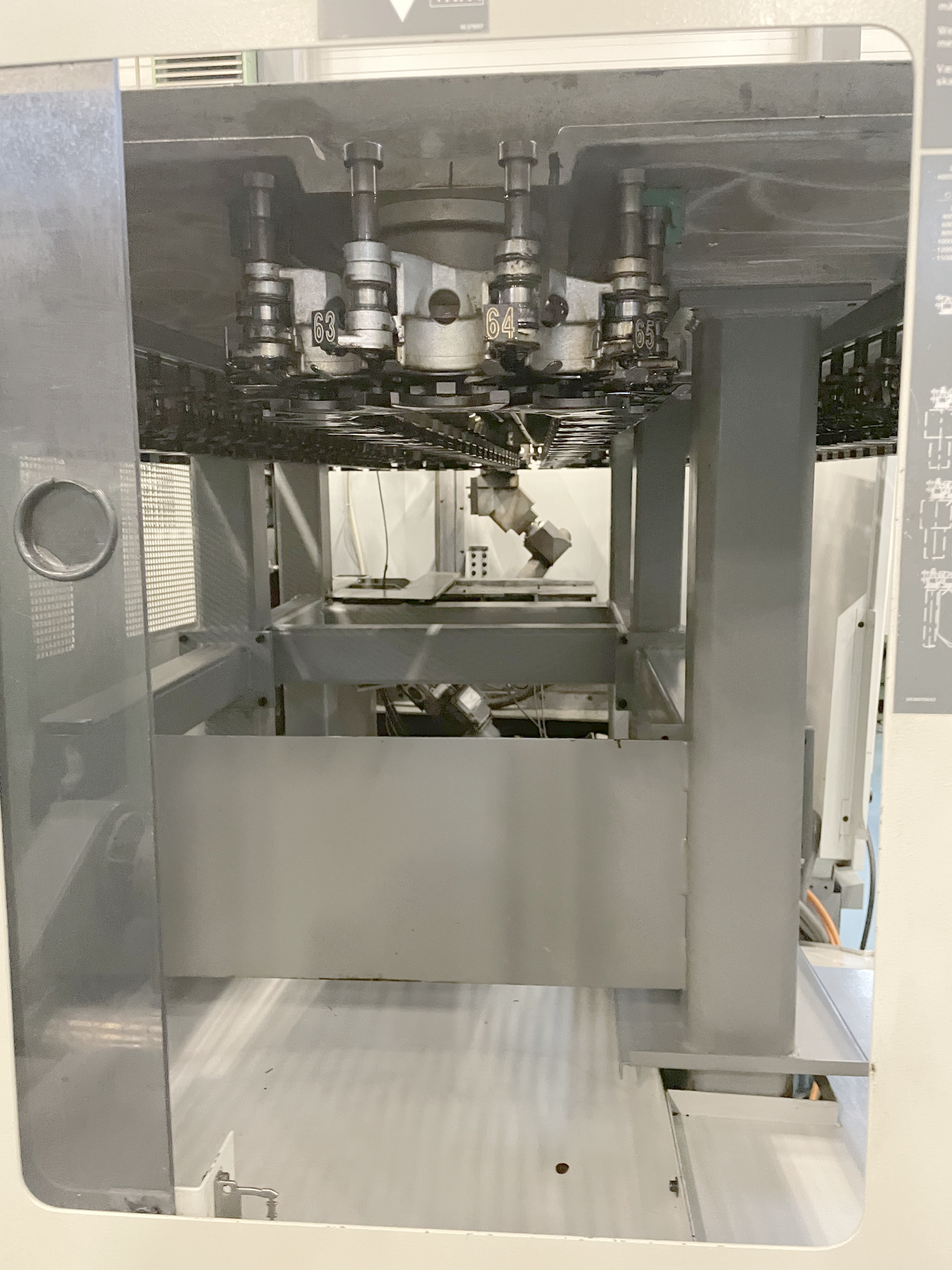

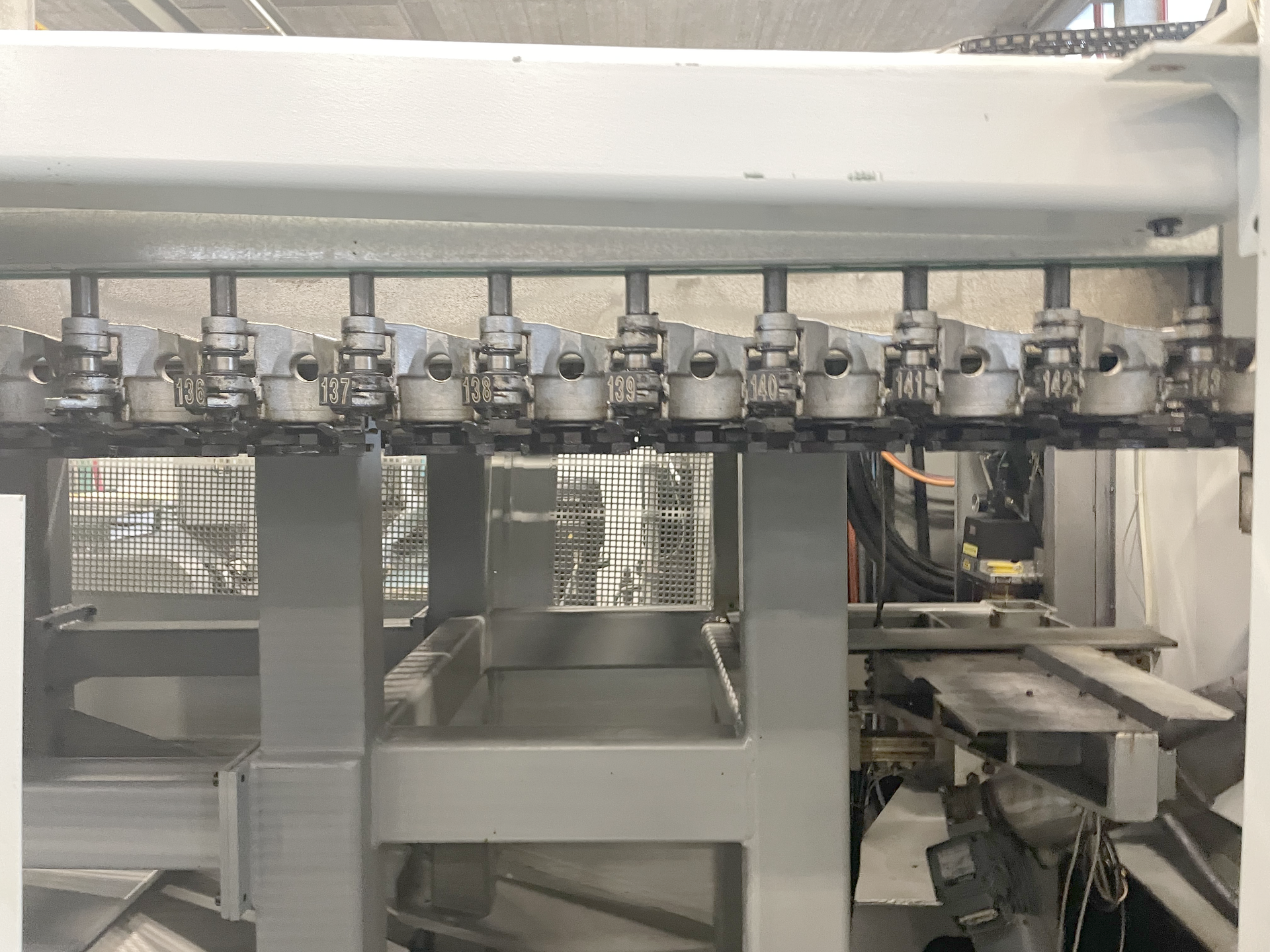

| Tool changer: | |

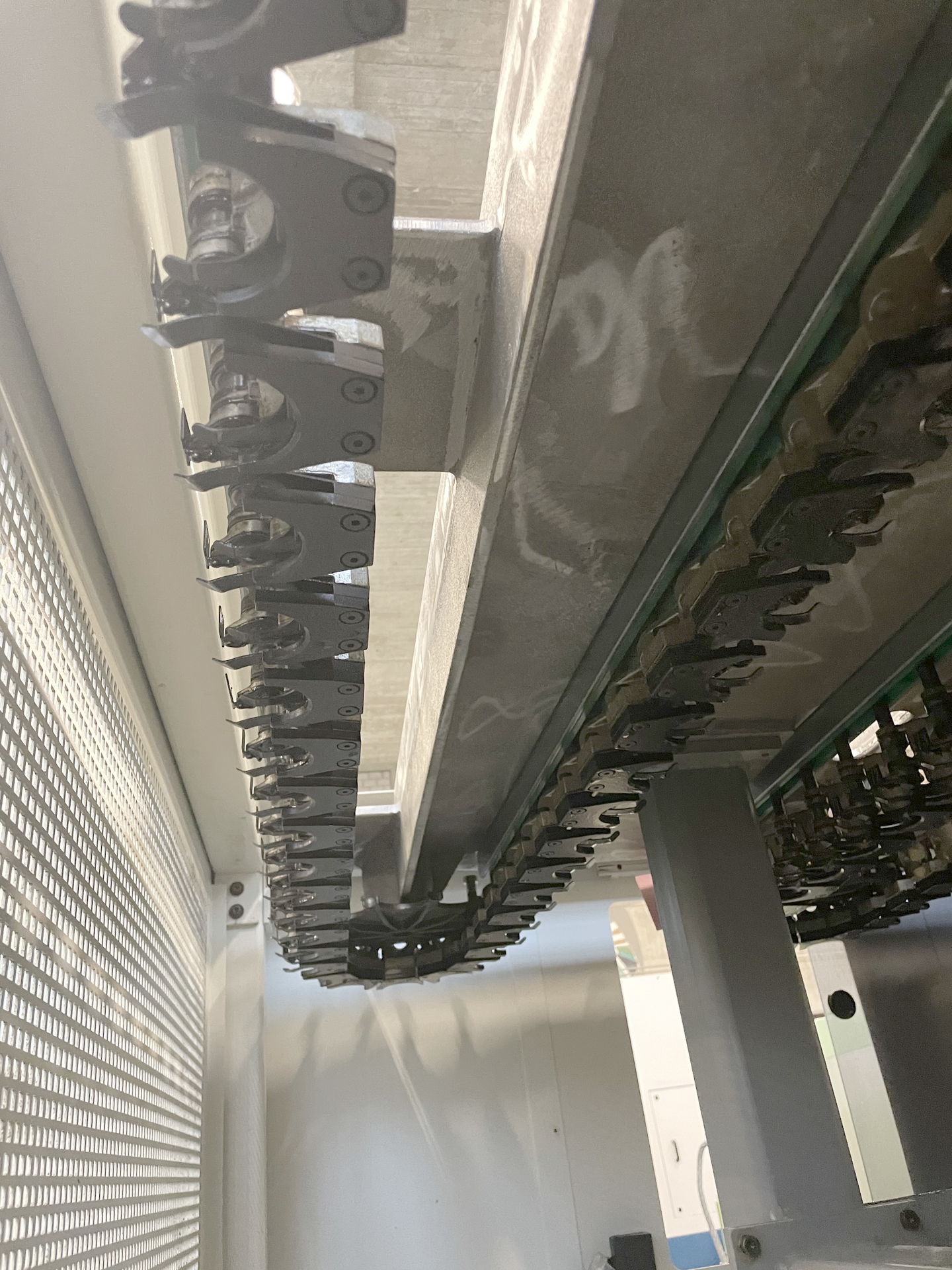

| Number of tools | 180 |
| Tool diameter | 80 mm |
| Diameter with free adjacent pockets | 160 mm |
| Tool lenght | 350 mm |
| Max. tool-weight | 10 kg |
| Spindle nose SK | 40 DIN 69871 |
| Spindle speeds: | |
| stepless | |
| up to | 18000 t/min |
| Feeds: | |
| stepless | |
| longitudinal from | 20 mm/min |
| up to | 15000 mm/min |
| transversal from | 20 mm/min |
| up to | 15000 mm/min |
| vertical from | 20 mm/min |
| up to | 15000 mm/min |
| Rapid traverse: | 40 m/min |
| Measurement system: | |
| Resolution | µm |
| Air connect | 5 - 8 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 44 kVA |
| Noise level | 80 dB (A) |
| Machine's weight about | 7500 kg |

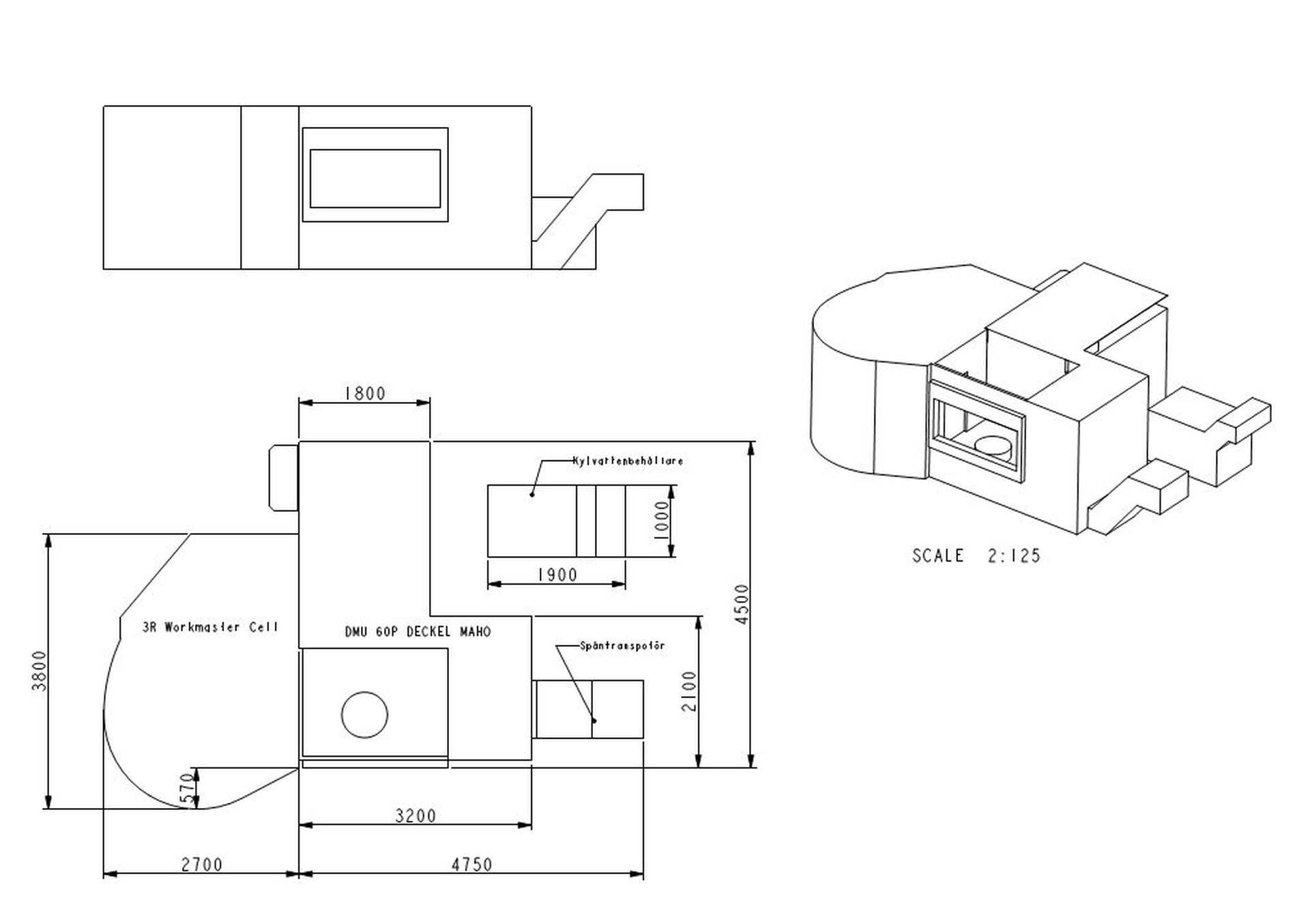

| Overall dimensions machine: | |
| Length | 7500 mm |
| Width | 4500 mm |
| Height | 2628 mm |
| Various accessories: | |

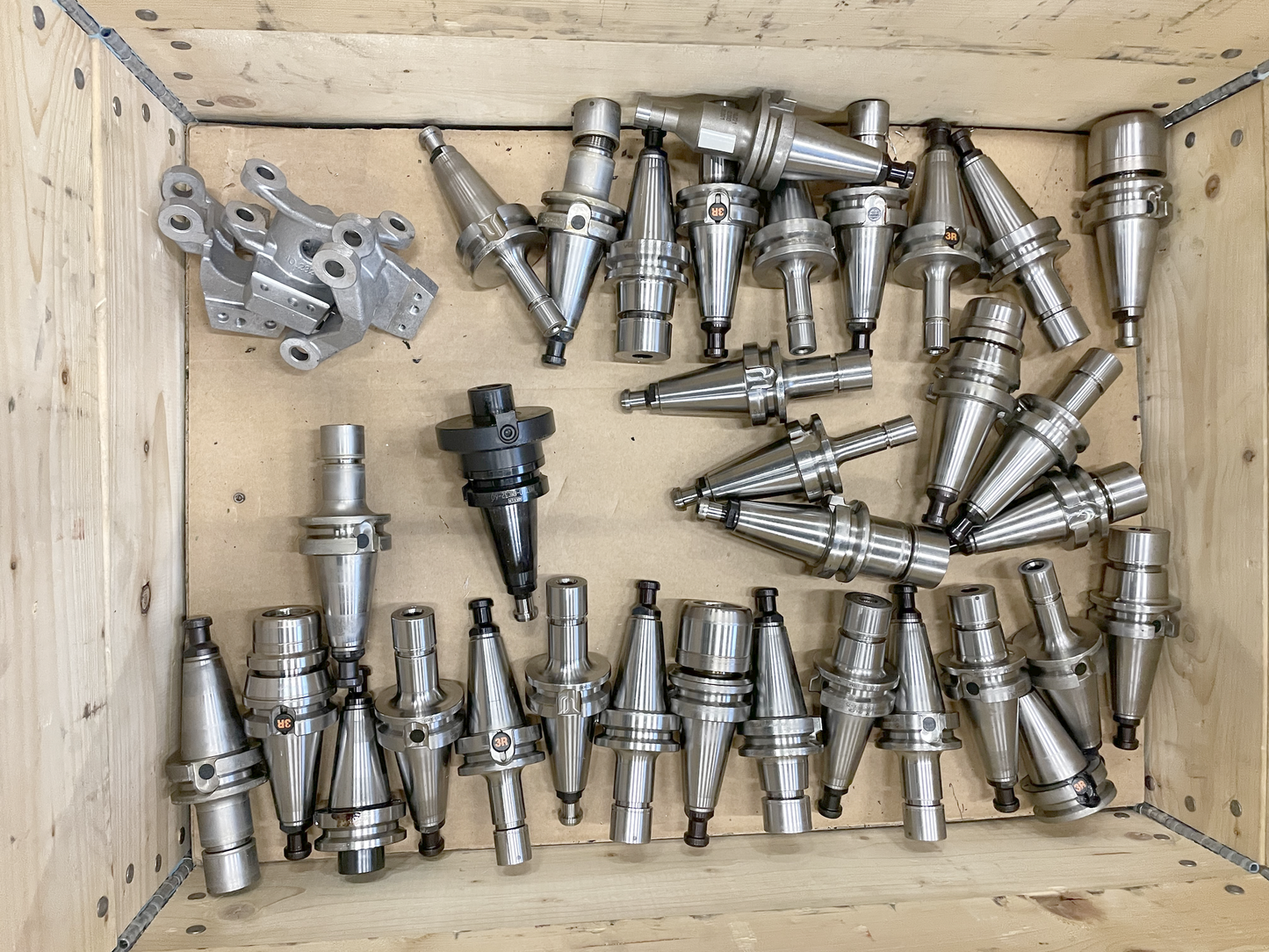

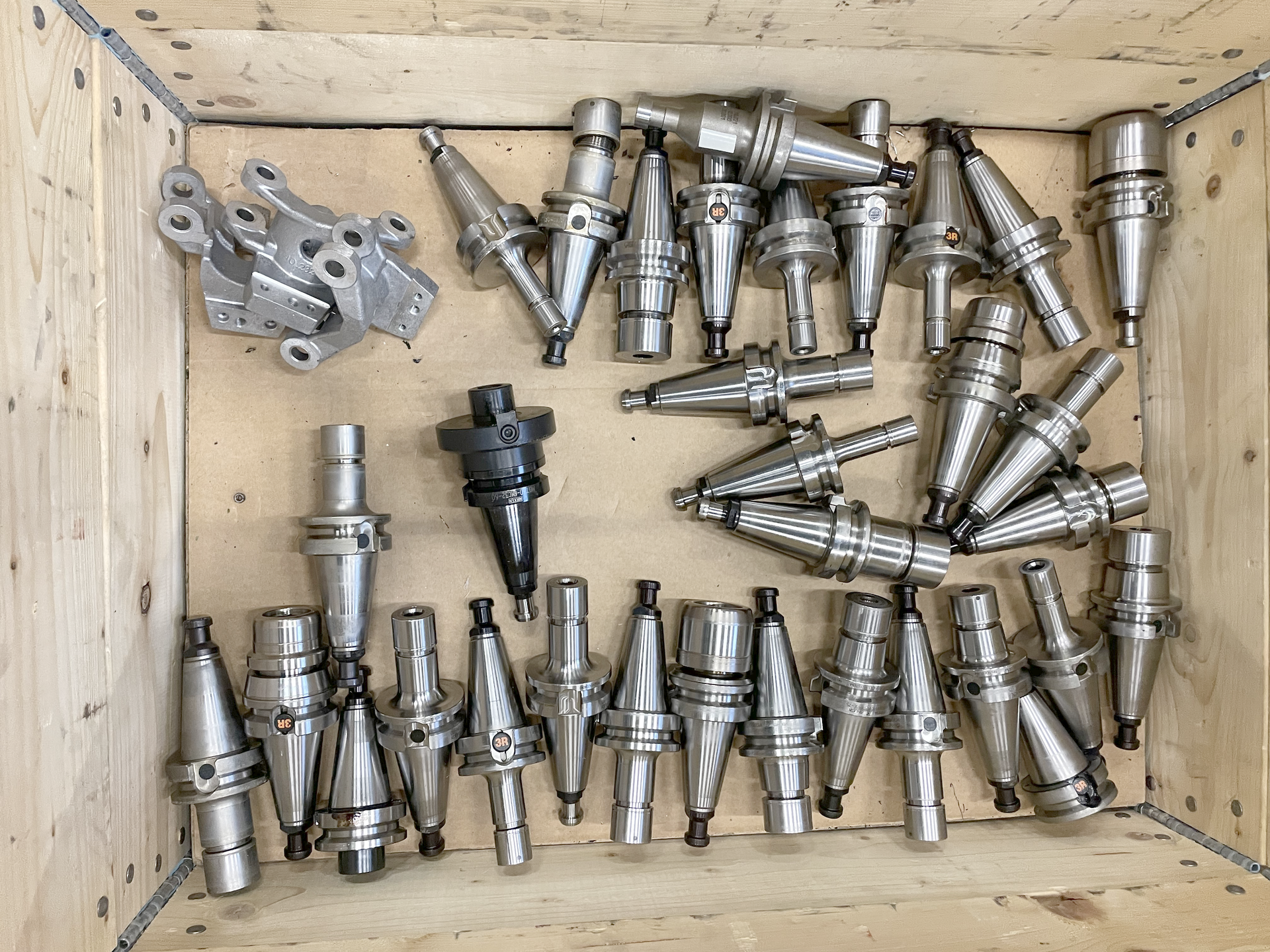

| Set of toolholders | SK 40 ca 150x |

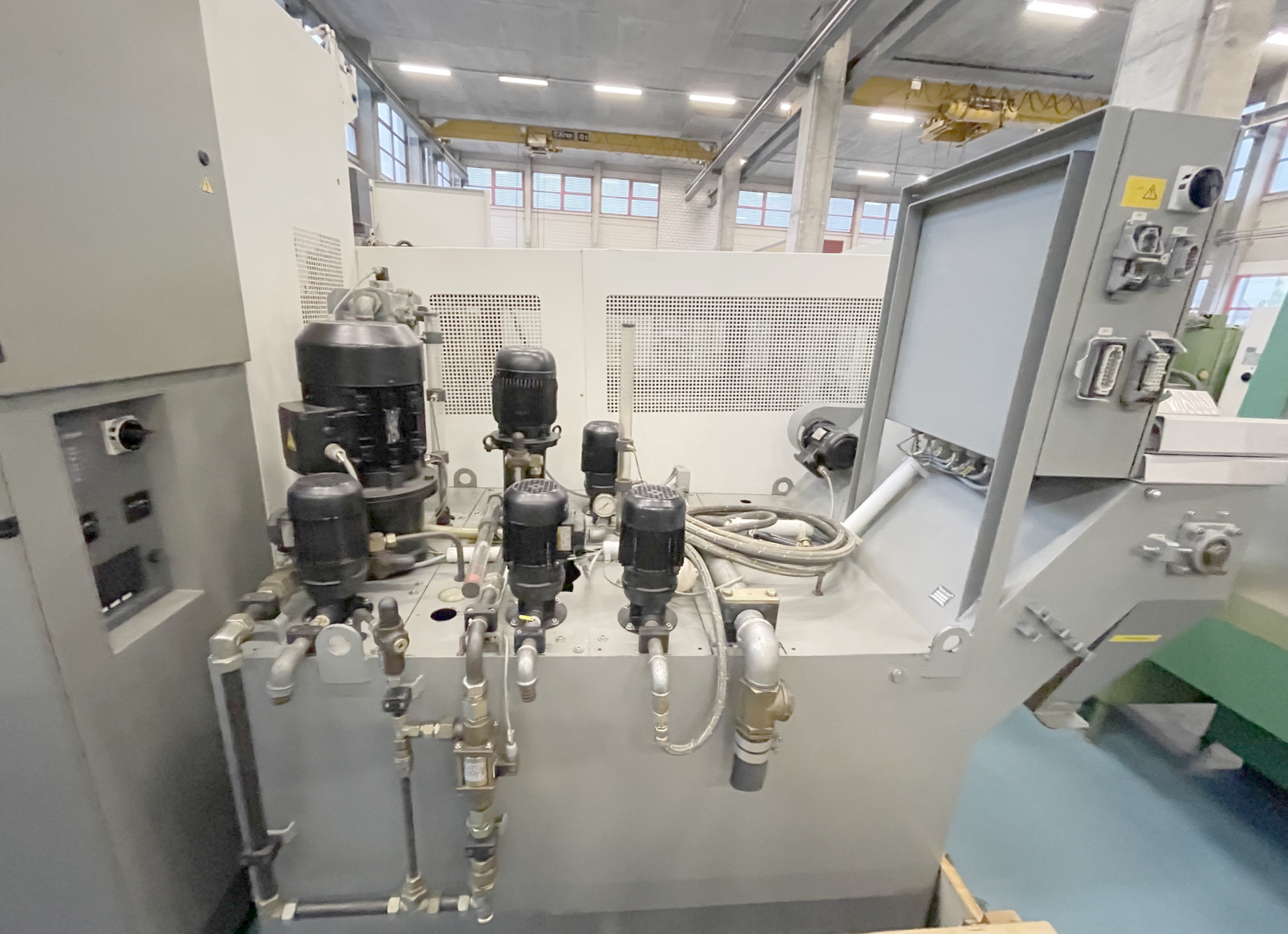

| High pression colant device | 40 bar |
| Coolant through spindle (cts) | |

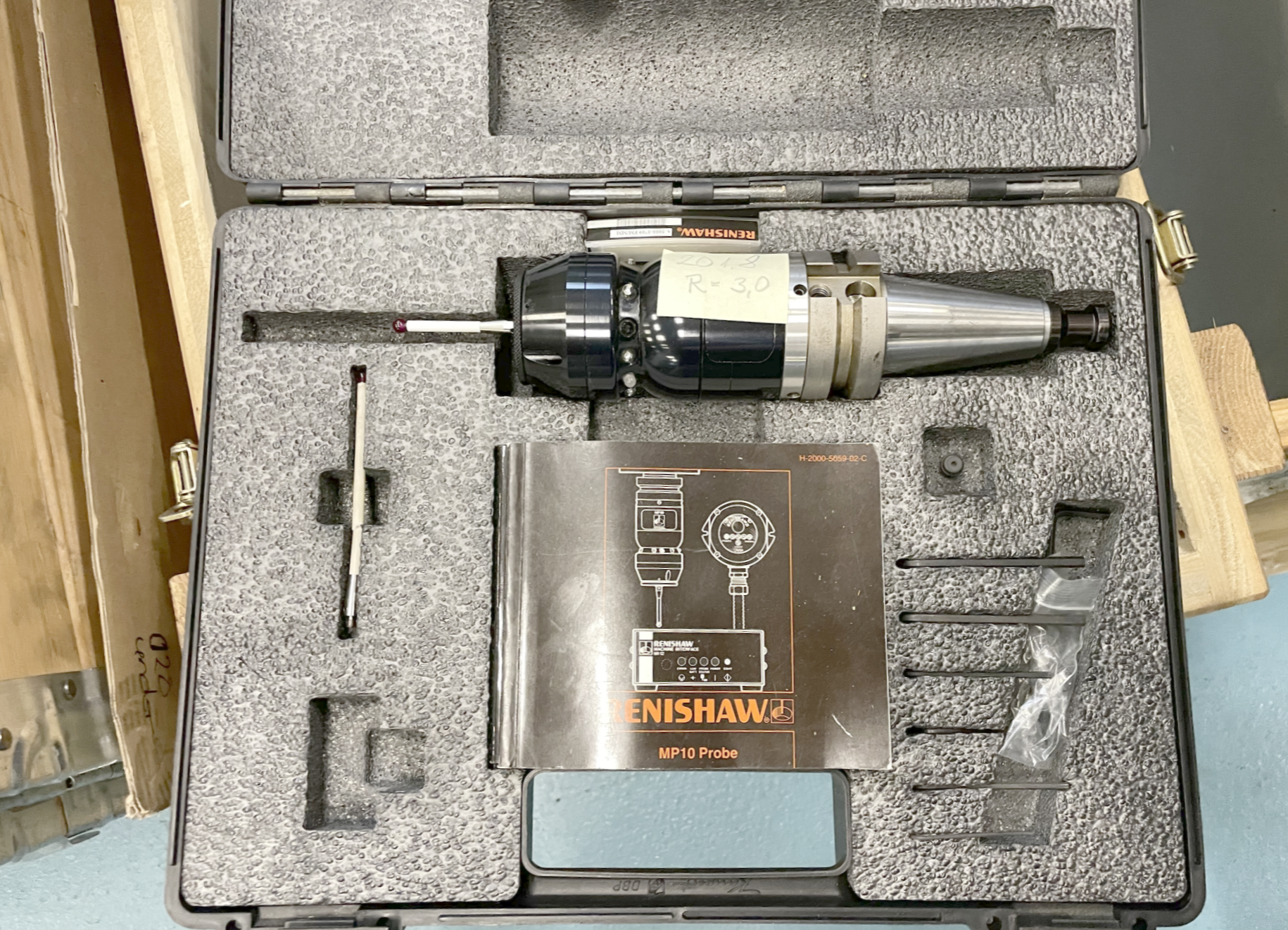

| Tool setter Renishaw | |
| Lamp | |
| Rotating viewing window | |

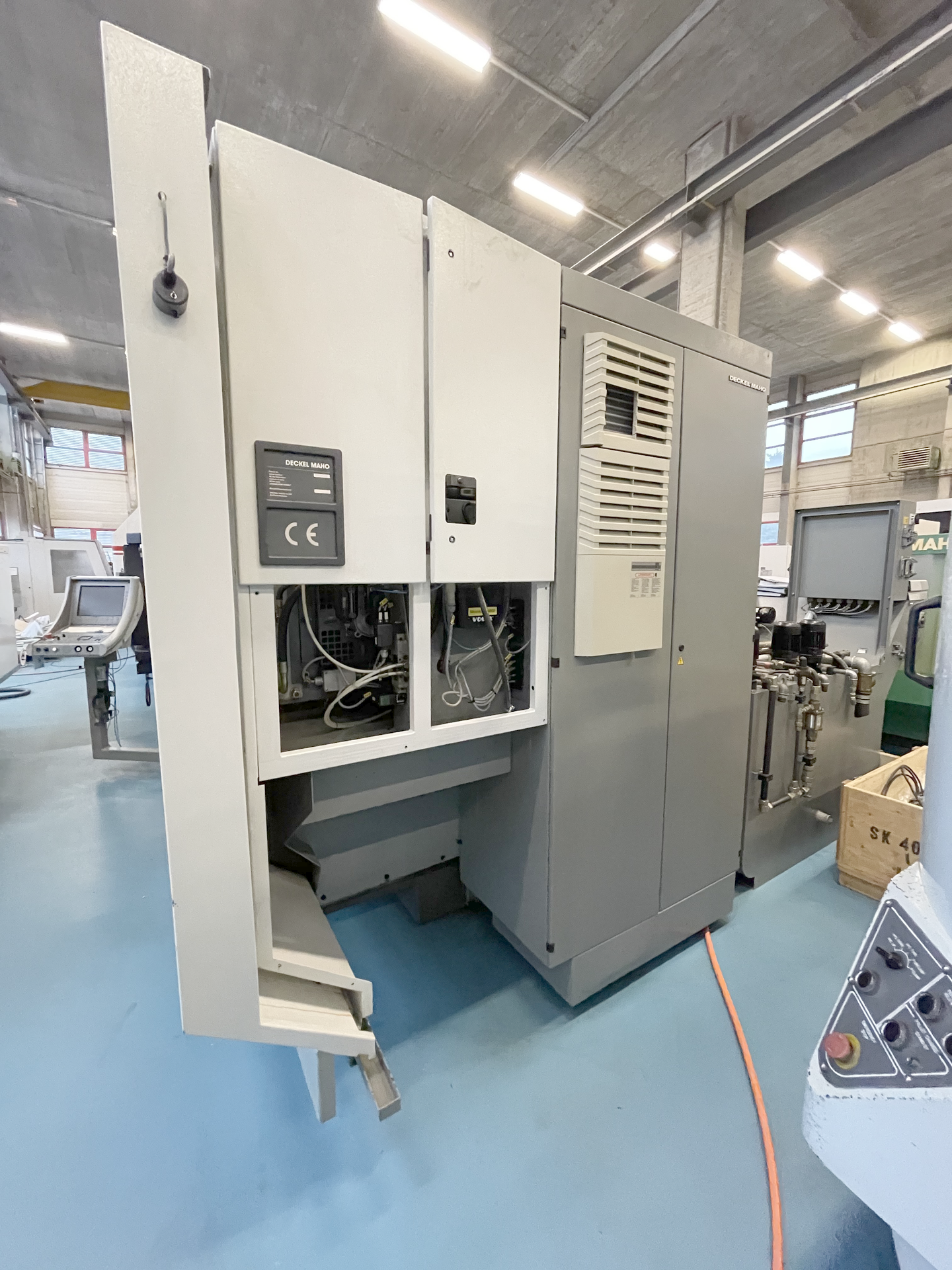

| Switch cabinet Air conditioner |
