HASEGAWA PM 150-01
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

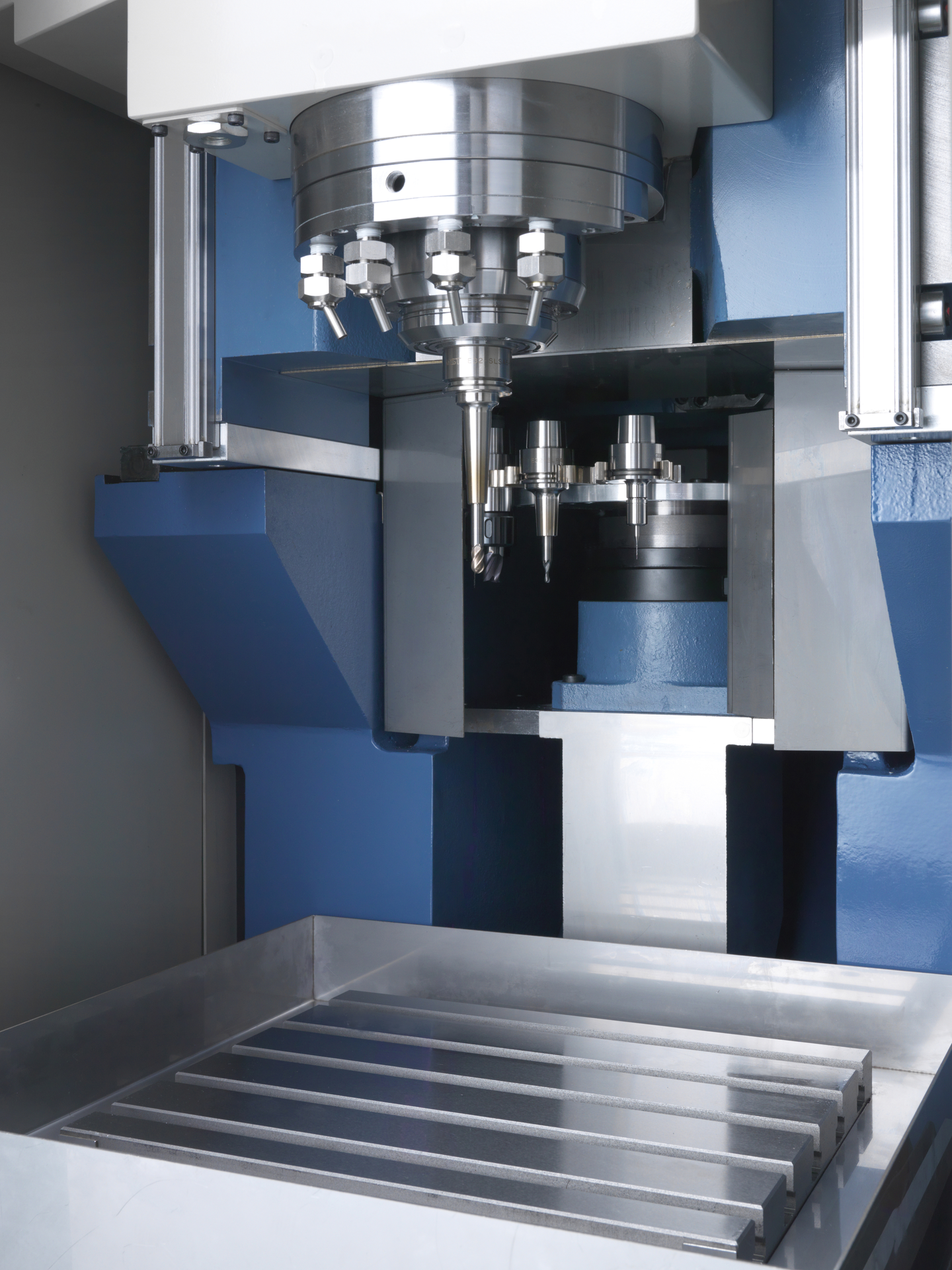

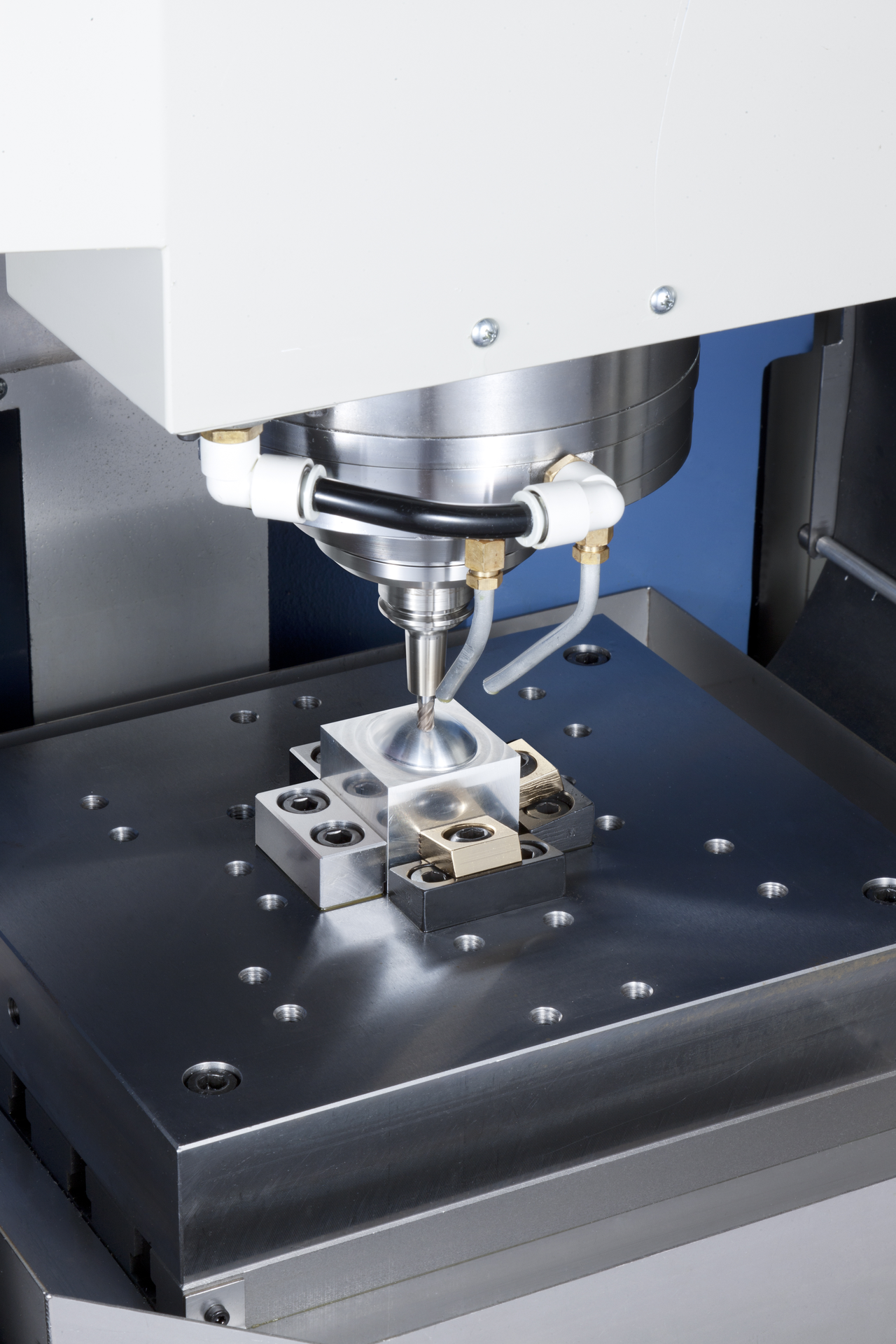

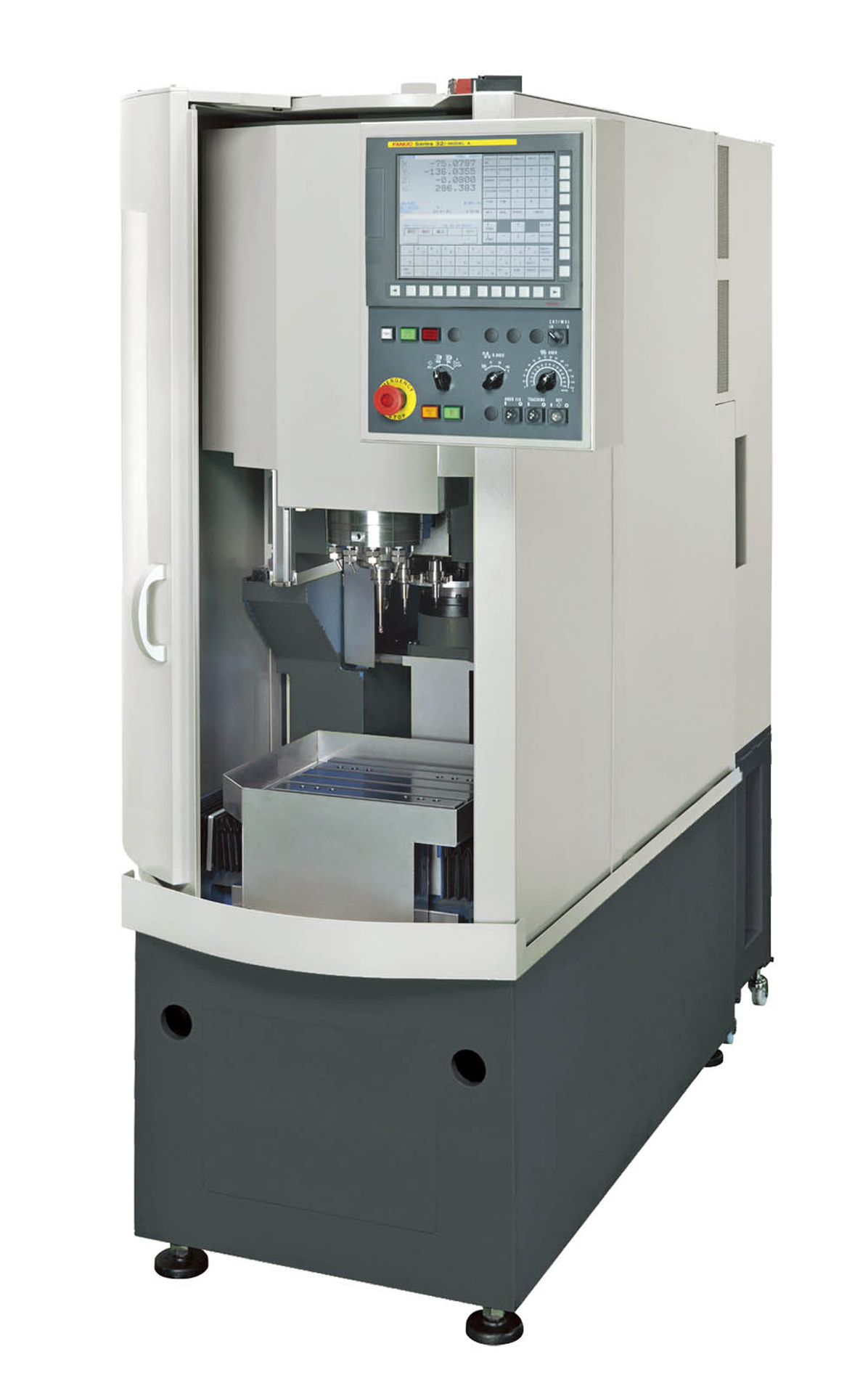

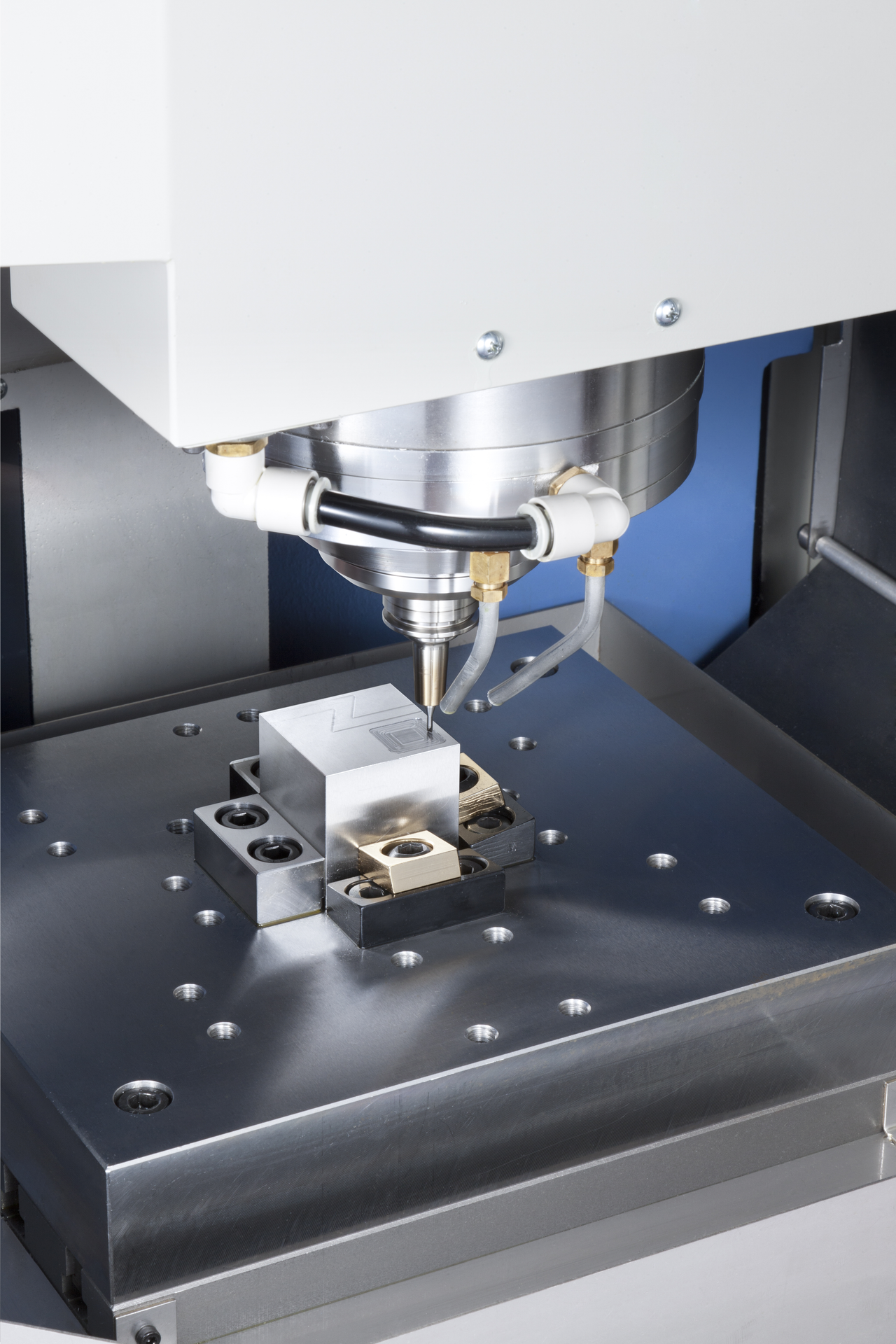

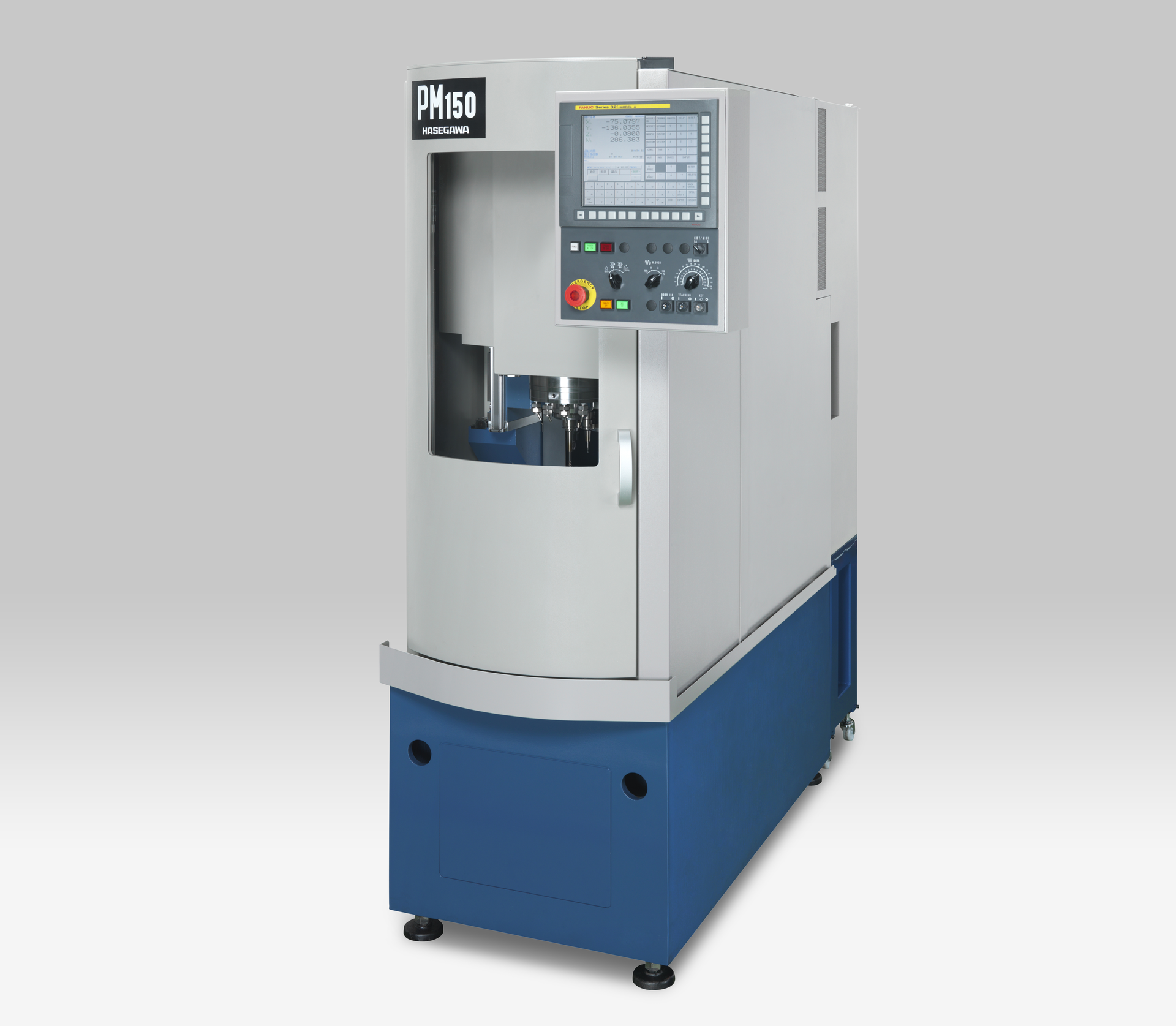

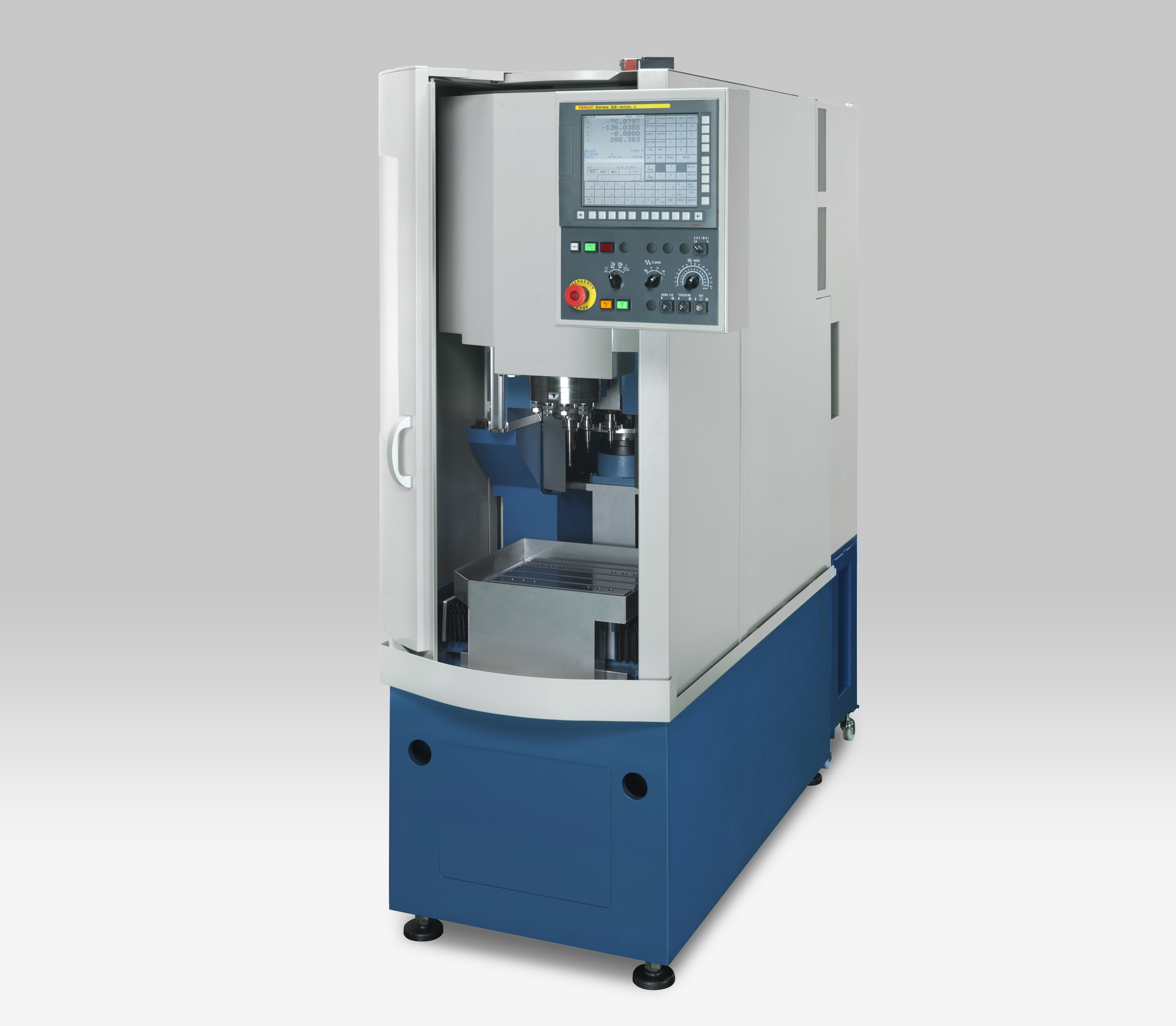

HASEGAWA PM 150-01 is a CNC high-speed milling machine, built for precision, high accuracy and reliable production. Working capacities: table 300×260 mm; travels X 150 mm, Y 225+50 ATC mm, Z 200 mm; table load max 80 kg; spindle‑to‑table 140–340 mm. Technical specs: spindle taper HSK‑E32; speeds 100–30000 t/min stepless; spindle motor 3.0/4.5 kW; rapid traverse 30 m/min; total power 12 kVA; weight ~2000 kg; dims L1750×W600×H1800 mm. Equipment: tool changer 17 pos., automatic tool setting BLUM Z‑Pico, electronic handwheel, full splash cabin, coolant 120 l, interfaces Flash/USB/Ethernet and RS‑232C. Enables tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical.
| Table length | 300 mm |
| Table width | 260 mm |
| Longitudinal travel (X-axis) | 150 mm |
| Transversal travel (y axis) | 225+50 ATC mm |
| Vertical travel (z axis) | 200 mm |
| Table load max. | 80 kg |
| Distance from vertical | |
| spindle to table | 140 ~ 340 mm |
| Taper in spindle | HSK-E32 |
| Spindle speeds: | |
| stepless | |
| vertical from | 100 t/min |
| up to | 30000 t/min |
| Tool changer: | |
| number of tools | 17 |
| Rapid traverse: | 30 m/min |
| Milling spindle motor | 3.0 / 4.5 kW |
| Total power required | 12 kVA |
| Machine's weight about | 2000 kg |
| Overall dimensions machine: | |
| Length | 1750 mm |
| Width | 600 mm |
| Height | 1800 mm |
| Various accessories: | |
| Handwheel electroinic | |
| Full splash cabin | |
| Coolant system | 120 ltr. |
| Tool changer: (number of tools) | 17 |
| Automatic setting tool | BLUM Z-Pico |
| Interface: | Flash/USB/Ethernet |
| Interface serial port RS 232-C, V 24 | |
| Spindlecooling |
