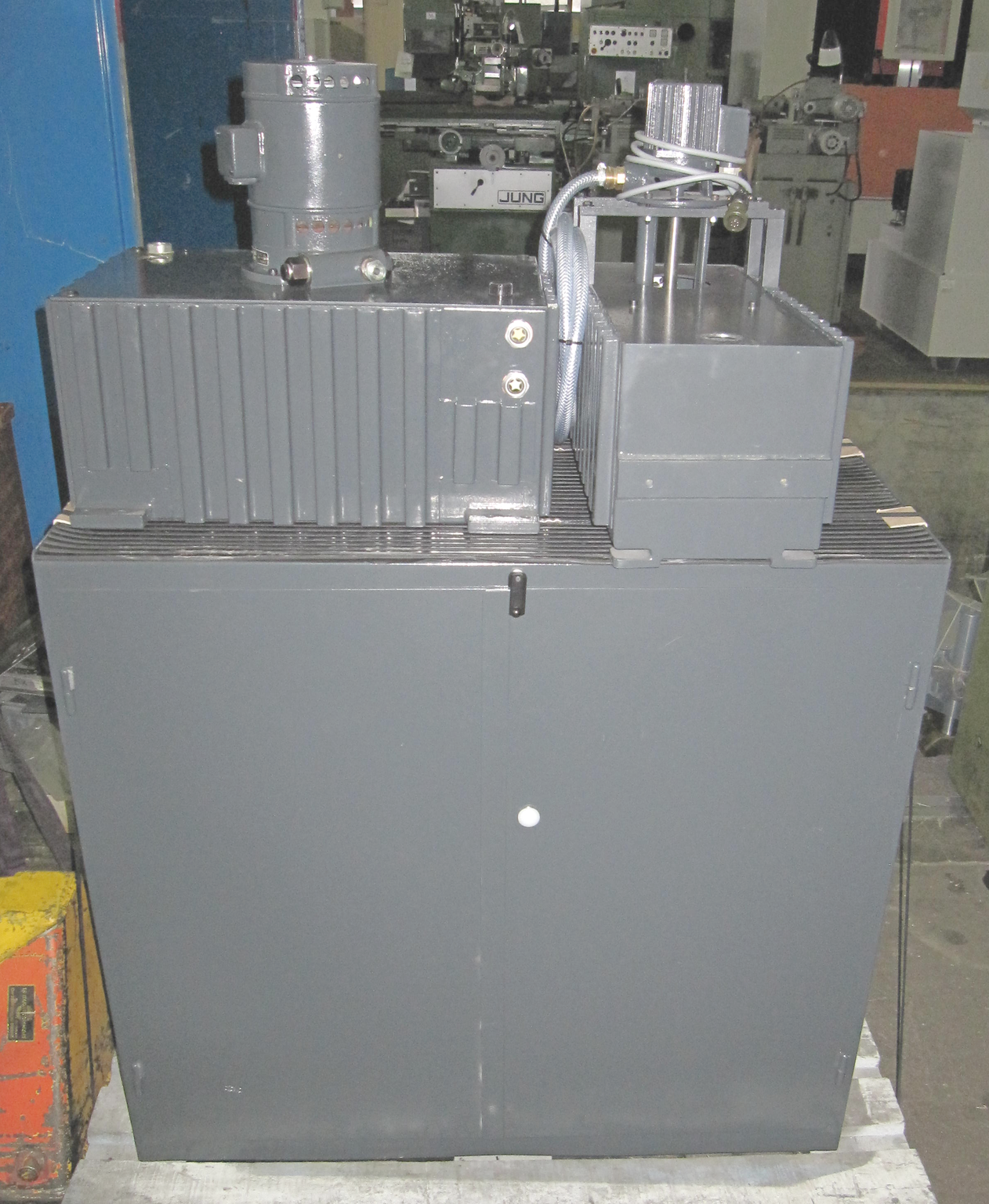

TRIPET MAR 200 AUTOMATIC
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
TRIPET MAR 200 AUTOMATIC is an Internal grinding machine, engineered for precision, high accuracy and reliability. Capacities: min internal grinding diameter 1 mm, max 50 mm, grinding depth 200 mm, centre height 132 mm, max angle 90°. Technical specs: workpiece spindle speeds 150–1500 t/min; grinding spindle speeds 16,500–120,000 t/min; table speed stepless up to 10 m/min; voltage 3x 380 V 50 Hz; workpiece spindle motor 0.80 kW; grinding spindle drive 3 kW; machine weight ~2000 kg; dimensions L1800×W1000×H1800 mm. Delivers tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors.
| Min. internal grinding diameter | 1 mm |
| Max. internal grinding diameter | 50 mm |
| Grinding depth | 200 mm |
| Centre height | 132 mm |
| Workpiece spindle speeds: | |
| from | 150 t/min |
| up to | 1500 t/min |
| Max. angle | 90 ° |
| Possible grinding-spindle speeds: | |
| from | 16500 t/min |
| up to | 120000 t/min |
| Table speeds: | |
| stepless | |
| up to | 10 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Workpiece spindle motor | 0.80 kW |
| Drive for internal grinding spindle | 3 kW |
| Machine's weight about | 2000 kg |
| Overall dimensions machine: | |
| Length | 1800 mm |
| Width | 1000 mm |
| Height | 1800 mm |
