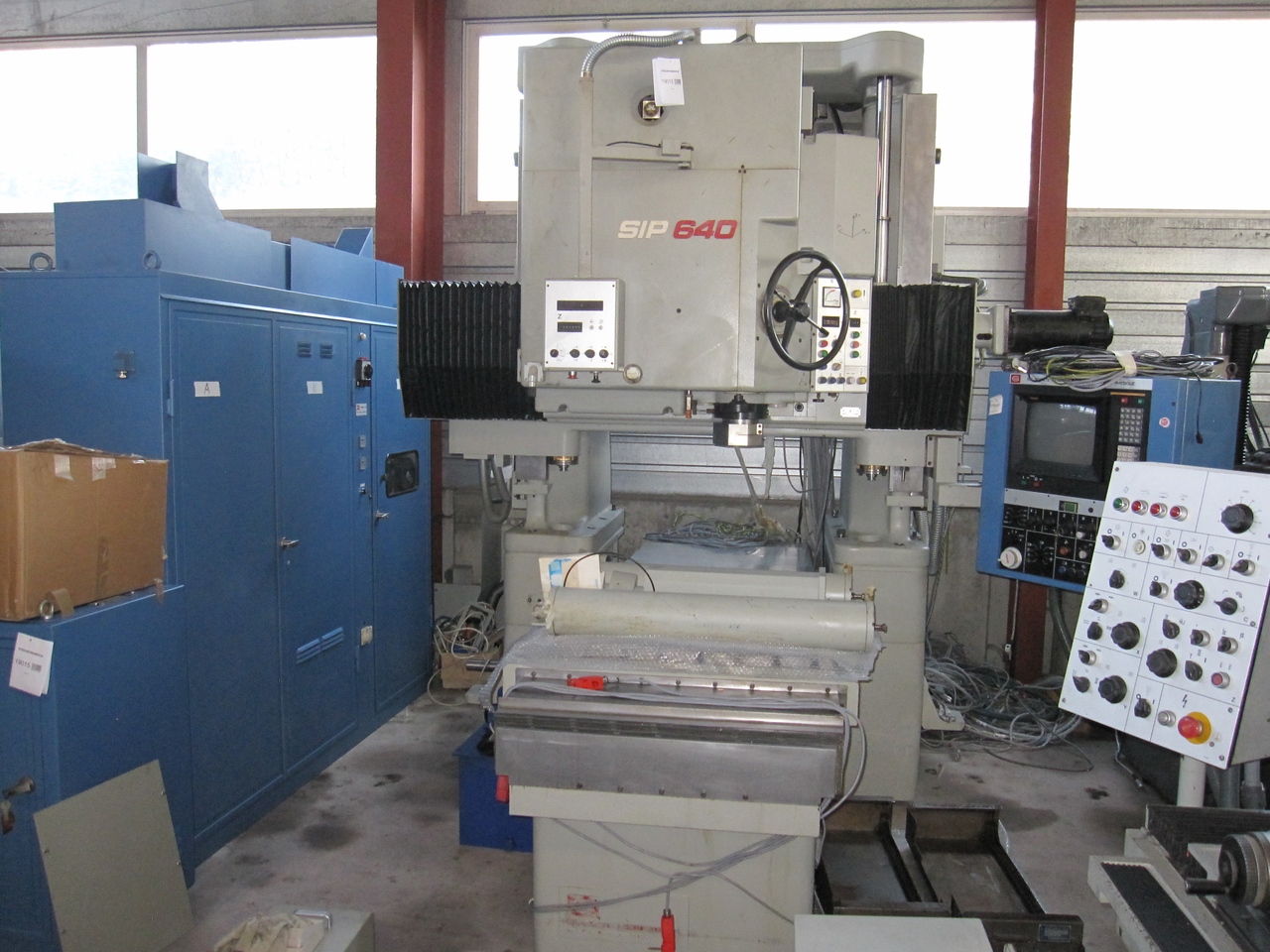

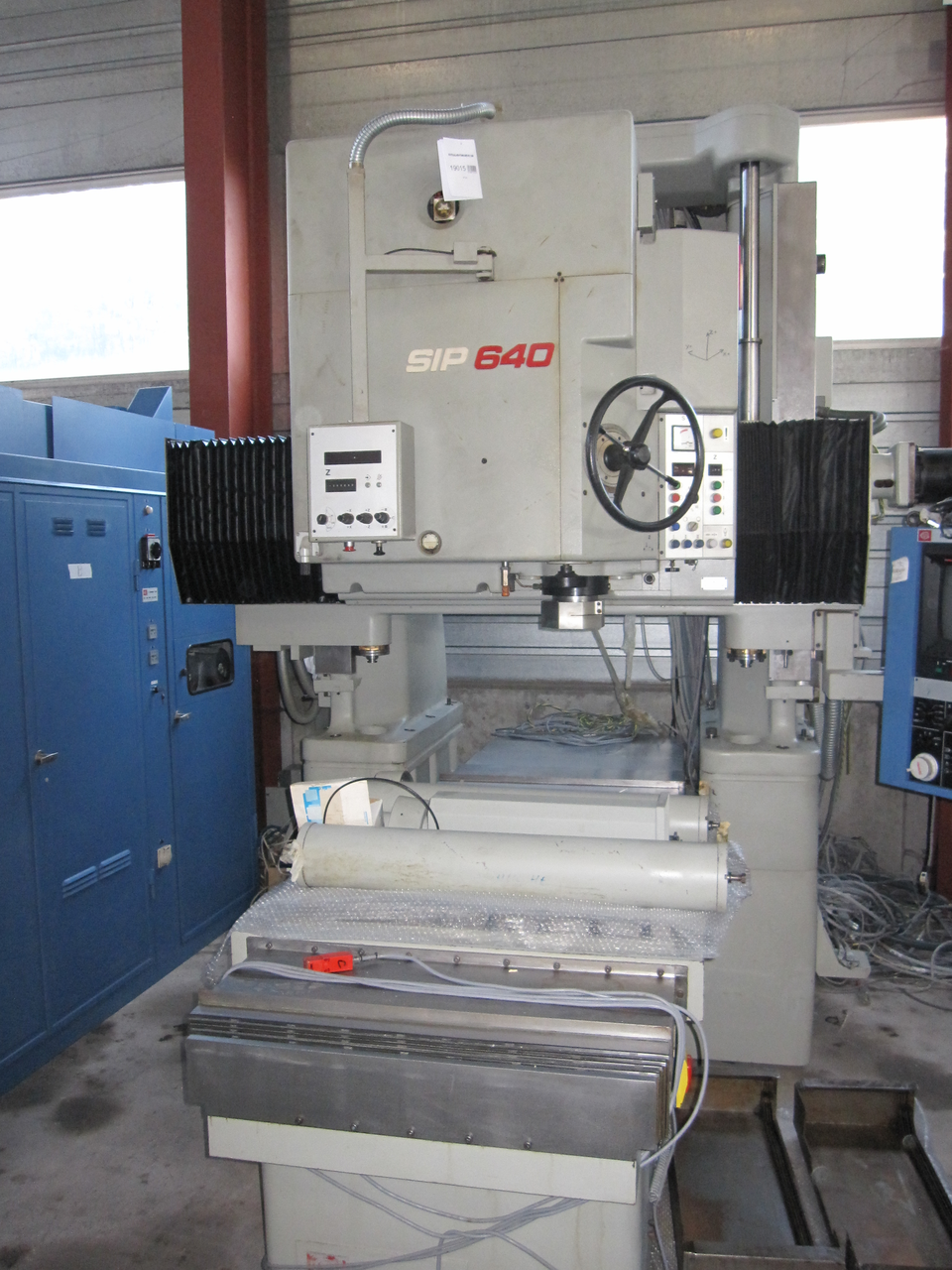

SIP 640 is a CNC jig boring machine, engineered for high-precision work, excellent accuracy and reliability. Working capacities: table 1100×842 mm, max table load 1500 kg; travels X 1000 mm, Y 700 mm, Z 780 mm; distance between columns 1100 mm; table-to-spindle distance 1000 mm; drill capacity in steel 60 mm; bore diameter 60–300 mm; drilling spindle Ø 135 mm, taper ISO 4 B; spindle stroke 300 mm. Key specs: spindle speeds 18 steps 20–3000 t/min; table feeds up to 6000 mm/min; rapid traverse X/Y/Z 6000 mm/min; spindle motor 9 CV; supply 3x 380 V 50 Hz; machine weight ~10600 kg; dimensions 3280×2335×3205 mm. Suited to achieve tight tolerances in automotive, aerospace, watchmaking, machine-tool and medical sectors.
| Table length | 1100 mm |
| Table width | 842 mm |
| Table load max. | 1500 kg |
| Longitudinal travel (X-axis) | 1000 mm |
| Transversal travel (y-axis) | 700 mm |
| Vertical travel (z axis) | 780 mm |
| Drill capacity in steel | 60 mm |
| Taper in spindle: ISO | 4 B |
| Diameter of drilling spindle | 135 mm |
| Stroke of drilling spindle (Z-axis) | 300 mm |
| Bore diameter min. | 60 mm |
| Bore diameter max. | 300 mm |
| Distance table to spindle | 1000 mm |
| Spindle speeds: | |
| number (steps) | 18 |
| from | 20 t/min |
| up to | 3000 t/min |
| Feeds: | |
| Table: | |
| from | mm/min |
| up to | 6000 mm/min |
| Drill spindle slide: | |
| number (steps) | 6 |
| from | mm/t |
| up to | mm/t |
| Rapid traverse: | |
| Table:longitudinal | 6000 mm/min |
| transversal from | 6000 mm/min |
| vertical | 6000 mm/min |
| Distance between columns | 1100 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 9 CV |
| Machine's weight about | 10600 kg |
| Overall dimensions machine: | |
| Length | 3280 mm |
| Width | 2335 mm |
| Height | 3205 mm |
