SCHAUBLIN 53 N is a universal milling machine for precision machining with high accuracy and reliability. Table 1100x305 mm; travels X700, Y250, Z490 mm; spindle ISO40, 18 steps 38–1510 rpm. Feeds 18 steps: X/Y 12–1050 mm/min, Z 6–525 mm/min; rapid traverse X/Y 3.5 m/min, Z 1.7 m/min. Voltage 3x380V 50Hz; motor 5.5 CV; total power 8 CV; weight approx. 2100 kg; dims 1800x1600x1800 mm. Accessories: coolant system, cam control, steady, set of collets, short cutter arbors, toolholders, tool cabinet, chucking clamps. Suited to achieve tight tolerances in automotive, watchmaking, machine-tool, aerospace and medical sectors.
| Table length | 1100 mm |
| Table width | 305 mm |
| Longitudinal travel (X-axis) | 700 mm |
| Transversal travel (y axis) | 250 mm |
| Vertical travel (z axis) | 490 mm |
| Spindle speeds: | |
| number (steps) | 18 |
| from | 38 t/min |
| up to | 1510 t/min |
| Taper in spindle | 40 ISO |
| Feeds steps: | 18 |
| longitudinal from | 12.0 mm/min |
| up to | 1050 mm/min |
| transversal from | 12.0 mm/min |
| up to | 1050 mm/min |
| vertical from | 6.0 mm/min |
| up to | 525 mm/min |
| Rapid traverse: | |
| longitudinal | 3.5 m/min |
| transversal | 3.5 m/min |
| vertical | 1.7 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 5.5 CV |
| Total power required | 8 CV |
| Machine's weight about | 2100 kg |
| Overall dimensions machine: | |
| Length | 1800 mm |
| Width | 1600 mm |
| Height | 1800 mm |
| Various accessories: | |
| Coolant system | |
| Cam control | |
| Steady | |
| Set of collets | |
| Set of short cutter arbors | |
| Set of toolholders | |
| Tool cabinet | |

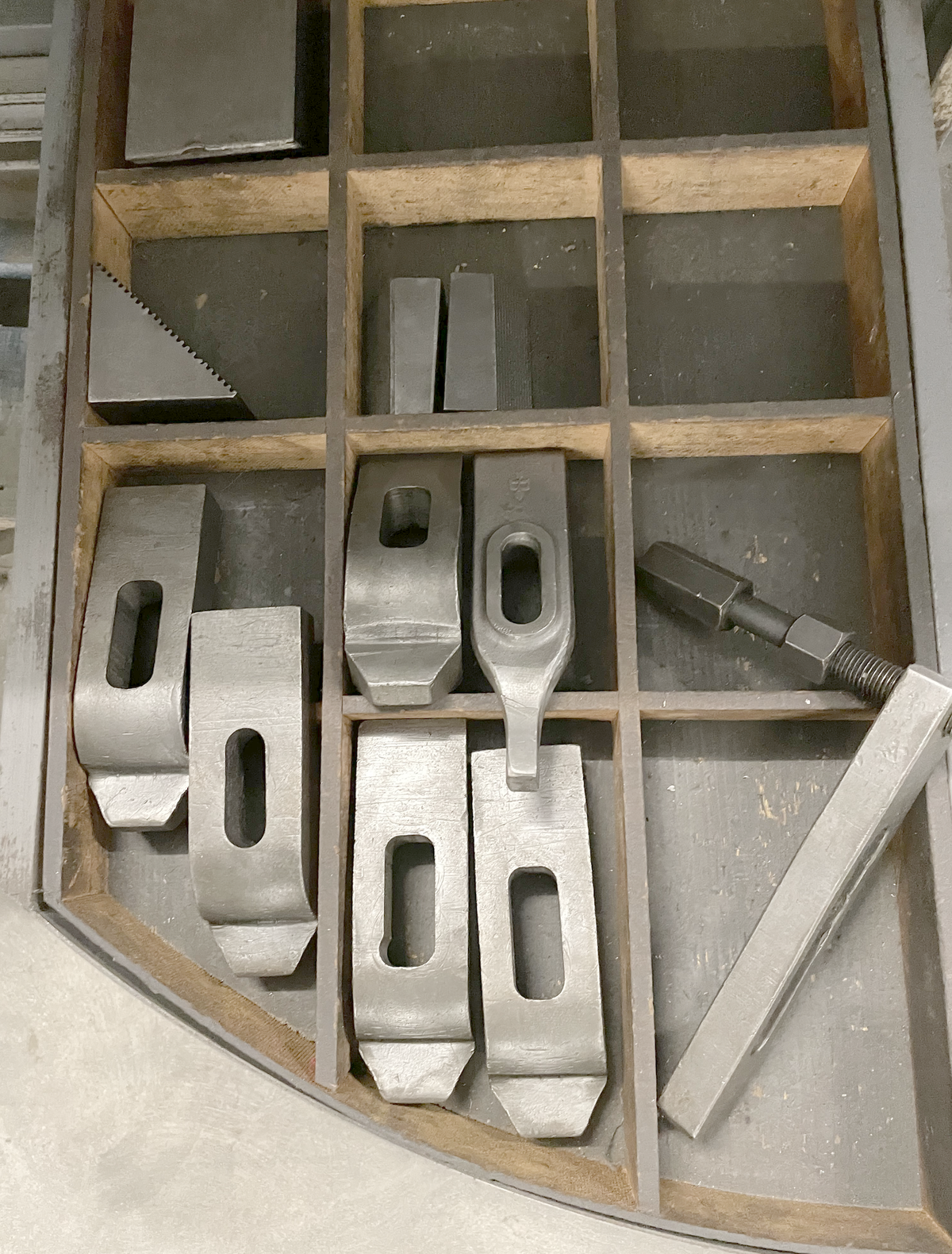

| Chucking clamp |
