017940 - GMN GEORG MÜLLER MPS 2-R 300

1 6

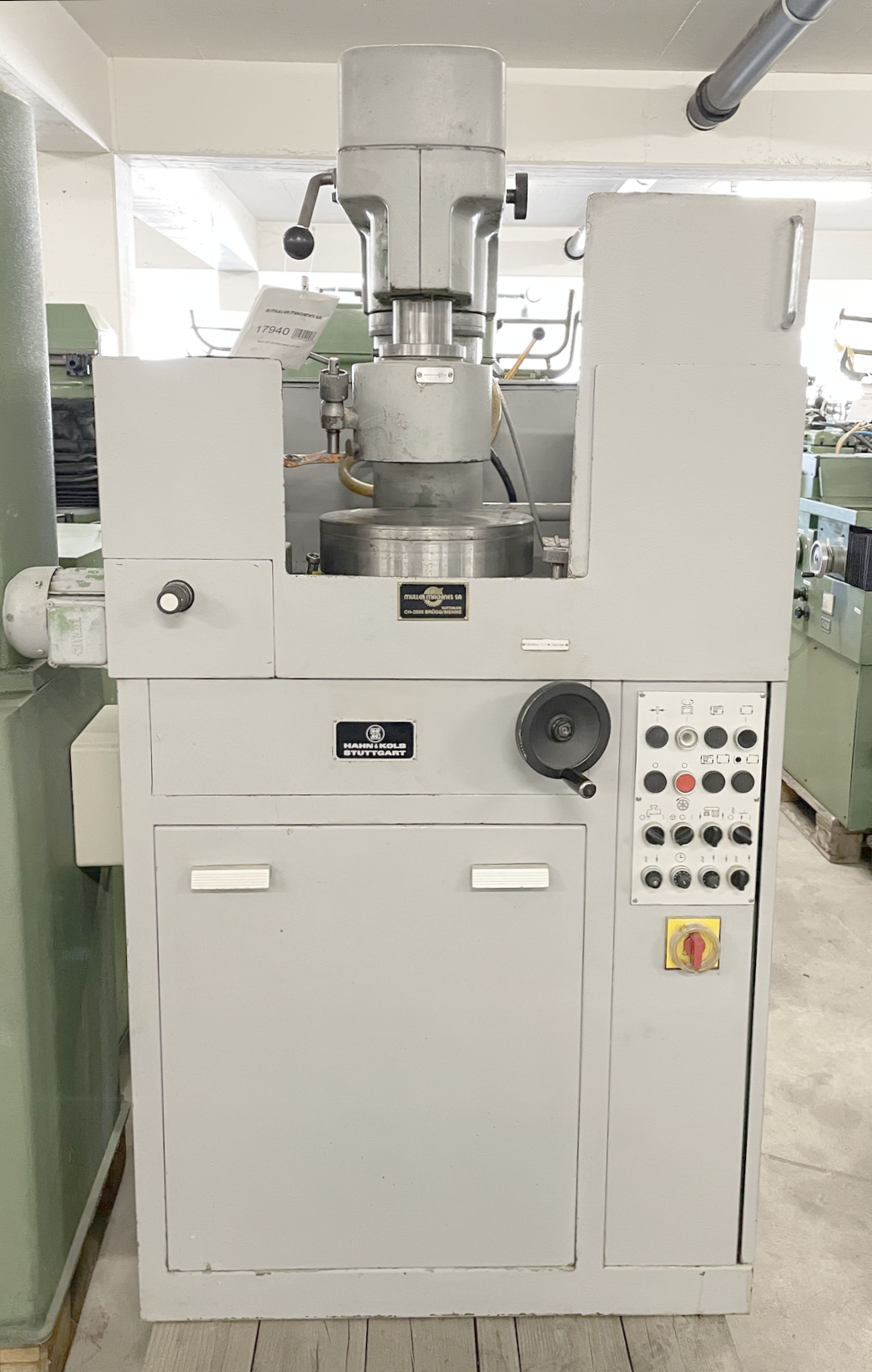

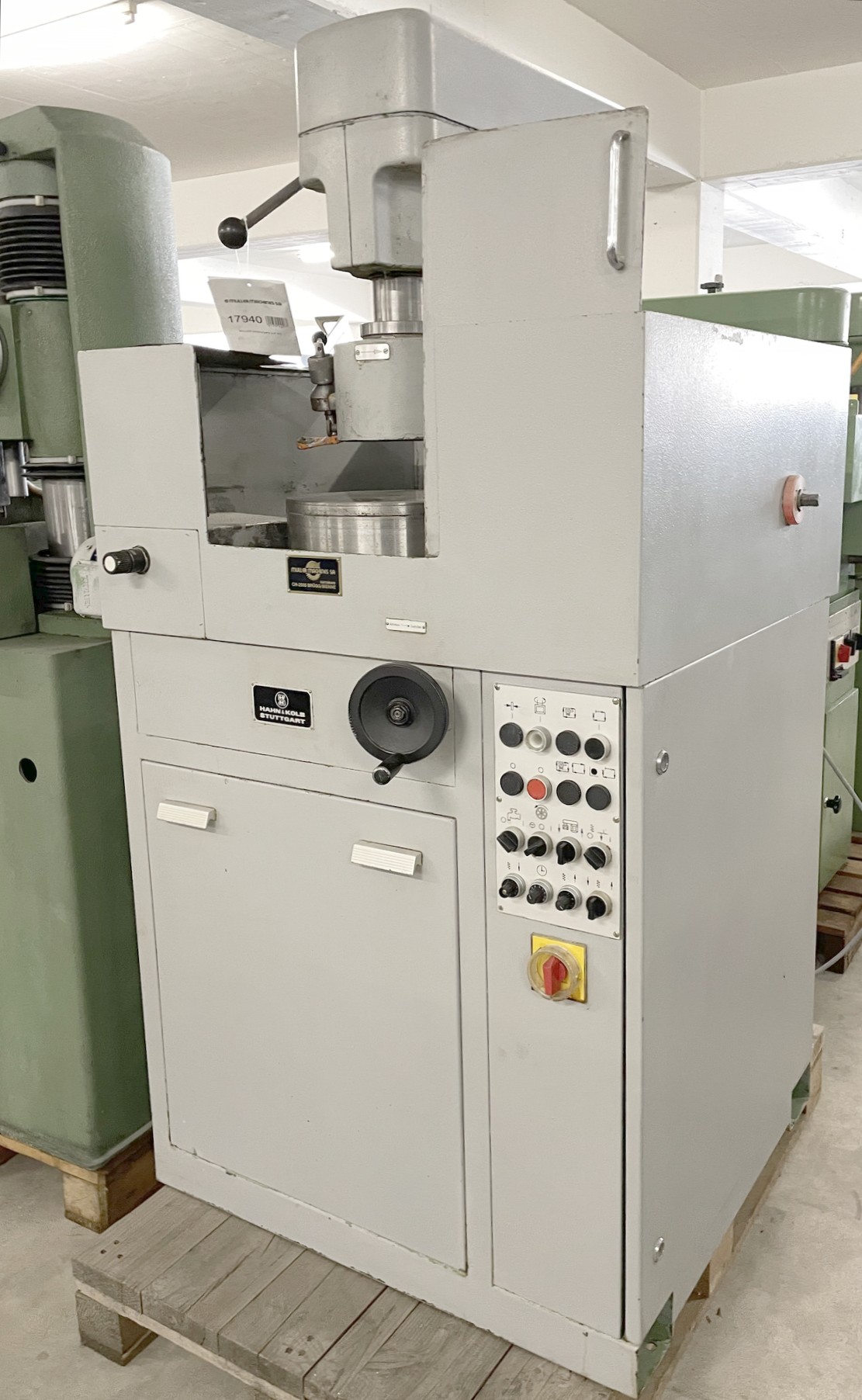

GMN GEORG MÜLLER MPS 2-R 300

Type: MPS 2-R 300

Manufacturer: GMN GEORG MÜLLER

Group: Bell-disc grinder

Subgroup: Bell-disc grinder

Stock: 017940

Download technical sheet (PDF)

Price Information

Need Assistance? Just WhatsApp Us!

GMN GEORG MÜLLER MPS 2-R 300 is a Bell-disc grinder engineered for precision, high accuracy and reliability. Capacities: wheel Ø175×100 mm (bore 76 mm), circular table Ø300 mm, fine feed travel 12 mm, grinding height 240 mm, magnetic chuck Ø95 mm, table speeds up to 30 t/min. Specs: grinding spindle 2850 t/min, 50 Hz 3x 380 V, spindle motor 2 kW, power 3 kW, weight ≈540 kg, dimensions 900×900×1800 mm. Accessories: magnetic chuck. Delivers tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.

Grinding wheel:
Diameter	175 mm
Width	100 mm
Bore	76 mm
Circulary table diameter	300 mm
Travel of the fine feed	12 mm
Grinding height over table	240 mm
Grinding height over

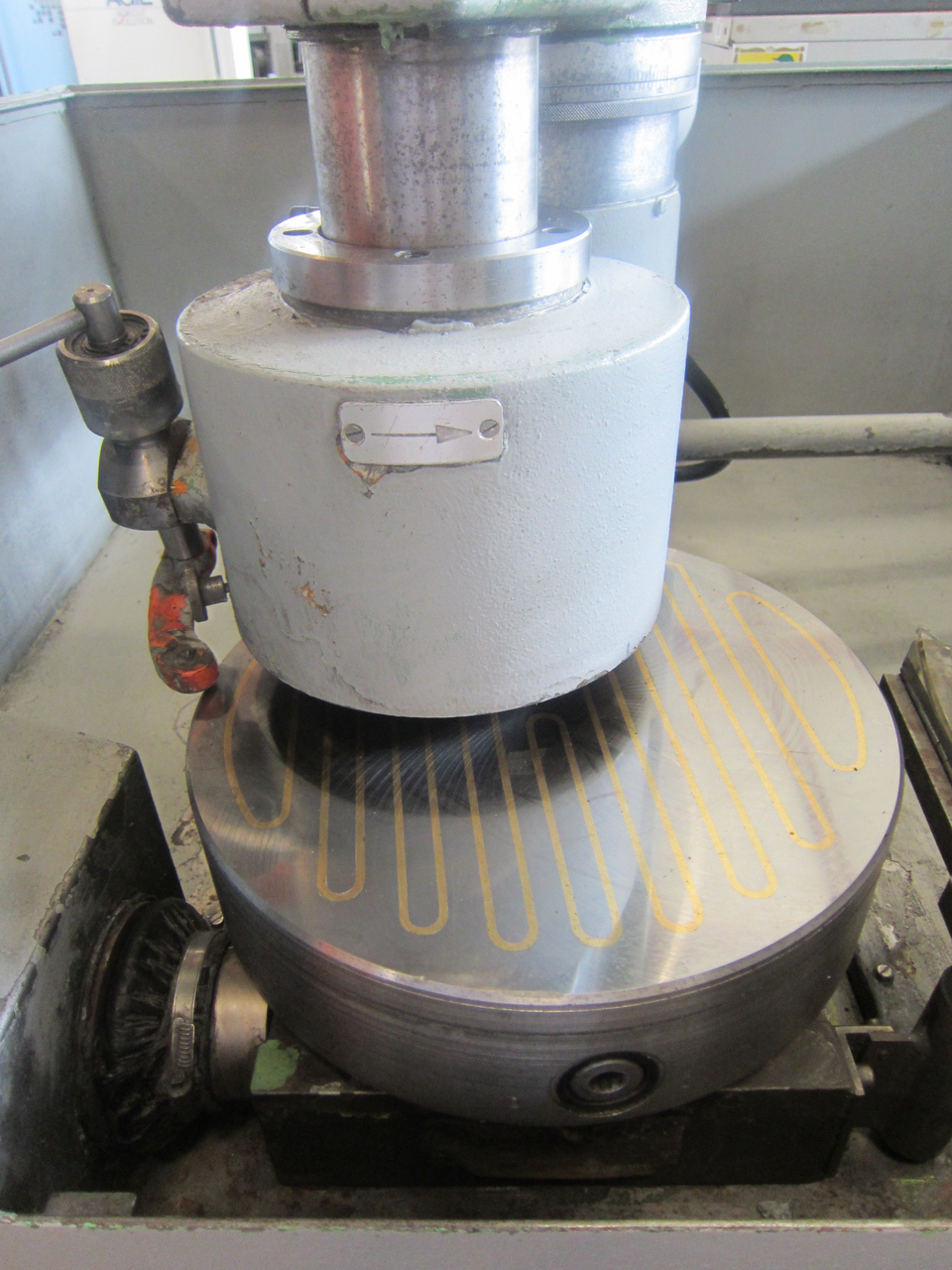

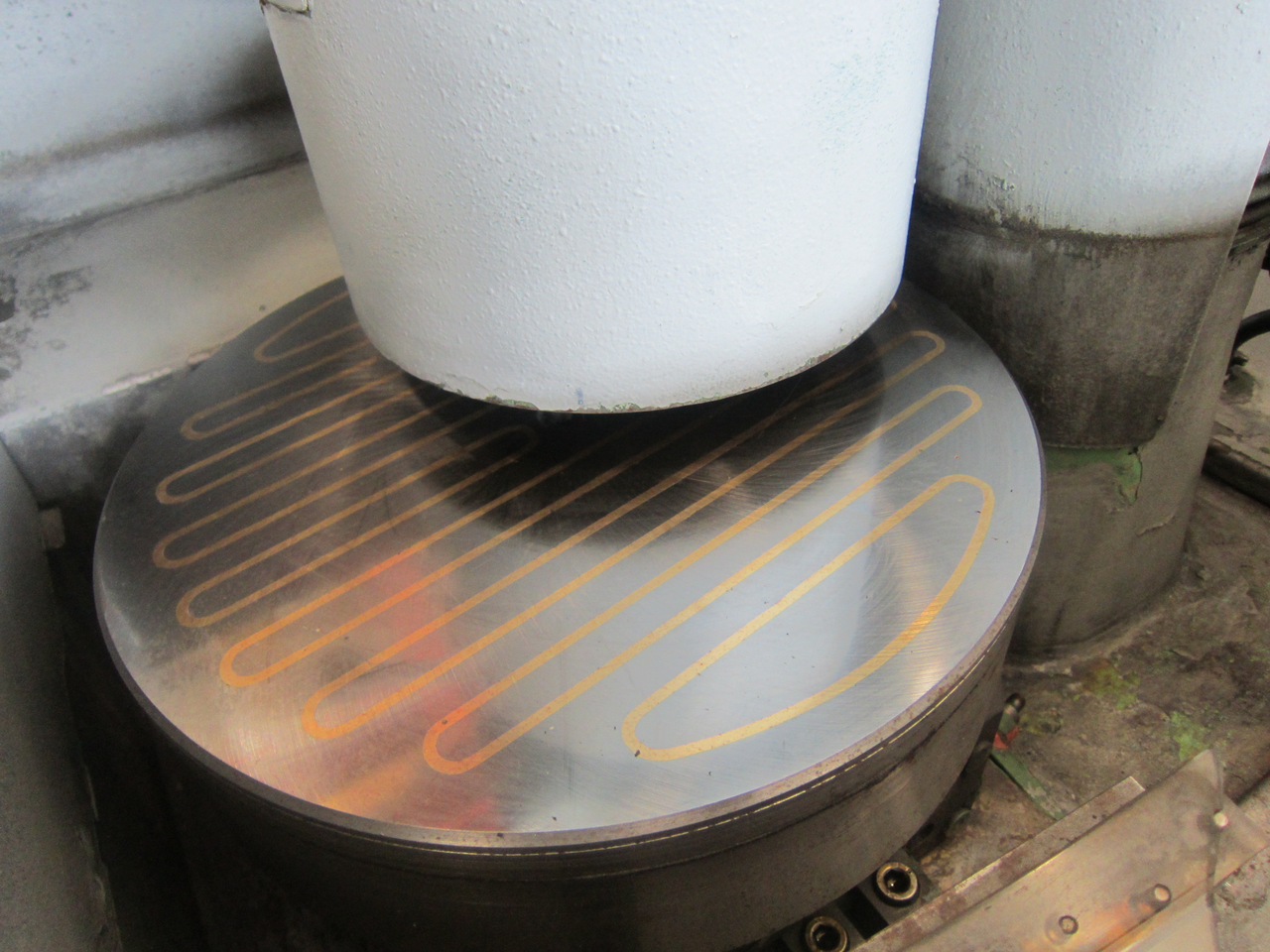

Magnetic chuck	95 mm
Table speeds:
from	t/min
up to	30 t/min
Grinding spindle speeds	2850 t/min
Voltage 50 Hz 3x	380 Volt
Grinding spindle motor	2 kW
Power	3 kW
Machine's weight about	540 kg
Overall dimensions machine:
Length	900 mm
Width	900 mm
Height	1800 mm
