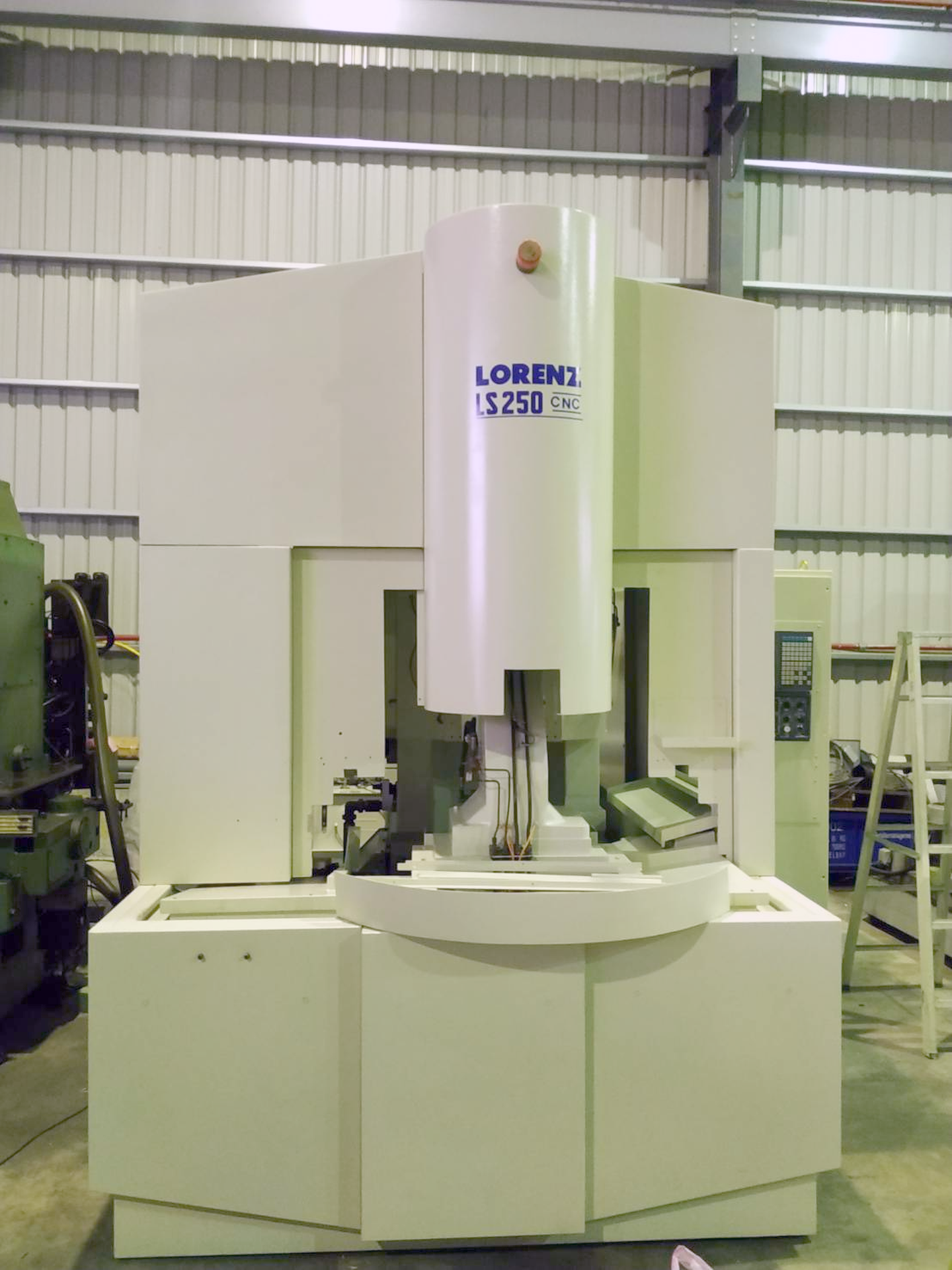

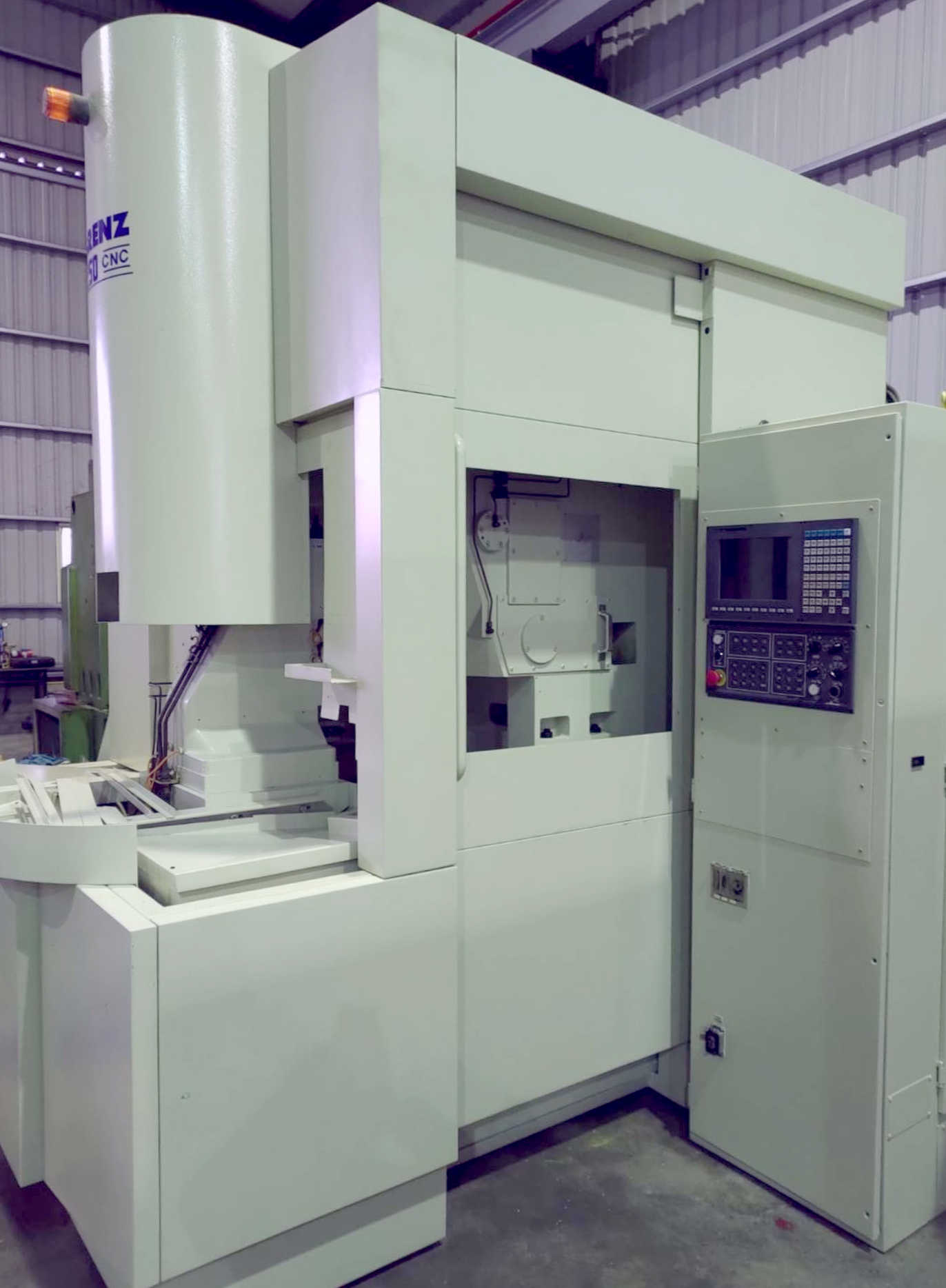

LORENZ LS 250 is a CNC gear shaping machine engineered for high-precision machining with excellent accuracy and reliability. Working range: module 1–5; max wheel Ø 250 mm; max gear cutting width 70 mm; table Ø 320 mm; drill Ø in table 125 mm; max ram stroke 100 mm; distance ram–table 190–290 mm; ram taper 40 ISO. Technical specs: ram stroke speeds 100–1200 c/min; voltage 50 Hz 3x380 V; drive 36 kW; weight ~10000 kg; dimensions L4500×W3200×H2900 mm. Retrofitted control 2019. Enables tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Working range: | |
| Module from | 1 |
| up to | 5 |
| Max. wheel diameter | 250 mm |
| Max. gear cutting width | 70 mm |
| Table diameter | 320 mm |
| Drill diameter of the table | 125 mm |
| Max. ram stroke | 100 mm |
| Distance ram to table: | |
| from | 190 mm |
| up to | 290 mm |
| Taper in ram | 40 ISO |
| Ram stroke speeds: | |
| from | 100 c/min |
| up to | 1200 c/min |
| Voltage 50 Hz 3x | 380 Volt |
| Drive | 36 kW |
| Machine's weight about | 10000 kg |
| Overall dimensions machine: | |
| Length | 4500 mm |
| Width | 3200 mm |
| Height | 2900 mm |
| Equipment: | |

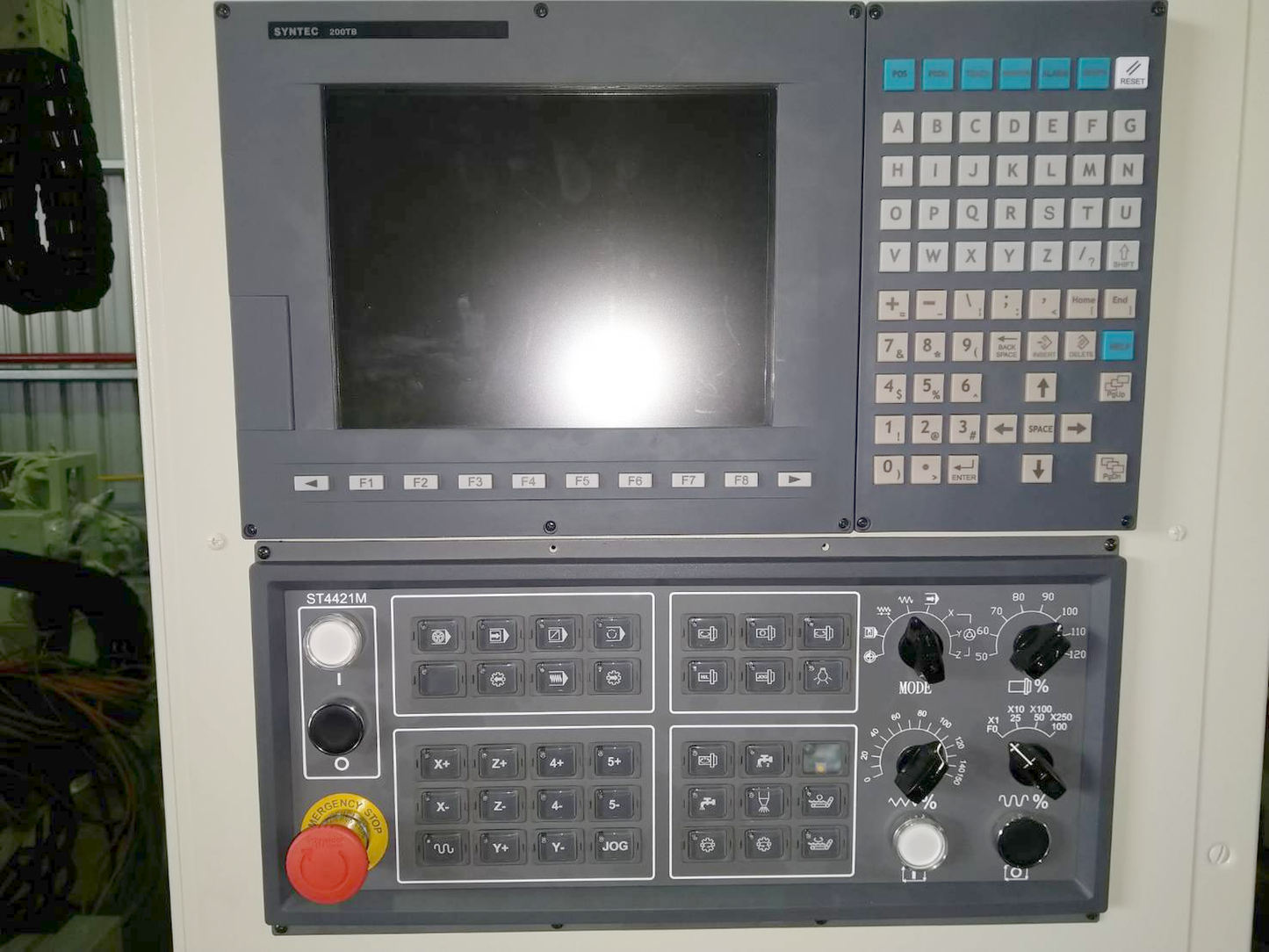

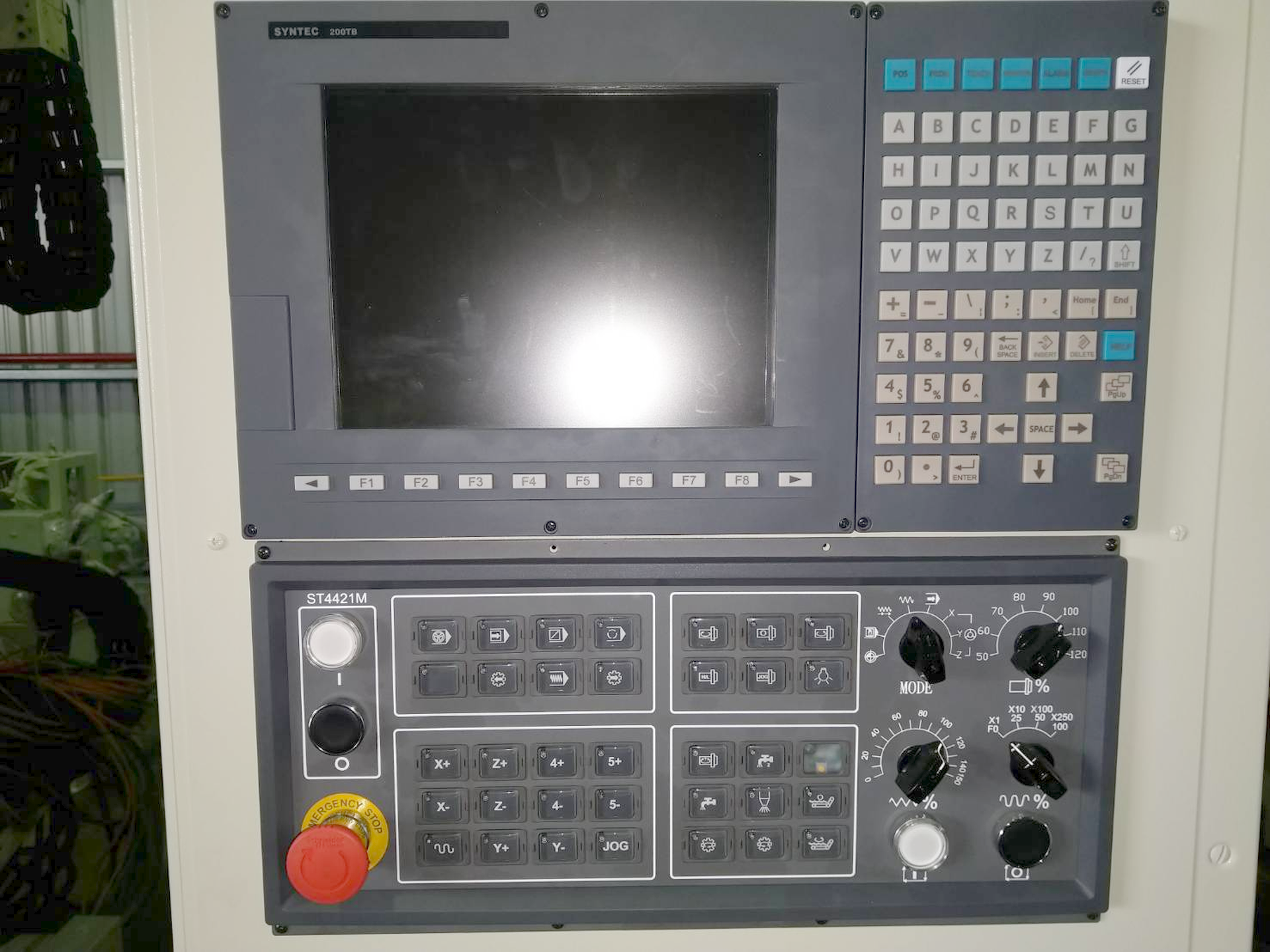

| Retrofited control | 2019 |
| Helical gearing | |
| Mise en conformité CE |
