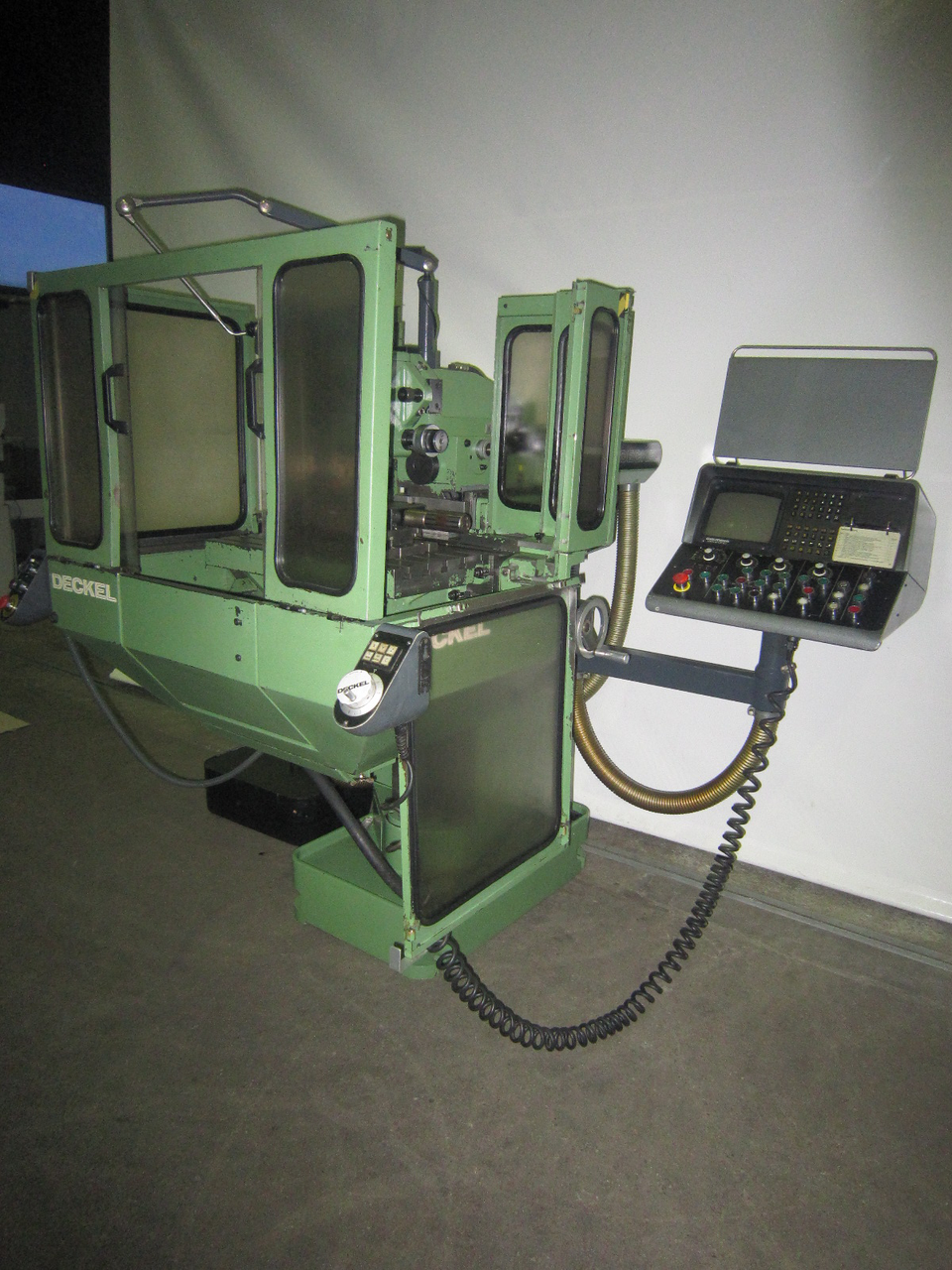

DECKEL FP 2 NC is a high-precision, highly accurate and reliable CNC milling machine. Working capacities: table 632x277 mm, travels X300 Y220 Z400 mm, table load max 400 kg, spindle-to-table 93–525 mm, vertical quill travel 60 mm, horizontal stroke 65 mm. Main specs: 21 steps, spindle 31.5–3150 rpm, feeds 2–2000 mm/min (X/Y/Z), rapid 4 m/min, spindle motor 1.6/2 kW, 50 Hz 3x380 V, weight ~1215 kg, overall 2500x2100x1800 mm. Accessories: vice (jaw width 125 mm), rigid table, electronic handheld control, handwheels, set of toolholders, coolant system, machine lamp. Suited for tight tolerances; typical applications: automotive, watchmaking, toolmaking, aerospace, medical.
| Table length | 632 mm |
| Table width | 277 mm |
| Longitudinal travel (X-axis) | 300 mm |
| Transversal travel (y axis) | 220 mm |
| Vertical travel (z axis) | 400 mm |
| Table load max. | 400 kg |
| Distance from vertical | |
| spindle to table | 93 - 525 mm |
| Distance from spindle axis | |
| Spindle speeds: | |
| number (steps) | 21 |
| vertical from | 31.5 t/min |
| up to | 3150 t/min |
| Feeds: | |
| stepless | |
| longitudinal from | 2 mm/min |
| up to | 2000 mm/min |
| transversal from | 2 mm/min |
| up to | 2000 mm/min |
| vertical from | 2 mm/min |
| up to | 2000 mm/min |
| Rapid traverse: | 4 m/min |
| Vertical quill travel | 60 mm |
| Stroke of horizontal spindle | 65 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Milling spindle motor | 1.6 / 2 kW |
| Machine's weight about | 1215 kg |
| Overall dimensions machine: | |
| Length | 2500 mm |
| Width | 2100 mm |
| Height | 1800 mm |
| Various accessories: | |

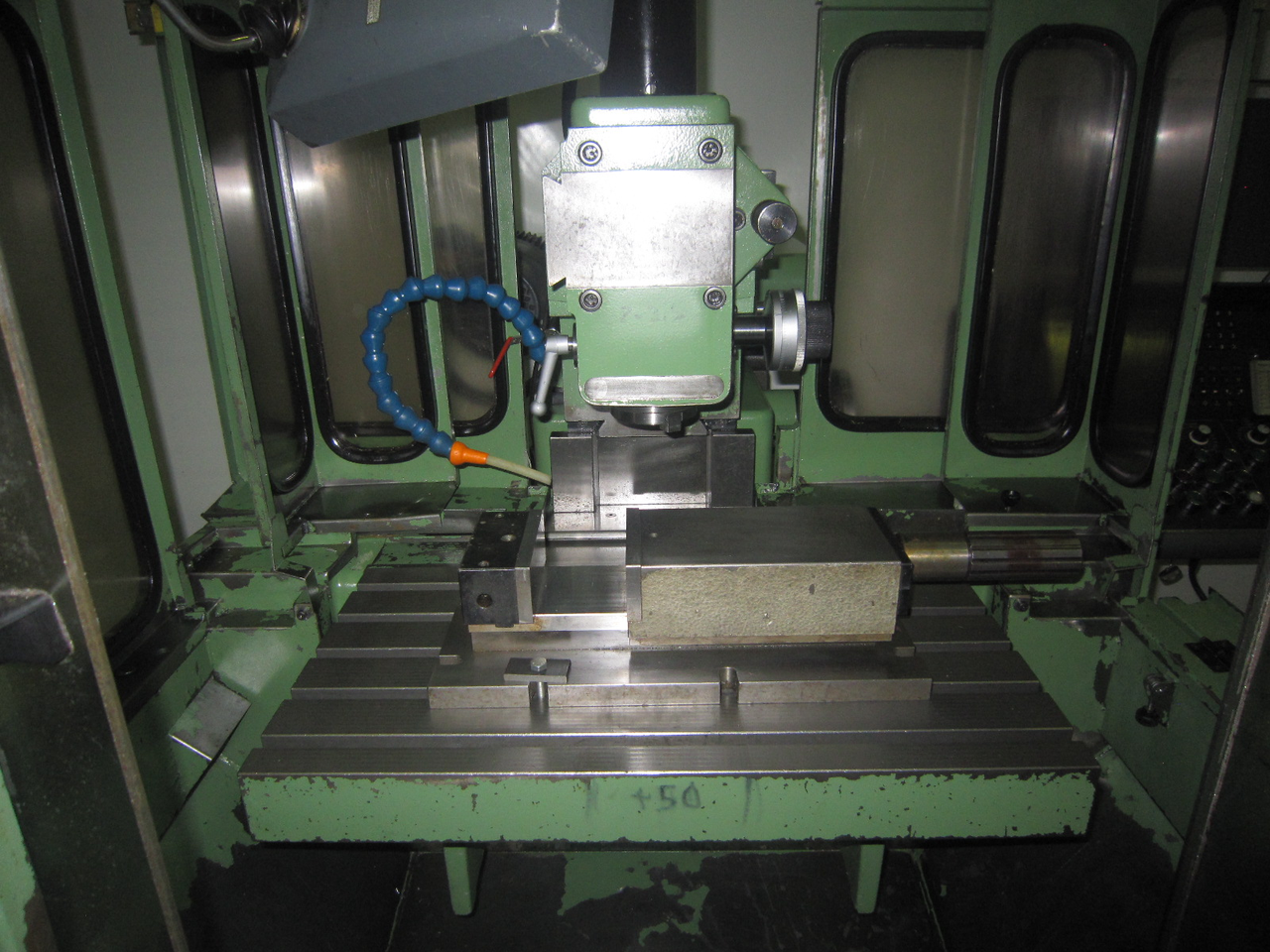

| Vice: width | 125 mm |
| Rigide table | |

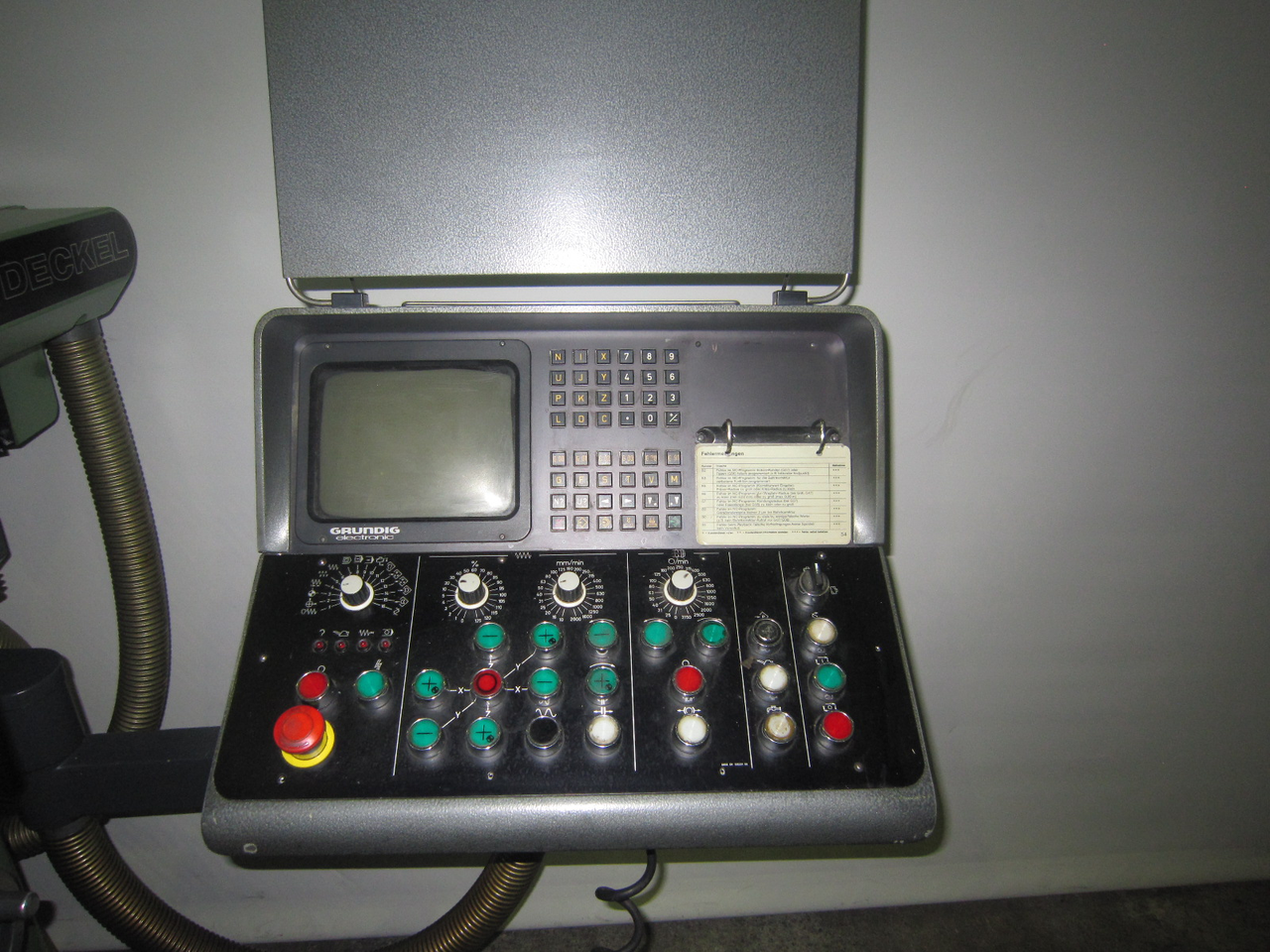

| Electronic hand held control | |
| Handling with handwheels | |

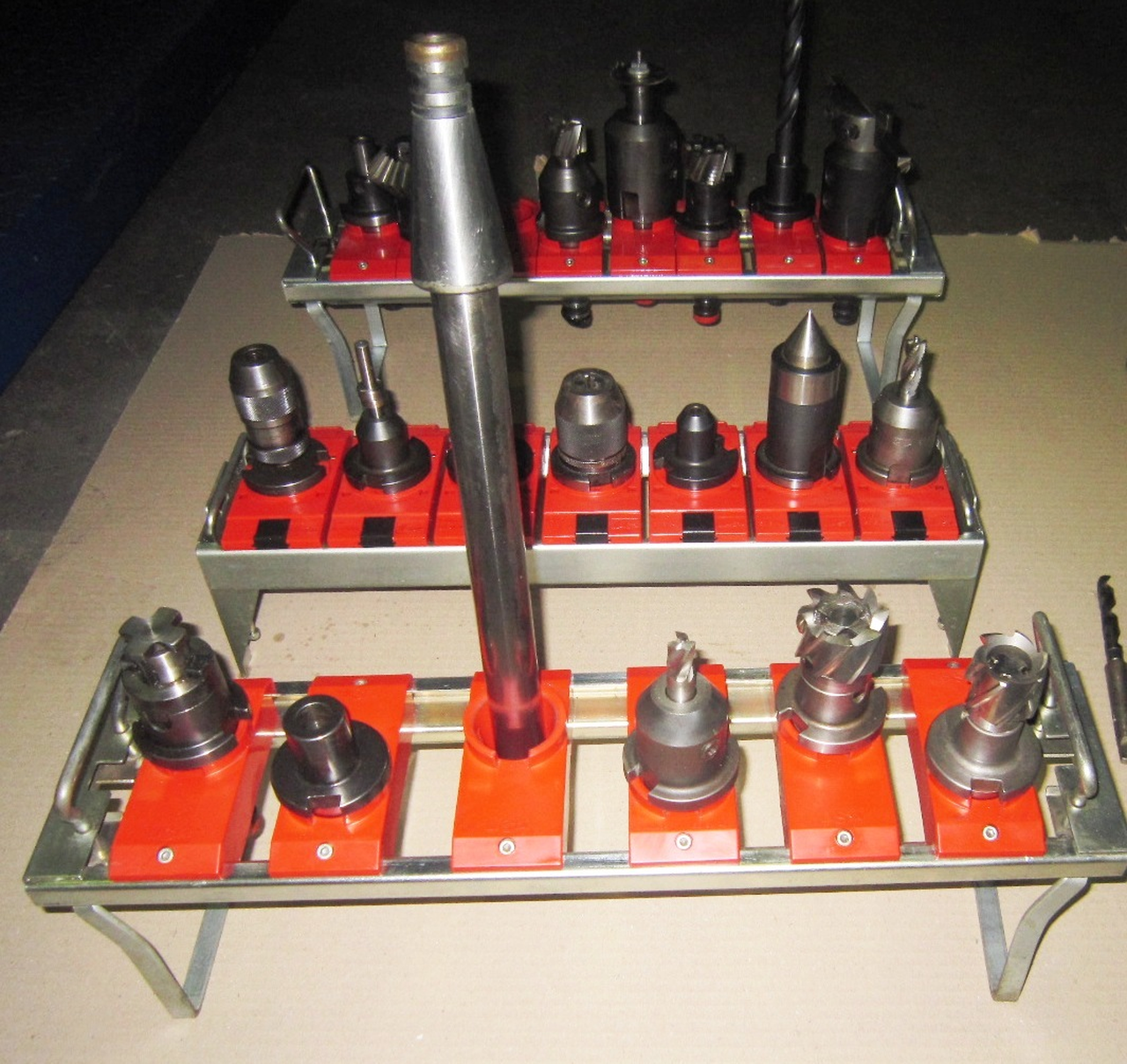

| Set of toolholders | |
| Coolant system | |
| Machine lamp |
