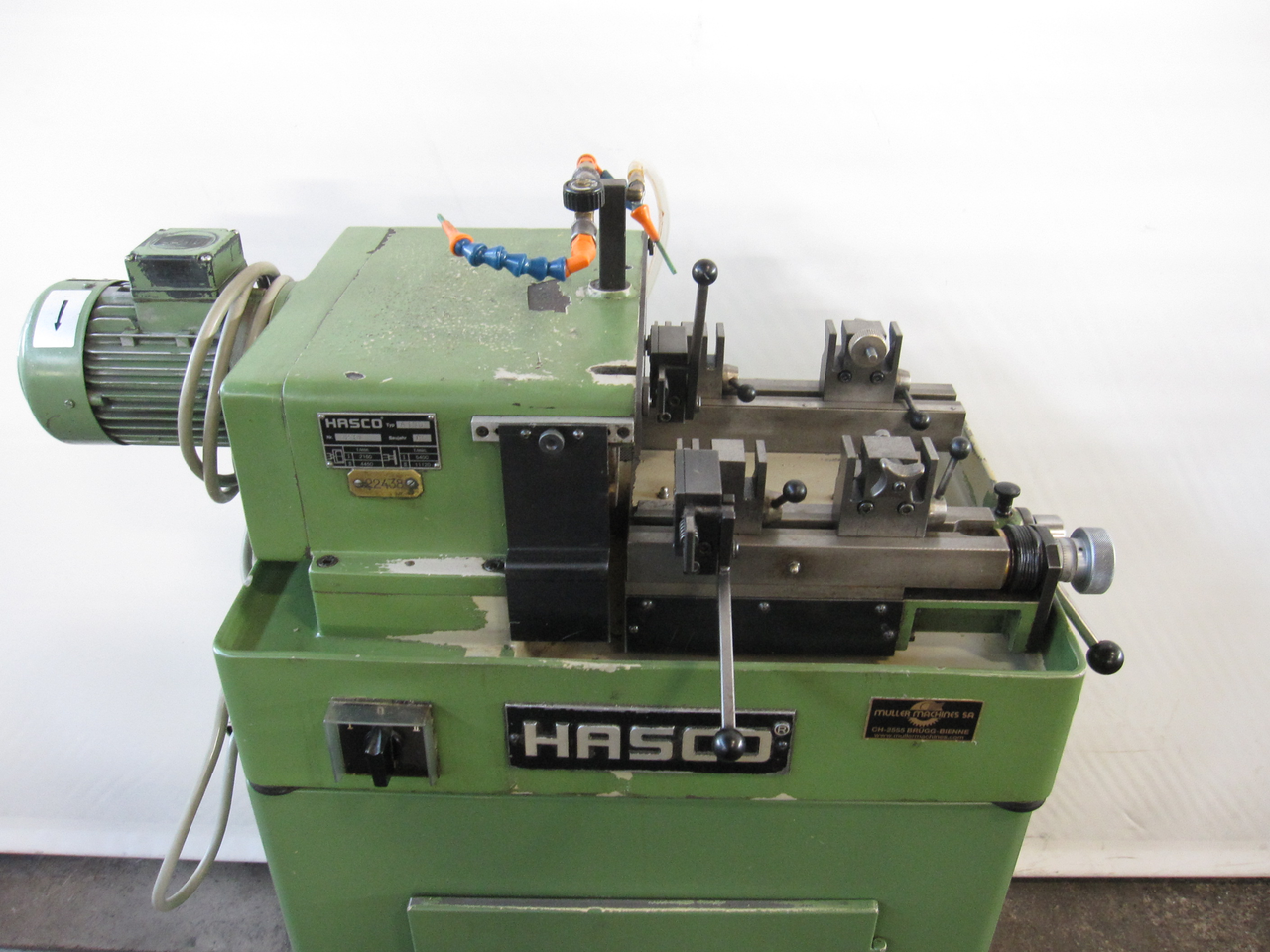

HASCO A 190 is a Cutting-off machine of high precision, built to deliver strong accuracy and reliable operation. Workpiece capacity: diameters 1–18 mm, lengths 10–600 mm; cutting-off wheel up to 100 × 1.0 mm; bore 20 mm; number of wheels: 1; grinding wheel 100 × 50 × 20 mm. Key specs: spindle speeds 2,160–4,450 t/min; voltage 50 Hz 3x 380 V; overall dimensions L900 × W600 × H1200 mm. Enables tight tolerances; typical applications: automotive, aerospace, medical, watchmaking, machine tools
| Work-pieces: | |
| from diameter | 1 mm |
| up to diameter | 18 mm |
| Length from | 10 - 600 mm |
| Cutting-off wheel diameter: | |
| up to | 100 x 1.0 mm |
| Bore | 20 mm |
| Number of cutting-off wheels | 1 x |
| Diameter of grinding wheel | 100 x 50 x 20 mm |
| Spindle speeds: | |
| from | 2160 t/min |
| up to | 4450 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Overall dimensions machine: | |
| Length | 900 mm |
| Width | 600 mm |
| Height | 1200 mm |
| Various accessories: | |
| Coolant system |
