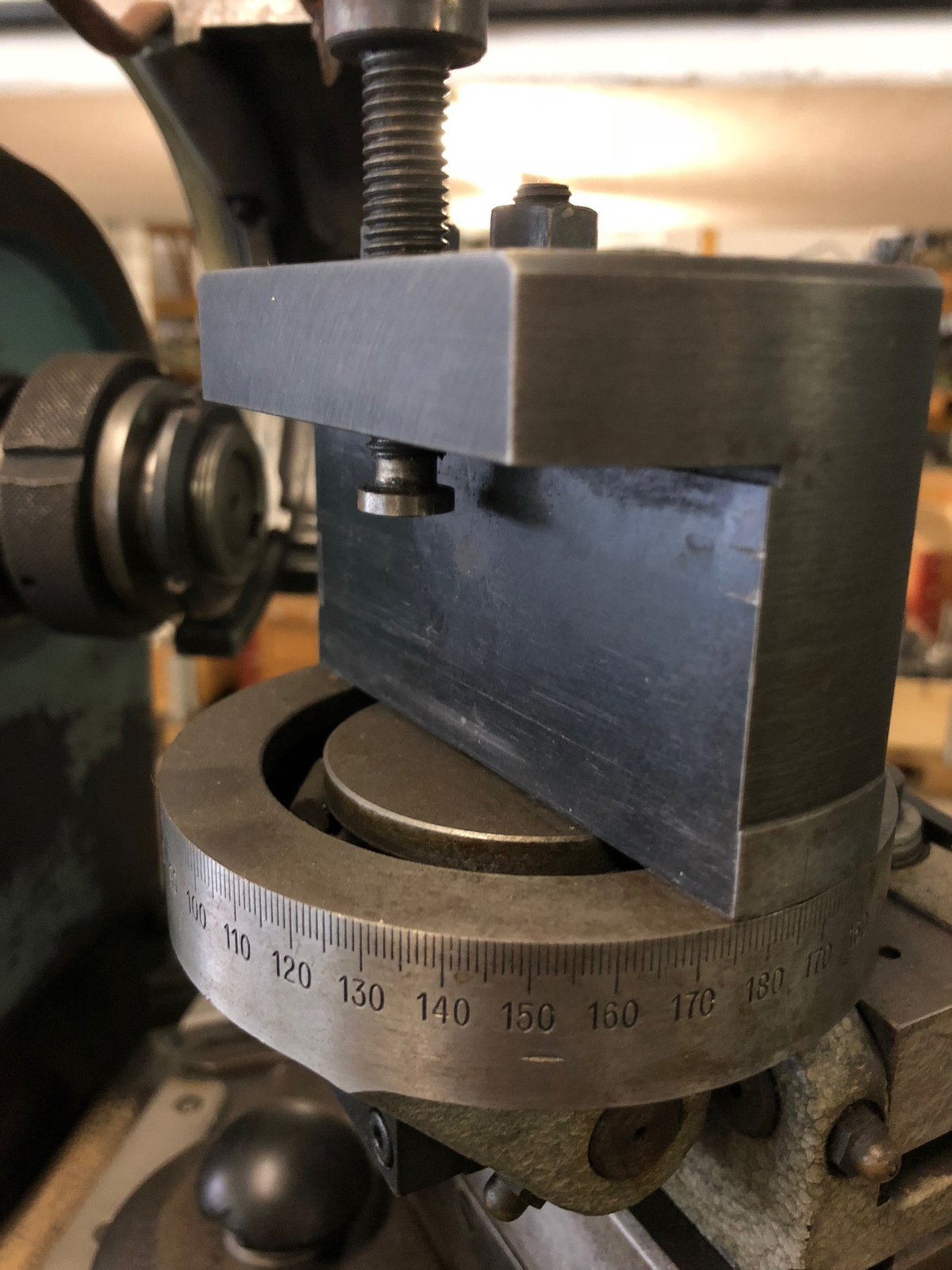

EWAG RS 2 is a radius and tangent grinding machine designed for precision, high accuracy and reliability. Working capacities: centre height 85 mm; longitudinal way 30 mm; transversal way 30 mm; grinding spindle from 2800 t/min. Main specs: grinding spindle motor 1.00 CV; voltage 50 Hz 3x 380 Volt; machine weight about 300 kg; overall dimensions L1100×W1000×H1400 mm. Accessories: universal swivel vice 40 mm and centering device. Enables tight tolerances; typical applications include automotive, watchmaking, machine tools, aerospace and medical.
| Centre height | 85 mm |
| Longitudinal way of table | 30 mm |
| Transversal way of the table | 30 mm |
| Grinding spindle speeds: | |
| from | 2800 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 1.00 CV |
| Machine's weight about | 300 kg |
| Overall dimensions machine: | |
| Length | 1100 mm |
| Width | 1000 mm |
| Height | 1400 mm |
| Various accessories: | |
| Universal Vice swivelable | 40mm |
| Centering device |
