014402 - SCHAUBLIN 102 N-80
Download technical sheet (PDF)
Message us on WhatsApp
| Centre height | 102 mm |
| Distance between centres | 375 mm |
| Swing over cross-slide | 120 mm |
| Swing over bed | 200 mm |
| Spindle hole | 45 mm |
| Inner taper type | 38 F |

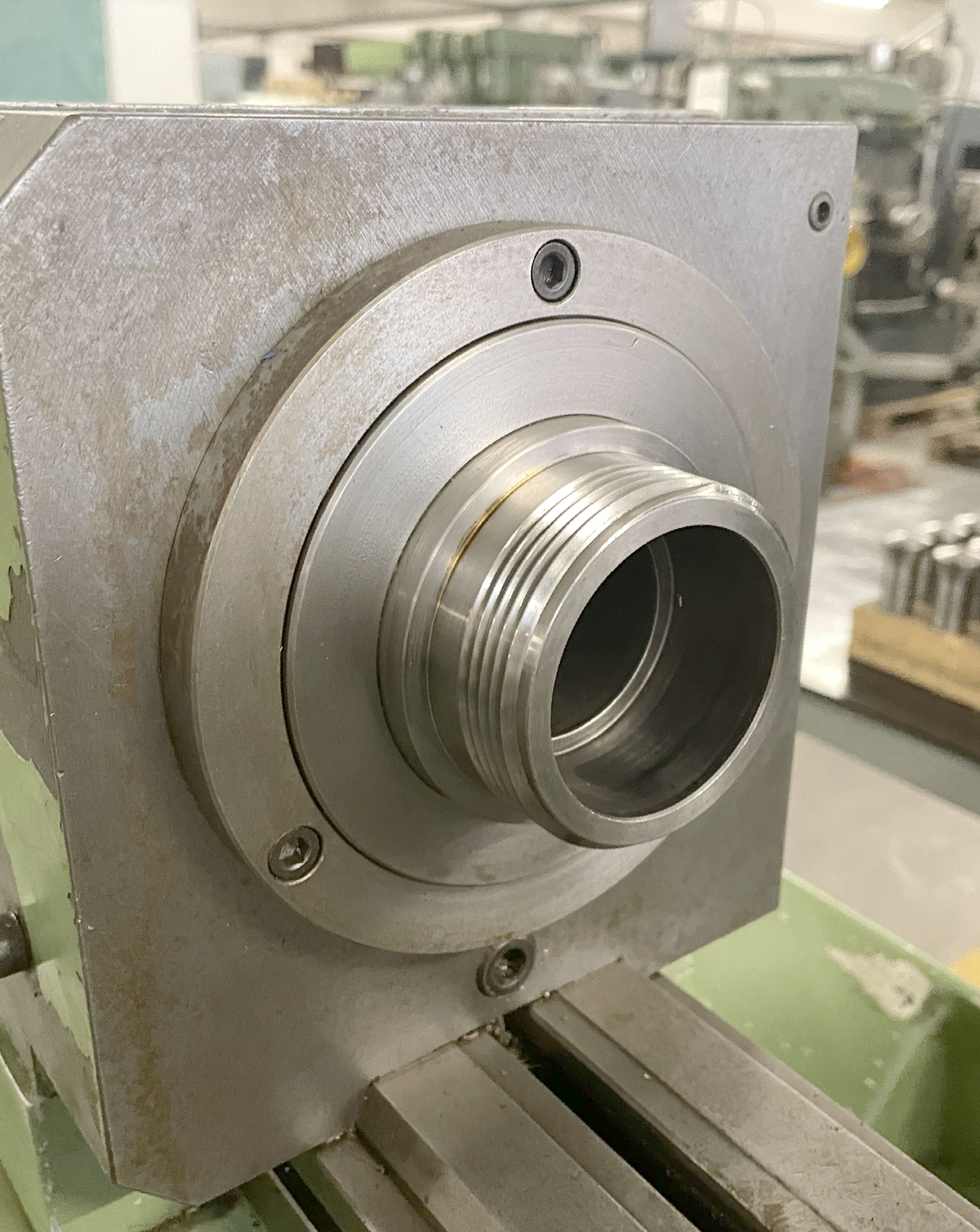

| Taper spindle threaded | |
| Spindle speeds: | |
| stepless | |
| from | 90 t/min |
| up to | 2600 t/min |
| Taper in tailstock: | 2 CM |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 1.5 CV |
| Machine's weight about | 550 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 600 mm |
| Height | 1400 mm |
| Various accessories: | |
| Base-mounted type: | |
| pedal-operadet reversing switch | |
| Coolant system | |
| 3-jaw chuck diameter | 100 mm |
| Quick closing attachment | |
| Drilling tailstock |
