DMG DMU 80 T
Special Price
CHF 15 000
Special offer machines are sold as-is, without any warranty or inspection from us.
Need Assistance? Just WhatsApp Us!
DMG DMU 80 T is a Vertical machining center delivering high precision, excellent accuracy and reliable performance. Table 1100×650 mm; travels X800 Y650 Z550 mm; milling head B divisions 90°; toolchanger 25 pos.; tool Ø 80 mm (160 mm adjacent free), length 315 mm. Spindle ISO40 up to 6300 rpm; spindle motor 16.2 kW; feed 1–15000 mm/min; rapid 15 m/min; total power 29 kW; weight ~5500 kg; dims 3100×2300×2500 mm. Fitted with double‑gripper toolchanger, coolant system and lamp. Achieves tight tolerances; suited to automotive, aerospace, medical, toolmaking and watchmaking industries
| Number of axis total | 3 |
| Table length | 1100 mm |
| Table width | 650 mm |
| Longitudinal travel (X-axis) | 800 mm |
| Transversal travel (y-axis) | 650 mm |
| Vertical travel (z axis) | 550 mm |
| Milling head divisions (B) | 90 ° |

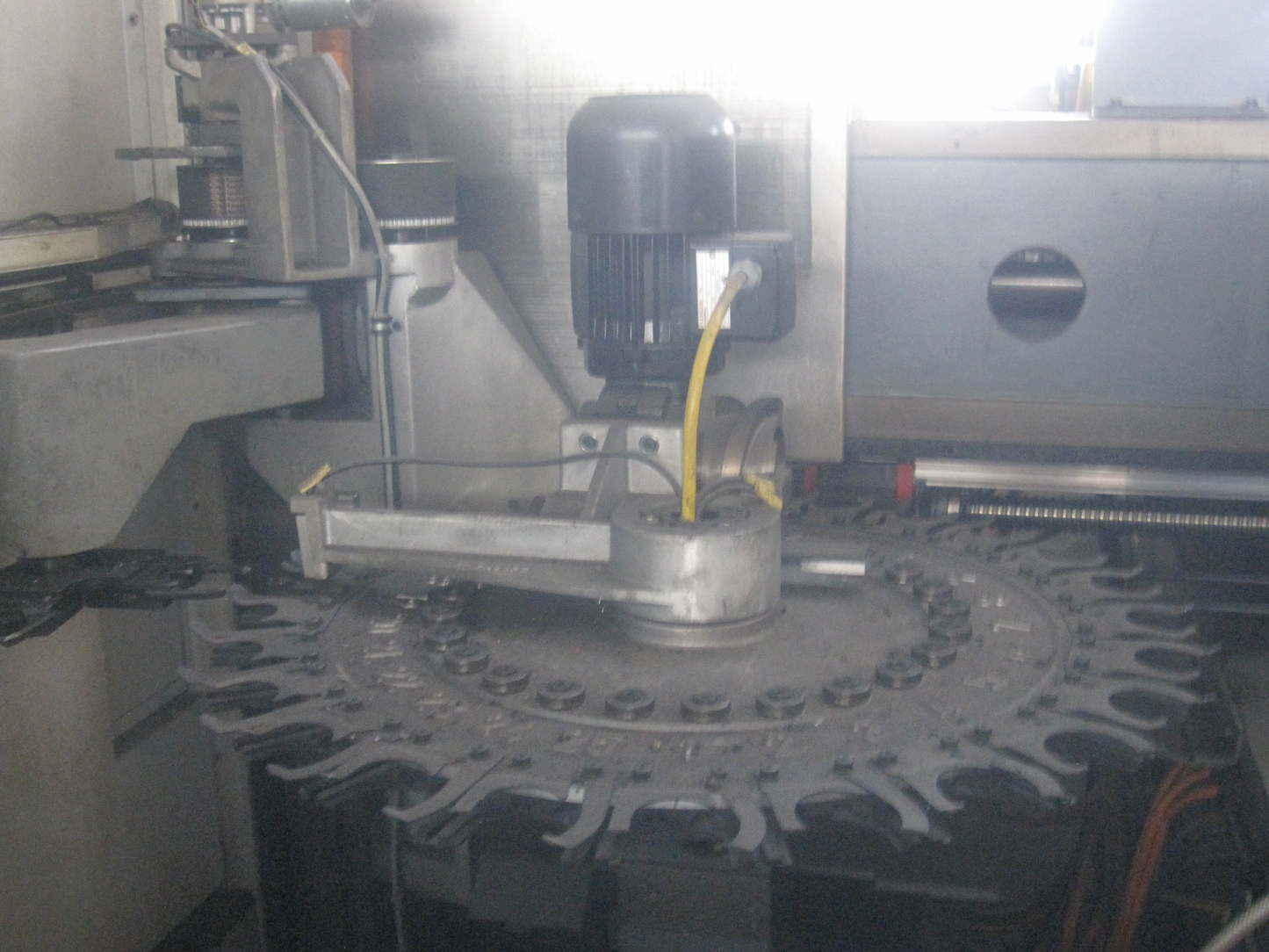

| Tool changer: | |
| with double gripper | |
| Number of tools | 25 |
| Tool diameter | 80 mm |
| Diameter with free adjacent pockets | 160 mm |
| Tool lenght | 315 mm |
| Spindle nose: ISO | 40 |
| Spindle speeds: | |
| up to | 6300 t/min |
| Vertical spindle speeds: | |
| Feed range | 1-15000 mm/min |
| Rapid traverse: | 15 m/min |
| Spindle motor | 16.2 kW |
| Total power required | 29 kW |
| Machine's weight about | 5500 kg |
| Overall dimensions machine: | |
| Length | 3100 mm |
| Width | 2300 mm |
| Height | 2500 mm |
| Various accessories: | |
| Coolant system | |
| Lamp |
