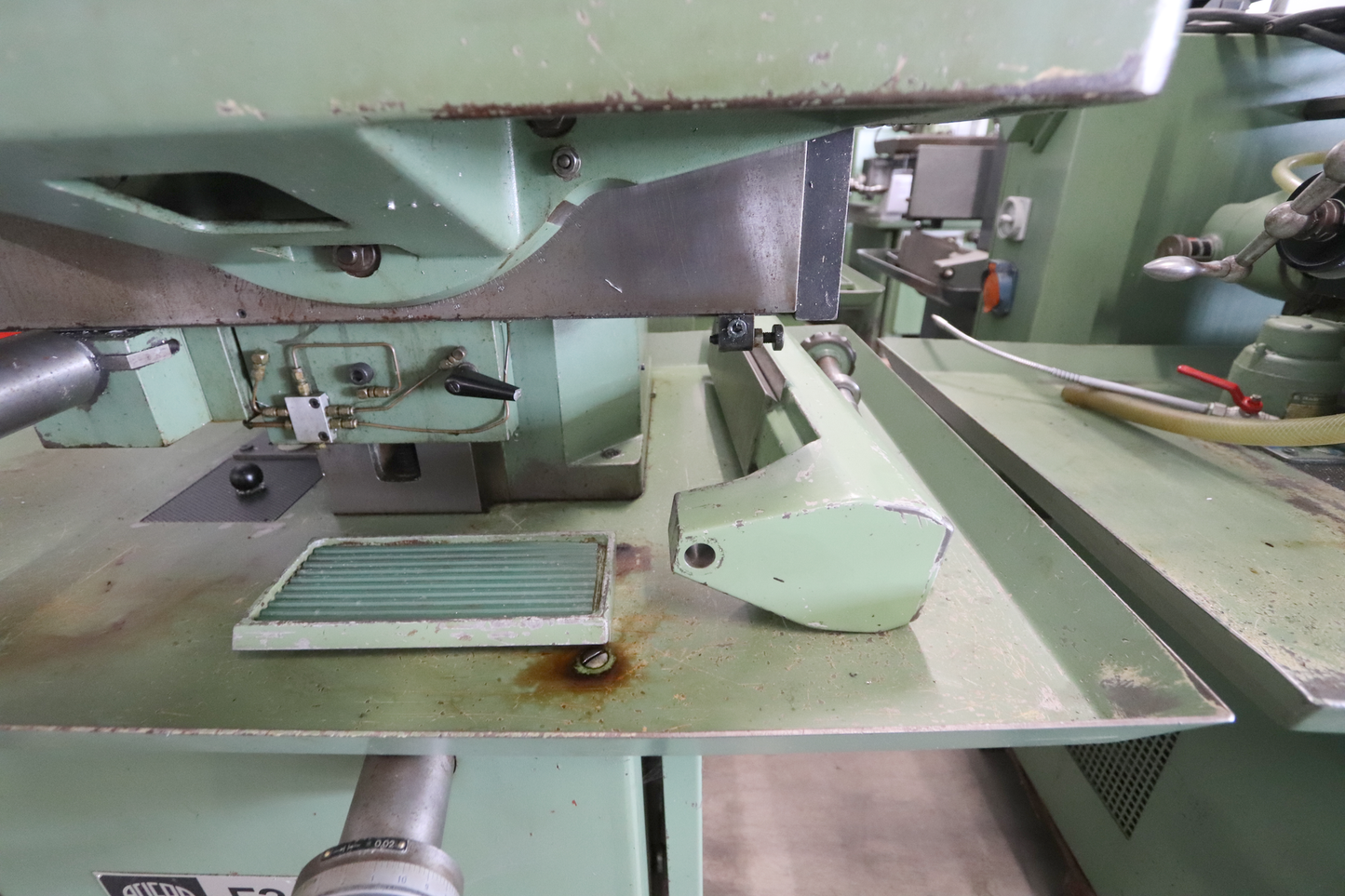

ACIERA F 3 is a Universal milling machine designed for high‑precision machining with superior accuracy and reliability. Working capacities: table 600 x 190 mm; travels X 300 mm, Y 135 mm, Z 300 mm; distance from vertical spindle to table 260 mm, from horizontal spindle to table 310 mm. Main technical specifications: spindle 8 steps 100–2000 t/min; spindle taper 20 W; feeds 8 steps 12.0–116 mm/min; voltage 50 Hz 3x380 V; motor output 2.0 CV; total power 3 CV; machine weight approx. 600 kg; overall dimensions L1100 x W900 x H1600 mm. Accessories: vice, steady, swivel table, vertical milling head. Enables tight tolerances; suitable for automotive, watchmaking, machine tool building, aerospace and medical sectors.
| Table length | 600 mm |
| Table width | 190 mm |
| Longitudinal travel (X-axis) | 300 mm |
| Transversal travel (y axis) | 135 mm |
| Vertical travel (z axis) | 300 mm |
| Distance from vertical spindle to table | 260 mm |
| Distance from horizontal spindle to table | 310 mm |
| Spindle speeds: | |
| number (steps) | 8 |
| from | 100 t/min |
| up to | 2000 t/min |
| Taper in spindle: | 20 W |
| Feeds steps: | 8 |
| longitudinal from | 12.0 mm/min |
| up to | 116 mm/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 2.0 CV |
| Total power required | 3 CV |
| Machine's weight about | 600 kg |
| Overall dimensions machine: | |
| Length | 1100 mm |
| Width | 900 mm |
| Height | 1600 mm |
| Various accessories: | |
| Vice | |
| Steady | |
| Swivel table | |
| Vertical milling head |
