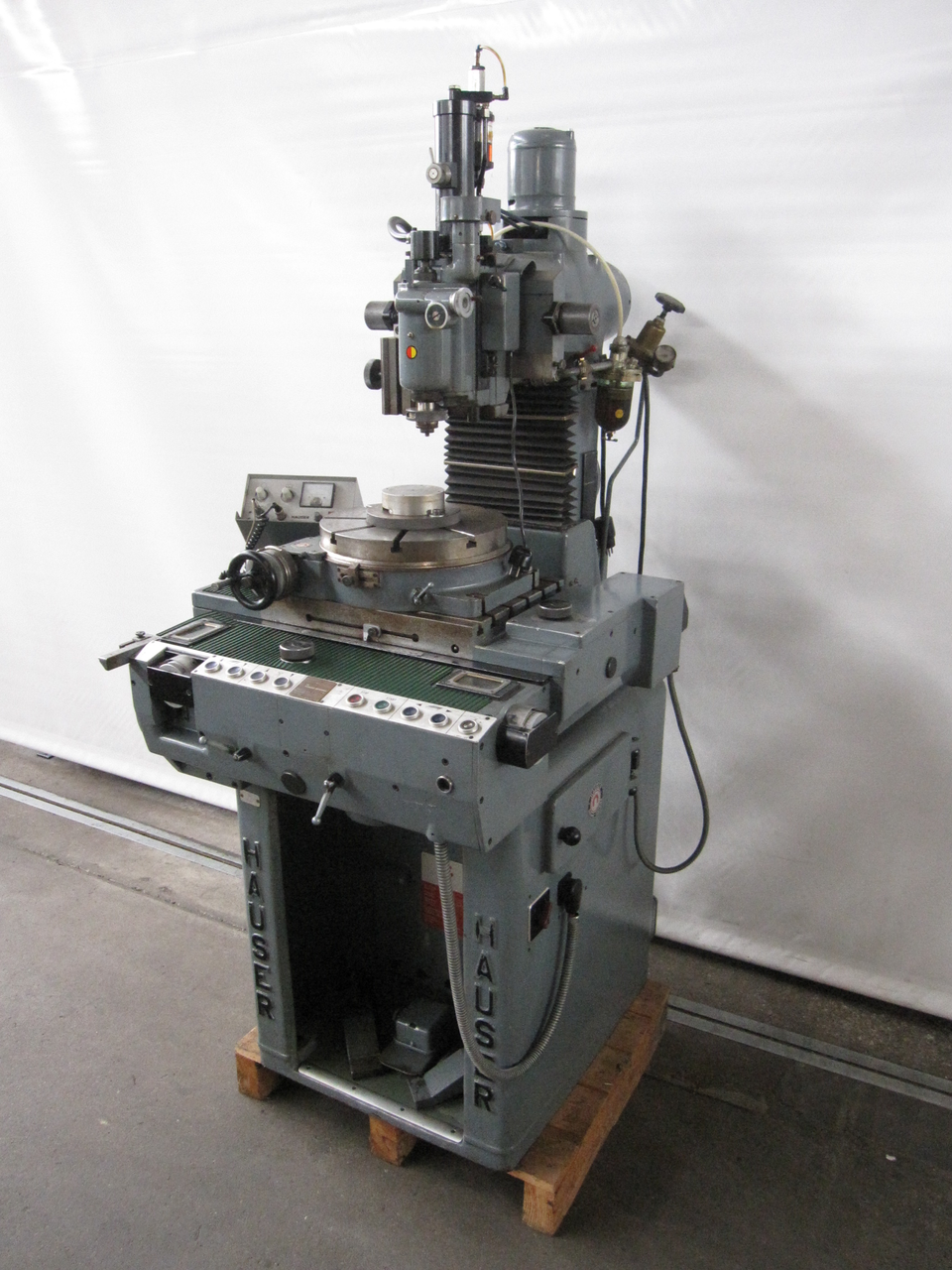

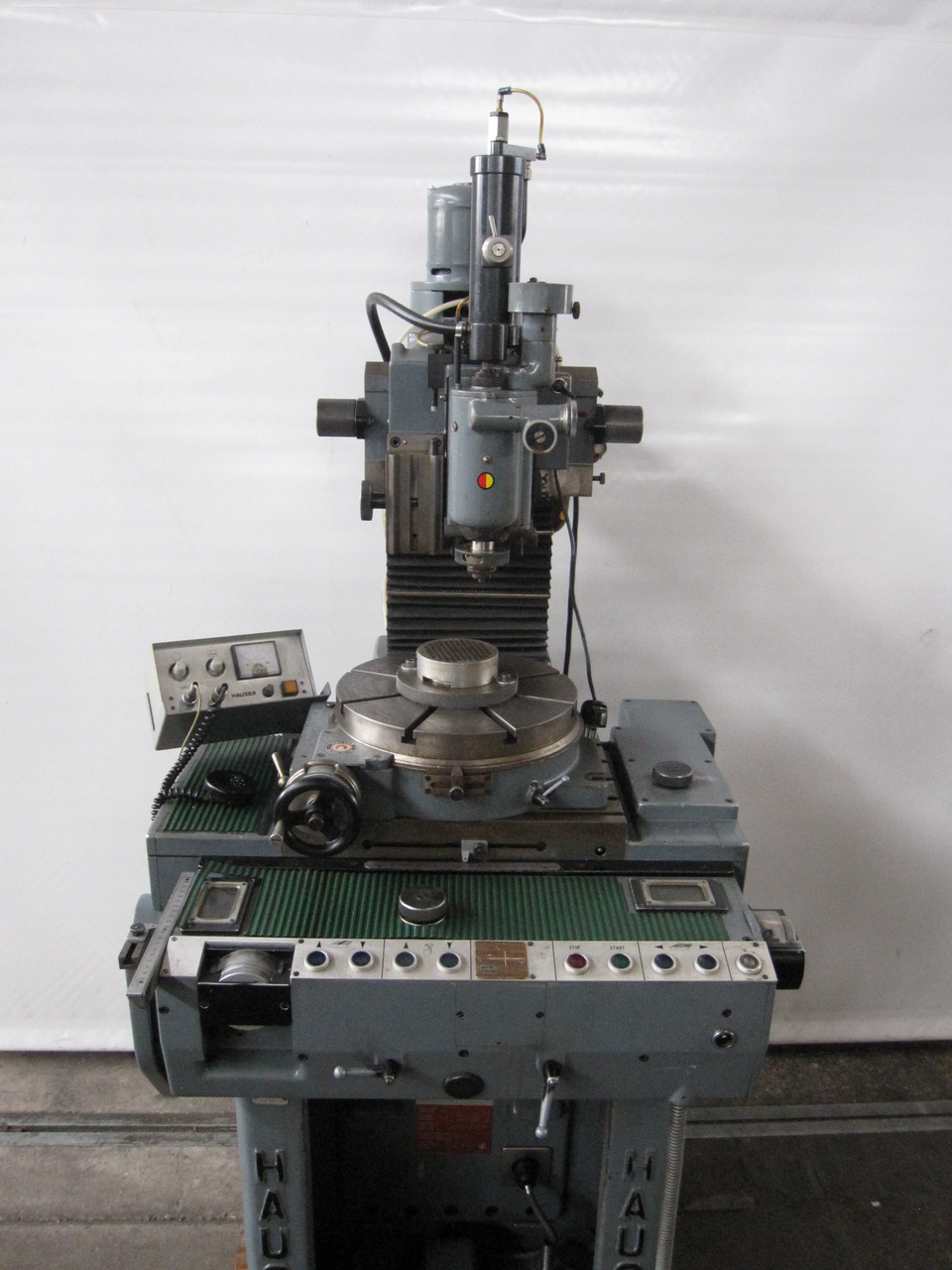

HAUSER 2 SO is a jig grinder designed for precision, high accuracy and reliable operation. Capacities: table 400x300 mm; travels X 200 mm, Y 200 mm; vertical slide travel 250 mm; spindle‑to‑table passage 270 mm; max grinding Ø 15 mm; vertical spindle travel 2–32 mm. Specs: travel speeds 2 settings 4–5 m/min; spindle speed stepless up to 120000 t/min; power 3x 380 V 50 Hz; weight ~750 kg; dimensions 1200x900x1600 mm. Accessories: rotary table Ø300 mm, clamping set, air turbine. Delivers tight tolerances; typical in automotive, watchmaking, machine tool, aerospace and medical sectors.
| 1 column execution | |
| Table length | 400 mm |
| Table width | 300 mm |
| Longitudinal travel (X-axis) | 200 mm |
| Transversal travel (y-axis) | 200 mm |
| Travel of the vertical slide | 250 mm |
| Passage from grinding motor to table | 270 mm |
| Max. grinding diameter | 15 mm |
| Vertical travel of grinding spindle: | |
| stepless from | 2 mm |
| up to | 32 mm |
| Travel speeds: | |
| numbers | 2 |
| from | 4 m/min |
| up to | 5 m/min |
| Possible grinding-spindle speeds: | |
| stepless | |
| up to | 120000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 750 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 900 mm |
| Height | 1600 mm |
| Various accessories: | |
| Rotary table diameter | 300 mm |
| Set of clamping tools | |
| Air turbine |
