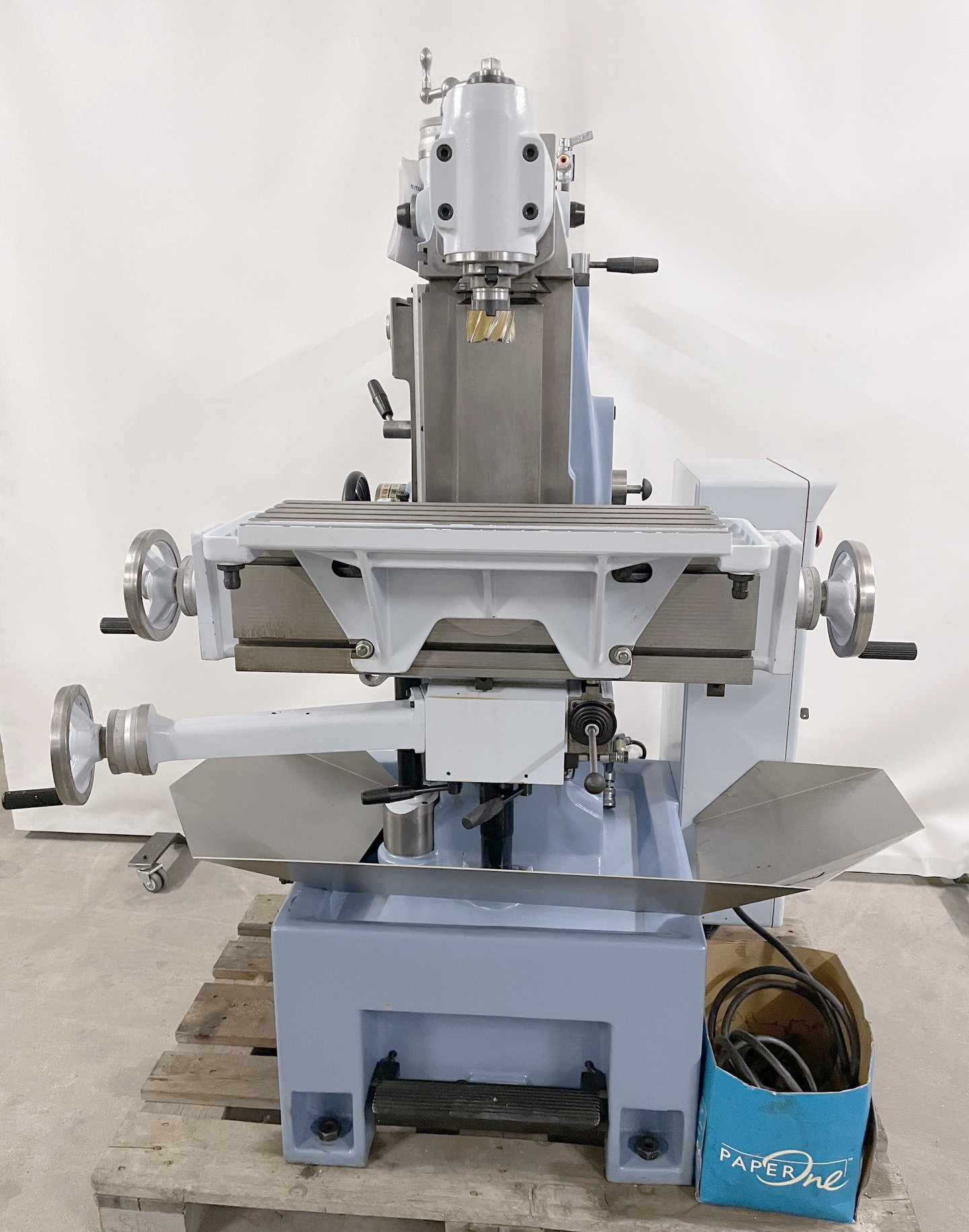

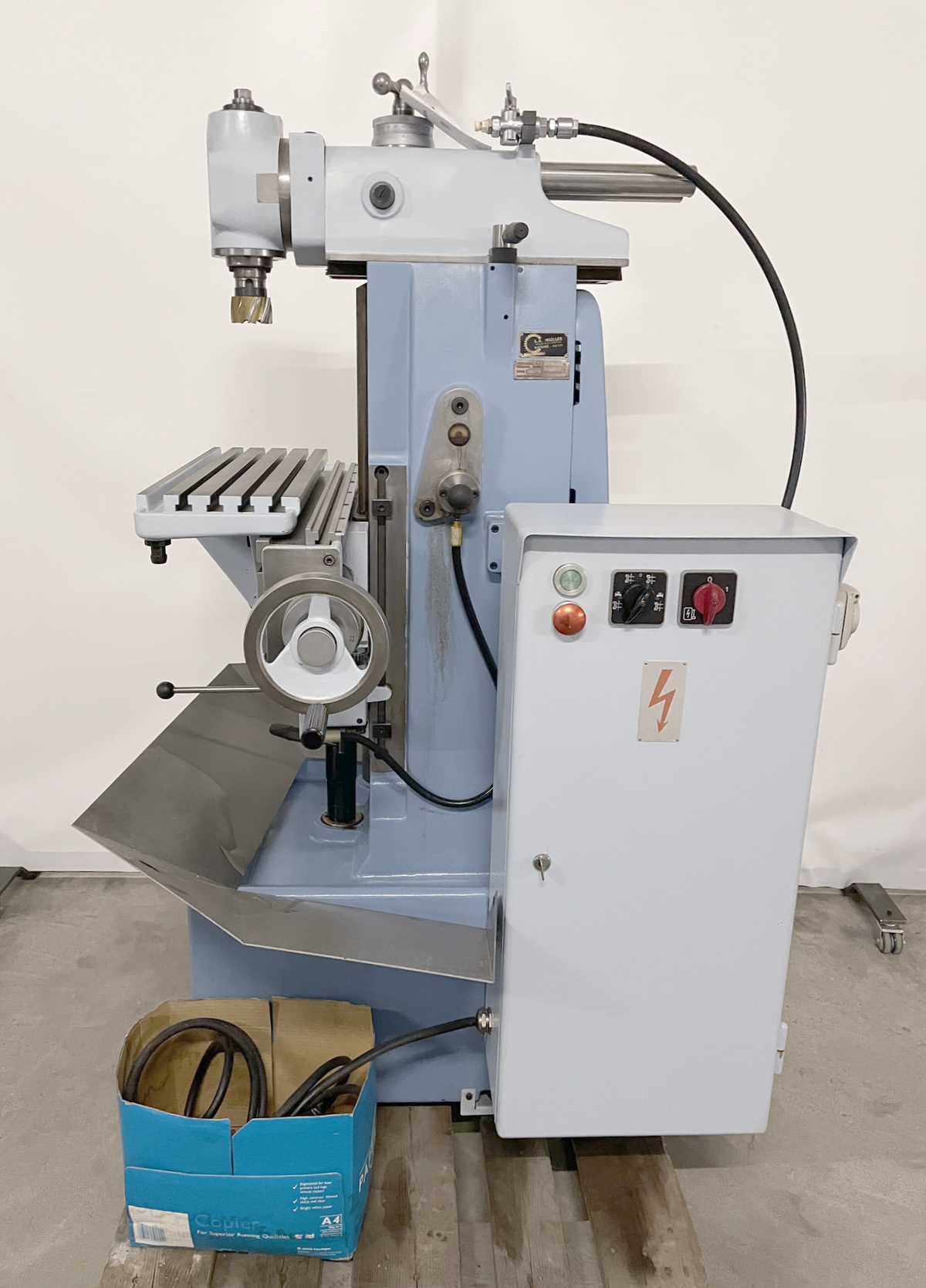

SCHAUBLIN 13 is a universal milling machine for precision machining, offering high accuracy and reliability. Table 600×210 mm; travels X260 Y150 Z310 mm. Spindle taper 30 ISO, stepless 58–2000 rpm. 10 feed steps 12–400 mm/min; rapid X/Z 1.2 m/min. Supply 3×380 V 50 Hz, 4 CV; weight ~750 kg; footprint 1500×1100×1600 mm. Accessories: coolant, rigid table, vertical milling head. Enables tight tolerances; typical sectors: automotive, watchmaking, tooling, aerospace, medical.
| Table length | 600 mm |
| Table width | 210 mm |
| Longitudinal travel (X-axis) | 260 mm |
| Transversal travel (y axis) | 150 mm |
| Vertical travel (z axis) | 310 mm |
| Spindle speeds: | |
| stepless | |
| from | 58 t/min |
| up to | 2000 t/min |
| Taper in spindle | 30 ISO |
| Feeds steps: | 10 |
| longitudinal from | 12.0 mm/min |
| up to | 400 mm/min |
| vertical from | 12.0 mm/min |
| up to | 400 mm/min |
| Rapid traverse: | |
| longitudinal | 1.2 m/min |
| vertical | 1.2 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 4 CV |
| Machine's weight about | 750 kg |
| Overall dimensions machine: | |
| Length | 1500 mm |
| Width | 1100 mm |
| Height | 1600 mm |
| Various accessories: | |
| Coolant system | |
| Rigide table | |
| Vertical milling head |
