HAUSER 350 x 260
Type: 350 x 260
Manufacturer: HAUSER
Group: Rotary table / cross table
Subgroup: Cross table
Stock: 007177

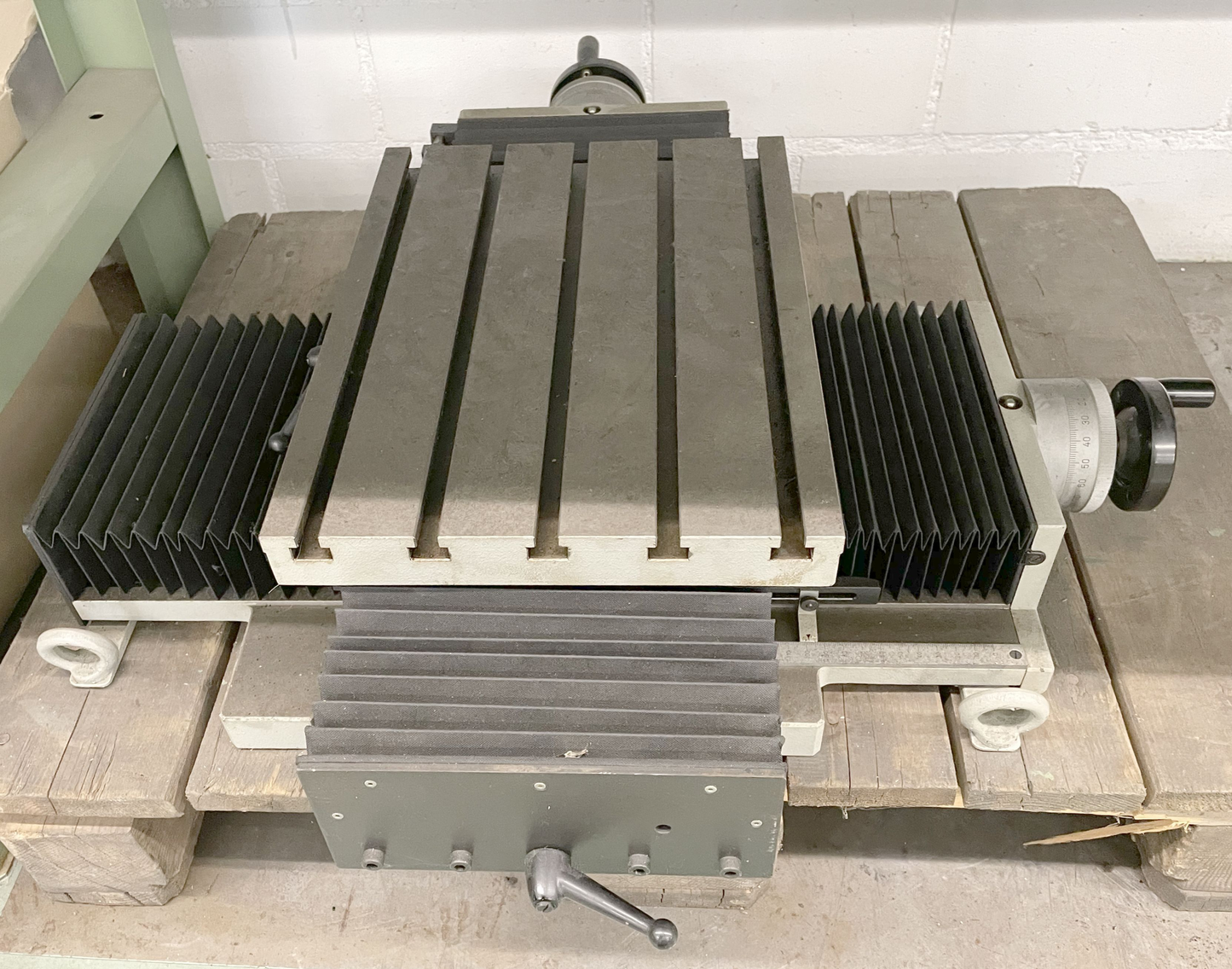

HAUSER 350 x 260 is a cross table engineered for high-precision machining with excellent accuracy and reliability. Clamping surface 350×260 mm; travels: longitudinal 250 mm, crosswise 200 mm; table height 180 mm; 5 T-slots 10H7 mm, slot pitch 55 mm. Machine weight approx. 120 kg; dimensions 700×700×180 mm. Enables tight tolerances; suitable for automotive, watchmaking, machine-tool, aerospace and medical applications.
| Cross table | |
| Execution: | |
| Horizontal | |
| Clamping surface: | |
| Length | 350 mm |
| Width | 260 mm |
| Travels: | |
| longitudinal | 250 mm |
| Crosswise | 200 mm |
| Table height | 180 mm |
| Number of T-channels | 5 |
| T-channel width | 10H7 mm |
| Distance of the T-slots | 55 mm |
| Machine's weight about | 120 kg |
| Dimensions: | |
| Length | 700 mm |
| Width | 700 mm |
| Height | 180 mm |
