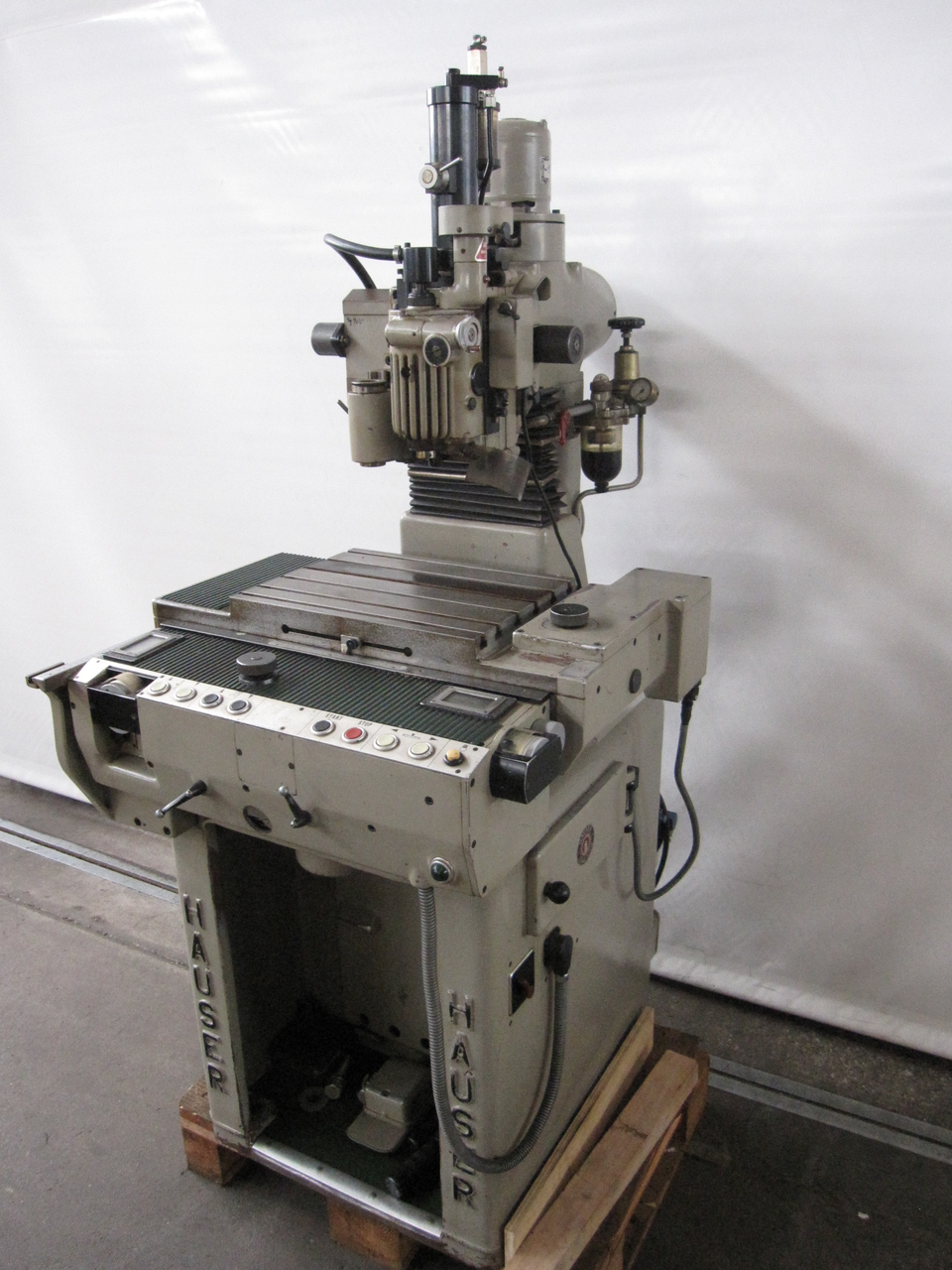

HAUSER 2 SO is a jig grinder (coordinate grinding machine) engineered for precision, high accuracy and reliability. Capacities: table 400×300 mm, travels X 200 mm and Y 200 mm, vertical slide 250 mm, pass from grinding spindle to table 270 mm, max grinding Ø15 mm; spindle travel 2–32 mm, feed 4–5 m/min. Specs: spindle speed stepless up to 120000 t/min; supply 50 Hz 3×380 V; weight ≈750 kg; overall L1100×W1000×H1800 mm. Achieves tight tolerances; typical sectors: automotive, watchmaking, tooling, aerospace, medical.
| 1 column execution | |
| Table length | 400 mm |
| Table width | 300 mm |
| Longitudinal travel (X-axis) | 200 mm |
| Transversal travel (y-axis) | 200 mm |
| Travel of the vertical slide | 250 mm |
| Passage from grinding motor to table | 270 mm |
| Max. grinding diameter | 15 mm |
| Vertical travel of grinding spindle: | |
| stepless from | 2 mm |
| up to | 32 mm |
| Travel speeds: | |
| numbers | 2 |
| from | 4 m/min |
| up to | 5 m/min |
| Possible grinding-spindle speeds: | |
| stepless | |
| up to | 120000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 750 kg |
| Overall dimensions machine: | |
| Length | 1100 mm |
| Width | 1000 mm |
| Height | 1800 mm |
