003439 - ISOMA 108 YM
Type: 108 YM
Manufacturer: ISOMA
Stock: 003439
Download technical sheet (PDF)

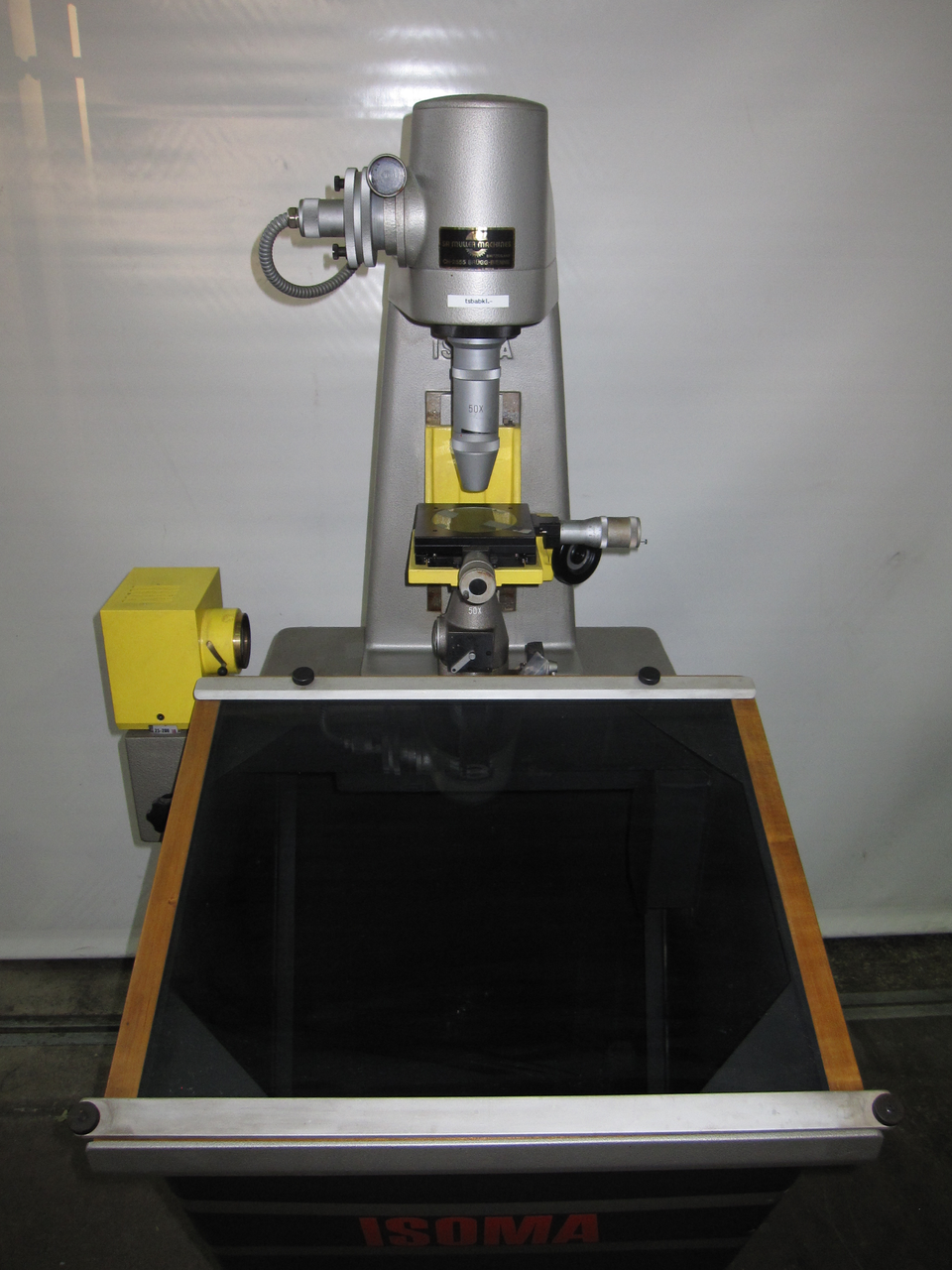

ISOMA 108 YM is a Profile projector engineered for high precision, offering excellent accuracy and reliability. Working capacities: screen 550 x 450 mm; microscope stage 130 x 130 mm; longitudinal travel 40 mm, transversal travel 30 mm; glass table diameter 100 mm; magnification 50:1 with manual objective change. Main technical specs: voltage 50 Hz, 3x 220 V; machine weight about 200 kg; overall dimensions L1000 x W800 x H2000 mm; diascopy and episcopy illumination. Enables tight tolerances and is suitable for automotive, watchmaking, toolmaking, aerospace and medical applications.

Screen width 550 mm
Screen height 450 mm
Microscope stage length 130 mm
Microscope stage width 130 mm
Longitudinal way 40 mm
Transversal way 30 mm
Diameter of the glass table 100 mm
Amplifications:
   50 1 x
Change of objective with:
   manual
Lighting:
   Diascopy lighting
   episcopy
Voltage 50 Hz 3x 220 Volt
Machine's weight about 200 kg
Overall dimensions machine:
   Length 1000 mm
   Width 800 mm
   Height 2000 mm
