002787 - ACIERA F 3
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

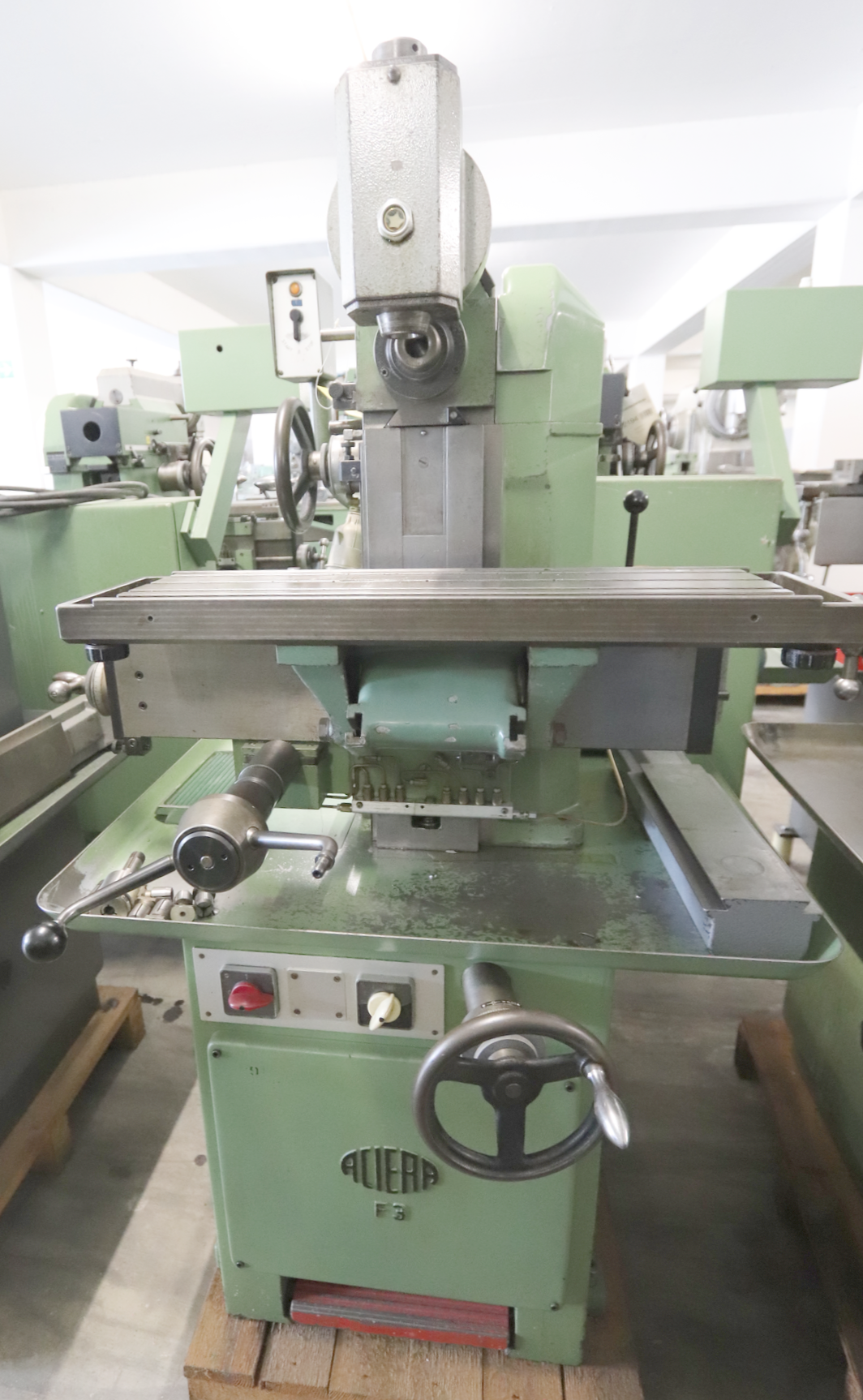

ACIERA F 3 is a universal milling machine, engineered for precision, high accuracy and reliability. Table 600x190 mm; travels X 300 mm, Y 135 mm, Z 300 mm; distance spindle–table 260 mm. Spindle speeds: 8 steps from 95 up to 2000 t/min, taper 20 W; feeds 8 steps 12.0–232 mm/min. Voltage 50 Hz 3x380 Volt, motor output 2.0 CV; weight about 500 kg; overall dimensions L1100xW900xH1600 mm. Accessories: steady, tilting table, vertical milling head. Enables tight tolerances and is suited to applications requiring high precision.

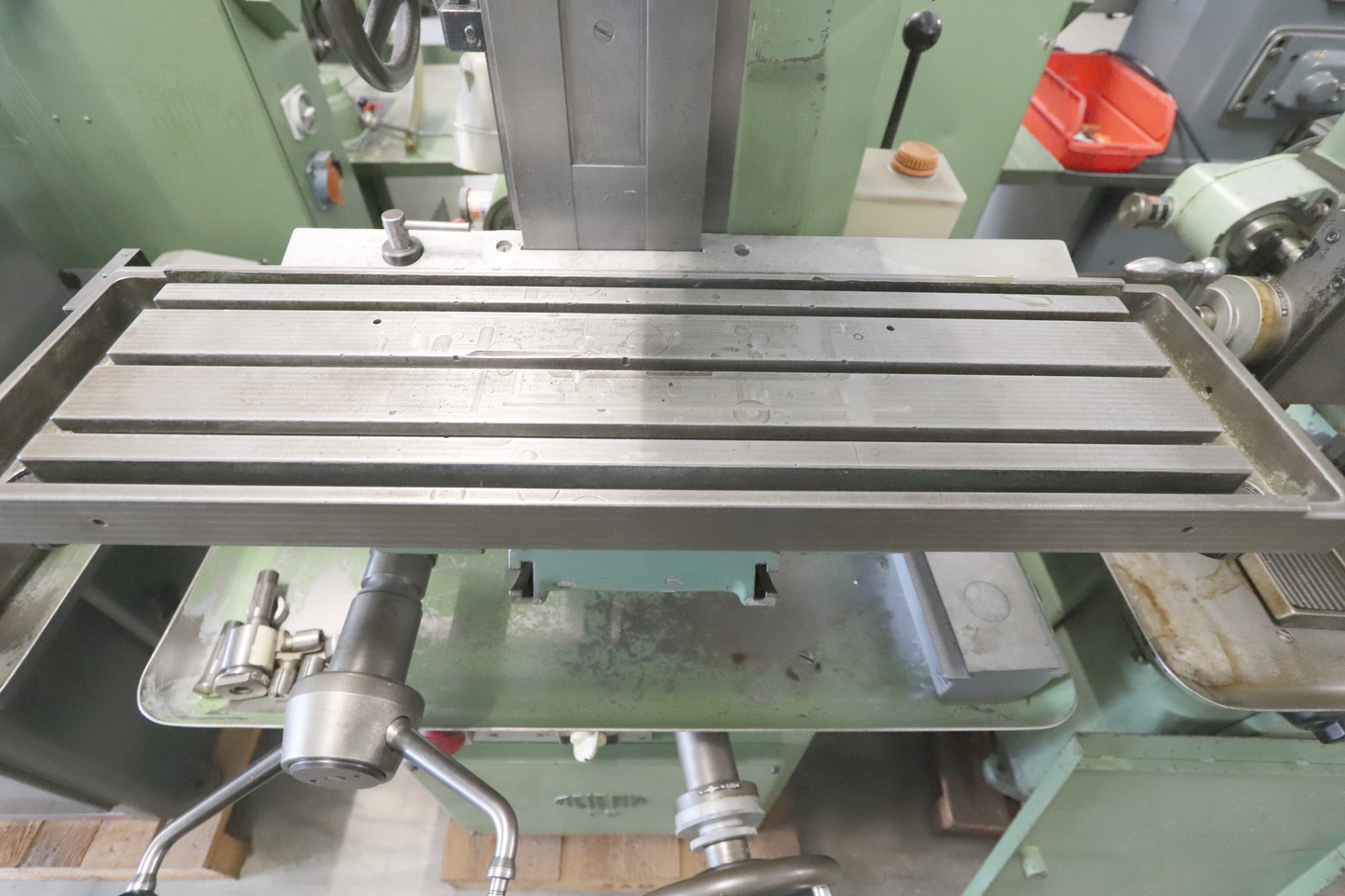

| Table length | 600 mm |
| Table width | 190 mm |
| Longitudinal travel (X-axis) | 300 mm |
| Transversal travel (y axis) | 135 mm |
| Vertical travel (z axis) | 300 mm |
| Distance from vertical spindle to table | 260 mm |
| Spindle speeds: | |
| number (steps) | 8 |
| from | 95 t/min |
| up to | 2000 t/min |
| Taper in spindle: | 20 W |
| Feeds steps: | 8 |
| longitudinal from | 12.0 mm/min |
| up to | 232 mm/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 2.0 CV |
| Machine's weight about | 500 kg |
| Overall dimensions machine: | |
| Length | 1100 mm |
| Width | 900 mm |
| Height | 1600 mm |
| Various accessories: | |
| Steady | |
| Tilting table | |
| Vertical milling head |
