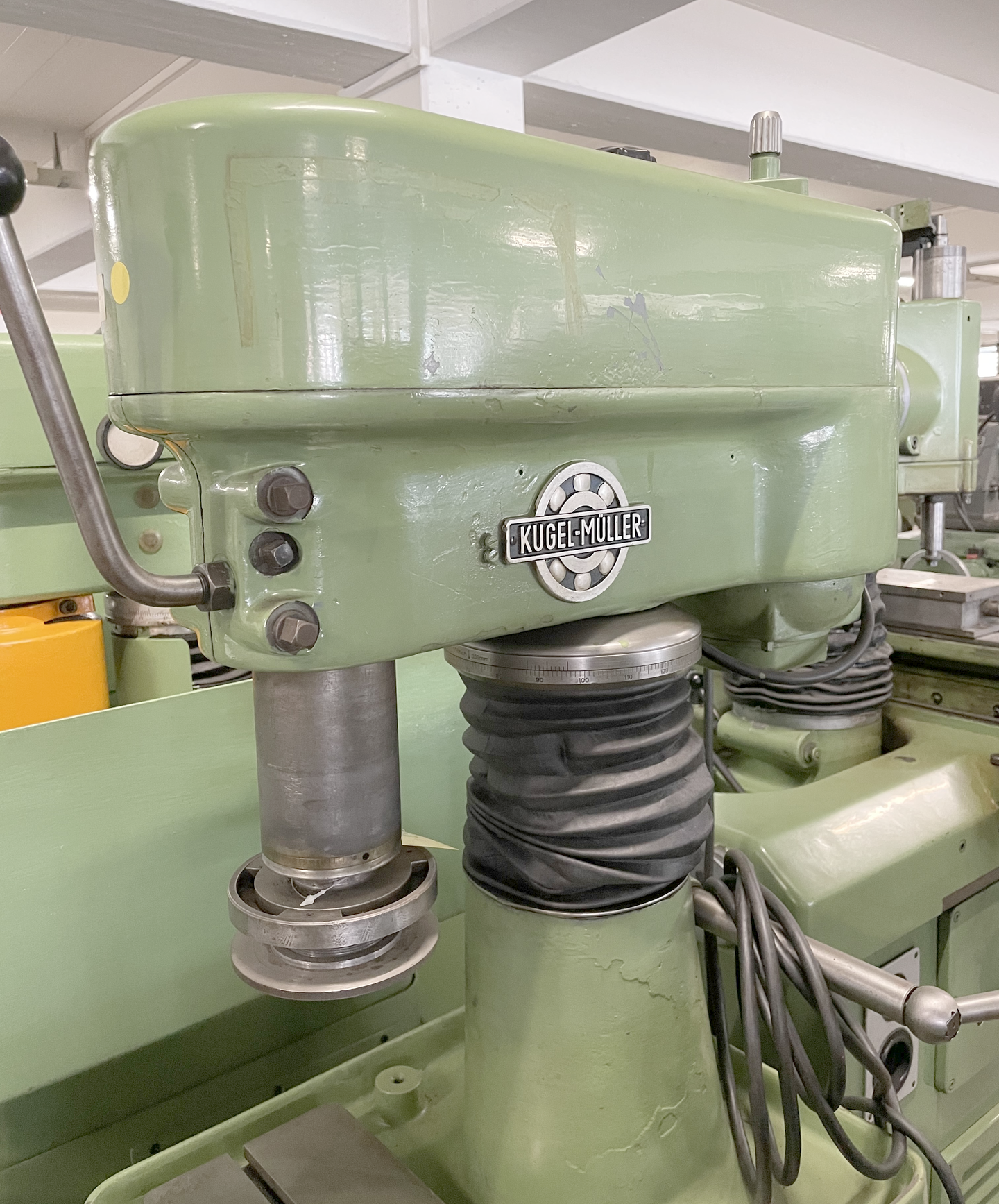

KUGEL MULLER MPS 2
Type: MPS 2
Manufacturer: KUGEL MULLER
Group: Bell-disc grinder
Subgroup: Bell-disc grinder
Stock: 002721
KUGEL MULLER MPS 2 is a bell-disc grinder for precision, high accuracy and reliability. Wheel Ø175 mm; table 300x160 mm; grinding 400 mm; height 245 mm; vertical adjust 165/12 mm. 2560 t/min; 3x380V 50Hz; 2 kW; ~200 kg; 700x500x1600 mm. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Throwing wheel diameter | 175 mm |
| Table length | 300 mm |
| Table width | 160 mm |
| Table surface: | |
| Length | 305 mm |
| Width | 175 mm |
| Grinding length | 400 mm |
| Grinding height over table | 245 mm |
| Grinding spindle speeds | 2560 t/min |
| Vertical adjustment rough | 165 mm |
| Vertical adjustment fine | 12 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 2 kW |
| Machine's weight about | 200 kg |
| Overall dimensions machine: | |
| Length | 700 mm |
| Width | 500 mm |
| Height | 1600 mm |
